Overview

Metric	Contrafold		Sfold
MCC	0.458	>	0.425
Average MCC ± 95% Confidence Intervals	0.525 ± 0.083	>	0.503 ± 0.086
Sensitivity	0.435	>	0.377
Positive Predictive Value	0.491	>	0.488
Total TP	512	>	444
Total TN	158463	<	158596
Total FP	548	>	477
Total FP CONTRA	63	>	54
Total FP INCONS	468	>	412
Total FP COMP	17	>	11
Total FN	666	<	734
P-value	3.56938820447e-08

^top

Performance plots

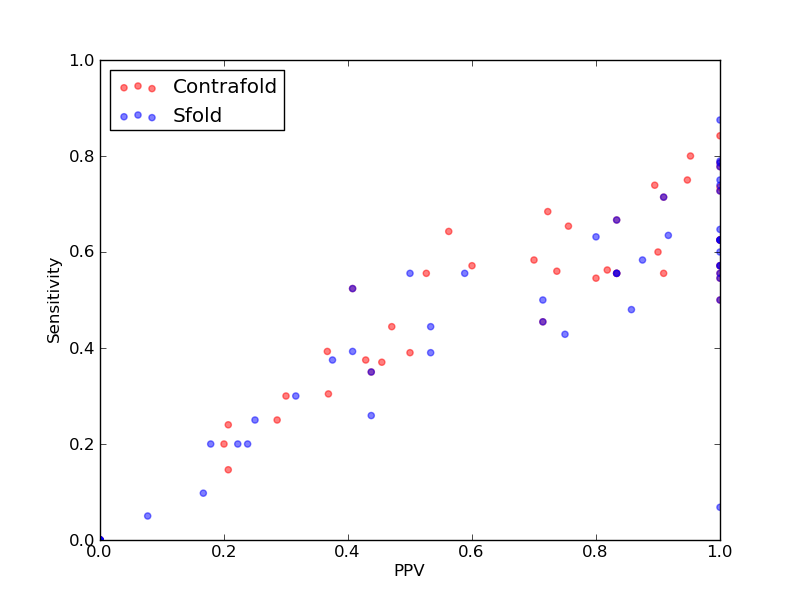

Comparison of performance of Contrafold and Sfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Contrafold and Sfold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Contrafold and Sfold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Contrafold and Sfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Contrafold and Sfold).

^top

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	512
Total TN	158463
Total FP	548
Total FP CONTRA	63
Total FP INCONS	468
Total FP COMP	17
Total FN	666

Total Scores
MCC	0.458
Average MCC ± 95% Confidence Intervals	0.525 ± 0.083
Sensitivity	0.435
Positive Predictive Value	0.491
Nr of predictions	53

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.18	0.20	0.20	4	1015	16	2	14	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.25	0.25	0.29	4	616	10	0	10	0	12
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	-0.02	0.00	0.00	0	486	10	2	8	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.92	0.84	1.00	16	1209	0	0	0	0	3
PDB_00370	-	0.00	0.00	0.00	0	15185	40	4	36	0	25
PDB_00447	-	0.66	0.55	0.80	24	7110	6	6	0	0	20
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.58	0.57	0.60	12	1996	8	1	7	0	9
PDB_00716	HDV_ribozyme links to Rfam database...	0.33	0.30	0.37	7	2682	13	0	12	1	16
PDB_00804	-	0.22	0.24	0.21	12	15342	46	10	36	0	38
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	1	0	0	1	6
PDB_00829	Purine links to Rfam database...	0.84	0.75	0.95	18	2259	1	0	1	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.44	0.39	0.50	16	4721	16	0	16	0	25
PDB_00857	-	0.73	0.60	0.90	9	1071	1	0	1	0	6
PDB_00874	-	-0.02	0.00	0.00	0	928	19	0	18	1	20
PDB_00886	-	-0.01	0.00	0.00	0	4146	40	0	40	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.81	0.74	0.89	17	2259	3	1	1	1	6
PDB_01040	-	0.29	0.30	0.30	6	1108	14	0	14	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.41	0.37	0.45	20	12676	24	0	24	0	34
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01092	glmS links to Rfam database...	0.70	0.65	0.76	34	10108	14	2	9	3	18
PDB_01194	-	-0.03	0.00	0.00	0	485	11	0	11	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.70	0.68	0.72	13	1158	5	3	2	0	6
PDB_01250	-	0.17	0.15	0.21	6	12061	23	5	18	0	35
PDB_01260	-	0.64	0.56	0.74	14	1811	5	1	4	0	11
PDB_01281	-	-0.04	0.00	0.00	0	364	14	0	14	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9117	64	9	54	1	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.38	0.39	0.37	11	4065	19	0	19	0	17
RFA_00636	HDV_ribozyme links to Rfam database...	0.60	0.64	0.56	18	3973	14	4	10	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	2	0	0	2	8
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	9	1	8	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	4	1	0	3	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	0	8	0	10

^top

Performance of Sfold - scored lower in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	444
Total TN	158596
Total FP	477
Total FP CONTRA	54
Total FP INCONS	412
Total FP COMP	11
Total FN	734

Total Scores
MCC	0.425
Average MCC ± 95% Confidence Intervals	0.503 ± 0.086
Sensitivity	0.377
Positive Predictive Value	0.488
Nr of predictions	53

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.59	0.50	0.71	5	489	2	0	2	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.71	0.58	0.88	7	622	1	0	1	0	5
PDB_00352	-	0.89	0.79	1.00	15	1210	0	0	0	0	4
PDB_00370	-	0.00	0.00	0.00	0	15225	0	0	0	0	25
PDB_00447	-	0.26	0.07	1.00	3	7137	0	0	0	0	41
PDB_00571	tRNA links to Rfam database...	0.21	0.20	0.24	5	3300	16	6	10	0	20
PDB_00713	-	0.56	0.43	0.75	9	2004	3	0	3	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00804	-	0.19	0.20	0.18	10	15344	46	10	36	0	40
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	0.05	0.05	0.08	1	933	12	2	10	0	19
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.33	0.26	0.44	14	12688	18	0	18	0	40
PDB_01073	SAM links to Rfam database...	0.80	0.65	1.00	22	4349	1	0	0	1	12
PDB_01092	glmS links to Rfam database...	0.76	0.63	0.92	33	10117	5	0	3	2	19
PDB_01194	-	-0.02	0.00	0.00	0	488	8	0	8	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.13	0.10	0.17	4	12066	20	3	17	0	37
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.24	0.25	0.25	7	4067	21	2	19	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.40	0.39	0.41	11	3978	16	2	14	0	17
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.52	0.56	0.50	10	1933	10	4	6	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1936	7	1	6	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	19	2	14	3	16
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
