Overview

Metric	Fold		MCFold
MCC	0.472	>	0.290
Average MCC ± 95% Confidence Intervals	0.545 ± 0.085	>	0.295 ± 0.081
Sensitivity	0.443	>	0.320
Positive Predictive Value	0.513	>	0.276
Total TP	434	>	313
Total TN	106647	>	106359
Total FP	423	<	871
Total FP CONTRA	45	<	116
Total FP INCONS	367	<	705
Total FP COMP	11	<	50
Total FN	545	<	666
P-value	3.56938820447e-08

^top

Performance plots

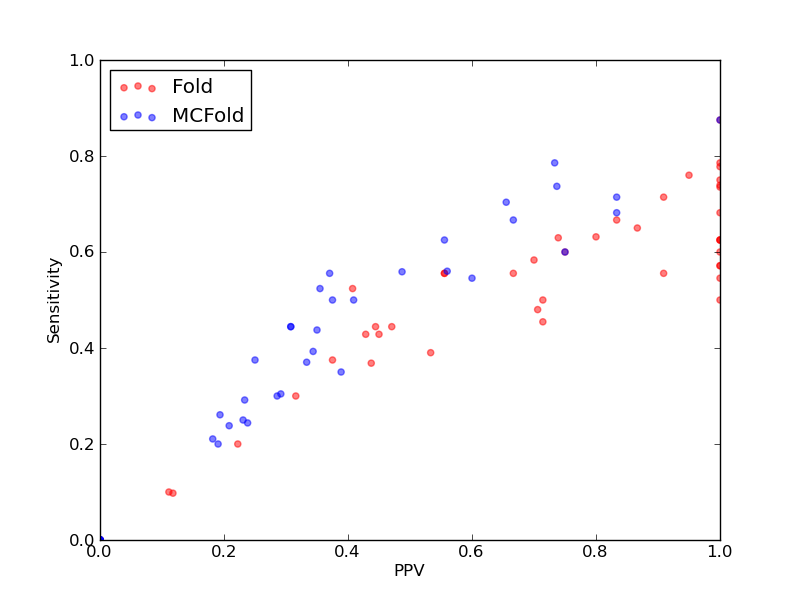

Comparison of performance of Fold and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and MCFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and MCFold).

^top

Performance of Fold - scored higher in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	434
Total TN	106647
Total FP	423
Total FP CONTRA	45
Total FP INCONS	367
Total FP COMP	11
Total FN	545

Total Scores
MCC	0.472
Average MCC ± 95% Confidence Intervals	0.545 ± 0.085
Sensitivity	0.443
Positive Predictive Value	0.513
Nr of predictions	48

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.75	0.65	0.87	13	765	2	0	2	0	7
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.59	0.50	0.71	5	489	2	0	2	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.39	0.37	0.44	7	1209	9	0	9	0	12
PDB_00571	tRNA links to Rfam database...	0.85	0.76	0.95	19	3301	1	1	0	0	6
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.67	0.60	0.75	9	1069	3	0	3	0	6
PDB_00874	-	0.09	0.10	0.11	2	928	16	2	14	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.68	0.63	0.74	34	12674	12	0	12	0	20
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01194	-	0.77	0.60	1.00	9	487	0	0	0	0	6
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.10	0.10	0.12	4	12056	30	7	23	0	37
PDB_01260	-	0.58	0.48	0.71	12	1813	5	1	4	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00767	Corona_pk3 links to Rfam database...	0.44	0.44	0.44	8	1873	10	1	9	0	10
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	10	1	8	1	10
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	2001	8	0	5	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	3	1	0	2	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	18	2	14	2	16
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	313
Total TN	106359
Total FP	871
Total FP CONTRA	116
Total FP INCONS	705
Total FP COMP	50
Total FN	666

Total Scores
MCC	0.290
Average MCC ± 95% Confidence Intervals	0.295 ± 0.081
Sensitivity	0.320
Positive Predictive Value	0.276
Nr of predictions	48

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.76	0.79	0.73	11	931	6	2	2	2	3
PDB_00018	-	0.18	0.20	0.19	4	1014	17	2	15	0	16
PDB_00020	-	0.35	0.35	0.39	7	762	11	0	11	0	13
PDB_00041	-	0.23	0.25	0.23	3	617	12	0	10	2	9
PDB_00053	-	0.56	0.55	0.60	6	425	4	0	4	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4143	43	4	39	0	36
PDB_00124	-	-0.02	0.00	0.00	0	484	12	2	10	0	10
PDB_00128	-	0.77	0.71	0.83	10	484	2	0	2	0	4
PDB_00134	-	0.58	0.63	0.56	5	369	5	1	3	1	3
PDB_00138	-	-0.02	0.00	0.00	0	369	11	0	9	2	8
PDB_00209	-	-0.02	0.00	0.00	0	550	11	2	9	0	11
PDB_00243	-	-0.02	0.00	0.00	0	615	15	1	14	0	12
PDB_00352	-	0.18	0.21	0.18	4	1203	18	1	17	0	15
PDB_00571	tRNA links to Rfam database...	-0.01	0.00	0.00	0	3287	34	3	31	0	25
PDB_00713	-	0.21	0.24	0.21	5	1992	20	1	18	1	16
PDB_00716	HDV_ribozyme links to Rfam database...	0.22	0.26	0.19	6	2670	25	5	20	0	17
PDB_00828	Purine links to Rfam database...	0.34	0.37	0.33	10	2455	22	1	19	2	17
PDB_00829	Purine links to Rfam database...	0.25	0.29	0.23	7	2248	23	6	17	0	17
PDB_00842	-	-0.02	0.00	0.00	0	369	10	0	9	1	8
PDB_00851	-	0.23	0.24	0.24	10	4711	32	0	32	0	31
PDB_00857	-	-0.02	0.00	0.00	0	1062	19	6	13	0	15
PDB_00874	-	-0.02	0.00	0.00	0	926	20	0	20	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4143	43	4	39	0	40
PDB_00918	-	-0.02	0.00	0.00	0	317	10	0	8	2	7
PDB_01009	tRNA links to Rfam database...	0.43	0.52	0.35	11	2454	21	5	15	1	10
PDB_01020	Purine links to Rfam database...	0.29	0.30	0.29	7	2254	20	2	15	3	16
PDB_01040	-	0.28	0.30	0.29	6	1107	15	2	13	0	14
PDB_01059	-	-0.03	0.00	0.00	0	223	8	2	6	0	7
PDB_01070	-	0.68	0.70	0.66	38	12662	22	2	18	2	16
PDB_01073	SAM links to Rfam database...	0.52	0.56	0.49	19	4332	22	1	19	2	15
PDB_01194	-	0.66	0.60	0.75	9	484	3	0	3	0	6
PDB_01201	-	0.75	0.68	0.83	15	1110	3	0	3	0	7
PDB_01203	-	0.73	0.74	0.74	14	1157	5	4	1	0	5
PDB_01250	-	0.00	0.00	0.00	0	12036	54	18	36	0	41
PDB_01260	-	0.55	0.56	0.56	14	1805	11	1	10	0	11
PDB_01281	-	-0.04	0.00	0.00	0	365	13	0	13	0	14
PDB_01299	-	0.66	0.67	0.67	10	888	7	1	4	2	5
PDB_01309	-	-0.01	0.00	0.00	0	9122	58	9	49	0	39
RFA_00636	HDV_ribozyme links to Rfam database...	0.36	0.39	0.34	11	3973	29	0	21	8	17
RFA_00767	Corona_pk3 links to Rfam database...	0.36	0.44	0.31	8	1865	19	3	15	1	10
RFA_00768	Corona_pk3 links to Rfam database...	0.36	0.44	0.31	8	1865	19	3	15	1	10
RFA_00769	Corona_pk3 links to Rfam database...	0.45	0.50	0.41	9	1931	18	2	11	5	9
RFA_00770	Corona_pk3 links to Rfam database...	-0.01	0.00	0.00	0	1992	29	2	22	5	18
RFA_00773	Corona_pk3 links to Rfam database...	0.43	0.50	0.38	9	1929	16	4	11	1	9
RFA_00779	Corona_pk3 links to Rfam database...	0.45	0.56	0.37	10	1926	17	7	10	0	8
RFA_00808	RydC links to Rfam database...	0.39	0.44	0.35	7	1996	19	1	12	6	9
RFA_00809	RydC links to Rfam database...	0.30	0.38	0.25	6	2121	18	6	12	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
