Overview

Metric	MaxExpect		Alterna
MCC	0.503	>	0.393
Average MCC ± 95% Confidence Intervals	0.557 ± 0.083	>	0.445 ± 0.097
Sensitivity	0.463	>	0.365
Positive Predictive Value	0.559	>	0.435
Total TP	404	>	319
Total TN	76875	>	76865
Total FP	325	<	434
Total FP CONTRA	30	<	40
Total FP INCONS	289	<	374
Total FP COMP	6	<	20
Total FN	469	<	554
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of MaxExpect and Alterna. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and Alterna).

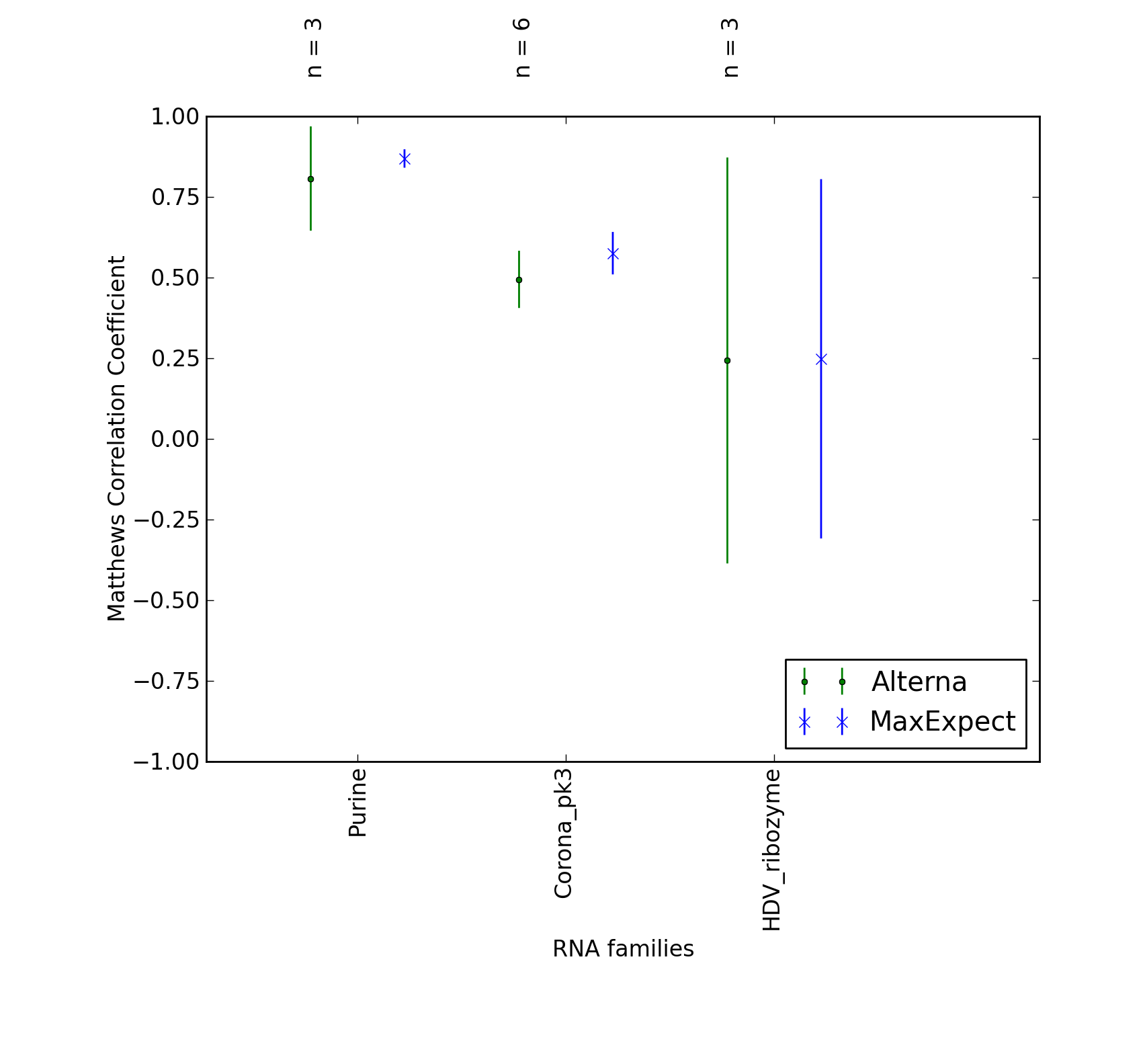

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and Alterna).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and Alterna. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and Alterna).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	404
Total TN	76875
Total FP	325
Total FP CONTRA	30
Total FP INCONS	289
Total FP COMP	6
Total FN	469

Total Scores
MCC	0.503
Average MCC ± 95% Confidence Intervals	0.557 ± 0.083
Sensitivity	0.463
Positive Predictive Value	0.559
Nr of predictions	46

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	-0.02	0.00	0.00	0	488	8	2	6	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.83	0.74	0.93	14	1210	1	0	1	0	5
PDB_00571	tRNA links to Rfam database...	0.42	0.36	0.50	9	3303	9	2	7	0	16
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.67	0.60	0.75	9	1069	3	0	3	0	6
PDB_00874	-	0.10	0.10	0.13	2	930	14	2	12	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.51	0.57	0.46	12	2459	14	5	9	0	9
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01194	-	0.77	0.60	1.00	9	487	0	0	0	0	6
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
RFA_00632	HDV_ribozyme links to Rfam database...	0.34	0.36	0.33	10	4065	20	2	18	0	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.41	0.43	0.40	12	3975	18	2	16	0	16
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.47	0.44	0.50	8	1875	8	1	7	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	2002	7	0	4	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1938	5	2	3	0	8
RFA_00808	RydC links to Rfam database...	0.62	0.56	0.69	9	2003	4	0	4	0	7
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Performance of Alterna - scored lower in this pairwise comparison

1. Total counts & total scores for Alterna

Total Base Pair Counts
Total TP	319
Total TN	76865
Total FP	434
Total FP CONTRA	40
Total FP INCONS	374
Total FP COMP	20
Total FN	554

Total Scores
MCC	0.393
Average MCC ± 95% Confidence Intervals	0.445 ± 0.097
Sensitivity	0.365
Positive Predictive Value	0.435
Nr of predictions	46

^top

2. Individual counts for Alterna [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.11	0.13	0.14	2	616	12	0	12	0	14
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	-0.02	0.00	0.00	0	488	8	2	6	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.68	0.55	0.86	6	554	1	1	0	0	5
PDB_00243	-	0.51	0.50	0.55	6	619	5	0	5	0	6
PDB_00352	-	0.92	0.84	1.00	16	1209	0	0	0	0	3
PDB_00571	tRNA links to Rfam database...	0.41	0.40	0.43	10	3298	13	3	10	0	15
PDB_00713	-	-0.01	0.00	0.00	0	1997	19	0	19	0	21
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2680	21	3	18	0	23
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.77	0.71	0.85	17	2258	3	2	1	0	7
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.10	0.10	0.13	4	4721	28	0	28	0	37
PDB_00857	-	-0.01	0.00	0.00	0	1068	13	0	13	0	15
PDB_00874	-	0.09	0.10	0.11	2	928	16	2	14	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.86	0.86	0.86	18	2464	6	0	3	3	3
PDB_01020	Purine links to Rfam database...	0.76	0.70	0.84	16	2259	4	2	1	1	7
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.49	0.43	0.60	3	226	2	2	0	0	4
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.57	16	4343	13	2	10	1	18
PDB_01194	-	-0.02	0.00	0.00	0	488	8	0	8	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.74	0.68	0.81	13	1160	3	2	1	0	6
PDB_01260	-	-0.01	0.00	0.00	0	1809	21	0	21	0	25
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
RFA_00632	HDV_ribozyme links to Rfam database...	0.24	0.25	0.23	7	4065	23	3	20	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.50	0.46	0.54	13	3981	13	3	8	2	15
RFA_00767	Corona_pk3 links to Rfam database...	0.54	0.50	0.60	9	1876	6	2	4	0	9
RFA_00768	Corona_pk3 links to Rfam database...	0.50	0.44	0.57	8	1877	9	0	6	3	10
RFA_00769	Corona_pk3 links to Rfam database...	0.38	0.39	0.39	7	1935	11	2	9	0	11
RFA_00770	Corona_pk3 links to Rfam database...	0.45	0.39	0.54	7	2003	9	0	6	3	11
RFA_00773	Corona_pk3 links to Rfam database...	0.45	0.39	0.54	7	1940	9	0	6	3	11
RFA_00779	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	1999	19	3	14	2	16
RFA_00809	RydC links to Rfam database...	0.38	0.38	0.40	6	2130	11	0	9	2	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
