Overview

Metric	McQFold		RNAwolf
MCC	0.594	>	0.362
Average MCC ± 95% Confidence Intervals	0.694 ± 0.092	>	0.397 ± 0.078
Sensitivity	0.583	>	0.353
Positive Predictive Value	0.611	>	0.380
Total TP	687	>	416
Total TN	158382	<	158411
Total FP	456	<	724
Total FP CONTRA	78	<	111
Total FP INCONS	359	<	568
Total FP COMP	19	<	45
Total FN	491	<	762
P-value	3.56938820447e-08

^top

Performance plots

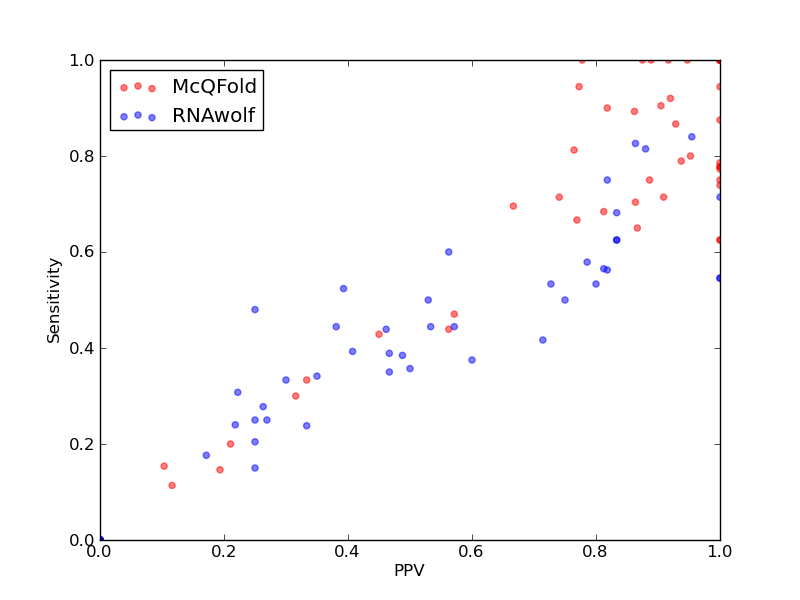

Comparison of performance of McQFold and RNAwolf. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for McQFold and RNAwolf).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for McQFold and RNAwolf).
Comparison of average Matthews Correlation Coefficients (MCCs) for McQFold and RNAwolf. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for McQFold and RNAwolf).

^top

Performance of McQFold - scored higher in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	687
Total TN	158382
Total FP	456
Total FP CONTRA	78
Total FP INCONS	359
Total FP COMP	19
Total FN	491

Total Scores
MCC	0.594
Average MCC ± 95% Confidence Intervals	0.694 ± 0.092
Sensitivity	0.583
Positive Predictive Value	0.611
Nr of predictions	53

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.19	0.20	0.21	4	1016	15	2	13	0	16
PDB_00020	-	0.75	0.65	0.87	13	765	2	0	2	0	7
PDB_00041	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00053	-	1.00	1.00	1.00	11	424	0	0	0	0	0
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	0.33	0.33	0.33	12	4150	24	0	24	0	24
PDB_00124	-	0.86	0.90	0.82	9	485	2	2	0	0	1
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00209	-	0.96	1.00	0.92	11	549	1	1	0	0	0
PDB_00243	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00352	-	0.86	0.79	0.94	15	1209	1	0	1	0	4
PDB_00370	-	0.00	0.00	0.00	0	15181	44	13	31	0	25
PDB_00447	-	0.11	0.11	0.12	5	7097	38	7	31	0	39
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	0.68	0.70	0.67	16	2677	9	0	8	1	7
PDB_00804	-	0.00	0.00	0.00	0	15344	56	10	46	0	50
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.49	0.44	0.56	18	4721	14	0	14	0	23
PDB_00857	-	1.00	1.00	1.00	15	1066	0	0	0	0	0
PDB_00874	-	-0.02	0.00	0.00	0	928	18	0	18	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4147	39	0	39	0	40
PDB_00918	-	0.93	1.00	0.88	7	317	1	1	0	0	0
PDB_01009	tRNA links to Rfam database...	0.90	0.90	0.90	19	2464	5	0	2	3	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.88	1.00	0.78	7	222	2	2	0	0	0
PDB_01070	-	0.78	0.70	0.86	38	12676	6	0	6	0	16
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.57	16	4343	13	2	10	1	18
PDB_01092	glmS links to Rfam database...	0.81	0.75	0.89	39	10109	6	1	4	1	13
PDB_01194	-	0.89	0.87	0.93	13	482	1	1	0	0	2
PDB_01201	-	0.88	0.77	1.00	17	1111	0	0	0	0	5
PDB_01203	-	0.74	0.68	0.81	13	1160	3	2	1	0	6
PDB_01250	-	0.17	0.15	0.19	6	12059	25	5	20	0	35
PDB_01260	-	0.92	0.92	0.92	23	1805	2	1	1	0	2
PDB_01281	-	-0.04	0.00	0.00	0	365	13	0	13	0	14
PDB_01299	-	0.71	0.67	0.77	10	890	3	1	2	0	5
PDB_01309	-	0.12	0.15	0.10	6	9122	56	12	40	4	33
RFA_00632	HDV_ribozyme links to Rfam database...	0.88	0.89	0.86	25	4066	4	3	1	0	3
RFA_00636	HDV_ribozyme links to Rfam database...	0.73	0.71	0.74	20	3978	7	5	2	0	8
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00769	Corona_pk3 links to Rfam database...	0.85	0.94	0.77	17	1931	5	4	1	0	1
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	4	0	0	4	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	5	1	0	4	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	0	0	0	0	1
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

^top

Performance of RNAwolf - scored lower in this pairwise comparison

1. Total counts & total scores for RNAwolf

Total Base Pair Counts
Total TP	416
Total TN	158411
Total FP	724
Total FP CONTRA	111
Total FP INCONS	568
Total FP COMP	45
Total FN	762

Total Scores
MCC	0.362
Average MCC ± 95% Confidence Intervals	0.397 ± 0.078
Sensitivity	0.353
Positive Predictive Value	0.380
Nr of predictions	53

^top

2. Individual counts for RNAwolf [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.42	0.36	0.50	5	936	6	0	5	1	9
PDB_00018	-	0.18	0.15	0.25	3	1023	9	2	7	0	17
PDB_00020	-	0.39	0.35	0.47	7	765	8	0	8	0	13
PDB_00041	-	0.61	0.50	0.75	6	622	2	0	2	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	-0.02	0.00	0.00	0	615	15	0	15	0	16
PDB_00123	-	0.31	0.33	0.30	12	4146	28	4	24	0	24
PDB_00124	-	-0.02	0.00	0.00	0	485	11	2	9	0	10
PDB_00128	-	0.84	0.71	1.00	10	486	0	0	0	0	4
PDB_00134	-	0.72	0.63	0.83	5	372	3	0	1	2	3
PDB_00138	-	-0.02	0.00	0.00	0	371	7	0	7	0	8
PDB_00209	-	0.74	0.55	1.00	6	555	0	0	0	0	5
PDB_00243	-	0.54	0.42	0.71	5	623	2	0	2	0	7
PDB_00352	-	0.67	0.58	0.79	11	1211	3	0	3	0	8
PDB_00370	-	0.34	0.48	0.25	12	15177	42	23	13	6	13
PDB_00447	-	0.22	0.20	0.25	9	7104	27	2	25	0	35
PDB_00571	tRNA links to Rfam database...	0.89	0.84	0.95	21	3299	2	1	0	1	4
PDB_00713	-	0.28	0.24	0.33	5	2001	11	0	10	1	16
PDB_00716	HDV_ribozyme links to Rfam database...	0.68	0.57	0.81	13	2685	3	0	3	0	10
PDB_00804	-	0.23	0.24	0.22	12	15345	53	6	37	10	38
PDB_00828	Purine links to Rfam database...	0.85	0.81	0.88	22	2460	3	1	2	0	5
PDB_00829	Purine links to Rfam database...	0.78	0.75	0.82	18	2256	4	1	3	0	6
PDB_00842	-	0.72	0.63	0.83	5	372	1	0	1	0	3
PDB_00851	-	0.34	0.34	0.35	14	4713	26	0	26	0	27
PDB_00857	-	0.57	0.60	0.56	9	1065	7	0	7	0	6
PDB_00874	-	-0.02	0.00	0.00	0	928	18	0	18	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4143	43	4	39	0	40
PDB_00918	-	-0.02	0.00	0.00	0	317	8	0	8	0	7
PDB_01009	tRNA links to Rfam database...	0.45	0.52	0.39	11	2457	18	6	11	1	10
PDB_01020	Purine links to Rfam database...	0.84	0.83	0.86	19	2256	5	1	2	2	4
PDB_01040	-	0.24	0.25	0.25	5	1108	15	1	14	0	15
PDB_01059	-	-0.03	0.00	0.00	0	226	5	1	4	0	7
PDB_01070	-	0.00	0.00	0.00	0	12665	55	8	47	0	54
PDB_01073	SAM links to Rfam database...	0.17	0.18	0.17	6	4336	29	3	26	0	28
PDB_01092	glmS links to Rfam database...	0.43	0.38	0.49	20	10112	23	2	19	2	32
PDB_01194	-	0.61	0.53	0.73	8	485	3	0	3	0	7
PDB_01201	-	0.75	0.68	0.83	15	1110	3	0	3	0	7
PDB_01203	-	-0.01	0.00	0.00	0	1165	11	0	11	0	19
PDB_01250	-	0.45	0.44	0.46	18	12051	21	11	10	0	23
PDB_01260	-	-0.01	0.00	0.00	0	1809	21	0	21	0	25
PDB_01281	-	-0.04	0.00	0.00	0	365	13	0	13	0	14
PDB_01299	-	0.65	0.53	0.80	8	893	2	0	2	0	7
PDB_01309	-	0.26	0.31	0.22	12	9126	42	14	28	0	27
RFA_00632	HDV_ribozyme links to Rfam database...	0.25	0.25	0.27	7	4069	22	1	18	3	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.40	0.39	0.41	11	3978	19	1	15	3	17
RFA_00767	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	8	1	6	1	10
RFA_00768	Corona_pk3 links to Rfam database...	0.50	0.44	0.57	8	1877	8	1	5	2	10
RFA_00769	Corona_pk3 links to Rfam database...	0.41	0.44	0.38	8	1932	13	3	10	0	10
RFA_00770	Corona_pk3 links to Rfam database...	0.51	0.50	0.53	9	1999	12	2	6	4	9
RFA_00773	Corona_pk3 links to Rfam database...	0.42	0.39	0.47	7	1938	12	1	7	4	11
RFA_00779	Corona_pk3 links to Rfam database...	0.26	0.28	0.26	5	1934	14	6	8	0	13
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	2	0	0	7
RFA_00809	RydC links to Rfam database...	0.47	0.38	0.60	6	2135	6	0	4	2	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
