Overview

Metric	PknotsRG		RNASLOpt
MCC	0.531	>	0.458
Average MCC ± 95% Confidence Intervals	0.643 ± 0.104	>	0.556 ± 0.082
Sensitivity	0.525	>	0.419
Positive Predictive Value	0.544	>	0.508
Total TP	618	>	493
Total TN	158371	<	158536
Total FP	544	>	487
Total FP CONTRA	82	>	58
Total FP INCONS	435	>	419
Total FP COMP	27	>	10
Total FN	560	<	685
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of PknotsRG and RNASLOpt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PknotsRG and RNASLOpt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PknotsRG and RNASLOpt).

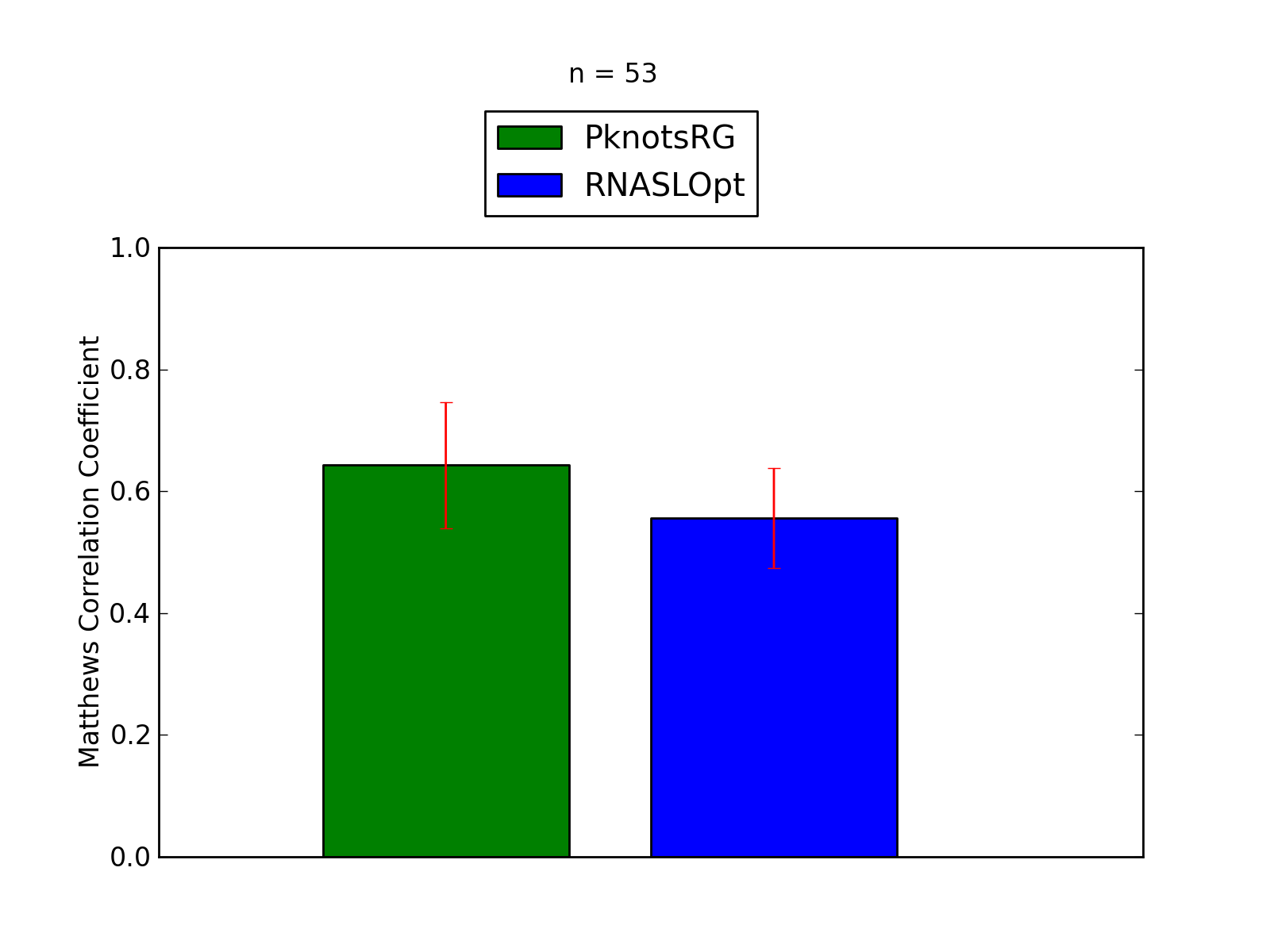

Comparison of average Matthews Correlation Coefficients (MCCs) for PknotsRG and RNASLOpt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PknotsRG and RNASLOpt).

^top

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	618
Total TN	158371
Total FP	544
Total FP CONTRA	82
Total FP INCONS	435
Total FP COMP	27
Total FN	560

Total Scores
MCC	0.531
Average MCC ± 95% Confidence Intervals	0.643 ± 0.104
Sensitivity	0.525
Positive Predictive Value	0.544
Nr of predictions	53

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	1.00	1.00	1.00	14	932	0	0	0	0	0
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00053	-	1.00	1.00	1.00	11	424	0	0	0	0	0
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.86	0.90	0.82	9	485	2	2	0	0	1
PDB_00128	-	0.50	0.43	0.60	6	486	4	1	3	0	8
PDB_00134	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00138	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00209	-	0.96	1.00	0.92	11	549	1	1	0	0	0
PDB_00243	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00352	-	0.89	0.79	1.00	15	1210	0	0	0	0	4
PDB_00370	-	0.09	0.12	0.07	3	15179	45	12	31	2	22
PDB_00447	-	0.97	1.00	0.94	44	7093	3	3	0	0	0
PDB_00571	tRNA links to Rfam database...	0.17	0.16	0.19	4	3300	17	6	11	0	21
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2675	27	1	25	1	23
PDB_00804	-	0.00	0.00	0.00	0	15346	56	10	44	2	50
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	1.00	1.00	1.00	8	370	0	0	0	0	0
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	1.00	1.00	1.00	15	1066	0	0	0	0	0
PDB_00874	-	0.10	0.10	0.14	2	932	12	2	10	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.93	1.00	0.88	7	317	1	1	0	0	0
PDB_01009	tRNA links to Rfam database...	0.52	0.57	0.48	12	2460	13	5	8	0	9
PDB_01020	Purine links to Rfam database...	0.23	0.22	0.26	5	2259	14	2	12	0	18
PDB_01040	-	0.30	0.30	0.33	6	1110	12	0	12	0	14
PDB_01059	-	0.93	1.00	0.88	7	223	1	1	0	0	0
PDB_01070	-	0.14	0.13	0.15	7	12673	41	2	38	1	47
PDB_01073	SAM links to Rfam database...	0.75	0.65	0.88	22	4346	4	0	3	1	12
PDB_01092	glmS links to Rfam database...	0.71	0.67	0.74	35	10106	13	2	10	1	17
PDB_01194	-	0.73	0.60	0.90	9	486	1	1	0	0	6
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.10	0.10	0.10	4	12051	35	8	27	0	37
PDB_01260	-	0.41	0.36	0.47	9	1811	10	0	10	0	16
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.90	0.87	0.93	13	889	1	1	0	0	2
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.88	0.89	0.86	25	4066	6	2	2	2	3
RFA_00636	HDV_ribozyme links to Rfam database...	0.95	0.96	0.93	27	3976	4	2	0	2	1
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	3	0	0	3	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	2	0	0	2	0
RFA_00769	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	3	1	0	2	0
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	3	0	0	3	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	4	1	0	3	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	2	0	0	2	1
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

^top

Performance of RNASLOpt - scored lower in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	493
Total TN	158536
Total FP	487
Total FP CONTRA	58
Total FP INCONS	419
Total FP COMP	10
Total FN	685

Total Scores
MCC	0.458
Average MCC ± 95% Confidence Intervals	0.556 ± 0.082
Sensitivity	0.419
Positive Predictive Value	0.508
Nr of predictions	53

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.75	0.65	0.87	13	765	2	0	2	0	7
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.70	0.50	1.00	5	491	0	0	0	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.67	0.45	1.00	5	556	0	0	0	0	6
PDB_00243	-	0.76	0.58	1.00	7	623	0	0	0	0	5
PDB_00352	-	0.39	0.37	0.44	7	1209	9	0	9	0	12
PDB_00370	-	0.00	0.00	0.00	0	15188	37	15	22	0	25
PDB_00447	-	0.30	0.25	0.37	11	7110	19	4	15	0	33
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.45	0.43	0.47	9	1997	10	0	10	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2680	22	0	21	1	23
PDB_00804	-	0.00	0.00	0.00	0	15350	52	6	44	2	50
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	0.10	0.10	0.13	2	931	13	2	11	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.90	0.90	0.90	19	2464	5	0	2	3	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.33	0.30	0.36	16	12676	28	2	26	0	38
PDB_01073	SAM links to Rfam database...	0.56	0.47	0.67	16	4347	9	0	8	1	18
PDB_01092	glmS links to Rfam database...	0.74	0.63	0.87	33	10115	7	1	4	2	19
PDB_01194	-	0.77	0.60	1.00	9	487	0	0	0	0	6
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.74	0.68	0.81	13	1160	3	2	1	0	6
PDB_01250	-	0.18	0.15	0.22	6	12063	21	5	16	0	35
PDB_01260	-	0.49	0.36	0.69	9	1817	4	0	4	0	16
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.59	0.57	0.62	16	4069	10	2	8	0	12
RFA_00636	HDV_ribozyme links to Rfam database...	0.65	0.64	0.67	18	3978	9	2	7	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1876	5	0	5	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.47	0.39	0.58	7	2004	5	1	4	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	1	7	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
