Overview

Metric	PknotsRG		RNAwolf
MCC	0.531	>	0.362
Average MCC ± 95% Confidence Intervals	0.643 ± 0.104	>	0.397 ± 0.078
Sensitivity	0.525	>	0.353
Positive Predictive Value	0.544	>	0.380
Total TP	618	>	416
Total TN	158371	<	158411
Total FP	544	<	724
Total FP CONTRA	82	<	111
Total FP INCONS	435	<	568
Total FP COMP	27	<	45
Total FN	560	<	762
P-value	3.56938820447e-08

^top

Performance plots

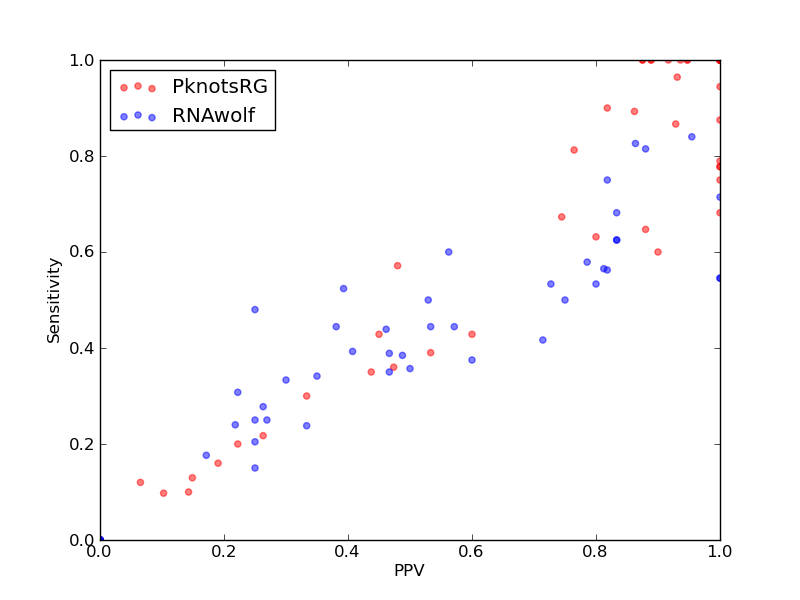

Comparison of performance of PknotsRG and RNAwolf. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PknotsRG and RNAwolf).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PknotsRG and RNAwolf).

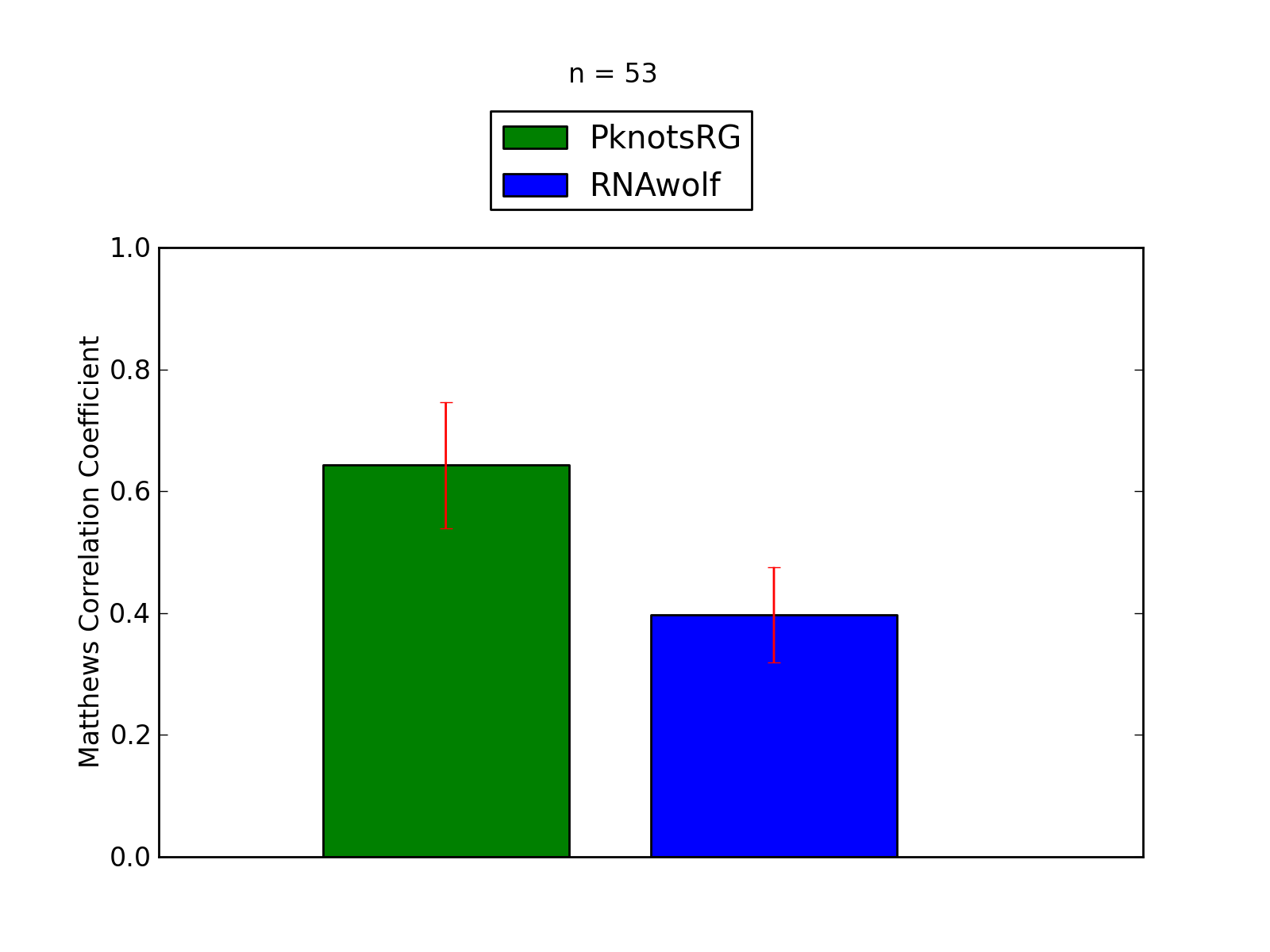

Comparison of average Matthews Correlation Coefficients (MCCs) for PknotsRG and RNAwolf. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PknotsRG and RNAwolf).

^top

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	618
Total TN	158371
Total FP	544
Total FP CONTRA	82
Total FP INCONS	435
Total FP COMP	27
Total FN	560

Total Scores
MCC	0.531
Average MCC ± 95% Confidence Intervals	0.643 ± 0.104
Sensitivity	0.525
Positive Predictive Value	0.544
Nr of predictions	53

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	1.00	1.00	1.00	14	932	0	0	0	0	0
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00053	-	1.00	1.00	1.00	11	424	0	0	0	0	0
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.86	0.90	0.82	9	485	2	2	0	0	1
PDB_00128	-	0.50	0.43	0.60	6	486	4	1	3	0	8
PDB_00134	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00138	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00209	-	0.96	1.00	0.92	11	549	1	1	0	0	0
PDB_00243	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00352	-	0.89	0.79	1.00	15	1210	0	0	0	0	4
PDB_00370	-	0.09	0.12	0.07	3	15179	45	12	31	2	22
PDB_00447	-	0.97	1.00	0.94	44	7093	3	3	0	0	0
PDB_00571	tRNA links to Rfam database...	0.17	0.16	0.19	4	3300	17	6	11	0	21
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2675	27	1	25	1	23
PDB_00804	-	0.00	0.00	0.00	0	15346	56	10	44	2	50
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	1.00	1.00	1.00	8	370	0	0	0	0	0
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	1.00	1.00	1.00	15	1066	0	0	0	0	0
PDB_00874	-	0.10	0.10	0.14	2	932	12	2	10	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.93	1.00	0.88	7	317	1	1	0	0	0
PDB_01009	tRNA links to Rfam database...	0.52	0.57	0.48	12	2460	13	5	8	0	9
PDB_01020	Purine links to Rfam database...	0.23	0.22	0.26	5	2259	14	2	12	0	18
PDB_01040	-	0.30	0.30	0.33	6	1110	12	0	12	0	14
PDB_01059	-	0.93	1.00	0.88	7	223	1	1	0	0	0
PDB_01070	-	0.14	0.13	0.15	7	12673	41	2	38	1	47
PDB_01073	SAM links to Rfam database...	0.75	0.65	0.88	22	4346	4	0	3	1	12
PDB_01092	glmS links to Rfam database...	0.71	0.67	0.74	35	10106	13	2	10	1	17
PDB_01194	-	0.73	0.60	0.90	9	486	1	1	0	0	6
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.10	0.10	0.10	4	12051	35	8	27	0	37
PDB_01260	-	0.41	0.36	0.47	9	1811	10	0	10	0	16
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.90	0.87	0.93	13	889	1	1	0	0	2
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.88	0.89	0.86	25	4066	6	2	2	2	3
RFA_00636	HDV_ribozyme links to Rfam database...	0.95	0.96	0.93	27	3976	4	2	0	2	1
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	3	0	0	3	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	2	0	0	2	0
RFA_00769	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	3	1	0	2	0
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	3	0	0	3	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	4	1	0	3	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	2	0	0	2	1
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

^top

Performance of RNAwolf - scored lower in this pairwise comparison

1. Total counts & total scores for RNAwolf

Total Base Pair Counts
Total TP	416
Total TN	158411
Total FP	724
Total FP CONTRA	111
Total FP INCONS	568
Total FP COMP	45
Total FN	762

Total Scores
MCC	0.362
Average MCC ± 95% Confidence Intervals	0.397 ± 0.078
Sensitivity	0.353
Positive Predictive Value	0.380
Nr of predictions	53

^top

2. Individual counts for RNAwolf [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.42	0.36	0.50	5	936	6	0	5	1	9
PDB_00018	-	0.18	0.15	0.25	3	1023	9	2	7	0	17
PDB_00020	-	0.39	0.35	0.47	7	765	8	0	8	0	13
PDB_00041	-	0.61	0.50	0.75	6	622	2	0	2	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	-0.02	0.00	0.00	0	615	15	0	15	0	16
PDB_00123	-	0.31	0.33	0.30	12	4146	28	4	24	0	24
PDB_00124	-	-0.02	0.00	0.00	0	485	11	2	9	0	10
PDB_00128	-	0.84	0.71	1.00	10	486	0	0	0	0	4
PDB_00134	-	0.72	0.63	0.83	5	372	3	0	1	2	3
PDB_00138	-	-0.02	0.00	0.00	0	371	7	0	7	0	8
PDB_00209	-	0.74	0.55	1.00	6	555	0	0	0	0	5
PDB_00243	-	0.54	0.42	0.71	5	623	2	0	2	0	7
PDB_00352	-	0.67	0.58	0.79	11	1211	3	0	3	0	8
PDB_00370	-	0.34	0.48	0.25	12	15177	42	23	13	6	13
PDB_00447	-	0.22	0.20	0.25	9	7104	27	2	25	0	35
PDB_00571	tRNA links to Rfam database...	0.89	0.84	0.95	21	3299	2	1	0	1	4
PDB_00713	-	0.28	0.24	0.33	5	2001	11	0	10	1	16
PDB_00716	HDV_ribozyme links to Rfam database...	0.68	0.57	0.81	13	2685	3	0	3	0	10
PDB_00804	-	0.23	0.24	0.22	12	15345	53	6	37	10	38
PDB_00828	Purine links to Rfam database...	0.85	0.81	0.88	22	2460	3	1	2	0	5
PDB_00829	Purine links to Rfam database...	0.78	0.75	0.82	18	2256	4	1	3	0	6
PDB_00842	-	0.72	0.63	0.83	5	372	1	0	1	0	3
PDB_00851	-	0.34	0.34	0.35	14	4713	26	0	26	0	27
PDB_00857	-	0.57	0.60	0.56	9	1065	7	0	7	0	6
PDB_00874	-	-0.02	0.00	0.00	0	928	18	0	18	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4143	43	4	39	0	40
PDB_00918	-	-0.02	0.00	0.00	0	317	8	0	8	0	7
PDB_01009	tRNA links to Rfam database...	0.45	0.52	0.39	11	2457	18	6	11	1	10
PDB_01020	Purine links to Rfam database...	0.84	0.83	0.86	19	2256	5	1	2	2	4
PDB_01040	-	0.24	0.25	0.25	5	1108	15	1	14	0	15
PDB_01059	-	-0.03	0.00	0.00	0	226	5	1	4	0	7
PDB_01070	-	0.00	0.00	0.00	0	12665	55	8	47	0	54
PDB_01073	SAM links to Rfam database...	0.17	0.18	0.17	6	4336	29	3	26	0	28
PDB_01092	glmS links to Rfam database...	0.43	0.38	0.49	20	10112	23	2	19	2	32
PDB_01194	-	0.61	0.53	0.73	8	485	3	0	3	0	7
PDB_01201	-	0.75	0.68	0.83	15	1110	3	0	3	0	7
PDB_01203	-	-0.01	0.00	0.00	0	1165	11	0	11	0	19
PDB_01250	-	0.45	0.44	0.46	18	12051	21	11	10	0	23
PDB_01260	-	-0.01	0.00	0.00	0	1809	21	0	21	0	25
PDB_01281	-	-0.04	0.00	0.00	0	365	13	0	13	0	14
PDB_01299	-	0.65	0.53	0.80	8	893	2	0	2	0	7
PDB_01309	-	0.26	0.31	0.22	12	9126	42	14	28	0	27
RFA_00632	HDV_ribozyme links to Rfam database...	0.25	0.25	0.27	7	4069	22	1	18	3	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.40	0.39	0.41	11	3978	19	1	15	3	17
RFA_00767	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	8	1	6	1	10
RFA_00768	Corona_pk3 links to Rfam database...	0.50	0.44	0.57	8	1877	8	1	5	2	10
RFA_00769	Corona_pk3 links to Rfam database...	0.41	0.44	0.38	8	1932	13	3	10	0	10
RFA_00770	Corona_pk3 links to Rfam database...	0.51	0.50	0.53	9	1999	12	2	6	4	9
RFA_00773	Corona_pk3 links to Rfam database...	0.42	0.39	0.47	7	1938	12	1	7	4	11
RFA_00779	Corona_pk3 links to Rfam database...	0.26	0.28	0.26	5	1934	14	6	8	0	13
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	2	0	0	7
RFA_00809	RydC links to Rfam database...	0.47	0.38	0.60	6	2135	6	0	4	2	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
