Overview

Metric	RNAfold		CRWrnafold
MCC	0.409	>	0.374
Average MCC ± 95% Confidence Intervals	0.493 ± 0.083	>	0.450 ± 0.090
Sensitivity	0.390	>	0.351
Positive Predictive Value	0.438	>	0.407
Total TP	459	>	414
Total TN	158457	<	158490
Total FP	606	<	618
Total FP CONTRA	77	<	81
Total FP INCONS	513	<	521
Total FP COMP	16	=	16
Total FN	719	<	764
P-value	3.56938820447e-08

^top

Performance plots

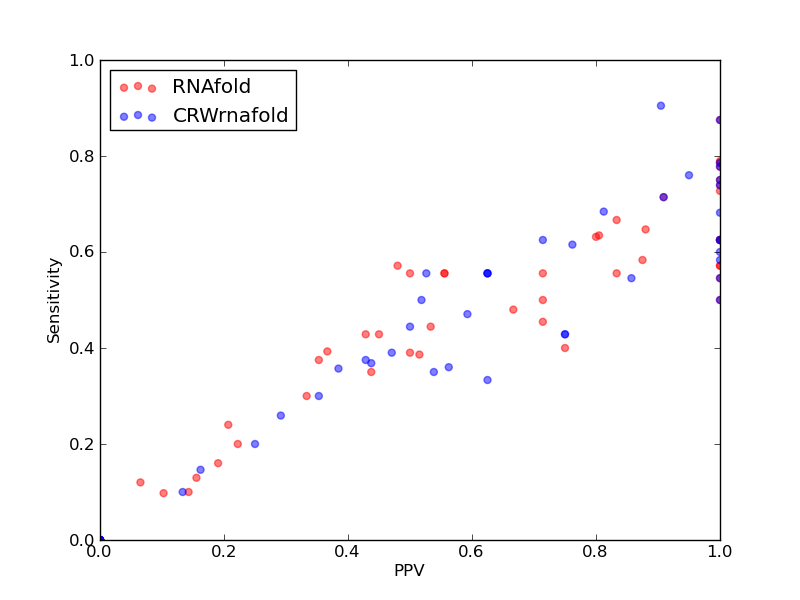

Comparison of performance of RNAfold and CRWrnafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and CRWrnafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and CRWrnafold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and CRWrnafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and CRWrnafold).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	459
Total TN	158457
Total FP	606
Total FP CONTRA	77
Total FP INCONS	513
Total FP COMP	16
Total FN	719

Total Scores
MCC	0.409
Average MCC ± 95% Confidence Intervals	0.493 ± 0.083
Sensitivity	0.390
Positive Predictive Value	0.438
Nr of predictions	53

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.59	0.50	0.71	5	489	2	0	2	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.71	0.58	0.88	7	622	1	0	1	0	5
PDB_00352	-	0.89	0.79	1.00	15	1210	0	0	0	0	4
PDB_00370	-	0.09	0.12	0.07	3	15179	45	12	31	2	22
PDB_00447	-	0.44	0.39	0.52	17	7107	16	5	11	0	27
PDB_00571	tRNA links to Rfam database...	0.17	0.16	0.19	4	3300	17	6	11	0	21
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00804	-	0.22	0.24	0.21	12	15342	48	10	36	2	38
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.44	0.39	0.50	16	4721	16	0	16	0	25
PDB_00857	-	0.54	0.40	0.75	6	1073	2	0	2	0	9
PDB_00874	-	0.10	0.10	0.14	2	932	12	2	10	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.52	0.57	0.48	12	2460	13	5	8	0	9
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.33	6	1110	12	0	12	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.14	0.13	0.16	7	12675	39	1	37	1	47
PDB_01073	SAM links to Rfam database...	0.75	0.65	0.88	22	4346	4	0	3	1	12
PDB_01092	glmS links to Rfam database...	0.71	0.63	0.80	33	10112	10	1	7	2	19
PDB_01194	-	-0.02	0.00	0.00	0	488	8	0	8	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.10	0.10	0.10	4	12051	35	3	32	0	37
PDB_01260	-	0.56	0.48	0.67	12	1812	6	0	6	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.38	0.39	0.37	11	4065	19	2	17	0	17
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.52	0.56	0.50	10	1933	10	4	6	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	2	6	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2001	18	2	13	3	16
RFA_00809	RydC links to Rfam database...	0.36	0.38	0.35	6	2128	11	1	10	0	10

^top

Performance of CRWrnafold - scored lower in this pairwise comparison

1. Total counts & total scores for CRWrnafold

Total Base Pair Counts
Total TP	414
Total TN	158490
Total FP	618
Total FP CONTRA	81
Total FP INCONS	521
Total FP COMP	16
Total FN	764

Total Scores
MCC	0.374
Average MCC ± 95% Confidence Intervals	0.450 ± 0.090
Sensitivity	0.351
Positive Predictive Value	0.407
Nr of predictions	53

^top

2. Individual counts for CRWrnafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.21	0.20	0.25	4	1019	12	2	10	0	16
PDB_00020	-	0.42	0.35	0.54	7	767	6	0	6	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4155	31	0	31	0	36
PDB_00124	-	-0.02	0.00	0.00	0	488	8	2	6	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.66	0.63	0.71	5	371	2	0	2	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.68	0.55	0.86	6	554	1	1	0	0	5
PDB_00243	-	0.76	0.58	1.00	7	623	0	0	0	0	5
PDB_00352	-	0.39	0.37	0.44	7	1209	9	0	9	0	12
PDB_00370	-	0.00	0.00	0.00	0	15179	46	13	33	0	25
PDB_00447	-	-0.01	0.00	0.00	0	7110	30	6	24	0	44
PDB_00571	tRNA links to Rfam database...	0.85	0.76	0.95	19	3301	1	1	0	0	6
PDB_00713	-	-0.01	0.00	0.00	0	1998	19	1	17	1	21
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2680	22	0	21	1	23
PDB_00804	-	0.00	0.00	0.00	0	15344	56	10	46	0	50
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.42	0.39	0.47	16	4719	18	4	14	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	0.10	0.10	0.13	2	931	13	2	11	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4152	34	0	34	0	40
PDB_00918	-	0.56	0.43	0.75	3	321	1	1	0	0	4
PDB_01009	tRNA links to Rfam database...	0.90	0.90	0.90	19	2464	4	0	2	2	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.31	0.30	0.35	6	1111	11	0	11	0	14
PDB_01059	-	0.56	0.43	0.75	3	227	1	1	0	0	4
PDB_01070	-	0.27	0.26	0.29	14	12672	34	0	34	0	40
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.59	16	4344	12	1	10	1	18
PDB_01092	glmS links to Rfam database...	0.68	0.62	0.76	32	10111	12	1	9	2	20
PDB_01194	-	0.44	0.33	0.63	5	488	3	1	2	0	10
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.74	0.68	0.81	13	1160	3	2	1	0	6
PDB_01250	-	0.15	0.15	0.16	6	12053	31	4	27	0	35
PDB_01260	-	0.44	0.36	0.56	9	1814	7	0	7	0	16
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	-0.01	0.00	0.00	0	894	9	2	7	0	15
PDB_01309	-	-0.01	0.00	0.00	0	9122	58	7	51	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.37	0.36	0.38	10	4069	19	0	16	3	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.51	0.50	0.52	14	3978	13	3	10	0	14
RFA_00767	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1875	6	3	3	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.47	0.44	0.50	8	1875	8	1	7	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	-0.01	0.00	0.00	0	2002	17	1	13	3	18
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	3	3	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	18	2	14	2	16
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	1	7	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
