Overview

Metric	CentroidHomfold‑LAST		Carnac(seed)
MCC	0.636	>	0.000
Average MCC ± 95% Confidence Intervals	0.629 ± 0.041	>	0.000 ± 0.000
Sensitivity	0.463	>	0.000
Positive Predictive Value	0.874	>	0.000
Total TP	1983	>	0
Total TN	2824633	<	2826901
Total FP	404	>	0
Total FP CONTRA	31	>	0
Total FP INCONS	254	>	0
Total FP COMP	119	>	0
Total FN	2298	<	4281
P-value	3.56938820447e-08

^top

Performance plots

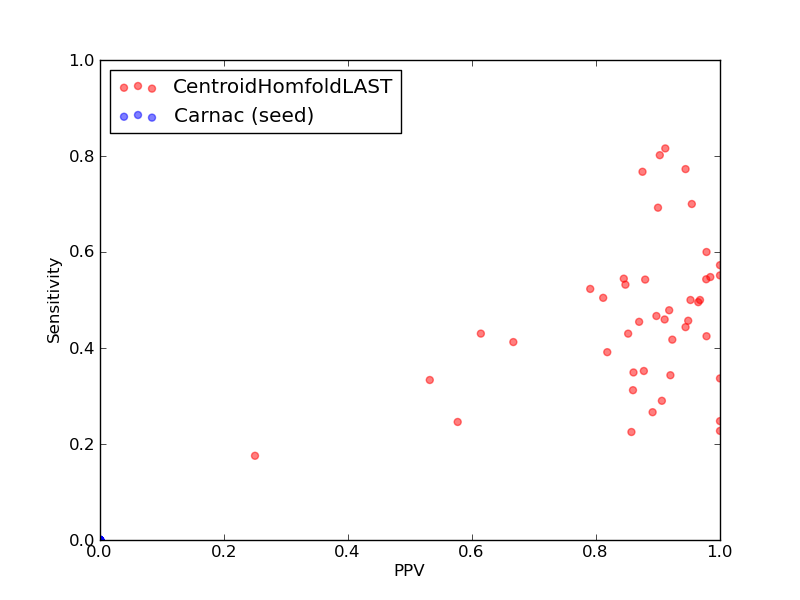

Comparison of performance of CentroidHomfold-LAST and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Carnac(seed)).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	1983
Total TN	2824633
Total FP	404
Total FP CONTRA	31
Total FP INCONS	254
Total FP COMP	119
Total FN	2298

Total Scores
MCC	0.636
Average MCC ± 95% Confidence Intervals	0.629 ± 0.041
Sensitivity	0.463
Positive Predictive Value	0.874
Nr of predictions	44

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.77	0.60	0.98	45	34145	5	0	1	4	30
ASE_00002	RNaseP_arch links to Rfam database...	0.82	0.77	0.88	56	35447	11	1	7	3	17
ASE_00009	RNaseP_arch links to Rfam database...	0.56	0.34	0.92	23	26081	3	0	2	1	44
ASE_00014	RNaseP_arch links to Rfam database...	0.55	0.35	0.86	37	54242	6	1	5	0	69
ASE_00116	RNaseP_arch links to Rfam database...	0.48	0.23	1.00	15	31611	2	0	0	2	51
ASE_00120	RNaseP_arch links to Rfam database...	0.67	0.53	0.85	50	46912	9	1	8	0	44
ASE_00121	RNaseP_arch links to Rfam database...	0.57	0.39	0.82	36	45106	8	1	7	0	56
ASE_00145	RNaseP_arch links to Rfam database...	0.64	0.50	0.81	56	70056	13	0	13	0	55
ASE_00148	RNaseP_arch links to Rfam database...	0.49	0.27	0.89	41	112529	5	0	5	0	113
ASE_00154	RNaseP_arch links to Rfam database...	0.60	0.43	0.85	46	65287	8	0	8	0	61
ASE_00155	RNaseP_arch links to Rfam database...	0.56	0.35	0.88	50	93471	7	0	7	0	92
ASE_00187	RNaseP_arch links to Rfam database...	0.65	0.44	0.94	51	68581	5	0	3	2	64
ASE_00196	RNaseP_arch links to Rfam database...	0.65	0.47	0.90	35	31587	4	0	4	0	40
ASE_00205	RNaseP_arch links to Rfam database...	0.68	0.54	0.84	49	45998	12	0	9	3	41
ASE_00209	RNaseP_arch links to Rfam database...	0.63	0.45	0.87	40	43025	6	1	5	0	48
ASE_00210	RNaseP_arch links to Rfam database...	0.79	0.69	0.90	45	27211	5	0	5	0	20
ASE_00213	RNaseP_arch links to Rfam database...	0.85	0.77	0.94	51	27207	5	0	3	2	15
ASE_00222	RNaseP_arch links to Rfam database...	0.52	0.31	0.86	49	112044	8	0	8	0	108
ASE_00346	RNaseP_arch links to Rfam database...	0.52	0.41	0.67	40	48145	24	3	17	4	57
ASE_00359	RNaseP_arch links to Rfam database...	0.44	0.23	0.86	18	42757	3	0	3	0	62
ASE_00360	RNaseP_arch links to Rfam database...	0.64	0.52	0.79	34	29360	9	1	8	0	31
ASE_00417	RNaseP_arch links to Rfam database...	0.51	0.43	0.61	43	54545	28	1	26	1	57
ASE_00418	RNaseP_arch links to Rfam database...	0.42	0.33	0.53	25	38734	23	1	21	1	50
CRW_00013	Intron_gpI links to Rfam database...	0.62	0.42	0.92	48	103688	4	0	4	0	67
CRW_00016	Intron_gpI links to Rfam database...	0.70	0.50	0.97	60	77359	2	0	2	0	60
CRW_00610	Intron_gpI links to Rfam database...	0.66	0.46	0.95	37	36276	2	0	2	0	44
CRW_00613	Intron_gpI links to Rfam database...	0.74	0.55	1.00	43	34937	0	0	0	0	35
CRW_00614	Intron_gpI links to Rfam database...	0.21	0.18	0.25	10	121731	73	7	23	43	47
CRW_00618	Intron_gpI links to Rfam database...	0.38	0.25	0.58	15	56254	20	1	10	9	46
CRW_00633	Intron_gpI links to Rfam database...	0.64	0.42	0.98	45	63500	2	1	0	1	61
CRW_00634	Intron_gpI links to Rfam database...	0.69	0.54	0.88	51	64562	7	1	6	0	43
CRW_00670	Intron_gpI links to Rfam database...	0.69	0.50	0.95	60	70062	3	0	3	0	60
CRW_00671	Intron_gpI links to Rfam database...	0.66	0.48	0.92	56	62774	5	1	4	0	61
CRW_00672	Intron_gpI links to Rfam database...	0.69	0.50	0.96	55	72333	3	0	2	1	56
CRW_00674	Intron_gpI links to Rfam database...	0.76	0.57	1.00	71	83365	1	0	0	1	53
CRW_00676	Intron_gpI links to Rfam database...	0.73	0.55	0.98	63	93464	3	0	1	2	52
CRW_00692	Intron_gpI links to Rfam database...	0.82	0.70	0.95	63	68569	3	0	3	0	27
PDB_00827	Intron_gpI links to Rfam database...	0.73	0.54	0.98	44	26983	2	0	1	1	37
RFA_00597	Telomerase-vert links to Rfam database...	0.50	0.25	1.00	27	97876	3	0	0	3	82
RFA_00598	Telomerase-vert links to Rfam database...	0.58	0.34	1.00	34	84632	5	0	0	5	67
RFA_00599	Telomerase-vert links to Rfam database...	0.65	0.46	0.91	51	101419	10	3	2	5	60
RFA_00600	Telomerase-vert links to Rfam database...	0.51	0.29	0.91	29	120263	7	0	3	4	71
RFA_00601	Telomerase-vert links to Rfam database...	0.86	0.82	0.91	93	99133	20	3	6	11	21
RFA_00602	Telomerase-vert links to Rfam database...	0.85	0.80	0.90	93	101372	20	3	7	10	23

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	0
Total TN	2826901
Total FP	0
Total FP CONTRA	0
Total FP INCONS	0
Total FP COMP	0
Total FN	4281

Total Scores
MCC	0.000
Average MCC ± 95% Confidence Intervals	0.000 ± 0.000
Sensitivity	0.000
Positive Predictive Value	0.000
Nr of predictions	44

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	34191	0	0	0	0	75
ASE_00002	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	35511	0	0	0	0	73
ASE_00009	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	26106	0	0	0	0	67
ASE_00014	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	54285	0	0	0	0	106
ASE_00116	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	31626	0	0	0	0	66
ASE_00120	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	46971	0	0	0	0	94
ASE_00121	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	45150	0	0	0	0	92
ASE_00145	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	70125	0	0	0	0	111
ASE_00148	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	112575	0	0	0	0	154
ASE_00154	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	65341	0	0	0	0	107
ASE_00155	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	93528	0	0	0	0	142
ASE_00187	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	68635	0	0	0	0	115
ASE_00196	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	31626	0	0	0	0	75
ASE_00205	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	90
ASE_00209	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	43071	0	0	0	0	88
ASE_00210	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	27261	0	0	0	0	65
ASE_00213	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	27261	0	0	0	0	66
ASE_00222	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	112101	0	0	0	0	157
ASE_00346	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	48205	0	0	0	0	97
ASE_00359	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	42778	0	0	0	0	80
ASE_00360	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	29403	0	0	0	0	65
ASE_00417	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	54615	0	0	0	0	100
ASE_00418	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	38781	0	0	0	0	75
CRW_00013	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	103740	0	0	0	0	115
CRW_00016	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	77421	0	0	0	0	120
CRW_00610	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	36315	0	0	0	0	81
CRW_00613	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	34980	0	0	0	0	78
CRW_00614	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	121771	0	0	0	0	57
CRW_00618	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	56280	0	0	0	0	61
CRW_00633	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	63546	0	0	0	0	106
CRW_00634	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	64620	0	0	0	0	94
CRW_00670	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	70125	0	0	0	0	120
CRW_00671	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	62835	0	0	0	0	117
CRW_00672	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	72390	0	0	0	0	111
CRW_00674	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	83436	0	0	0	0	124
CRW_00676	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	93528	0	0	0	0	115
CRW_00692	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	68635	0	0	0	0	90
PDB_00827	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	27028	0	0	0	0	81
RFA_00597	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	97903	0	0	0	0	109
RFA_00598	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	84666	0	0	0	0	101
RFA_00599	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	111
RFA_00600	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	120295	0	0	0	0	100
RFA_00601	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	99235	0	0	0	0	114
RFA_00602	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	116

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
