Overview

Metric	ProbKnot		RNAalifold(seed)
MCC	0.587	>	0.469
Average MCC ± 95% Confidence Intervals	0.580 ± 0.018	>	0.462 ± 0.014
Sensitivity	0.566	>	0.272
Positive Predictive Value	0.610	<	0.811
Total TP	16408	>	7873
Total TN	17530023	<	17547235
Total FP	13030	>	2022
Total FP CONTRA	1601	>	261
Total FP INCONS	8906	>	1569
Total FP COMP	2523	>	192
Total FN	12590	<	21125
P-value	3.56938820447e-08

^top

Performance plots

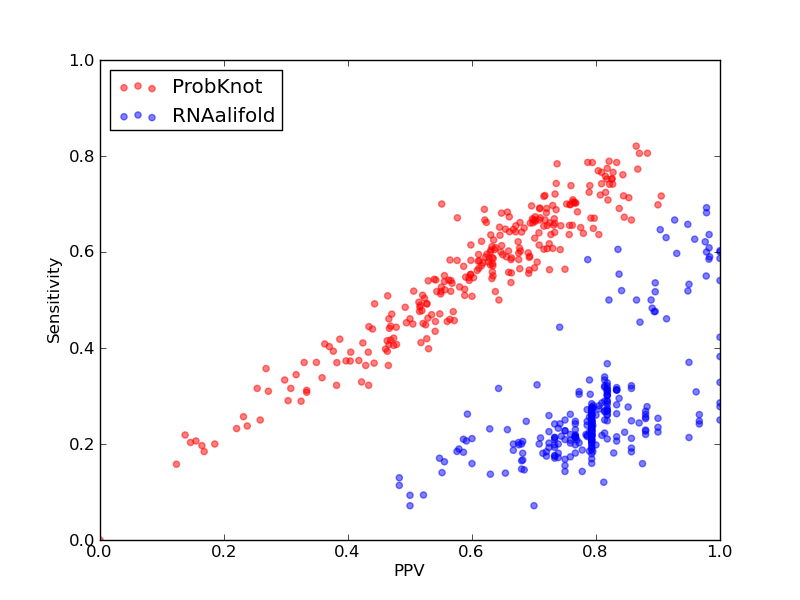

Comparison of performance of ProbKnot and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and RNAalifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and RNAalifold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and RNAalifold(seed)).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	16408
Total TN	17530023
Total FP	13030
Total FP CONTRA	1601
Total FP INCONS	8906
Total FP COMP	2523
Total FN	12590

Total Scores
MCC	0.587
Average MCC ± 95% Confidence Intervals	0.580 ± 0.018
Sensitivity	0.566
Positive Predictive Value	0.610
Nr of predictions	278

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.63	0.61	0.65	46	34120	32	4	21	7	29
ASE_00002	RNaseP_arch links to Rfam database...	0.69	0.67	0.71	49	35442	28	4	16	8	24
ASE_00004	RNaseP_bact_a links to Rfam database...	0.70	0.69	0.72	67	47802	28	9	17	2	30
ASE_00005	RNaseP_bact_a links to Rfam database...	0.62	0.56	0.69	65	57876	33	4	25	4	52
ASE_00006	RNaseP_bact_a links to Rfam database...	0.54	0.53	0.55	49	47497	45	10	30	5	44
ASE_00007	RNaseP_bact_a links to Rfam database...	0.72	0.64	0.80	70	59598	25	0	17	8	40
ASE_00009	RNaseP_arch links to Rfam database...	0.38	0.37	0.40	25	26043	38	5	33	0	42
ASE_00012	RNaseP_bact_a links to Rfam database...	0.50	0.46	0.56	56	73820	50	3	41	6	67
ASE_00014	RNaseP_arch links to Rfam database...	0.44	0.42	0.46	44	54190	57	2	49	6	62
ASE_00017	RNaseP_nuc links to Rfam database...	0.17	0.20	0.15	13	50951	92	28	48	16	51
ASE_00018	RNaseP_bact_a links to Rfam database...	0.55	0.52	0.59	70	80482	51	1	48	2	64
ASE_00020	RNaseP_bact_a links to Rfam database...	0.59	0.57	0.62	72	73803	51	6	39	6	54
ASE_00021	RNaseP_bact_a links to Rfam database...	0.62	0.56	0.69	90	104066	49	4	36	9	70
ASE_00022	RNaseP_bact_b links to Rfam database...	0.51	0.46	0.56	57	82927	51	5	39	7	67
ASE_00023	RNaseP_bact_a links to Rfam database...	0.67	0.66	0.68	84	84131	45	6	34	5	43
ASE_00025	RNaseP_nuc links to Rfam database...	0.29	0.31	0.27	22	78525	111	9	50	52	49
ASE_00026	RNaseP_bact_a links to Rfam database...	0.55	0.53	0.58	58	59585	47	3	39	5	52
ASE_00028	RNaseP_bact_b links to Rfam database...	0.73	0.70	0.76	88	84550	36	6	22	8	38
ASE_00029	RNaseP_bact_a links to Rfam database...	0.60	0.58	0.61	71	82912	48	13	32	3	51
ASE_00030	RNaseP_bact_a links to Rfam database...	0.66	0.61	0.72	88	85369	38	0	34	4	57
ASE_00031	RNaseP_bact_a links to Rfam database...	0.69	0.67	0.72	84	86619	42	2	31	9	42
ASE_00032	RNaseP_bact_a links to Rfam database...	0.55	0.55	0.56	65	80083	53	12	40	1	53
ASE_00033	RNaseP_bact_a links to Rfam database...	0.37	0.32	0.43	39	64890	53	4	47	2	82
ASE_00035	RNaseP_bact_a links to Rfam database...	0.39	0.37	0.40	44	70391	70	9	56	5	74
ASE_00036	RNaseP_bact_a links to Rfam database...	0.49	0.48	0.49	64	75725	69	9	57	3	68
ASE_00037	RNaseP_bact_a links to Rfam database...	0.41	0.36	0.47	40	59254	50	1	45	4	70
ASE_00038	RNaseP_bact_a links to Rfam database...	0.79	0.75	0.83	76	53536	22	1	15	6	25
ASE_00040	RNaseP_bact_a links to Rfam database...	0.46	0.40	0.53	53	78903	52	4	43	5	80
ASE_00041	RNaseP_bact_a links to Rfam database...	0.44	0.41	0.48	44	57538	53	5	43	5	64
ASE_00042	RNaseP_bact_a links to Rfam database...	0.50	0.46	0.54	66	89978	62	2	54	6	79
ASE_00044	RNaseP_bact_a links to Rfam database...	0.74	0.74	0.74	78	54509	34	6	22	6	27
ASE_00046	RNaseP_bact_a links to Rfam database...	0.68	0.64	0.73	66	50313	26	3	21	2	37
ASE_00047	RNaseP_bact_a links to Rfam database...	0.58	0.56	0.61	73	74185	48	2	45	1	57
ASE_00052	RNaseP_bact_a links to Rfam database...	0.60	0.57	0.63	64	61324	43	9	28	6	48
ASE_00053	RNaseP_bact_a links to Rfam database...	0.61	0.59	0.63	78	79278	52	5	40	7	55
ASE_00057	RNaseP_bact_a links to Rfam database...	0.60	0.59	0.62	79	82088	54	8	40	6	55
ASE_00064	RNaseP_bact_a links to Rfam database...	0.38	0.39	0.38	35	45358	67	6	52	9	54
ASE_00066	RNaseP_bact_a links to Rfam database...	0.55	0.51	0.60	66	72280	46	1	43	2	64
ASE_00068	RNaseP_bact_a links to Rfam database...	0.57	0.52	0.64	44	37606	30	2	23	5	41
ASE_00069	RNaseP_bact_a links to Rfam database...	0.65	0.62	0.67	87	82899	46	5	37	4	53
ASE_00074	RNaseP_bact_a links to Rfam database...	0.53	0.51	0.55	61	67785	53	4	46	3	58
ASE_00075	RNaseP_bact_a links to Rfam database...	0.67	0.62	0.72	100	108673	51	3	35	13	62
ASE_00076	RNaseP_bact_a links to Rfam database...	0.51	0.49	0.53	58	68155	57	2	50	5	60
ASE_00077	RNaseP_bact_a links to Rfam database...	0.55	0.53	0.57	46	45069	41	4	31	6	40
ASE_00078	RNaseP_bact_a links to Rfam database...	0.66	0.61	0.71	51	42999	27	2	19	6	32
ASE_00079	RNaseP_bact_a links to Rfam database...	0.51	0.51	0.52	51	55513	49	2	45	2	49
ASE_00080	RNaseP_bact_a links to Rfam database...	0.59	0.54	0.63	67	71525	45	6	33	6	56
ASE_00081	RNaseP_bact_a links to Rfam database...	0.76	0.69	0.84	67	49690	15	4	9	2	30
ASE_00082	RNaseP_bact_a links to Rfam database...	0.79	0.70	0.90	81	70410	24	1	8	15	35
ASE_00083	RNaseP_bact_a links to Rfam database...	0.68	0.66	0.70	73	62377	38	8	23	7	37
ASE_00084	RNaseP_bact_a links to Rfam database...	0.79	0.76	0.82	75	53536	19	4	13	2	24
ASE_00087	RNaseP_bact_a links to Rfam database...	0.71	0.64	0.78	92	88292	33	4	22	7	52
ASE_00090	RNaseP_bact_a links to Rfam database...	0.67	0.67	0.66	68	55508	43	4	31	8	33
ASE_00092	RNaseP_bact_a links to Rfam database...	0.79	0.75	0.83	85	63443	26	3	15	8	28
ASE_00096	RNaseP_bact_a links to Rfam database...	0.48	0.46	0.50	53	63440	55	5	48	2	62
ASE_00099	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.91	86	64525	15	0	9	6	34
ASE_00100	RNaseP_nuc links to Rfam database...	0.31	0.32	0.31	24	82137	109	5	49	55	52
ASE_00102	RNaseP_bact_a links to Rfam database...	0.57	0.50	0.64	83	117726	49	6	40	3	83
ASE_00104	RNaseP_bact_a links to Rfam database...	0.70	0.66	0.76	78	64158	29	2	23	4	41
ASE_00105	RNaseP_bact_a links to Rfam database...	0.44	0.41	0.47	45	64166	59	7	43	9	66
ASE_00107	RNaseP_bact_a links to Rfam database...	0.73	0.71	0.76	90	73035	29	1	27	1	37
ASE_00108	RNaseP_nuc links to Rfam database...	0.47	0.49	0.44	31	46901	67	5	34	28	32
ASE_00111	RNaseP_nuc links to Rfam database...	0.28	0.32	0.25	18	50015	71	21	32	18	39
ASE_00112	RNaseP_bact_a links to Rfam database...	0.78	0.74	0.83	86	75362	25	2	16	7	30
ASE_00115	RNaseP_bact_a links to Rfam database...	0.67	0.68	0.66	69	54510	47	7	29	11	32
ASE_00116	RNaseP_arch links to Rfam database...	0.39	0.36	0.43	24	31570	35	4	28	3	42
ASE_00118	RNaseP_bact_a links to Rfam database...	0.47	0.47	0.47	48	60624	58	4	50	4	54
ASE_00119	RNaseP_bact_a links to Rfam database...	0.84	0.81	0.87	87	62735	16	2	11	3	21
ASE_00120	RNaseP_arch links to Rfam database...	0.57	0.55	0.60	52	46884	35	7	28	0	42
ASE_00121	RNaseP_arch links to Rfam database...	0.25	0.25	0.26	23	45061	68	5	61	2	69
ASE_00122	RNaseP_bact_a links to Rfam database...	0.69	0.64	0.76	56	43291	18	0	18	0	32
ASE_00123	RNaseP_bact_a links to Rfam database...	0.53	0.52	0.55	44	38423	42	2	34	6	41
ASE_00125	RNaseP_bact_a links to Rfam database...	0.68	0.64	0.73	56	39263	29	4	17	8	32
ASE_00128	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.75	70	53208	31	3	20	8	30
ASE_00129	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.76	78	62733	31	2	22	7	33
ASE_00131	RNaseP_bact_a links to Rfam database...	0.61	0.59	0.63	50	39261	39	1	28	10	35
ASE_00132	RNaseP_bact_a links to Rfam database...	0.66	0.64	0.67	61	50312	32	8	22	2	34
ASE_00134	RNaseP_bact_a links to Rfam database...	0.42	0.41	0.42	39	50311	58	8	45	5	56
ASE_00135	RNaseP_bact_a links to Rfam database...	0.65	0.64	0.66	70	63084	43	1	35	7	39
ASE_00136	RNaseP_bact_a links to Rfam database...	0.80	0.76	0.84	70	48122	22	0	13	9	22
ASE_00137	RNaseP_bact_a links to Rfam database...	0.69	0.67	0.70	66	48422	33	2	26	5	32
ASE_00138	RNaseP_bact_a links to Rfam database...	0.62	0.60	0.64	49	40393	33	10	18	5	32
ASE_00139	RNaseP_bact_a links to Rfam database...	0.66	0.61	0.72	63	54197	31	1	24	6	41
ASE_00140	RNaseP_bact_a links to Rfam database...	0.67	0.64	0.71	80	70763	36	4	29	3	45
ASE_00142	RNaseP_bact_a links to Rfam database...	0.71	0.66	0.76	80	67056	31	5	20	6	42
ASE_00145	RNaseP_arch links to Rfam database...	0.55	0.54	0.57	60	70019	51	7	39	5	51
ASE_00146	RNaseP_bact_a links to Rfam database...	0.61	0.56	0.66	69	70772	39	6	29	4	55
ASE_00148	RNaseP_arch links to Rfam database...	0.69	0.66	0.73	101	112437	39	4	33	2	53
ASE_00151	RNaseP_bact_a links to Rfam database...	0.73	0.68	0.77	67	51916	27	7	13	7	31
ASE_00153	RNaseP_nuc links to Rfam database...	0.62	0.67	0.58	49	57545	73	9	27	37	24
ASE_00154	RNaseP_arch links to Rfam database...	0.58	0.57	0.59	61	65237	46	4	39	3	46
ASE_00155	RNaseP_arch links to Rfam database...	0.54	0.52	0.56	74	93395	62	10	49	3	68
ASE_00163	RNaseP_bact_a links to Rfam database...	0.32	0.31	0.33	29	53214	69	5	53	11	64
ASE_00165	RNaseP_bact_a links to Rfam database...	0.46	0.45	0.47	45	52879	53	3	48	2	56
ASE_00168	RNaseP_nuc links to Rfam database...	0.17	0.22	0.14	14	60624	105	27	61	17	50
ASE_00169	RNaseP_bact_a links to Rfam database...	0.46	0.41	0.52	44	57206	49	4	37	8	63
ASE_00170	RNaseP_bact_a links to Rfam database...	0.71	0.69	0.74	64	48741	31	3	20	8	29
ASE_00171	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.77	66	48430	22	6	14	2	28
ASE_00172	RNaseP_bact_a links to Rfam database...	0.78	0.72	0.84	76	58906	20	2	12	6	30
ASE_00174	RNaseP_bact_a links to Rfam database...	0.50	0.50	0.51	54	60970	54	8	43	3	55
ASE_00175	RNaseP_bact_a links to Rfam database...	0.67	0.61	0.73	65	59942	31	2	22	7	42
ASE_00176	RNaseP_bact_a links to Rfam database...	0.60	0.54	0.66	59	59942	36	4	26	6	51
ASE_00179	RNaseP_bact_a links to Rfam database...	0.57	0.55	0.59	46	44175	33	5	27	1	38
ASE_00180	RNaseP_bact_a links to Rfam database...	0.70	0.66	0.73	66	51270	30	8	16	6	34
ASE_00181	RNaseP_bact_a links to Rfam database...	0.71	0.65	0.78	69	57541	26	4	16	6	37
ASE_00182	RNaseP_bact_a links to Rfam database...	0.59	0.57	0.61	77	84129	53	5	44	4	59
ASE_00184	RNaseP_bact_a links to Rfam database...	0.70	0.70	0.70	71	54513	37	5	26	6	31
ASE_00185	RNaseP_bact_a links to Rfam database...	0.76	0.72	0.81	92	73422	29	1	21	7	36
ASE_00186	RNaseP_bact_a links to Rfam database...	0.70	0.68	0.72	90	78878	44	3	32	9	42
ASE_00187	RNaseP_arch links to Rfam database...	0.41	0.39	0.43	45	68531	66	7	52	7	70
ASE_00189	RNaseP_bact_b links to Rfam database...	0.66	0.65	0.67	66	63091	37	7	26	4	36
ASE_00190	RNaseP_bact_b links to Rfam database...	0.62	0.61	0.63	55	45364	35	4	28	3	35
ASE_00192	RNaseP_bact_b links to Rfam database...	0.51	0.50	0.52	67	84538	67	10	51	6	66
ASE_00194	RNaseP_bact_b links to Rfam database...	0.49	0.46	0.53	55	73432	55	6	43	6	64
ASE_00196	RNaseP_arch links to Rfam database...	0.79	0.79	0.79	59	31551	23	2	14	7	16
ASE_00197	RNaseP_bact_a links to Rfam database...	0.59	0.56	0.63	81	89125	55	3	44	8	64
ASE_00203	RNaseP_bact_a links to Rfam database...	0.76	0.71	0.82	68	46582	21	4	11	6	28
ASE_00204	RNaseP_bact_b links to Rfam database...	0.69	0.66	0.73	74	67794	36	5	23	8	38
ASE_00205	RNaseP_arch links to Rfam database...	0.62	0.62	0.62	56	45965	39	6	29	4	34
ASE_00209	RNaseP_arch links to Rfam database...	0.43	0.40	0.46	35	42995	41	6	35	0	53
ASE_00210	RNaseP_arch links to Rfam database...	0.64	0.66	0.62	43	27192	28	6	20	2	22
ASE_00212	RNaseP_bact_a links to Rfam database...	0.64	0.61	0.68	90	93828	49	5	38	6	58
ASE_00213	RNaseP_arch links to Rfam database...	0.71	0.70	0.73	46	27198	19	3	14	2	20
ASE_00214	RNaseP_bact_a links to Rfam database...	0.79	0.79	0.79	81	56178	31	4	17	10	22
ASE_00215	RNaseP_bact_a links to Rfam database...	0.60	0.58	0.63	57	48426	35	5	28	2	42
ASE_00216	RNaseP_bact_a links to Rfam database...	0.48	0.45	0.52	37	39269	35	12	22	1	45
ASE_00217	RNaseP_bact_a links to Rfam database...	0.35	0.32	0.38	29	40394	53	5	42	6	61
ASE_00221	RNaseP_bact_a links to Rfam database...	0.65	0.56	0.75	66	64532	28	0	22	6	51
ASE_00222	RNaseP_arch links to Rfam database...	0.55	0.51	0.59	80	111965	58	5	51	2	77
ASE_00227	RNaseP_bact_a links to Rfam database...	0.55	0.54	0.56	72	78875	56	7	49	0	61
ASE_00228	RNaseP_bact_a links to Rfam database...	0.57	0.55	0.59	47	46892	33	9	23	1	39
ASE_00229	RNaseP_bact_a links to Rfam database...	0.69	0.66	0.72	57	42407	29	4	18	7	30
ASE_00231	RNaseP_bact_a links to Rfam database...	0.62	0.60	0.63	58	47803	38	6	28	4	38
ASE_00232	RNaseP_bact_a links to Rfam database...	0.66	0.65	0.67	55	38421	31	8	19	4	29
ASE_00234	RNaseP_bact_a links to Rfam database...	0.59	0.55	0.63	71	75354	48	3	38	7	58
ASE_00237	RNaseP_nuc links to Rfam database...	0.00	0.00	0.00	0	45678	92	28	47	17	56
ASE_00238	RNaseP_bact_a links to Rfam database...	0.72	0.65	0.80	74	64168	26	2	17	7	40
ASE_00240	RNaseP_bact_a links to Rfam database...	0.63	0.60	0.66	56	46580	37	1	28	8	37
ASE_00241	RNaseP_bact_a links to Rfam database...	0.63	0.60	0.68	52	43879	32	1	24	7	35
ASE_00242	RNaseP_bact_a links to Rfam database...	0.64	0.60	0.69	67	60978	32	3	27	2	45
ASE_00246	RNaseP_nuc links to Rfam database...	0.39	0.40	0.37	27	48132	68	12	34	22	40
ASE_00247	RNaseP_nuc links to Rfam database...	0.63	0.63	0.63	40	54222	66	7	16	43	24
ASE_00248	RNaseP_bact_a links to Rfam database...	0.40	0.37	0.44	42	62386	55	4	49	2	72
ASE_00250	RNaseP_bact_a links to Rfam database...	0.62	0.59	0.66	77	78887	44	8	31	5	54
ASE_00252	RNaseP_bact_a links to Rfam database...	0.60	0.58	0.62	97	115283	69	2	58	9	71
ASE_00254	RNaseP_bact_a links to Rfam database...	0.37	0.33	0.42	27	36792	44	3	34	7	55
ASE_00255	RNaseP_bact_a links to Rfam database...	0.55	0.54	0.56	70	74565	59	5	51	3	60
ASE_00257	RNaseP_bact_a links to Rfam database...	0.66	0.63	0.70	61	50953	33	1	25	7	36
ASE_00259	RNaseP_bact_a links to Rfam database...	0.51	0.47	0.55	57	73049	52	6	41	5	64
ASE_00263	RNaseP_bact_a links to Rfam database...	0.70	0.69	0.71	83	70383	40	4	30	6	37
ASE_00264	RNaseP_nuc links to Rfam database...	0.62	0.59	0.66	59	49051	49	1	30	18	41
ASE_00267	RNaseP_bact_a links to Rfam database...	0.64	0.59	0.69	52	45075	34	4	19	11	36
ASE_00270	RNaseP_bact_a links to Rfam database...	0.80	0.79	0.82	101	72267	29	1	21	7	27
ASE_00274	RNaseP_bact_a links to Rfam database...	0.64	0.56	0.73	58	55531	25	5	17	3	45
ASE_00277	RNaseP_bact_a links to Rfam database...	0.44	0.44	0.44	40	48114	53	9	42	2	51
ASE_00279	RNaseP_bact_a links to Rfam database...	0.50	0.49	0.52	49	53206	50	6	40	4	52
ASE_00280	RNaseP_bact_a links to Rfam database...	0.50	0.47	0.53	46	51917	45	10	30	5	52
ASE_00281	RNaseP_bact_a links to Rfam database...	0.73	0.67	0.80	59	44477	22	0	15	7	29
ASE_00282	RNaseP_bact_a links to Rfam database...	0.45	0.44	0.47	56	77695	67	5	59	3	71
ASE_00283	RNaseP_bact_a links to Rfam database...	0.76	0.74	0.79	79	61676	28	4	17	7	28
ASE_00284	RNaseP_bact_a links to Rfam database...	0.68	0.67	0.70	72	58208	36	5	26	5	36
ASE_00285	RNaseP_bact_a links to Rfam database...	0.78	0.71	0.85	87	68904	26	4	11	11	35
ASE_00286	RNaseP_bact_a links to Rfam database...	0.40	0.39	0.40	36	46576	62	3	50	9	56
ASE_00287	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.76	72	54851	26	3	20	3	31
ASE_00288	RNaseP_bact_a links to Rfam database...	0.30	0.29	0.30	27	45967	65	8	54	3	66
ASE_00289	RNaseP_bact_a links to Rfam database...	0.63	0.57	0.70	89	100898	43	7	31	5	68
ASE_00292	RNaseP_bact_a links to Rfam database...	0.48	0.43	0.54	60	81699	54	2	49	3	78
ASE_00294	RNaseP_bact_a links to Rfam database...	0.75	0.67	0.85	115	114345	27	2	19	6	56
ASE_00295	RNaseP_bact_a links to Rfam database...	0.61	0.60	0.62	78	73795	50	7	40	3	53
ASE_00296	RNaseP_bact_a links to Rfam database...	0.43	0.39	0.46	57	91683	70	6	60	4	88
ASE_00297	RNaseP_bact_a links to Rfam database...	0.76	0.72	0.79	71	52885	20	3	16	1	27
ASE_00298	RNaseP_bact_a links to Rfam database...	0.50	0.48	0.52	54	67424	55	2	48	5	59
ASE_00299	RNaseP_bact_a links to Rfam database...	0.53	0.54	0.53	54	49353	54	6	42	6	46
ASE_00313	RNaseP_nuc links to Rfam database...	0.65	0.65	0.64	58	62391	51	10	22	19	31
ASE_00316	RNaseP_nuc links to Rfam database...	0.57	0.54	0.60	53	107791	73	12	24	37	45
ASE_00318	RNaseP_bact_b links to Rfam database...	0.63	0.64	0.63	75	80081	49	15	29	5	43
ASE_00327	RNaseP_nuc links to Rfam database...	0.81	0.79	0.83	70	57207	35	4	10	21	19
ASE_00328	RNaseP_bact_b links to Rfam database...	0.68	0.66	0.70	74	72665	43	7	25	11	38
ASE_00330	RNaseP_nuc links to Rfam database...	0.65	0.69	0.62	62	56180	55	9	29	17	28
ASE_00332	RNaseP_bact_a links to Rfam database...	0.51	0.49	0.53	68	81681	65	6	55	4	70
ASE_00335	RNaseP_bact_b links to Rfam database...	0.60	0.59	0.61	69	75353	49	8	36	5	47
ASE_00337	RNaseP_nuc links to Rfam database...	0.38	0.41	0.36	29	39260	66	5	46	15	42
ASE_00338	RNaseP_nuc links to Rfam database...	0.64	0.60	0.68	59	66343	49	3	25	21	39
ASE_00339	RNaseP_bact_a links to Rfam database...	0.67	0.61	0.74	72	80103	34	1	24	9	47
ASE_00340	RNaseP_bact_a links to Rfam database...	0.72	0.72	0.72	61	45971	30	7	17	6	24
ASE_00342	RNaseP_bact_a links to Rfam database...	0.62	0.57	0.68	65	62385	34	2	29	3	50
ASE_00343	RNaseP_bact_a links to Rfam database...	0.70	0.69	0.71	78	83326	45	7	25	13	35
ASE_00346	RNaseP_arch links to Rfam database...	0.46	0.44	0.48	43	48115	54	4	43	7	54
ASE_00353	RNaseP_bact_a links to Rfam database...	0.60	0.58	0.63	62	57871	41	4	33	4	45
ASE_00359	RNaseP_arch links to Rfam database...	0.24	0.24	0.24	19	42698	61	7	54	0	61
ASE_00360	RNaseP_arch links to Rfam database...	0.32	0.31	0.33	20	29343	40	8	32	0	45
ASE_00361	RNaseP_bact_a links to Rfam database...	0.54	0.54	0.54	69	75338	62	13	46	3	58
ASE_00362	RNaseP_bact_a links to Rfam database...	0.58	0.58	0.58	53	48113	41	2	37	2	38
ASE_00363	RNaseP_bact_a links to Rfam database...	0.57	0.55	0.60	52	51273	44	2	33	9	42
ASE_00364	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.76	74	54188	28	2	21	5	31
ASE_00366	RNaseP_bact_a links to Rfam database...	0.40	0.42	0.39	41	58547	67	11	54	2	57
ASE_00367	RNaseP_bact_a links to Rfam database...	0.57	0.55	0.60	47	42993	40	5	26	9	39
ASE_00369	RNaseP_bact_a links to Rfam database...	0.64	0.59	0.69	63	55854	30	1	27	2	44
ASE_00370	RNaseP_bact_a links to Rfam database...	0.73	0.70	0.77	59	41828	26	1	17	8	25
ASE_00372	RNaseP_bact_a links to Rfam database...	0.67	0.65	0.68	65	51908	37	7	23	7	35
ASE_00374	RNaseP_bact_a links to Rfam database...	0.72	0.72	0.72	63	44762	28	3	22	3	25
ASE_00375	RNaseP_bact_a links to Rfam database...	0.82	0.77	0.87	85	60280	22	1	12	9	25
ASE_00376	RNaseP_bact_a links to Rfam database...	0.65	0.65	0.65	68	56849	41	5	31	5	37
ASE_00377	RNaseP_bact_a links to Rfam database...	0.75	0.74	0.76	79	57526	35	4	21	10	28
ASE_00379	RNaseP_bact_a links to Rfam database...	0.60	0.57	0.63	51	45975	41	4	26	11	38
ASE_00380	RNaseP_bact_a links to Rfam database...	0.68	0.67	0.70	66	54852	32	6	22	4	33
ASE_00382	RNaseP_bact_a links to Rfam database...	0.69	0.67	0.71	56	41826	29	6	17	6	28
ASE_00383	RNaseP_bact_a links to Rfam database...	0.51	0.46	0.57	48	54531	43	5	31	7	57
ASE_00384	RNaseP_bact_a links to Rfam database...	0.61	0.59	0.63	54	48430	38	2	30	6	38
ASE_00385	RNaseP_bact_a links to Rfam database...	0.51	0.52	0.51	42	41822	46	13	28	5	39
ASE_00386	RNaseP_bact_a links to Rfam database...	0.54	0.54	0.54	52	50307	48	7	37	4	44
ASE_00387	RNaseP_bact_a links to Rfam database...	0.68	0.65	0.72	68	55850	33	1	26	6	36
ASE_00388	RNaseP_bact_a links to Rfam database...	0.63	0.58	0.68	52	45676	37	1	24	12	37
ASE_00390	RNaseP_bact_a links to Rfam database...	0.61	0.60	0.63	51	42114	41	0	30	11	34
ASE_00393	RNaseP_bact_a links to Rfam database...	0.47	0.42	0.53	39	47821	43	2	33	8	54
ASE_00394	RNaseP_bact_a links to Rfam database...	0.80	0.77	0.82	72	46883	20	3	13	4	21
ASE_00395	RNaseP_bact_a links to Rfam database...	0.70	0.65	0.74	55	41542	30	1	18	11	29
ASE_00396	RNaseP_bact_a links to Rfam database...	0.54	0.52	0.57	43	41540	38	2	31	5	40
ASE_00397	RNaseP_bact_a links to Rfam database...	0.59	0.58	0.61	61	54515	47	6	33	8	44
ASE_00398	RNaseP_bact_a links to Rfam database...	0.61	0.56	0.66	58	55857	39	1	29	9	46
ASE_00400	RNaseP_bact_a links to Rfam database...	0.66	0.64	0.68	68	57870	38	1	31	6	38
ASE_00401	RNaseP_bact_a links to Rfam database...	0.64	0.63	0.65	80	76904	46	6	38	2	46
ASE_00402	RNaseP_bact_a links to Rfam database...	0.73	0.67	0.79	57	42414	18	2	13	3	28
ASE_00403	RNaseP_bact_a links to Rfam database...	0.45	0.42	0.47	45	55850	57	5	45	7	62
ASE_00404	RNaseP_bact_a links to Rfam database...	0.53	0.52	0.54	44	42990	46	6	31	9	41
ASE_00406	RNaseP_bact_a links to Rfam database...	0.80	0.77	0.83	72	48741	26	3	12	11	22
ASE_00411	RNaseP_bact_a links to Rfam database...	0.46	0.46	0.47	41	49367	54	6	41	7	48
ASE_00412	RNaseP_bact_a links to Rfam database...	0.49	0.48	0.52	50	58214	51	8	39	4	55
ASE_00413	RNaseP_bact_a links to Rfam database...	0.64	0.67	0.62	54	44464	34	11	22	1	27
ASE_00414	RNaseP_bact_a links to Rfam database...	0.47	0.45	0.49	43	46273	51	2	42	7	52
ASE_00415	RNaseP_bact_a links to Rfam database...	0.68	0.66	0.69	68	54848	33	5	25	3	35
ASE_00416	RNaseP_bact_a links to Rfam database...	0.70	0.67	0.73	85	77305	41	2	29	10	42
ASE_00417	RNaseP_arch links to Rfam database...	0.36	0.37	0.35	37	54509	72	11	58	3	63
ASE_00418	RNaseP_arch links to Rfam database...	0.19	0.20	0.19	15	38700	70	8	58	4	60
ASE_00419	RNaseP_bact_a links to Rfam database...	0.84	0.81	0.88	83	54852	14	3	8	3	20
ASE_00422	RNaseP_bact_a links to Rfam database...	0.79	0.77	0.81	72	46882	24	3	14	7	22
ASE_00423	RNaseP_bact_a links to Rfam database...	0.61	0.61	0.60	67	56841	46	10	35	1	42
ASE_00426	RNaseP_bact_a links to Rfam database...	0.44	0.42	0.47	45	60979	51	3	48	0	63
ASE_00428	RNaseP_bact_a links to Rfam database...	0.78	0.75	0.82	94	76521	29	4	17	8	31
ASE_00430	RNaseP_bact_a links to Rfam database...	0.77	0.74	0.81	72	46882	24	3	14	7	25
ASE_00431	RNaseP_bact_a links to Rfam database...	0.64	0.58	0.71	55	46282	32	2	21	9	40
ASE_00434	RNaseP_bact_b links to Rfam database...	0.62	0.61	0.64	67	68160	49	5	33	11	43
ASE_00437	RNaseP_bact_a links to Rfam database...	0.43	0.41	0.47	55	79283	69	1	62	6	80
ASE_00438	RNaseP_bact_a links to Rfam database...	0.48	0.45	0.53	52	65967	47	3	44	0	64
ASE_00441	RNaseP_bact_a links to Rfam database...	0.78	0.74	0.82	83	64160	27	2	16	9	29
ASE_00447	RNaseP_bact_a links to Rfam database...	0.77	0.72	0.82	84	60275	24	2	17	5	32
ASE_00448	RNaseP_bact_a links to Rfam database...	0.22	0.23	0.22	26	64143	99	8	84	7	86
ASE_00451	RNaseP_bact_a links to Rfam database...	0.62	0.60	0.65	75	70760	48	3	38	7	50
CRW_00013	Intron_gpI links to Rfam database...	0.39	0.37	0.42	43	103637	84	9	51	24	72
CRW_00016	Intron_gpI links to Rfam database...	0.48	0.45	0.50	54	77314	68	6	47	15	66
CRW_00610	Intron_gpI links to Rfam database...	0.44	0.44	0.43	36	36232	49	8	39	2	45
CRW_00613	Intron_gpI links to Rfam database...	0.84	0.82	0.86	64	34906	18	0	10	8	14
CRW_00614	Intron_gpI links to Rfam database...	0.14	0.16	0.12	9	121698	120	17	47	56	48
CRW_00618	Intron_gpI links to Rfam database...	0.18	0.20	0.16	12	56207	83	15	46	22	49
CRW_00619	Intron_gpI links to Rfam database...	0.35	0.37	0.33	27	164943	151	8	47	96	46
CRW_00620	Intron_gpI links to Rfam database...	0.18	0.21	0.15	13	150891	156	19	52	85	50
CRW_00621	Intron_gpI links to Rfam database...	0.35	0.34	0.36	24	153114	139	8	35	96	47
CRW_00623	Intron_gpI links to Rfam database...	0.31	0.29	0.32	24	129721	122	7	43	72	59
CRW_00633	Intron_gpI links to Rfam database...	0.62	0.59	0.65	63	63449	38	9	25	4	43
CRW_00634	Intron_gpI links to Rfam database...	0.50	0.49	0.52	46	64531	48	10	33	5	48
CRW_00670	Intron_gpI links to Rfam database...	0.57	0.58	0.56	70	70001	57	11	43	3	50
CRW_00671	Intron_gpI links to Rfam database...	0.79	0.77	0.80	90	62723	28	6	16	6	27
CRW_00672	Intron_gpI links to Rfam database...	0.76	0.78	0.74	87	72272	41	10	21	10	24
CRW_00674	Intron_gpI links to Rfam database...	0.68	0.67	0.70	83	83317	41	8	28	5	41
CRW_00676	Intron_gpI links to Rfam database...	0.59	0.58	0.60	67	93416	63	8	37	18	48
CRW_00692	Intron_gpI links to Rfam database...	0.33	0.34	0.32	31	68537	84	18	49	17	59
PDB_00827	Intron_gpI links to Rfam database...	0.76	0.67	0.86	54	26965	11	1	8	2	27
PDB_00919	RNaseP_bact_a links to Rfam database...	0.52	0.48	0.57	49	44167	39	5	32	2	54
RFA_00597	Telomerase-vert links to Rfam database...	0.24	0.26	0.23	28	97782	111	22	71	18	81
RFA_00598	Telomerase-vert links to Rfam database...	0.62	0.58	0.66	59	84577	56	4	26	26	42
RFA_00599	Telomerase-vert links to Rfam database...	0.73	0.72	0.73	80	101366	58	10	19	29	31
RFA_00600	Telomerase-vert links to Rfam database...	0.62	0.70	0.55	70	120168	100	31	26	43	30
RFA_00601	Telomerase-vert links to Rfam database...	0.49	0.51	0.46	58	99110	84	27	40	17	56
RFA_00602	Telomerase-vert links to Rfam database...	0.66	0.68	0.65	79	101353	63	21	22	20	37
TMR_00173	tmRNA links to Rfam database...	0.31	0.36	0.27	15	42139	69	15	26	28	27
TMR_00357	tmRNA links to Rfam database...	0.38	0.37	0.38	34	82939	75	16	39	20	58
TMR_00601	tmRNA links to Rfam database...	0.31	0.33	0.30	14	58949	90	13	20	57	28
TMR_00696	tmRNA links to Rfam database...	0.17	0.18	0.17	21	84953	116	18	86	12	93

^top

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	7873
Total TN	17547235
Total FP	2022
Total FP CONTRA	261
Total FP INCONS	1569
Total FP COMP	192
Total FN	21125

Total Scores
MCC	0.469
Average MCC ± 95% Confidence Intervals	0.462 ± 0.014
Sensitivity	0.272
Positive Predictive Value	0.811
Nr of predictions	278

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.77	0.59	1.00	44	34147	0	0	0	0	31
ASE_00002	RNaseP_arch links to Rfam database...	0.78	0.60	1.00	44	35467	0	0	0	0	29
ASE_00004	RNaseP_bact_a links to Rfam database...	0.45	0.23	0.88	22	47870	3	0	3	0	75
ASE_00005	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	30	57932	8	1	7	0	87
ASE_00006	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.83	20	47562	4	0	4	0	73
ASE_00007	RNaseP_bact_a links to Rfam database...	0.52	0.33	0.82	36	59641	8	1	7	0	74
ASE_00009	RNaseP_arch links to Rfam database...	0.74	0.60	0.93	40	26063	3	0	3	0	27
ASE_00012	RNaseP_bact_a links to Rfam database...	0.46	0.26	0.80	32	73880	11	1	7	3	91
ASE_00014	RNaseP_arch links to Rfam database...	0.70	0.52	0.95	55	54227	3	0	3	0	51
ASE_00017	RNaseP_nuc links to Rfam database...	0.51	0.31	0.83	20	51016	5	0	4	1	44
ASE_00018	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.82	36	80557	8	1	7	0	98
ASE_00020	RNaseP_bact_a links to Rfam database...	0.36	0.17	0.73	22	73890	8	3	5	0	104
ASE_00021	RNaseP_bact_a links to Rfam database...	0.39	0.18	0.83	29	104161	6	1	5	0	131
ASE_00022	RNaseP_bact_b links to Rfam database...	0.65	0.48	0.89	59	82962	13	1	6	6	65
ASE_00023	RNaseP_bact_a links to Rfam database...	0.39	0.21	0.71	27	84217	13	1	10	2	100
ASE_00025	RNaseP_nuc links to Rfam database...	0.48	0.28	0.83	20	78582	5	0	4	1	51
ASE_00026	RNaseP_bact_a links to Rfam database...	0.49	0.31	0.77	34	59641	10	1	9	0	76
ASE_00028	RNaseP_bact_b links to Rfam database...	0.65	0.48	0.90	60	84599	12	1	6	5	66
ASE_00029	RNaseP_bact_a links to Rfam database...	0.30	0.14	0.65	17	83002	10	1	8	1	105
ASE_00030	RNaseP_bact_a links to Rfam database...	0.46	0.25	0.86	36	85449	6	1	5	0	109
ASE_00031	RNaseP_bact_a links to Rfam database...	0.37	0.20	0.68	25	86699	12	1	11	0	101
ASE_00032	RNaseP_bact_a links to Rfam database...	0.22	0.09	0.50	11	80178	12	1	10	1	107
ASE_00033	RNaseP_bact_a links to Rfam database...	0.48	0.29	0.81	35	64937	8	1	7	0	86
ASE_00035	RNaseP_bact_a links to Rfam database...	0.47	0.28	0.80	33	70459	11	1	7	3	85
ASE_00036	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.78	29	75818	8	1	7	0	103
ASE_00037	RNaseP_bact_a links to Rfam database...	0.51	0.32	0.81	35	59297	8	1	7	0	75
ASE_00038	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.79	23	53599	6	1	5	0	78
ASE_00040	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.82	36	78959	8	1	7	0	97
ASE_00041	RNaseP_bact_a links to Rfam database...	0.49	0.28	0.88	30	57596	4	0	4	0	78
ASE_00042	RNaseP_bact_a links to Rfam database...	0.41	0.23	0.75	33	90056	11	1	10	0	112
ASE_00044	RNaseP_bact_a links to Rfam database...	0.52	0.33	0.81	35	54572	8	1	7	0	70
ASE_00046	RNaseP_bact_a links to Rfam database...	0.53	0.34	0.81	35	50360	8	1	7	0	68
ASE_00047	RNaseP_bact_a links to Rfam database...	0.36	0.20	0.67	26	74266	13	1	12	0	104
ASE_00052	RNaseP_bact_a links to Rfam database...	0.49	0.30	0.79	34	61382	9	1	8	0	78
ASE_00053	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.79	30	79363	8	1	7	0	103
ASE_00057	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.82	36	82171	8	1	7	0	98
ASE_00064	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	22	45423	6	1	5	0	67
ASE_00066	RNaseP_bact_a links to Rfam database...	0.43	0.24	0.79	31	72351	8	1	7	0	99
ASE_00068	RNaseP_bact_a links to Rfam database...	0.37	0.20	0.68	17	37650	8	1	7	0	68
ASE_00069	RNaseP_bact_a links to Rfam database...	0.45	0.25	0.81	35	82985	9	1	7	1	105
ASE_00074	RNaseP_bact_a links to Rfam database...	0.50	0.30	0.82	36	67852	8	1	7	0	83
ASE_00075	RNaseP_bact_a links to Rfam database...	0.38	0.19	0.79	30	108773	13	1	7	5	132
ASE_00076	RNaseP_bact_a links to Rfam database...	0.39	0.19	0.79	23	68236	6	1	5	0	95
ASE_00077	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.75	18	45126	6	1	5	0	68
ASE_00078	RNaseP_bact_a links to Rfam database...	0.49	0.28	0.85	23	43044	6	0	4	2	60
ASE_00079	RNaseP_bact_a links to Rfam database...	0.43	0.23	0.79	23	55582	6	1	5	0	77
ASE_00080	RNaseP_bact_a links to Rfam database...	0.23	0.11	0.48	14	71602	15	1	14	0	109
ASE_00081	RNaseP_bact_a links to Rfam database...	0.43	0.24	0.79	23	49741	6	1	5	0	74
ASE_00082	RNaseP_bact_a links to Rfam database...	0.34	0.16	0.75	18	70476	6	1	5	0	98
ASE_00083	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.79	23	62452	6	1	5	0	87
ASE_00084	RNaseP_bact_a links to Rfam database...	0.43	0.23	0.79	23	53599	6	1	5	0	76
ASE_00087	RNaseP_bact_a links to Rfam database...	0.36	0.16	0.79	23	88381	6	1	5	0	121
ASE_00090	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.79	23	55582	6	1	5	0	78
ASE_00092	RNaseP_bact_a links to Rfam database...	0.40	0.20	0.79	23	63517	6	1	5	0	90
ASE_00096	RNaseP_bact_a links to Rfam database...	0.40	0.20	0.79	23	63517	6	1	5	0	92
ASE_00099	RNaseP_bact_a links to Rfam database...	0.49	0.30	0.82	36	64576	8	1	7	0	84
ASE_00100	RNaseP_nuc links to Rfam database...	0.47	0.26	0.83	20	82191	5	0	4	1	56
ASE_00102	RNaseP_bact_a links to Rfam database...	0.36	0.18	0.71	30	117813	12	1	11	0	136
ASE_00104	RNaseP_bact_a links to Rfam database...	0.50	0.30	0.82	36	64217	8	1	7	0	83
ASE_00105	RNaseP_bact_a links to Rfam database...	0.38	0.20	0.73	22	64231	8	3	5	0	89
ASE_00107	RNaseP_bact_a links to Rfam database...	0.48	0.28	0.82	36	73109	8	1	7	0	91
ASE_00108	RNaseP_nuc links to Rfam database...	0.51	0.32	0.83	20	46947	5	0	4	1	43
ASE_00111	RNaseP_nuc links to Rfam database...	0.52	0.32	0.86	18	50065	3	0	3	0	39
ASE_00112	RNaseP_bact_a links to Rfam database...	0.33	0.19	0.58	22	75428	16	1	15	0	94
ASE_00115	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.79	22	54587	6	1	5	0	79
ASE_00116	RNaseP_arch links to Rfam database...	0.82	0.68	0.98	45	31580	1	0	1	0	21
ASE_00118	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.79	22	60698	7	1	5	1	80
ASE_00119	RNaseP_bact_a links to Rfam database...	0.31	0.12	0.81	13	62819	3	1	2	0	95
ASE_00120	RNaseP_arch links to Rfam database...	0.76	0.59	0.98	55	46915	2	0	1	1	39
ASE_00121	RNaseP_arch links to Rfam database...	0.77	0.61	0.98	56	45093	1	0	1	0	36
ASE_00122	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	43336	6	1	5	0	65
ASE_00123	RNaseP_bact_a links to Rfam database...	0.38	0.20	0.74	17	38480	6	1	5	0	68
ASE_00125	RNaseP_bact_a links to Rfam database...	0.37	0.16	0.88	14	39324	2	0	2	0	74
ASE_00128	RNaseP_bact_a links to Rfam database...	0.44	0.22	0.88	22	53276	3	1	2	0	78
ASE_00129	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.79	23	62806	6	1	5	0	88
ASE_00131	RNaseP_bact_a links to Rfam database...	0.38	0.20	0.71	17	39316	7	2	5	0	68
ASE_00132	RNaseP_bact_a links to Rfam database...	0.43	0.24	0.77	23	50373	7	2	5	0	72
ASE_00134	RNaseP_bact_a links to Rfam database...	0.44	0.24	0.79	23	50374	6	1	5	0	72
ASE_00135	RNaseP_bact_a links to Rfam database...	0.37	0.19	0.72	21	63161	8	1	7	0	88
ASE_00136	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	23	48176	6	1	5	0	69
ASE_00137	RNaseP_bact_a links to Rfam database...	0.44	0.22	0.85	22	48490	4	0	4	0	76
ASE_00138	RNaseP_bact_a links to Rfam database...	0.47	0.28	0.79	23	40441	6	1	5	0	58
ASE_00139	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	54256	6	1	5	0	81
ASE_00140	RNaseP_bact_a links to Rfam database...	0.36	0.18	0.73	22	70846	8	3	5	0	103
ASE_00142	RNaseP_bact_a links to Rfam database...	0.50	0.30	0.84	36	67118	7	1	6	0	86
ASE_00145	RNaseP_arch links to Rfam database...	0.73	0.54	1.00	60	70065	0	0	0	0	51
ASE_00146	RNaseP_bact_a links to Rfam database...	0.49	0.29	0.82	36	70832	8	1	7	0	88
ASE_00148	RNaseP_arch links to Rfam database...	0.59	0.37	0.95	57	112515	3	0	3	0	97
ASE_00151	RNaseP_bact_a links to Rfam database...	0.55	0.37	0.82	36	51959	8	1	7	0	62
ASE_00153	RNaseP_nuc links to Rfam database...	0.37	0.21	0.68	15	57608	7	0	7	0	58
ASE_00154	RNaseP_arch links to Rfam database...	0.71	0.53	0.95	57	65281	3	0	3	0	50
ASE_00155	RNaseP_arch links to Rfam database...	0.65	0.42	1.00	60	93468	0	0	0	0	82
ASE_00163	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	23	53272	6	1	5	0	70
ASE_00165	RNaseP_bact_a links to Rfam database...	0.40	0.20	0.80	20	52950	5	1	4	0	81
ASE_00168	RNaseP_nuc links to Rfam database...	0.51	0.31	0.83	20	60702	5	0	4	1	44
ASE_00169	RNaseP_bact_a links to Rfam database...	0.35	0.19	0.67	20	57261	10	2	8	0	87
ASE_00170	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	23	48799	6	1	5	0	70
ASE_00171	RNaseP_bact_a links to Rfam database...	0.44	0.24	0.79	23	48487	6	1	5	0	71
ASE_00172	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.79	23	58967	6	1	5	0	83
ASE_00174	RNaseP_bact_a links to Rfam database...	0.39	0.20	0.76	22	61046	7	2	5	0	87
ASE_00175	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.77	23	60001	7	2	5	0	84
ASE_00176	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.79	23	60002	6	1	5	0	87
ASE_00179	RNaseP_bact_a links to Rfam database...	0.39	0.20	0.77	17	44231	5	1	4	0	67
ASE_00180	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.77	23	51330	7	2	5	0	77
ASE_00181	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.77	23	57600	7	2	5	0	83
ASE_00182	RNaseP_bact_a links to Rfam database...	0.37	0.17	0.79	23	84226	6	1	5	0	113
ASE_00184	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.79	23	54586	6	1	5	0	79
ASE_00185	RNaseP_bact_a links to Rfam database...	0.38	0.18	0.79	23	73507	6	1	5	0	105
ASE_00186	RNaseP_bact_a links to Rfam database...	0.43	0.25	0.75	33	78959	11	1	10	0	99
ASE_00187	RNaseP_arch links to Rfam database...	0.65	0.46	0.91	53	68577	5	1	4	0	62
ASE_00189	RNaseP_bact_b links to Rfam database...	0.66	0.52	0.84	53	63127	15	1	9	5	49
ASE_00190	RNaseP_bact_b links to Rfam database...	0.66	0.50	0.87	45	45399	12	1	6	5	45
ASE_00192	RNaseP_bact_b links to Rfam database...	0.48	0.32	0.70	43	84605	22	1	17	4	90
ASE_00194	RNaseP_bact_b links to Rfam database...	0.63	0.45	0.87	54	73474	13	1	7	5	65
ASE_00196	RNaseP_arch links to Rfam database...	0.77	0.63	0.96	47	31577	2	0	2	0	28
ASE_00197	RNaseP_bact_a links to Rfam database...	0.41	0.23	0.75	33	89209	11	1	10	0	112
ASE_00203	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.77	20	46639	6	2	4	0	76
ASE_00204	RNaseP_bact_b links to Rfam database...	0.67	0.50	0.89	56	67833	13	1	6	6	56
ASE_00205	RNaseP_arch links to Rfam database...	0.77	0.60	1.00	54	46002	1	0	0	1	36
ASE_00209	RNaseP_arch links to Rfam database...	0.79	0.64	0.98	56	43014	1	0	1	0	32
ASE_00210	RNaseP_arch links to Rfam database...	0.68	0.55	0.84	36	27218	9	0	7	2	29
ASE_00212	RNaseP_bact_a links to Rfam database...	0.40	0.22	0.74	32	93918	11	1	10	0	116
ASE_00213	RNaseP_arch links to Rfam database...	0.78	0.62	0.98	41	27219	3	0	1	2	25
ASE_00214	RNaseP_bact_a links to Rfam database...	0.35	0.17	0.72	18	56255	7	2	5	0	85
ASE_00215	RNaseP_bact_a links to Rfam database...	0.36	0.17	0.74	17	48493	6	1	5	0	82
ASE_00216	RNaseP_bact_a links to Rfam database...	0.46	0.24	0.87	20	39317	3	0	3	0	62
ASE_00217	RNaseP_bact_a links to Rfam database...	0.51	0.33	0.79	30	40432	8	1	7	0	60
ASE_00221	RNaseP_bact_a links to Rfam database...	0.50	0.31	0.82	36	64576	8	1	7	0	81
ASE_00222	RNaseP_arch links to Rfam database...	0.62	0.38	1.00	60	112041	0	0	0	0	97
ASE_00227	RNaseP_bact_a links to Rfam database...	0.37	0.20	0.68	27	78963	13	1	12	0	106
ASE_00228	RNaseP_bact_a links to Rfam database...	0.47	0.26	0.88	22	46946	3	0	3	0	64
ASE_00229	RNaseP_bact_a links to Rfam database...	0.47	0.25	0.88	22	42461	3	0	3	0	65
ASE_00231	RNaseP_bact_a links to Rfam database...	0.45	0.23	0.88	22	47870	3	0	3	0	74
ASE_00232	RNaseP_bact_a links to Rfam database...	0.48	0.26	0.88	22	38478	3	0	3	0	62
ASE_00234	RNaseP_bact_a links to Rfam database...	0.35	0.17	0.73	22	75436	8	3	5	0	107
ASE_00237	RNaseP_nuc links to Rfam database...	0.52	0.32	0.86	18	45732	3	0	3	0	38
ASE_00238	RNaseP_bact_a links to Rfam database...	0.38	0.19	0.73	22	64231	8	3	5	0	92
ASE_00240	RNaseP_bact_a links to Rfam database...	0.33	0.18	0.59	17	46636	12	1	11	0	76
ASE_00241	RNaseP_bact_a links to Rfam database...	0.46	0.26	0.79	23	43927	6	1	5	0	64
ASE_00242	RNaseP_bact_a links to Rfam database...	0.51	0.32	0.82	36	61031	8	1	7	0	76
ASE_00246	RNaseP_nuc links to Rfam database...	0.57	0.33	1.00	22	48183	0	0	0	0	45
ASE_00247	RNaseP_nuc links to Rfam database...	0.51	0.31	0.83	20	54261	5	0	4	1	44
ASE_00248	RNaseP_bact_a links to Rfam database...	0.51	0.32	0.82	36	62437	8	1	7	0	78
ASE_00250	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.81	35	78960	8	1	7	0	96
ASE_00252	RNaseP_bact_a links to Rfam database...	0.38	0.18	0.79	31	115401	12	1	7	4	137
ASE_00254	RNaseP_bact_a links to Rfam database...	0.49	0.27	0.88	22	36831	3	0	3	0	60
ASE_00255	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.81	35	74648	8	1	7	0	95
ASE_00257	RNaseP_bact_a links to Rfam database...	0.43	0.24	0.79	23	51011	6	1	5	0	74
ASE_00259	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.80	33	73112	8	1	7	0	88
ASE_00263	RNaseP_bact_a links to Rfam database...	0.39	0.19	0.79	23	70471	6	1	5	0	97
ASE_00264	RNaseP_nuc links to Rfam database...	0.50	0.25	1.00	25	49116	0	0	0	0	75
ASE_00267	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	45121	6	1	5	0	65
ASE_00270	RNaseP_bact_a links to Rfam database...	0.22	0.09	0.52	12	72367	12	1	10	1	116
ASE_00274	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.73	22	55581	8	3	5	0	81
ASE_00277	RNaseP_bact_a links to Rfam database...	0.42	0.24	0.73	22	48175	8	3	5	0	69
ASE_00279	RNaseP_bact_a links to Rfam database...	0.42	0.23	0.79	23	53272	6	1	5	0	78
ASE_00280	RNaseP_bact_a links to Rfam database...	0.40	0.18	0.86	18	51982	3	1	2	0	80
ASE_00281	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	44522	6	1	5	0	65
ASE_00282	RNaseP_bact_a links to Rfam database...	0.37	0.18	0.77	23	77785	7	2	5	0	104
ASE_00283	RNaseP_bact_a links to Rfam database...	0.35	0.17	0.75	18	61752	6	1	5	0	89
ASE_00284	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.77	23	58281	7	2	5	0	85
ASE_00285	RNaseP_bact_a links to Rfam database...	0.39	0.19	0.79	23	68977	6	1	5	0	99
ASE_00286	RNaseP_bact_a links to Rfam database...	0.43	0.24	0.79	22	46637	6	1	5	0	70
ASE_00287	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	54917	6	1	5	0	80
ASE_00288	RNaseP_bact_a links to Rfam database...	0.43	0.25	0.77	23	46026	7	2	5	0	70
ASE_00289	RNaseP_bact_a links to Rfam database...	0.43	0.22	0.81	35	100982	8	1	7	0	122
ASE_00292	RNaseP_bact_a links to Rfam database...	0.46	0.26	0.82	36	81766	8	1	7	0	102
ASE_00294	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.82	36	114437	8	1	7	0	135
ASE_00295	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.82	36	73876	8	1	7	0	95
ASE_00296	RNaseP_bact_a links to Rfam database...	0.45	0.25	0.82	36	91762	8	1	7	0	109
ASE_00297	RNaseP_bact_a links to Rfam database...	0.43	0.23	0.79	23	52946	6	1	5	0	75
ASE_00298	RNaseP_bact_a links to Rfam database...	0.40	0.20	0.79	23	67499	6	1	5	0	90
ASE_00299	RNaseP_bact_a links to Rfam database...	0.39	0.23	0.66	23	49420	12	1	11	0	77
ASE_00313	RNaseP_nuc links to Rfam database...	0.32	0.15	0.68	13	62462	8	2	4	2	76
ASE_00316	RNaseP_nuc links to Rfam database...	0.22	0.07	0.70	7	107870	4	0	3	1	91
ASE_00318	RNaseP_bact_b links to Rfam database...	0.66	0.48	0.89	57	80136	13	1	6	6	61
ASE_00327	RNaseP_nuc links to Rfam database...	0.45	0.21	0.95	19	57271	6	0	1	5	70
ASE_00328	RNaseP_bact_b links to Rfam database...	0.69	0.54	0.90	60	72704	12	1	6	5	52
ASE_00330	RNaseP_nuc links to Rfam database...	0.53	0.28	1.00	25	56255	0	0	0	0	65
ASE_00332	RNaseP_bact_a links to Rfam database...	0.46	0.26	0.82	36	81766	8	1	7	0	102
ASE_00335	RNaseP_bact_b links to Rfam database...	0.68	0.52	0.90	60	75399	12	1	6	5	56
ASE_00337	RNaseP_nuc links to Rfam database...	0.48	0.25	0.90	18	39320	7	0	2	5	53
ASE_00338	RNaseP_nuc links to Rfam database...	0.33	0.14	0.78	14	66412	4	0	4	0	84
ASE_00339	RNaseP_bact_a links to Rfam database...	0.48	0.29	0.81	34	80158	9	1	7	1	85
ASE_00340	RNaseP_bact_a links to Rfam database...	0.43	0.21	0.86	18	46035	3	0	3	0	67
ASE_00342	RNaseP_bact_a links to Rfam database...	0.51	0.31	0.82	36	62437	8	1	7	0	79
ASE_00343	RNaseP_bact_a links to Rfam database...	0.31	0.16	0.60	18	83406	12	2	10	0	95
ASE_00346	RNaseP_arch links to Rfam database...	0.57	0.44	0.74	43	48147	15	0	15	0	54
ASE_00353	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.77	23	57940	7	2	5	0	84
ASE_00359	RNaseP_arch links to Rfam database...	0.73	0.55	0.98	44	42733	2	0	1	1	36
ASE_00360	RNaseP_arch links to Rfam database...	0.82	0.69	0.98	45	29357	1	0	1	0	20
ASE_00361	RNaseP_bact_a links to Rfam database...	0.36	0.17	0.76	22	75437	7	2	5	0	105
ASE_00362	RNaseP_bact_a links to Rfam database...	0.45	0.25	0.79	23	48176	6	1	5	0	68
ASE_00363	RNaseP_bact_a links to Rfam database...	0.44	0.24	0.79	23	51331	6	1	5	0	71
ASE_00364	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.77	23	54255	7	2	5	0	82
ASE_00366	RNaseP_bact_a links to Rfam database...	0.36	0.18	0.72	18	58628	7	2	5	0	80
ASE_00367	RNaseP_bact_a links to Rfam database...	0.46	0.27	0.79	23	43042	6	1	5	0	63
ASE_00369	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.79	23	55916	6	1	5	0	84
ASE_00370	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.76	22	41876	7	1	6	0	62
ASE_00372	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.76	22	51974	7	1	6	0	78
ASE_00374	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	44821	6	1	5	0	65
ASE_00375	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.79	23	60349	6	1	5	0	87
ASE_00376	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	56924	6	1	5	0	82
ASE_00377	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.77	23	57600	7	2	5	0	84
ASE_00379	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	46027	6	1	5	0	66
ASE_00380	RNaseP_bact_a links to Rfam database...	0.43	0.23	0.79	23	54917	6	1	5	0	76
ASE_00382	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.79	23	41876	6	1	5	0	61
ASE_00383	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	54586	6	1	5	0	82
ASE_00384	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	23	48487	6	1	5	0	69
ASE_00385	RNaseP_bact_a links to Rfam database...	0.43	0.26	0.72	21	41876	8	1	7	0	60
ASE_00386	RNaseP_bact_a links to Rfam database...	0.44	0.24	0.79	23	50374	6	1	5	0	73
ASE_00387	RNaseP_bact_a links to Rfam database...	0.38	0.20	0.72	21	55916	8	1	7	0	83
ASE_00388	RNaseP_bact_a links to Rfam database...	0.45	0.26	0.79	23	45724	6	1	5	0	66
ASE_00390	RNaseP_bact_a links to Rfam database...	0.46	0.27	0.79	23	42166	6	1	5	0	62
ASE_00393	RNaseP_bact_a links to Rfam database...	0.40	0.23	0.72	21	47866	8	1	7	0	72
ASE_00394	RNaseP_bact_a links to Rfam database...	0.44	0.25	0.79	23	46942	6	1	5	0	70
ASE_00395	RNaseP_bact_a links to Rfam database...	0.47	0.27	0.79	23	41587	6	1	5	0	61
ASE_00396	RNaseP_bact_a links to Rfam database...	0.47	0.28	0.79	23	41587	6	1	5	0	60
ASE_00397	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	54586	6	1	5	0	82
ASE_00398	RNaseP_bact_a links to Rfam database...	0.42	0.22	0.79	23	55916	6	1	5	0	81
ASE_00400	RNaseP_bact_a links to Rfam database...	0.41	0.22	0.79	23	57941	6	1	5	0	83
ASE_00401	RNaseP_bact_a links to Rfam database...	0.33	0.14	0.75	18	77004	6	1	5	0	108
ASE_00402	RNaseP_bact_a links to Rfam database...	0.46	0.27	0.79	23	42457	6	1	5	0	62
ASE_00403	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.79	23	55916	6	1	5	0	84
ASE_00404	RNaseP_bact_a links to Rfam database...	0.46	0.27	0.79	23	43042	6	1	5	0	62
ASE_00406	RNaseP_bact_a links to Rfam database...	0.44	0.24	0.79	23	48799	6	1	5	0	71
ASE_00411	RNaseP_bact_a links to Rfam database...	0.41	0.25	0.69	22	49423	10	5	5	0	67
ASE_00412	RNaseP_bact_a links to Rfam database...	0.39	0.21	0.73	22	58281	8	3	5	0	83
ASE_00413	RNaseP_bact_a links to Rfam database...	0.46	0.27	0.79	22	44523	6	1	5	0	59
ASE_00414	RNaseP_bact_a links to Rfam database...	0.42	0.24	0.74	23	46329	8	3	5	0	72
ASE_00415	RNaseP_bact_a links to Rfam database...	0.33	0.17	0.68	17	54921	8	1	7	0	86
ASE_00416	RNaseP_bact_a links to Rfam database...	0.47	0.28	0.80	35	77377	9	1	8	0	92
ASE_00417	RNaseP_arch links to Rfam database...	0.76	0.59	0.98	59	54555	1	0	1	0	41
ASE_00418	RNaseP_arch links to Rfam database...	0.77	0.60	0.98	45	38735	1	0	1	0	30
ASE_00419	RNaseP_bact_a links to Rfam database...	0.40	0.21	0.73	22	54916	8	2	6	0	81
ASE_00422	RNaseP_bact_a links to Rfam database...	0.40	0.19	0.86	18	46950	3	0	3	0	76
ASE_00423	RNaseP_bact_a links to Rfam database...	0.51	0.32	0.81	35	56910	8	1	7	0	74
ASE_00426	RNaseP_bact_a links to Rfam database...	0.25	0.13	0.48	14	61046	15	1	14	0	94
ASE_00428	RNaseP_bact_a links to Rfam database...	0.47	0.28	0.80	35	76592	9	1	8	0	90
ASE_00430	RNaseP_bact_a links to Rfam database...	0.41	0.21	0.83	20	46947	4	0	4	0	77
ASE_00431	RNaseP_bact_a links to Rfam database...	0.38	0.23	0.63	22	46325	13	3	10	0	73
ASE_00434	RNaseP_bact_b links to Rfam database...	0.64	0.50	0.82	55	68198	17	1	11	5	55
ASE_00437	RNaseP_bact_a links to Rfam database...	0.30	0.17	0.55	23	79359	19	1	18	0	112
ASE_00438	RNaseP_bact_a links to Rfam database...	0.39	0.20	0.77	23	66036	7	2	5	0	93
ASE_00441	RNaseP_bact_a links to Rfam database...	0.38	0.19	0.78	21	64234	7	1	5	1	91
ASE_00447	RNaseP_bact_a links to Rfam database...	0.50	0.31	0.82	36	60334	8	1	7	0	80
ASE_00448	RNaseP_bact_a links to Rfam database...	0.48	0.30	0.77	34	64217	10	1	9	0	78
ASE_00451	RNaseP_bact_a links to Rfam database...	0.48	0.29	0.82	36	70832	8	1	7	0	89
CRW_00013	Intron_gpI links to Rfam database...	0.46	0.23	0.90	27	103710	3	0	3	0	88
CRW_00016	Intron_gpI links to Rfam database...	0.45	0.23	0.90	27	77391	3	0	3	0	93
CRW_00610	Intron_gpI links to Rfam database...	0.54	0.31	0.96	25	36289	3	0	1	2	56
CRW_00613	Intron_gpI links to Rfam database...	0.42	0.22	0.81	17	34959	6	0	4	2	61
CRW_00614	Intron_gpI links to Rfam database...	0.45	0.32	0.64	18	121743	11	2	8	1	39
CRW_00618	Intron_gpI links to Rfam database...	0.39	0.26	0.59	16	56253	11	2	9	0	45
CRW_00619	Intron_gpI links to Rfam database...	0.41	0.23	0.74	17	165002	7	0	6	1	56
CRW_00620	Intron_gpI links to Rfam database...	0.35	0.21	0.59	13	150953	16	0	9	7	50
CRW_00621	Intron_gpI links to Rfam database...	0.36	0.21	0.60	15	153156	11	2	8	1	56
CRW_00623	Intron_gpI links to Rfam database...	0.35	0.18	0.68	15	129773	9	1	6	2	68
CRW_00633	Intron_gpI links to Rfam database...	0.40	0.21	0.76	22	63517	7	2	5	0	84
CRW_00634	Intron_gpI links to Rfam database...	0.37	0.18	0.74	17	64597	12	0	6	6	77
CRW_00670	Intron_gpI links to Rfam database...	0.48	0.24	0.97	29	70095	1	0	1	0	91
CRW_00671	Intron_gpI links to Rfam database...	0.49	0.25	0.97	29	62805	1	0	1	0	88
CRW_00672	Intron_gpI links to Rfam database...	0.50	0.26	0.97	29	72360	1	0	1	0	82
CRW_00674	Intron_gpI links to Rfam database...	0.29	0.14	0.63	17	83409	10	6	4	0	107
CRW_00676	Intron_gpI links to Rfam database...	0.32	0.15	0.68	17	93503	13	0	8	5	98
CRW_00692	Intron_gpI links to Rfam database...	0.34	0.17	0.68	15	68613	13	0	7	6	75
PDB_00827	Intron_gpI links to Rfam database...	0.35	0.21	0.59	17	26999	12	2	10	0	64
PDB_00919	RNaseP_bact_a links to Rfam database...	0.33	0.18	0.58	19	44220	16	1	13	2	84
RFA_00597	Telomerase-vert links to Rfam database...	0.71	0.61	0.84	66	97824	18	0	13	5	43
RFA_00598	Telomerase-vert links to Rfam database...	0.68	0.58	0.79	59	84591	25	0	16	9	42
RFA_00599	Telomerase-vert links to Rfam database...	0.79	0.66	0.95	73	101398	7	0	4	3	38
RFA_00600	Telomerase-vert links to Rfam database...	0.76	0.63	0.91	63	120226	15	0	6	9	37
RFA_00601	Telomerase-vert links to Rfam database...	0.79	0.67	0.93	76	99153	10	0	6	4	38
RFA_00602	Telomerase-vert links to Rfam database...	0.76	0.65	0.90	75	101392	11	0	8	3	41
TMR_00173	tmRNA links to Rfam database...	0.19	0.07	0.50	3	42189	9	0	3	6	39
TMR_00357	tmRNA links to Rfam database...	0.30	0.16	0.56	15	83001	12	3	9	0	77
TMR_00601	tmRNA links to Rfam database...	0.53	0.29	1.00	12	58984	9	0	0	9	30
TMR_00696	tmRNA links to Rfam database...	0.28	0.14	0.55	16	85049	13	0	13	0	98

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

2. Individual counts for ProbKnot [ download as .csv ]

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

2. Individual counts for RNAalifold(seed) [ download as .csv ]
