Overview

Metric	Contrafold		ProbKnot
MCC	0.462	>	0.396
Average MCC ± 95% Confidence Intervals	0.457 ± 0.018	>	0.396 ± 0.017
Sensitivity	0.442	>	0.391
Positive Predictive Value	0.484	>	0.402
Total TP	48409	>	42843
Total TN	389651093	>	389644458
Total FP	67983	<	80462
Total FP CONTRA	7901	<	10919
Total FP INCONS	43762	<	52945
Total FP COMP	16320	<	16598
Total FN	61186	<	66752
P-value	3.56938820447e-08

^top

Performance plots

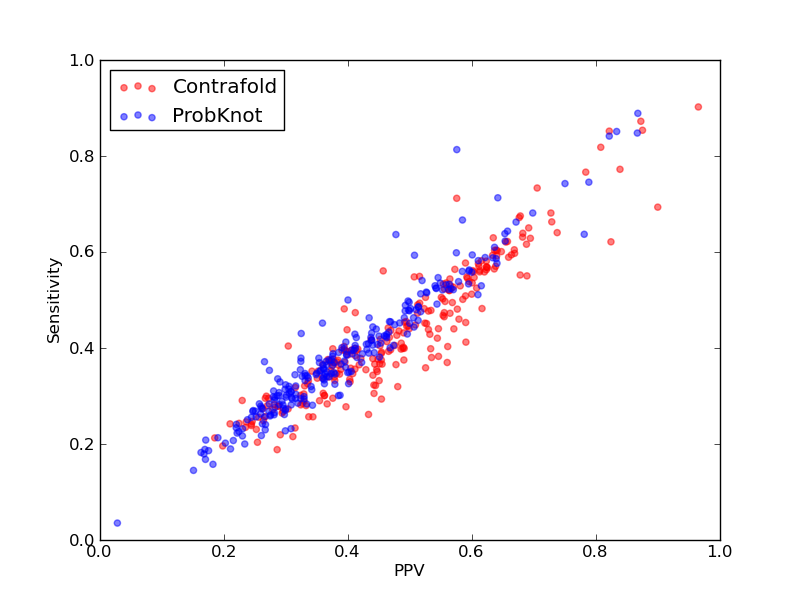

Comparison of performance of Contrafold and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Contrafold and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Contrafold and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for Contrafold and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Contrafold and ProbKnot).

^top

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	48409
Total TN	389651093
Total FP	67983
Total FP CONTRA	7901
Total FP INCONS	43762
Total FP COMP	16320
Total FN	61186

Total Scores
MCC	0.462
Average MCC ± 95% Confidence Intervals	0.457 ± 0.018
Sensitivity	0.442
Positive Predictive Value	0.484
Nr of predictions	247

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.62	0.55	0.69	115	3173773	576	9	43	524	94
CRW_00002	-	0.72	0.62	0.82	164	408861	79	5	30	44	100
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.77	0.77	0.78	351	1085153	140	12	85	43	107
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.68	0.68	320	1141844	188	22	130	36	154
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.60	0.57	0.64	268	1170795	174	25	127	22	202
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.56	237	1107395	202	25	159	18	219
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.64	0.60	0.67	286	1172318	164	20	122	22	187
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.61	274	1181504	188	29	146	13	202
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.51	0.51	0.53	231	1108865	226	32	177	17	226
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.53	0.57	245	1178450	213	19	166	28	220
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.56	0.52	0.61	243	1135878	175	14	143	18	220
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.64	287	1201577	192	19	142	31	189
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.55	0.51	0.59	237	1152519	185	22	143	20	229
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.53	0.49	0.57	233	1180006	196	22	155	19	238
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.62	0.59	0.64	277	1190763	182	19	137	26	191
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.34	0.34	0.35	150	1082228	288	32	246	10	295
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.50	0.48	0.52	228	1178444	227	20	188	19	245
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.57	0.55	0.59	259	1207798	197	27	151	19	216
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.56	250	1198476	220	27	173	20	228
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.53	0.51	0.55	229	1105912	212	23	164	25	224
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.66	301	1218683	200	21	136	43	183
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.61	267	1198490	184	24	145	15	211
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.47	0.44	0.50	206	1192327	232	26	181	25	262
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.66	0.63	0.69	286	1111874	157	20	106	31	169
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.51	0.48	0.53	221	1122337	215	30	163	22	241
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.49	203	1085190	233	20	188	25	243
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.61	0.59	0.63	271	1114843	186	19	138	29	186
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.44	0.40	0.49	182	1110423	203	23	167	13	271
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.44	0.42	0.47	190	1129849	240	28	189	23	260
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.60	0.56	0.64	262	1180004	173	25	125	23	202
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.55	0.51	0.60	232	1117873	173	15	140	18	221
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.65	288	1144901	182	17	135	30	176
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.41	0.38	0.45	162	1015668	217	29	166	22	270
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.51	0.47	0.56	216	1131371	196	24	149	23	240
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.66	0.63	0.68	289	1117836	159	19	116	24	169
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.60	0.57	0.63	270	1189221	197	21	141	35	206
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.38	0.36	0.40	165	1123842	258	35	208	15	296
CRW_00294	-	0.40	0.39	0.40	230	2620330	464	67	278	119	356
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.25	0.25	0.25	122	1620403	431	72	303	56	372
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.43	0.40	0.45	210	1762038	324	41	214	69	309
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.28	0.28	0.29	129	1445402	388	63	256	69	333
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.36	0.35	0.37	184	1805456	377	53	257	67	337
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.50	0.49	0.51	246	1627630	284	52	182	50	256
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.33	0.32	0.33	166	1988512	422	56	281	85	351
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.26	0.26	0.26	122	1769544	429	70	285	74	355
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.38	0.36	0.41	183	1892040	342	42	220	80	331
CRW_00338	-	0.20	0.21	0.19	84	1052972	396	77	293	26	311
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.39	0.40	0.39	197	1586366	355	58	250	47	301
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.40	0.40	0.39	202	1584577	358	54	257	47	299
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.35	0.34	0.36	170	1615029	355	51	253	51	333
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.39	0.40	0.38	202	1674827	390	57	279	54	305
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.33	0.33	0.33	157	1579284	361	57	255	49	325
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.37	0.37	0.37	189	1640256	363	64	257	42	317
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.44	0.41	0.46	205	1611467	295	42	196	57	291
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.41	0.40	0.42	198	1625830	342	48	230	64	300
CRW_00374	-	0.40	0.39	0.41	217	2182480	418	42	266	110	333
CRW_00375	-	0.37	0.36	0.38	197	2298928	401	55	260	86	344
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.43	0.42	0.44	223	2126443	372	38	249	85	311
CRW_00381	-	0.40	0.38	0.41	214	2303211	410	37	269	104	343
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.28	0.30	0.27	152	1750697	447	70	337	40	363
CRW_00400	-	0.27	0.27	0.28	134	2677974	538	57	290	191	360
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.28	0.28	0.28	131	1606062	404	68	267	69	333
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.39	0.36	0.42	181	1615070	306	41	211	54	315
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.36	0.37	0.36	181	1665721	382	54	269	59	314
CRW_00417	-	0.41	0.38	0.44	99	458178	135	23	103	9	163
CRW_00418	-	0.26	0.22	0.31	56	441150	130	14	110	6	204
CRW_00419	-	0.40	0.35	0.45	93	463958	122	7	108	7	172
CRW_00421	-	0.50	0.44	0.57	117	462998	111	10	78	23	149
CRW_00422	-	0.44	0.40	0.49	105	455320	131	13	97	21	158
CRW_00424	-	0.49	0.45	0.52	164	789083	172	18	131	23	199
CRW_00426	-	0.42	0.39	0.45	103	457219	137	13	111	13	162
CRW_00427	-	0.28	0.26	0.29	69	454346	182	30	136	16	192
CRW_00428	-	0.37	0.33	0.40	87	465879	144	17	112	15	173
CRW_00430	-	0.39	0.32	0.48	85	456313	101	17	75	9	181
CRW_00433	-	0.33	0.28	0.40	73	467844	115	12	99	4	190
CRW_00434	-	0.48	0.40	0.56	106	457257	91	9	74	8	157
CRW_00435	-	0.30	0.26	0.34	68	451527	139	21	109	9	197
CRW_00437	-	0.25	0.22	0.29	57	456294	151	16	123	12	203
CRW_00438	-	0.39	0.34	0.44	92	454372	126	15	102	9	176
CRW_00441	-	0.37	0.31	0.44	80	454400	110	12	89	9	182
CRW_00442	-	0.32	0.28	0.37	74	453426	139	14	114	11	187
CRW_00443	-	0.34	0.26	0.43	68	456333	107	8	81	18	192
CRW_00444	-	0.45	0.38	0.53	100	459174	99	15	72	12	163
CRW_00445	-	0.43	0.40	0.47	105	458179	127	19	100	8	160
CRW_00446	-	0.33	0.31	0.36	81	468771	157	18	126	13	184
CRW_00447	-	0.29	0.27	0.30	71	452442	174	23	140	11	189
CRW_00448	-	0.29	0.26	0.34	67	457247	143	23	109	11	194
CRW_00449	-	0.42	0.37	0.48	95	444897	111	20	84	7	165
CRW_00450	-	0.43	0.36	0.53	94	458224	101	11	74	16	168
CRW_00451	-	0.43	0.38	0.49	99	457244	114	11	92	11	165
CRW_00452	-	0.49	0.41	0.59	108	453445	94	7	68	19	154
CRW_00453	-	0.38	0.32	0.44	84	452487	117	13	92	12	177
CRW_00454	-	0.24	0.24	0.24	105	1730300	445	60	265	120	330
CRW_00456	-	0.45	0.37	0.56	98	470760	83	10	67	6	167
CRW_00457	-	0.44	0.41	0.48	107	467803	134	17	101	16	157
CRW_00458	-	0.48	0.42	0.54	111	464926	106	9	84	13	153
CRW_00459	-	0.52	0.46	0.58	121	462032	112	10	78	24	142
CRW_00460	-	0.39	0.35	0.43	193	1972641	344	20	237	87	351
CRW_00462	-	0.46	0.40	0.53	104	458208	107	10	81	16	157
CRW_00463	-	0.44	0.40	0.49	101	445832	116	18	89	9	153
CRW_00464	-	0.46	0.38	0.55	101	462056	95	8	76	11	163
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.70	0.68	0.73	312	1116336	148	19	98	31	146
CRW_00468	-	0.55	0.54	0.56	465	4290161	413	52	307	54	390
CRW_00471	-	0.55	0.53	0.57	461	4211438	388	52	302	34	410
CRW_00474	-	0.62	0.60	0.64	505	3976820	335	60	225	50	331
CRW_00476	-	0.63	0.60	0.67	525	4278490	308	43	217	48	354
CRW_00478	-	0.69	0.66	0.73	572	4150736	259	41	172	46	291
CRW_00487	-	0.59	0.56	0.62	491	4223083	351	43	254	54	381
CRW_00488	-	0.53	0.50	0.55	445	4325406	401	42	318	41	441
CRW_00490	-	0.40	0.40	0.41	344	4144922	525	63	431	31	518
CRW_00495	-	0.54	0.52	0.56	446	4205659	395	51	294	50	412
CRW_00496	-	0.57	0.54	0.60	464	4194083	357	35	274	48	402
CRW_00499	-	0.57	0.55	0.59	484	4372585	380	44	290	46	399
CRW_00500	-	0.54	0.53	0.55	463	4205614	421	56	317	48	405
CRW_00501	-	0.58	0.56	0.60	485	4284323	369	51	269	49	383
CRW_00502	-	0.67	0.65	0.69	567	4296026	311	42	211	58	305
CRW_00503	-	0.45	0.44	0.46	383	4252162	479	61	380	38	484
CRW_00507	-	0.59	0.56	0.62	483	4173826	342	38	258	46	382
CRW_00509	-	0.55	0.53	0.58	459	4182488	368	44	287	37	408
CRW_00511	-	0.47	0.45	0.49	381	4107641	432	39	350	43	475
CRW_00512	-	0.59	0.56	0.61	460	3814952	334	52	239	43	359
CRW_00516	-	0.62	0.59	0.66	516	4272643	324	42	225	57	360
CRW_00518	-	0.47	0.45	0.50	394	4357835	427	61	338	28	490
CRW_00520	-	0.63	0.59	0.66	505	4208590	309	55	201	53	345
CRW_00521	-	0.45	0.43	0.48	360	4136374	420	58	334	28	484
CRW_00522	-	0.32	0.30	0.33	238	3642926	513	86	400	27	544
CRW_00525	-	0.28	0.30	0.27	240	4058925	709	88	572	49	573
CRW_00530	-	0.35	0.34	0.37	91	534848	170	47	109	14	177
CRW_00535	-	0.37	0.37	0.38	121	898149	221	45	155	21	207
CRW_00538	-	0.41	0.38	0.45	113	811923	164	23	116	25	187
CRW_00542	-	0.28	0.30	0.27	95	994401	299	70	189	40	222
CRW_00547	-	0.59	0.57	0.61	492	4278470	368	53	260	55	371
CRW_00579	-	0.60	0.57	0.62	533	4290130	349	53	269	27	404
CRW_00583	-	0.60	0.57	0.62	533	4290130	349	53	269	27	404
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.33	0.30	0.36	134	1094090	257	24	212	21	311
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.38	157	1119345	281	41	213	27	295
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.65	268	1098489	182	28	118	36	178
CRW_00594	-	0.23	0.24	0.22	96	1028467	363	49	283	31	299
CRW_00596	-	0.24	0.25	0.24	95	1024193	335	44	264	27	291
CRW_00597	-	0.27	0.28	0.27	115	1200049	353	41	270	42	296
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.40	193	1665739	354	59	234	61	298
CRW_00599	-	0.40	0.40	0.41	216	3754638	682	45	271	366	330
CRW_00604	-	0.84	0.85	0.82	69	411694	186	4	11	171	12
CRW_00606	-	0.93	0.90	0.97	83	559067	236	0	3	233	9
CRW_00607	-	0.81	0.82	0.81	63	536052	269	3	12	254	14
CRW_00615	-	0.86	0.85	0.88	70	553798	271	0	10	261	12
CRW_00616	-	0.60	0.58	0.62	64	1699142	445	5	35	405	46
CRW_00617	-	0.57	0.55	0.60	35	426368	211	6	17	188	29
CRW_00678	-	0.42	0.44	0.40	53	666302	315	14	66	235	68
CRW_00680	-	0.53	0.55	0.52	67	516506	229	17	46	166	55
CRW_00683	-	0.63	0.63	0.63	85	460186	216	2	47	167	50
CRW_00684	-	0.53	0.55	0.51	74	612025	266	16	56	194	61
CRW_00702	-	0.72	0.73	0.71	55	357357	187	7	16	164	20
CRW_00704	-	0.87	0.87	0.87	82	386666	195	4	8	183	12
CRW_00705	-	0.26	0.29	0.23	25	1461086	417	29	55	333	61
CRW_00706	-	0.64	0.71	0.58	42	695537	308	13	18	277	17
CRW_00708	-	0.51	0.56	0.46	37	3457054	690	17	27	646	29
CRW_00709	-	0.23	0.19	0.29	16	1728814	485	1	39	445	69
CRW_00710	-	0.69	0.64	0.74	73	1040304	312	2	24	286	41
CRW_00711	-	0.23	0.24	0.21	30	2318638	605	50	63	492	94
CRW_00712	-	0.44	0.48	0.39	52	952758	374	24	56	294	56
CRW_00713	-	0.80	0.77	0.84	78	731352	295	5	10	280	23
CRW_00723	-	0.60	0.58	0.62	43	1583241	438	9	17	412	31
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.35	0.35	0.35	170	1640283	375	51	262	62	313
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.31	0.30	0.32	145	1636697	372	51	252	69	336
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.37	0.36	0.37	176	1638485	358	65	229	64	310
CRW_00761	-	0.24	0.24	0.24	113	2863958	623	51	299	273	361
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.38	0.32	0.44	144	1215694	231	27	155	49	302
CRW_00765	-	0.43	0.39	0.47	101	452459	126	21	95	10	156
CRW_00766	-	0.27	0.23	0.31	56	440213	138	20	102	16	184
CRW_00768	-	0.61	0.55	0.68	143	471695	100	7	61	32	116
CRW_00769	-	0.48	0.43	0.53	108	451522	115	21	74	20	144
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.40	0.37	0.44	148	945666	215	18	168	29	256
CRW_00773	-	0.48	0.45	0.51	116	451497	135	19	93	23	143
CRW_00774	-	0.44	0.40	0.49	105	488352	131	8	101	22	158
CRW_00777	-	0.43	0.42	0.45	127	719119	199	27	127	45	177
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.52	0.45	0.59	174	1201730	163	16	105	42	210
CRW_00779	-	0.37	0.36	0.39	150	1031380	264	22	214	28	272
CRW_00780	-	0.32	0.29	0.35	74	475591	151	18	117	16	181
CRW_00781	-	0.26	0.25	0.26	112	1978630	474	35	278	161	338
CRW_00783	-	0.39	0.33	0.45	86	453437	121	12	93	16	173
CRW_00784	-	0.41	0.37	0.45	96	456279	134	19	96	19	166
CRW_00785	-	0.54	0.48	0.62	122	452478	89	12	64	13	131
CRW_00786	-	0.38	0.37	0.38	167	1946914	424	48	222	154	283
CRW_00787	-	0.49	0.45	0.53	138	646691	151	13	111	27	168
CRW_00788	-	0.36	0.33	0.40	119	1758455	393	31	145	217	242
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.48	0.44	0.53	196	1137416	209	14	160	35	251
CRW_00790	-	0.26	0.26	0.27	115	1803619	442	38	278	126	332
CRW_00792	-	0.36	0.34	0.38	130	1581187	378	24	190	164	253
CRW_00793	-	0.54	0.50	0.59	189	1048753	210	26	108	76	188
CRW_00794	-	0.37	0.35	0.39	85	434558	154	20	115	19	161
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.35	0.33	0.38	131	1152575	263	22	193	48	263
CRW_00796	-	0.36	0.29	0.45	69	384851	109	2	81	26	166
CRW_00797	-	0.33	0.30	0.38	101	692984	189	25	143	21	241
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.57	0.54	0.60	253	1401550	230	21	151	58	217
CRW_00801	-	0.47	0.45	0.49	113	438286	131	27	90	14	136
CRW_00802	-	0.42	0.39	0.45	99	460102	145	19	100	26	154
CRW_00803	-	0.27	0.27	0.26	123	1952808	452	64	281	107	326
CRW_00804	-	0.41	0.37	0.45	148	1420127	285	21	159	105	255
CRW_00806	-	0.28	0.28	0.29	125	1913511	410	53	257	100	324
CRW_00807	-	0.52	0.47	0.56	188	1391613	233	14	131	88	210
CRW_00808	-	0.31	0.29	0.33	103	1301378	324	43	167	114	253
CRW_00813	-	0.44	0.47	0.41	63	530812	220	29	61	130	70
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.57	265	1117797	226	19	179	28	205
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.64	280	1135838	187	19	141	27	184
CRW_01134	-	0.38	0.35	0.41	148	964992	225	35	180	10	279
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.40	194	1606043	347	52	239	56	309
CRW_01168	-	0.50	0.48	0.53	196	900783	197	25	149	23	215
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.45	0.44	0.47	221	1593534	302	49	201	52	285
CRW_01186	-	0.40	0.38	0.42	146	836224	219	23	178	18	240
CRW_01188	-	0.20	0.20	0.20	77	837476	320	47	265	8	316
CRW_01189	-	0.23	0.23	0.23	92	862249	314	44	256	14	300
CRW_01214	-	0.30	0.28	0.32	114	931943	252	28	210	14	291
CRW_01222	-	0.30	0.28	0.33	113	912930	241	48	185	8	284
CRW_01224	-	0.40	0.36	0.45	141	912960	188	17	158	13	256
CRW_01239	-	0.24	0.23	0.25	88	840107	271	42	219	10	294
CRW_01250	-	0.45	0.41	0.49	155	781556	186	19	145	22	223
CRW_01260	-	0.23	0.20	0.25	80	912961	256	30	205	21	313
CRW_01266	-	0.35	0.35	0.34	134	818168	277	41	217	19	247
CRW_01271	-	0.32	0.32	0.32	121	827157	280	31	232	17	260
CRW_01275	-	0.38	0.37	0.40	160	1082251	264	41	204	19	272
CRW_01283	-	0.33	0.30	0.36	123	963626	238	25	192	21	286
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.38	0.37	0.38	193	1693217	355	53	257	45	322
CRW_01314	-	0.30	0.28	0.33	114	937422	242	30	199	13	293
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.46	0.44	0.48	189	977509	217	30	173	14	245
CRW_01344	-	0.28	0.27	0.30	98	791579	243	31	203	9	268
CRW_01456	-	0.33	0.33	0.34	282	4240489	586	69	488	29	569
PDB_00187	-	0.39	0.40	0.39	283	3746236	520	91	343	86	433
PDB_00401	-	0.51	0.47	0.55	446	3996572	408	28	332	48	507
PDB_00409	-	0.35	0.40	0.30	99	688225	317	68	159	90	146
PDB_00609	-	0.37	0.38	0.37	297	4156478	570	86	425	59	493
PDB_00644	-	0.38	0.38	0.38	309	4328331	575	84	429	62	511
PDB_00675	-	0.51	0.47	0.56	453	4168012	414	25	338	51	521
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.53	0.50	0.56	246	1073403	229	19	177	33	249
PDB_00704	-	0.53	0.48	0.58	468	4249258	397	31	313	53	505
PDB_00805	-	0.66	0.64	0.68	193	467745	126	7	83	36	109
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.52	264	1500266	296	25	223	48	271
PDB_00947	-	0.67	0.67	0.68	503	4310772	422	63	178	181	246
PDB_00993	-	0.37	0.37	0.37	297	3923402	548	84	418	46	505
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.46	0.43	0.49	236	1470988	271	34	212	25	311
PDB_01089	-	0.58	0.58	0.59	438	4053385	428	79	226	123	321
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.56	301	1605989	279	31	207	41	261
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.60	303	1433467	242	16	185	41	237
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.49	0.44	0.55	232	1204703	216	20	173	23	295
PDB_01140	-	0.65	0.62	0.69	573	4176662	336	53	207	76	357
PDB_01261	-	0.79	0.69	0.90	233	467769	32	2	24	6	103
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.49	0.47	0.51	232	1117807	258	16	205	37	259

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	42843
Total TN	389644458
Total FP	80462
Total FP CONTRA	10919
Total FP INCONS	52945
Total FP COMP	16598
Total FN	66752

Total Scores
MCC	0.396
Average MCC ± 95% Confidence Intervals	0.396 ± 0.017
Sensitivity	0.391
Positive Predictive Value	0.402
Nr of predictions	247

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.60	0.59	0.62	123	3173742	665	11	64	590	86
CRW_00002	-	0.62	0.61	0.64	161	408807	138	15	77	46	103
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.69	0.68	0.70	312	1085154	184	22	113	49	146
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.65	0.64	0.66	305	1141852	193	33	126	34	169
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.48	0.46	0.51	215	1170796	225	31	173	21	255
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.43	186	1107383	267	27	220	20	270
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.50	0.48	0.52	225	1172311	230	27	183	20	248
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.43	0.42	0.44	201	1181493	284	39	220	25	275
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.45	0.43	0.47	198	1108880	243	33	194	16	259
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	222	1178435	246	25	198	23	243
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.41	185	1135829	286	31	233	22	278
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.55	248	1201576	229	30	171	28	228
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.44	0.42	0.45	198	1152481	263	27	215	21	268
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.60	265	1179971	202	39	141	22	206
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.44	190	1190764	263	30	212	21	278
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.27	0.26	0.27	115	1082237	320	30	274	16	330
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.48	0.46	0.51	219	1178447	241	25	189	27	254
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	229	1207778	250	33	195	22	246
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.56	0.53	0.59	255	1198497	206	24	150	32	223
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.40	0.40	0.41	179	1105891	278	32	226	20	274
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.52	0.52	0.53	250	1218666	257	31	194	32	234
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.50	0.50	0.50	238	1198447	265	46	195	24	240
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.40	0.40	0.41	185	1192284	296	39	232	25	283
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.53	0.53	0.54	241	1111840	228	28	177	23	214
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.35	0.33	0.36	154	1122325	292	38	234	20	308
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.43	0.41	0.45	183	1085197	235	32	189	14	263
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.60	0.58	0.61	266	1114835	193	26	144	23	191
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.37	157	1110374	282	40	224	18	296
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.38	0.36	0.40	162	1129847	266	32	215	19	288
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.57	243	1179987	211	33	153	25	221
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.38	158	1117841	277	40	221	16	295
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.59	260	1144904	208	25	152	31	204
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.37	0.38	0.37	162	1015591	302	49	223	30	270
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.37	0.35	0.40	159	1131362	267	28	211	28	297
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.55	0.53	0.56	244	1117827	214	31	158	25	214
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	228	1189195	264	43	187	34	248
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.35	0.34	0.36	157	1123815	302	48	230	24	304
CRW_00294	-	0.35	0.37	0.32	218	2620232	548	114	341	93	368
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.23	0.24	0.22	119	1620359	466	89	333	44	375
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.33	0.34	0.33	177	1761960	439	71	295	73	342
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.18	0.19	0.18	86	1445359	473	69	336	68	376
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.30	0.31	0.29	160	1805396	450	77	317	56	361
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.40	0.41	0.40	207	1627588	371	65	250	56	295
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.33	0.34	0.31	178	1988449	473	80	308	85	339
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.18	0.19	0.17	90	1769489	491	93	349	49	387
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.31	0.31	0.31	157	1891971	430	72	285	73	357
CRW_00338	-	0.17	0.18	0.16	72	1052984	381	79	291	11	323
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.35	0.35	0.35	173	1586376	380	60	262	58	325
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.37	0.38	0.37	188	1584581	368	66	255	47	313
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.30	0.30	0.31	149	1615021	383	63	270	50	354
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.40	0.40	0.39	202	1674852	365	59	252	54	305
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.26	0.27	0.25	130	1579227	438	85	311	42	352
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.28	150	1640234	427	81	301	45	356
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.40	191	1611430	345	53	236	56	305
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.27	0.27	0.26	136	1625786	435	79	305	51	362
CRW_00374	-	0.31	0.31	0.30	173	2182437	493	71	324	98	377
CRW_00375	-	0.29	0.31	0.28	168	2298840	515	97	335	83	373
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.42	0.43	0.41	229	2126396	414	75	253	86	305
CRW_00381	-	0.30	0.30	0.30	168	2303172	499	66	325	108	389
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.26	0.27	0.25	138	1750696	459	82	340	37	377
CRW_00400	-	0.28	0.28	0.27	140	2677942	577	66	307	204	354
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.31	0.31	0.31	143	1606064	418	64	257	97	321
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.34	0.35	0.33	172	1614983	394	81	267	46	324
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.29	149	1665709	429	66	301	62	346
CRW_00417	-	0.38	0.35	0.41	92	458176	145	22	113	10	170
CRW_00418	-	0.17	0.16	0.18	41	441105	195	17	167	11	219
CRW_00419	-	0.22	0.20	0.23	53	463939	184	19	155	10	212
CRW_00421	-	0.47	0.44	0.51	118	462970	138	19	96	23	148
CRW_00422	-	0.40	0.39	0.41	102	455284	172	23	126	23	161
CRW_00424	-	0.40	0.38	0.41	138	789063	222	20	175	27	225
CRW_00426	-	0.33	0.31	0.34	83	457203	172	20	140	12	182
CRW_00427	-	0.27	0.27	0.27	70	454324	205	34	153	18	191
CRW_00428	-	0.36	0.36	0.36	93	465837	182	33	132	17	167
CRW_00430	-	0.34	0.30	0.38	80	456282	139	29	99	11	186
CRW_00433	-	0.27	0.23	0.31	61	467830	144	12	125	7	202
CRW_00434	-	0.40	0.39	0.42	102	457205	147	21	118	8	161
CRW_00435	-	0.41	0.38	0.45	101	451501	135	17	106	12	164
CRW_00437	-	0.31	0.28	0.34	73	456277	152	21	119	12	187
CRW_00438	-	0.46	0.43	0.50	115	454349	130	20	97	13	153
CRW_00441	-	0.24	0.22	0.26	57	454362	173	22	140	11	205
CRW_00442	-	0.39	0.39	0.38	102	453363	175	42	121	12	159
CRW_00443	-	0.29	0.27	0.30	71	456253	185	27	139	19	189
CRW_00444	-	0.29	0.28	0.31	74	459121	179	26	140	13	189
CRW_00445	-	0.31	0.29	0.32	78	458162	170	32	131	7	187
CRW_00446	-	0.31	0.31	0.31	82	468730	198	29	155	14	183
CRW_00447	-	0.35	0.35	0.36	90	452428	179	23	135	21	170
CRW_00448	-	0.31	0.30	0.33	78	457209	178	24	135	19	183
CRW_00449	-	0.38	0.37	0.39	97	444850	160	29	120	11	163
CRW_00450	-	0.34	0.30	0.39	79	458199	141	17	108	16	183
CRW_00451	-	0.27	0.27	0.28	70	457197	195	30	149	16	194
CRW_00452	-	0.31	0.29	0.33	77	453394	184	26	131	27	185
CRW_00453	-	0.30	0.30	0.32	77	452432	174	31	136	7	184
CRW_00454	-	0.17	0.18	0.17	78	1730265	502	72	315	115	357
CRW_00456	-	0.35	0.32	0.38	86	470708	157	22	119	16	179
CRW_00457	-	0.41	0.41	0.41	107	467768	172	31	122	19	157
CRW_00458	-	0.48	0.48	0.49	126	464874	149	26	104	19	138
CRW_00459	-	0.37	0.35	0.40	92	462012	157	22	115	20	171
CRW_00460	-	0.34	0.34	0.33	186	1972534	467	57	314	96	358
CRW_00462	-	0.36	0.33	0.40	85	458191	137	23	104	10	176
CRW_00463	-	0.36	0.35	0.37	89	445797	171	31	123	17	165
CRW_00464	-	0.28	0.26	0.30	69	462009	170	17	146	7	195
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.60	0.59	0.60	272	1116312	211	33	148	30	186
CRW_00468	-	0.53	0.52	0.54	448	4290159	425	70	308	47	407
CRW_00471	-	0.43	0.42	0.44	362	4211426	494	76	389	29	509
CRW_00474	-	0.55	0.55	0.55	457	3976772	426	72	309	45	379
CRW_00476	-	0.43	0.43	0.44	379	4278410	527	82	404	41	500
CRW_00478	-	0.54	0.54	0.55	462	4150679	418	72	308	38	401
CRW_00487	-	0.52	0.51	0.53	449	4223019	446	74	329	43	423
CRW_00488	-	0.47	0.45	0.50	400	4325410	442	68	333	41	486
CRW_00490	-	0.35	0.34	0.35	297	4144908	593	86	469	38	565
CRW_00495	-	0.46	0.45	0.47	390	4205618	479	62	380	37	468
CRW_00496	-	0.48	0.46	0.49	401	4194039	456	57	359	40	465
CRW_00499	-	0.54	0.52	0.56	461	4372583	404	59	300	45	422
CRW_00500	-	0.46	0.46	0.47	395	4205604	489	86	365	38	473
CRW_00501	-	0.42	0.41	0.43	355	4284308	501	75	390	36	513
CRW_00502	-	0.64	0.62	0.65	543	4296015	342	53	235	54	329
CRW_00503	-	0.44	0.44	0.45	381	4252131	514	75	399	40	486
CRW_00507	-	0.38	0.37	0.39	317	4173790	521	75	423	23	548
CRW_00509	-	0.47	0.45	0.48	392	4182467	458	67	352	39	475
CRW_00511	-	0.46	0.45	0.48	384	4107603	455	49	375	31	472
CRW_00512	-	0.58	0.56	0.60	457	3814941	338	67	238	33	362
CRW_00516	-	0.61	0.59	0.63	515	4272613	348	43	255	50	361
CRW_00518	-	0.35	0.34	0.37	301	4357805	555	79	443	33	583
CRW_00520	-	0.51	0.51	0.52	436	4208508	447	82	325	40	414
CRW_00521	-	0.44	0.43	0.46	359	4136343	458	71	353	34	485
CRW_00522	-	0.27	0.28	0.26	218	3642809	656	120	503	33	564
CRW_00525	-	0.27	0.28	0.26	224	4058965	681	79	557	45	589
CRW_00530	-	0.31	0.34	0.29	90	534781	233	62	162	9	178
CRW_00535	-	0.31	0.33	0.29	108	898098	285	65	199	21	220
CRW_00538	-	0.31	0.32	0.30	97	811851	252	60	167	25	203
CRW_00542	-	0.19	0.21	0.17	66	994368	379	68	253	58	251
CRW_00547	-	0.49	0.48	0.51	414	4278463	446	56	342	48	449
CRW_00579	-	0.50	0.49	0.51	455	4290099	452	62	369	21	482
CRW_00583	-	0.50	0.49	0.51	455	4290099	452	62	369	21	482
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.31	0.30	0.32	135	1094033	316	46	246	24	310
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.41	0.39	0.43	176	1119350	259	29	201	29	276
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.44	0.44	0.44	198	1098453	275	46	206	23	248
CRW_00594	-	0.26	0.27	0.25	106	1028472	348	49	268	31	289
CRW_00596	-	0.21	0.21	0.22	80	1024224	314	41	251	22	306
CRW_00597	-	0.24	0.25	0.24	103	1200042	380	41	289	50	308
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.37	0.38	0.35	186	1665698	397	77	264	56	305
CRW_00599	-	0.37	0.37	0.36	203	3754613	734	62	292	380	343
CRW_00604	-	0.88	0.89	0.87	72	411695	196	2	9	185	9
CRW_00606	-	0.86	0.85	0.87	78	559063	257	2	10	245	14
CRW_00607	-	0.67	0.66	0.67	51	536054	291	10	15	266	26
CRW_00615	-	0.83	0.84	0.82	69	553794	281	5	10	266	13
CRW_00616	-	0.77	0.75	0.79	82	1699142	451	2	20	429	28
CRW_00617	-	0.45	0.50	0.40	32	426346	256	12	36	208	32
CRW_00678	-	0.45	0.46	0.43	56	666306	280	17	56	207	65
CRW_00680	-	0.59	0.60	0.57	73	516509	238	11	43	184	49
CRW_00683	-	0.40	0.45	0.36	61	460150	213	35	74	104	74
CRW_00684	-	0.49	0.49	0.49	66	612037	256	19	49	188	69
CRW_00702	-	0.68	0.81	0.58	61	357329	217	33	12	172	14
CRW_00704	-	0.84	0.85	0.83	80	386664	204	7	9	188	14
CRW_00705	-	0.37	0.43	0.32	37	1461081	491	29	48	414	49
CRW_00706	-	0.55	0.59	0.51	35	695541	358	15	19	324	24
CRW_00708	-	0.55	0.64	0.48	42	3457047	800	27	19	754	24
CRW_00709	-	0.03	0.04	0.03	3	1728763	593	28	76	489	82
CRW_00710	-	0.62	0.67	0.58	76	1040273	392	21	33	338	38
CRW_00711	-	0.35	0.38	0.32	47	2318636	641	31	67	543	77
CRW_00712	-	0.68	0.71	0.64	77	952770	373	10	33	330	31
CRW_00713	-	0.75	0.74	0.75	75	731345	330	6	19	305	26
CRW_00723	-	0.53	0.54	0.52	40	1583233	492	12	25	455	34
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.32	0.32	0.32	155	1640275	399	64	272	63	328
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.31	0.31	0.30	151	1636639	423	69	286	68	330
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.29	146	1638444	427	68	297	62	340
CRW_00761	-	0.20	0.21	0.19	101	2863890	706	82	348	276	373
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.20	0.20	0.20	90	1215575	395	47	308	40	356
CRW_00765	-	0.40	0.40	0.39	103	452412	172	38	123	11	154
CRW_00766	-	0.31	0.28	0.33	68	440187	154	23	113	18	172
CRW_00768	-	0.44	0.43	0.46	111	471666	155	19	110	26	148
CRW_00769	-	0.54	0.53	0.56	134	451485	127	28	78	21	118
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.22	0.22	0.22	90	945593	335	34	283	18	314
CRW_00773	-	0.53	0.53	0.54	136	451474	132	27	88	17	123
CRW_00774	-	0.36	0.35	0.38	91	488326	168	24	125	19	172
CRW_00777	-	0.38	0.39	0.38	118	719086	236	39	157	40	186
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.28	112	1201627	335	46	240	49	272
CRW_00779	-	0.27	0.26	0.28	110	1031366	308	43	247	18	312
CRW_00780	-	0.26	0.23	0.30	58	475606	150	17	119	14	197
CRW_00781	-	0.25	0.26	0.24	115	1978584	476	59	297	120	335
CRW_00783	-	0.28	0.27	0.30	71	453388	180	22	147	11	188
CRW_00784	-	0.25	0.24	0.27	63	456254	187	31	142	14	199
CRW_00785	-	0.27	0.26	0.28	66	452441	182	20	149	13	187
CRW_00786	-	0.36	0.36	0.36	160	1946908	448	34	249	165	290
CRW_00787	-	0.44	0.42	0.46	129	646674	179	14	136	29	177
CRW_00788	-	0.30	0.29	0.31	106	1758408	447	46	190	211	255
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.37	163	1137340	312	43	240	29	284
CRW_00790	-	0.22	0.23	0.22	101	1803599	462	50	300	112	346
CRW_00792	-	0.30	0.30	0.30	114	1581151	434	34	232	168	269
CRW_00793	-	0.43	0.42	0.44	157	1048718	264	42	159	63	220
CRW_00794	-	0.28	0.28	0.28	68	434537	200	16	157	27	178
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.34	0.34	0.33	135	1152513	326	45	228	53	259
CRW_00796	-	0.30	0.29	0.32	67	384793	164	13	130	21	168
CRW_00797	-	0.38	0.38	0.38	131	692904	250	35	183	32	211
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.52	0.49	0.54	231	1401550	267	31	163	73	239
CRW_00801	-	0.42	0.42	0.41	105	438262	167	37	112	18	144
CRW_00802	-	0.20	0.19	0.21	48	460092	200	26	154	20	205
CRW_00803	-	0.23	0.23	0.22	105	1952798	456	67	306	83	344
CRW_00804	-	0.31	0.32	0.30	129	1420032	412	48	246	118	274
CRW_00806	-	0.26	0.26	0.26	115	1913512	439	51	268	120	334
CRW_00807	-	0.41	0.40	0.43	158	1391579	332	29	180	123	240
CRW_00808	-	0.27	0.28	0.26	101	1301298	415	57	235	123	255
CRW_00813	-	0.31	0.35	0.27	47	530793	264	47	78	139	86
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.58	263	1117810	226	18	169	39	207
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.44	0.42	0.46	197	1135851	249	39	191	19	267
CRW_01134	-	0.34	0.33	0.36	139	964971	255	34	211	10	288
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.28	150	1605991	434	63	324	47	353
CRW_01168	-	0.37	0.37	0.38	152	900751	269	37	213	19	259
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.33	0.33	0.33	168	1593497	395	62	278	55	338
CRW_01186	-	0.29	0.28	0.29	109	836194	279	38	230	11	277
CRW_01188	-	0.17	0.17	0.17	66	837477	327	51	271	5	327
CRW_01189	-	0.22	0.22	0.23	85	862271	302	50	235	17	307
CRW_01214	-	0.25	0.23	0.27	93	931946	265	38	218	9	312
CRW_01222	-	0.23	0.23	0.23	92	912876	316	64	244	8	305
CRW_01224	-	0.35	0.34	0.37	135	912911	241	26	204	11	262
CRW_01239	-	0.25	0.26	0.25	98	840067	309	37	254	18	284
CRW_01250	-	0.35	0.34	0.36	127	781522	241	33	193	15	251
CRW_01260	-	0.15	0.15	0.15	57	912898	326	53	268	5	336
CRW_01266	-	0.26	0.26	0.26	100	818174	298	49	237	12	281
CRW_01271	-	0.35	0.35	0.35	134	827163	253	42	202	9	247
CRW_01275	-	0.39	0.39	0.40	167	1082236	283	47	206	30	265
CRW_01283	-	0.25	0.24	0.26	99	963588	291	41	238	12	310
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.35	0.35	0.36	182	1693209	381	68	261	52	333
CRW_01314	-	0.28	0.27	0.30	110	937397	272	35	223	14	297
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.37	0.36	0.38	158	977480	279	40	223	16	276
CRW_01344	-	0.29	0.28	0.30	103	791562	258	40	206	12	263
CRW_01456	-	0.29	0.29	0.29	246	4240490	619	74	518	27	605
PDB_00187	-	0.34	0.35	0.32	254	3746167	591	106	426	59	462
PDB_00401	-	0.42	0.39	0.44	372	3996537	504	60	409	35	581
PDB_00409	-	0.31	0.37	0.27	91	688208	326	81	171	74	154
PDB_00609	-	0.36	0.37	0.35	292	4156461	600	103	430	67	498
PDB_00644	-	0.36	0.36	0.36	299	4328322	598	106	426	66	521
PDB_00675	-	0.44	0.41	0.47	395	4167994	482	50	389	43	579
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.56	0.51	0.61	253	1073430	187	22	140	25	242
PDB_00704	-	0.40	0.37	0.42	360	4249217	528	57	436	35	613
PDB_00805	-	0.61	0.59	0.64	177	467751	133	13	87	33	125
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.56	0.54	0.58	288	1500280	260	33	177	50	247
PDB_00947	-	0.65	0.64	0.65	478	4310784	418	59	195	164	271
PDB_00993	-	0.34	0.34	0.34	271	3923394	589	94	442	53	531
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.33	0.32	0.34	175	1470956	367	49	290	28	372
PDB_01089	-	0.50	0.50	0.50	376	4053374	484	89	289	106	383
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.61	0.58	0.64	324	1606022	220	26	156	38	238
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.57	0.53	0.62	286	1433506	213	32	147	34	254
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.43	0.40	0.47	211	1204677	265	29	211	25	316
PDB_01140	-	0.55	0.52	0.57	485	4176644	420	59	307	54	445
PDB_01261	-	0.71	0.64	0.78	214	467754	64	0	60	4	122
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.43	0.41	0.45	200	1117813	276	33	214	29	291

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

2. Individual counts for Contrafold [ download as .csv ]

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

2. Individual counts for ProbKnot [ download as .csv ]
