Overview

Metric	IPknot		RNAfold
MCC	0.499	>	0.369
Average MCC ± 95% Confidence Intervals	0.489 ± 0.019	>	0.365 ± 0.017
Sensitivity	0.427	>	0.370
Positive Predictive Value	0.583	>	0.368
Total TP	46481	>	40281
Total TN	385611636	>	385581903
Total FP	44739	<	83930
Total FP CONTRA	5517	<	11243
Total FP INCONS	27706	<	57913
Total FP COMP	11516	<	14774
Total FN	62301	<	68501
P-value	3.56938820447e-08

^top

Performance plots

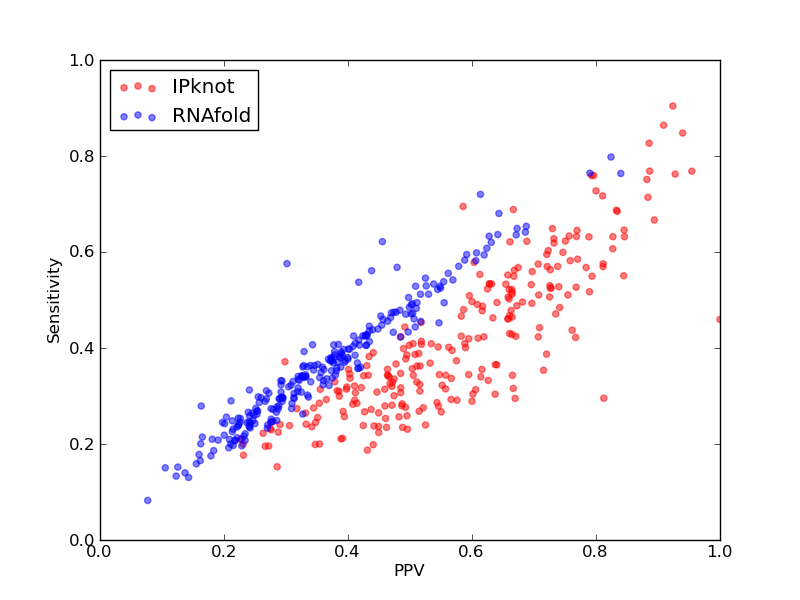

Comparison of performance of IPknot and RNAfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and RNAfold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and RNAfold).
Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and RNAfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and RNAfold).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	46481
Total TN	385611636
Total FP	44739
Total FP CONTRA	5517
Total FP INCONS	27706
Total FP COMP	11516
Total FN	62301

Total Scores
MCC	0.499
Average MCC ± 95% Confidence Intervals	0.489 ± 0.019
Sensitivity	0.427
Positive Predictive Value	0.583
Nr of predictions	246

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.58	0.51	0.66	107	3173779	466	10	44	412	102
CRW_00002	-	0.64	0.53	0.77	139	408879	64	18	24	22	125
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.83	0.77	0.89	352	1085204	78	4	41	33	106
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.78	0.76	0.79	360	1141862	121	19	75	27	114
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.72	0.63	0.83	297	1170856	75	6	56	13	173
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.58	0.50	0.66	229	1107469	137	16	102	19	227
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.71	0.61	0.83	287	1172399	74	4	56	14	186
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.66	0.60	0.72	287	1181556	121	23	87	11	189
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.66	236	1108950	134	23	96	15	221
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.50	0.60	231	1178495	170	17	137	16	234
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.76	0.68	0.83	317	1135898	79	6	57	16	146
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.70	0.64	0.77	307	1201626	111	11	81	19	169
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.58	0.50	0.68	231	1152582	123	17	91	15	235
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.54	0.48	0.62	225	1180051	148	20	120	8	246
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	249	1190838	118	6	103	9	219
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.37	0.34	0.40	150	1082284	231	30	192	9	295
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.59	0.53	0.65	252	1178495	145	17	116	12	221
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.61	0.55	0.67	261	1207844	146	17	113	16	214
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.73	0.63	0.85	302	1198569	73	7	48	18	176
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.74	239	1106005	96	13	71	12	214
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.76	0.72	0.81	347	1218713	108	15	66	27	137
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.57	0.52	0.63	250	1198526	164	23	127	14	228
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.56	0.44	0.71	207	1192448	104	18	67	19	261
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.66	0.55	0.79	250	1111971	79	11	54	14	205
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.56	0.47	0.66	216	1122424	126	25	86	15	246
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.52	0.47	0.58	208	1085244	163	20	129	14	238
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.76	0.69	0.83	314	1114894	79	11	52	16	143
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.53	0.43	0.66	194	1110503	106	22	76	8	259
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.60	0.48	0.74	218	1129962	95	5	71	19	232
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.76	270	1180060	100	16	70	14	194
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.67	0.58	0.77	265	1117916	90	11	68	11	188
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	276	1144958	123	17	90	16	188
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.42	0.31	0.56	136	1015781	124	17	91	16	296
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.55	0.42	0.71	193	1131487	92	13	67	12	263
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.79	0.71	0.88	327	1117890	60	13	30	17	131
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.73	268	1189284	121	17	84	20	208
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.41	0.35	0.48	160	1123920	187	28	142	17	301
CRW_00294	-	0.41	0.38	0.43	224	2620389	387	73	219	95	362
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.25	0.22	0.29	111	1620514	296	48	227	21	383
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.47	0.39	0.57	205	1762142	202	32	124	46	314
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.28	0.24	0.34	109	1445531	252	37	173	42	353
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.40	166	1805533	303	42	209	52	355
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.53	0.43	0.66	216	1627783	139	27	84	28	286
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.35	0.31	0.39	160	1988600	320	42	213	65	357
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.24	0.22	0.26	106	1769618	328	73	224	31	371
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.34	0.30	0.39	154	1892086	305	42	203	60	360
CRW_00338	-	0.21	0.20	0.23	79	1053084	273	64	199	10	316
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.45	0.42	0.49	211	1586436	264	42	182	40	287
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.38	0.36	0.40	178	1584646	289	54	212	23	323
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.38	0.31	0.46	158	1615159	219	33	153	33	345
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.39	0.34	0.43	174	1674963	268	35	193	40	333
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.37	0.32	0.42	153	1579390	248	42	168	38	329
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.35	0.31	0.40	159	1640366	275	46	195	34	347
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.49	0.41	0.59	203	1611565	179	27	115	37	293
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.45	0.41	0.50	202	1625901	232	30	173	29	296
CRW_00374	-	0.34	0.31	0.38	171	2182558	359	34	242	83	379
CRW_00375	-	0.36	0.31	0.41	166	2299037	265	34	203	28	375
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.49	0.40	0.59	214	2126590	218	30	119	69	320
CRW_00381	-	0.42	0.34	0.51	191	2303353	262	31	156	75	366
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.29	0.27	0.32	141	1750812	337	58	245	34	374
CRW_00400	-	0.30	0.26	0.35	126	2678096	393	35	198	160	368
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.35	0.33	0.38	153	1606124	308	45	206	57	311
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.40	0.34	0.46	170	1615137	238	31	165	42	326
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.41	0.33	0.51	163	1665906	188	30	126	32	332
CRW_00417	-	0.43	0.36	0.52	95	458219	97	18	71	8	167
CRW_00418	-	0.34	0.23	0.50	60	441209	66	5	56	5	200
CRW_00419	-	0.38	0.28	0.52	73	464026	72	7	60	5	192
CRW_00421	-	0.53	0.39	0.72	103	463060	53	4	36	13	163
CRW_00422	-	0.48	0.37	0.64	96	455385	74	8	46	20	167
CRW_00424	-	0.42	0.32	0.55	117	789184	104	10	85	9	246
CRW_00426	-	0.34	0.28	0.41	75	457262	117	15	94	8	190
CRW_00427	-	0.29	0.25	0.35	64	454397	126	20	100	6	197
CRW_00428	-	0.48	0.37	0.64	95	465946	65	11	43	11	165
CRW_00430	-	0.38	0.27	0.55	71	456361	67	8	50	9	195
CRW_00433	-	0.35	0.24	0.53	63	467908	59	3	54	2	200
CRW_00434	-	0.41	0.29	0.57	77	457310	60	10	49	1	186
CRW_00435	-	0.35	0.26	0.48	68	451584	77	6	67	4	197
CRW_00437	-	0.32	0.24	0.42	62	456344	92	9	75	8	198
CRW_00438	-	0.44	0.34	0.56	92	454416	83	8	65	10	176
CRW_00441	-	0.30	0.20	0.44	52	454463	69	13	53	3	210
CRW_00442	-	0.40	0.31	0.52	81	453471	81	13	63	5	180
CRW_00443	-	0.33	0.23	0.46	61	456358	81	9	62	10	199
CRW_00444	-	0.43	0.30	0.60	80	459228	59	5	48	6	183
CRW_00445	-	0.36	0.28	0.46	74	458242	92	11	76	5	191
CRW_00446	-	0.40	0.34	0.47	90	468803	112	14	89	9	175
CRW_00447	-	0.36	0.28	0.47	73	452521	91	10	72	9	187
CRW_00448	-	0.44	0.30	0.67	77	457331	46	7	31	8	184
CRW_00449	-	0.34	0.23	0.49	61	444971	65	6	58	1	199
CRW_00450	-	0.33	0.24	0.45	62	458265	89	11	65	13	200
CRW_00451	-	0.39	0.31	0.49	81	457279	94	10	76	8	183
CRW_00452	-	0.39	0.29	0.54	75	453490	77	8	55	14	187
CRW_00453	-	0.37	0.27	0.51	70	452540	75	7	59	9	191
CRW_00454	-	0.23	0.20	0.27	85	1730411	329	40	194	95	350
CRW_00456	-	0.44	0.31	0.61	83	470798	60	10	44	6	182
CRW_00457	-	0.51	0.42	0.61	111	467846	86	13	58	15	153
CRW_00458	-	0.53	0.42	0.67	112	464963	60	6	49	5	152
CRW_00459	-	0.58	0.44	0.76	115	462090	50	5	31	14	148
CRW_00460	-	0.34	0.28	0.41	155	1972717	247	25	194	28	389
CRW_00462	-	0.41	0.29	0.58	76	458271	66	6	50	10	185
CRW_00463	-	0.43	0.36	0.51	92	445860	95	22	66	7	162
CRW_00464	-	0.49	0.30	0.81	78	462145	24	1	17	6	186
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.81	0.75	0.88	344	1116375	69	10	36	23	114
CRW_00468	-	0.58	0.55	0.61	473	4290213	332	53	246	33	382
CRW_00471	-	0.55	0.49	0.62	424	4211566	286	33	230	23	447
CRW_00474	-	0.67	0.60	0.75	501	3976939	206	33	137	36	335
CRW_00476	-	0.62	0.53	0.73	462	4278640	202	29	144	29	417
CRW_00478	-	0.71	0.63	0.79	545	4150830	179	27	119	33	318
CRW_00487	-	0.62	0.52	0.73	457	4223242	193	34	138	21	415
CRW_00488	-	0.54	0.46	0.63	410	4325564	254	30	207	17	476
CRW_00490	-	0.50	0.42	0.58	366	4145132	283	39	223	21	496
CRW_00495	-	0.60	0.51	0.71	438	4205831	206	30	151	25	420
CRW_00496	-	0.59	0.49	0.70	427	4194243	213	24	162	27	439
CRW_00499	-	0.57	0.49	0.67	431	4372762	238	23	187	28	452
CRW_00500	-	0.64	0.57	0.71	499	4205744	235	37	170	28	369
CRW_00501	-	0.62	0.53	0.73	460	4284494	200	27	147	26	408
CRW_00502	-	0.74	0.65	0.85	563	4296180	133	27	76	30	309
CRW_00503	-	0.43	0.38	0.49	327	4252323	348	37	299	12	540
CRW_00507	-	0.61	0.51	0.73	438	4174001	191	27	139	25	427
CRW_00509	-	0.56	0.49	0.64	429	4182608	266	40	201	25	438
CRW_00511	-	0.47	0.41	0.53	350	4107756	326	31	274	21	506
CRW_00512	-	0.62	0.56	0.70	458	3815046	219	42	157	20	361
CRW_00516	-	0.68	0.58	0.81	504	4272805	142	18	99	25	372
CRW_00518	-	0.39	0.32	0.47	283	4358027	331	46	272	13	601
CRW_00520	-	0.55	0.49	0.61	417	4208666	302	41	227	34	433
CRW_00521	-	0.47	0.36	0.62	300	4136639	203	18	169	16	544
CRW_00522	-	0.32	0.26	0.39	201	3643140	326	51	258	17	581
CRW_00530	-	0.34	0.26	0.45	71	534937	94	30	57	7	197
CRW_00535	-	0.33	0.29	0.37	96	898207	180	41	126	13	232
CRW_00538	-	0.34	0.25	0.46	76	812010	109	15	74	20	224
CRW_00542	-	0.20	0.18	0.23	56	994513	218	44	142	32	261
CRW_00547	-	0.67	0.57	0.78	490	4278650	168	26	109	33	373
CRW_00579	-	0.58	0.53	0.63	500	4290189	312	44	252	16	437
CRW_00583	-	0.58	0.53	0.63	500	4290189	312	44	252	16	437
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.44	0.37	0.53	164	1094152	163	21	123	19	281
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.53	0.48	0.59	217	1119386	165	27	126	12	235
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.77	282	1098536	110	15	70	25	164
CRW_00594	-	0.35	0.29	0.41	115	1028615	180	23	142	15	280
CRW_00596	-	0.32	0.28	0.35	110	1024285	218	26	175	17	276
CRW_00597	-	0.26	0.25	0.28	101	1200110	295	30	234	31	310
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.38	0.34	0.43	168	1665830	265	48	179	38	323
CRW_00599	-	0.46	0.41	0.52	226	3754734	569	28	182	359	320
CRW_00604	-	0.89	0.86	0.91	70	411701	129	5	2	122	11
CRW_00606	-	0.89	0.85	0.94	78	559070	188	0	5	183	14
CRW_00607	-	0.76	0.73	0.80	56	536060	259	10	4	245	21
CRW_00615	-	0.86	0.77	0.95	63	553812	211	0	3	208	19
CRW_00616	-	0.55	0.51	0.60	56	1699152	355	11	27	317	54
CRW_00617	-	0.48	0.45	0.52	29	426370	178	4	23	151	35
CRW_00678	-	0.59	0.58	0.60	70	666319	212	9	37	166	51
CRW_00680	-	0.68	0.69	0.67	84	516510	190	13	29	148	38
CRW_00683	-	0.65	0.62	0.69	84	460198	151	11	27	113	51
CRW_00684	-	0.58	0.53	0.63	72	612057	178	14	28	136	63
CRW_00702	-	0.86	0.83	0.89	62	357365	141	7	1	133	13
CRW_00704	-	0.91	0.90	0.92	85	386668	146	4	3	139	9
CRW_00705	-	0.33	0.31	0.36	27	1461119	282	19	30	233	59
CRW_00706	-	0.64	0.69	0.59	41	695540	219	11	18	190	18
CRW_00708	-	0.64	0.62	0.66	41	3457073	499	16	5	478	25
CRW_00709	-	0.27	0.20	0.35	17	1728822	327	2	29	296	68
CRW_00710	-	0.77	0.67	0.89	76	1040318	214	1	8	205	38
CRW_00711	-	0.22	0.21	0.23	26	2318666	488	38	51	399	98
CRW_00712	-	0.78	0.76	0.80	82	952787	274	3	18	253	26
CRW_00713	-	0.84	0.76	0.93	77	731362	240	1	5	234	24
CRW_00723	-	0.68	0.46	1.00	34	1583276	308	0	0	308	40
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.40	0.34	0.46	166	1640408	227	30	162	35	317
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.28	0.24	0.33	116	1636796	279	54	179	46	365
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.41	156	1638575	268	48	176	44	330
CRW_00761	-	0.25	0.23	0.27	110	2864020	525	63	228	234	364
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.48	0.34	0.67	153	1215790	109	10	67	32	293
CRW_00765	-	0.46	0.37	0.57	96	452509	76	13	58	5	161
CRW_00766	-	0.32	0.24	0.44	57	440262	83	10	62	11	183
CRW_00768	-	0.59	0.47	0.73	122	471740	54	6	38	10	137
CRW_00769	-	0.56	0.46	0.66	117	451549	68	12	47	9	135
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.44	0.34	0.57	136	945760	126	16	88	22	268
CRW_00773	-	0.42	0.37	0.48	95	451526	109	19	85	5	164
CRW_00774	-	0.50	0.35	0.72	93	488436	52	4	33	15	170
CRW_00777	-	0.40	0.34	0.47	102	719185	131	23	90	18	202
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.42	0.29	0.60	111	1201840	104	12	62	30	273
CRW_00779	-	0.45	0.39	0.51	164	1031447	169	24	131	14	258
CRW_00780	-	0.29	0.21	0.39	54	475662	88	18	66	4	201
CRW_00781	-	0.30	0.26	0.33	119	1978696	336	39	201	96	331
CRW_00783	-	0.32	0.22	0.45	58	453499	79	9	62	8	201
CRW_00784	-	0.34	0.27	0.43	70	456326	105	18	76	11	192
CRW_00785	-	0.46	0.34	0.61	86	452536	58	8	46	4	167
CRW_00786	-	0.41	0.36	0.46	160	1947006	291	23	162	106	290
CRW_00787	-	0.39	0.32	0.49	97	646753	108	19	84	5	209
CRW_00788	-	0.46	0.32	0.67	114	1758579	242	6	51	185	247
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.55	0.46	0.66	206	1137473	121	11	96	14	241
CRW_00790	-	0.31	0.28	0.34	123	1803693	328	29	205	94	324
CRW_00792	-	0.45	0.34	0.59	132	1581309	202	11	79	112	251
CRW_00793	-	0.64	0.52	0.79	195	1048829	114	14	38	62	182
CRW_00794	-	0.37	0.28	0.49	68	434640	81	10	60	11	178
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.36	0.26	0.50	102	1152715	143	20	84	39	292
CRW_00796	-	0.28	0.19	0.43	44	384901	70	6	52	12	191
CRW_00797	-	0.37	0.28	0.49	97	693054	121	12	90	19	245
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.62	0.51	0.75	240	1401657	117	12	66	39	230
CRW_00801	-	0.44	0.39	0.49	96	438322	108	21	77	10	153
CRW_00802	-	0.41	0.32	0.52	82	460161	86	14	63	9	171
CRW_00803	-	0.26	0.24	0.29	108	1952904	320	47	217	56	341
CRW_00804	-	0.46	0.33	0.63	134	1420241	141	12	68	61	269
CRW_00806	-	0.27	0.24	0.31	107	1913596	285	34	209	42	342
CRW_00807	-	0.57	0.42	0.77	168	1391727	109	4	47	58	230
CRW_00808	-	0.29	0.21	0.39	75	1301498	175	36	82	57	281
CRW_00813	-	0.47	0.44	0.49	59	530845	179	12	49	118	74
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.68	0.63	0.73	295	1117857	132	9	99	24	175
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.68	0.62	0.75	289	1135893	113	17	79	17	175
CRW_01134	-	0.39	0.28	0.55	119	965137	105	17	82	6	308
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.37	0.35	0.40	174	1606096	291	43	215	33	329
CRW_01168	-	0.51	0.42	0.62	174	900872	124	17	90	17	237
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.45	0.41	0.50	207	1593595	240	34	169	37	299
CRW_01186	-	0.43	0.34	0.55	133	836328	116	15	95	6	253
CRW_01188	-	0.23	0.20	0.27	77	837582	210	31	175	4	316
CRW_01189	-	0.25	0.23	0.28	90	862315	245	36	200	9	302
CRW_01214	-	0.44	0.30	0.64	123	932102	77	10	60	7	282
CRW_01222	-	0.34	0.27	0.44	108	913029	140	28	111	1	289
CRW_01224	-	0.37	0.28	0.49	111	913048	125	14	103	8	286
CRW_01239	-	0.26	0.20	0.35	76	840237	144	22	121	1	306
CRW_01250	-	0.39	0.33	0.47	123	781612	152	20	120	12	255
CRW_01260	-	0.21	0.15	0.29	60	913066	164	21	129	14	333
CRW_01266	-	0.42	0.36	0.50	136	818290	147	12	122	13	245
CRW_01271	-	0.48	0.40	0.56	153	827269	128	20	99	9	228
CRW_01275	-	0.39	0.33	0.47	142	1082355	170	34	125	11	290
CRW_01283	-	0.37	0.31	0.45	126	963684	171	17	139	15	283
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.41	0.39	0.44	201	1693264	280	54	201	25	314
CRW_01314	-	0.32	0.27	0.39	109	937487	176	23	146	7	298
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.50	0.42	0.59	182	977595	134	16	108	10	252
CRW_01344	-	0.38	0.30	0.47	110	791679	131	20	102	9	256
CRW_01456	-	0.40	0.36	0.43	309	4240610	420	57	352	11	542
PDB_00187	-	0.47	0.40	0.55	288	3746425	308	50	190	68	428
PDB_00401	-	0.59	0.52	0.66	497	3996625	290	30	226	34	456
PDB_00409	-	0.33	0.37	0.30	91	688246	288	61	153	74	154
PDB_00609	-	0.46	0.41	0.52	322	4156665	345	57	242	46	468
PDB_00644	-	0.44	0.40	0.49	327	4328485	381	66	275	40	493
PDB_00675	-	0.58	0.51	0.66	493	4168079	291	29	227	35	481
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.64	0.57	0.72	282	1073454	132	13	96	23	213
PDB_00704	-	0.59	0.52	0.66	508	4249305	293	32	225	36	465
PDB_00805	-	0.68	0.57	0.81	172	467816	53	6	34	13	130
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.67	0.62	0.73	331	1500326	158	17	104	37	204
PDB_00947	-	0.69	0.65	0.73	486	4310850	323	34	146	143	263
PDB_00993	-	0.44	0.39	0.51	310	3923591	337	53	247	37	492
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.55	0.46	0.66	252	1471087	150	21	110	19	295
PDB_01089	-	0.60	0.55	0.66	419	4053491	317	61	157	99	340
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.67	319	1606055	171	20	134	17	243
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.69	0.63	0.76	342	1433519	132	10	100	22	198
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.56	0.48	0.66	252	1204748	138	22	106	10	275
PDB_01140	-	0.65	0.57	0.74	530	4176777	245	24	164	57	400
PDB_01261	-	0.68	0.55	0.84	185	467809	34	0	34	0	151
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.61	0.56	0.67	276	1117847	163	10	127	26	215

^top

Performance of RNAfold - scored lower in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	40281
Total TN	385581903
Total FP	83930
Total FP CONTRA	11243
Total FP INCONS	57913
Total FP COMP	14774
Total FN	68501

Total Scores
MCC	0.369
Average MCC ± 95% Confidence Intervals	0.365 ± 0.017
Sensitivity	0.370
Positive Predictive Value	0.368
Nr of predictions	246

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.51	0.51	0.52	107	3173733	675	17	83	575	102
CRW_00002	-	0.50	0.49	0.50	130	408802	144	31	97	16	134
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.76	0.79	350	1085158	132	17	76	39	108
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.63	0.63	0.63	300	1141838	201	31	147	23	174
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.35	0.35	0.36	164	1170755	315	33	263	19	306
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.53	0.52	0.54	238	1107379	215	34	165	16	218
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.60	0.60	0.61	283	1172280	205	23	160	22	190
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.53	0.53	0.53	252	1181474	240	37	190	13	224
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.46	0.46	0.46	210	1108845	266	27	223	16	247
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.47	0.47	0.47	220	1178412	266	29	219	18	245
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.59	270	1135819	209	32	157	20	193
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.61	277	1201568	204	13	167	24	199
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.39	0.38	0.39	179	1152463	296	36	243	17	287
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.54	0.53	0.55	249	1179962	229	32	173	24	222
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.47	217	1190733	262	26	220	16	251
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.29	131	1082204	330	37	284	9	314
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.42	0.42	0.42	197	1178408	288	34	241	13	276
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.44	0.44	0.44	208	1207762	286	29	236	21	267
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.56	0.54	0.57	259	1198471	217	29	167	21	219
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.39	0.39	0.39	176	1105876	287	34	242	11	277
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.57	0.57	0.58	276	1218664	233	24	177	32	208
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.40	0.40	0.40	190	1198454	296	51	231	14	288
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.41	0.41	0.42	190	1192286	279	40	224	15	278
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.38	0.37	0.40	170	1111856	279	38	222	19	285
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	224	1122302	241	35	190	16	238
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.55	240	1085168	217	29	164	24	206
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.51	226	1114829	235	24	192	19	231
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.37	0.37	0.37	169	1110340	304	41	245	18	284
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.43	186	1129828	264	31	211	22	264
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.35	0.34	0.35	157	1179973	303	36	250	17	307
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.50	222	1117818	233	28	192	13	231
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.29	138	1144872	346	41	290	15	326
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.28	0.28	0.29	120	1015605	317	42	258	17	312
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.28	0.27	0.28	124	1131316	333	36	284	13	332
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.63	0.62	0.63	284	1117810	186	24	142	20	174
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.39	0.38	0.40	181	1189200	291	36	236	19	295
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.31	136	1123816	309	46	252	11	325
CRW_00294	-	0.27	0.29	0.26	168	2620251	580	99	387	94	418
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.17	0.18	0.16	88	1620349	501	88	375	38	406
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.30	0.31	0.29	160	1761955	447	75	313	59	359
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.26	0.26	0.25	121	1445372	410	63	294	53	341
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.26	0.27	0.25	143	1805381	466	88	338	40	378
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.38	0.38	0.37	190	1627600	364	68	252	44	312
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.31	0.32	0.30	165	1988473	454	70	307	77	352
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.24	0.25	0.22	121	1769478	461	108	314	39	356
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.33	0.33	0.32	171	1891953	432	77	284	71	343
CRW_00338	-	0.14	0.15	0.13	60	1052948	422	74	344	4	335
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.35	0.36	0.33	181	1586320	404	77	293	34	317
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.31	0.32	0.29	162	1584535	419	78	315	26	339
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.24	0.24	0.24	123	1614984	435	64	332	39	380
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.38	199	1674839	381	67	260	54	308
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.35	0.36	0.33	174	1579233	393	84	262	47	308
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.26	0.27	0.25	136	1640229	442	80	321	41	370
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.33	0.33	0.32	166	1611391	395	72	281	42	330
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.35	0.36	0.35	181	1625783	379	70	272	37	317
CRW_00374	-	0.44	0.45	0.43	245	2182441	411	62	257	92	305
CRW_00375	-	0.25	0.26	0.25	143	2298857	521	77	363	81	398
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.42	0.43	0.41	227	2126398	426	63	265	98	307
CRW_00381	-	0.32	0.33	0.31	184	2303140	511	67	340	104	373
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.25	0.27	0.24	137	1750683	473	87	349	37	378
CRW_00400	-	0.23	0.24	0.22	119	2677923	613	68	345	200	375
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.31	0.33	0.29	154	1606000	439	76	298	65	310
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.33	0.34	0.32	169	1614974	406	78	282	46	327
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.28	0.29	0.27	143	1665688	437	80	314	43	352
CRW_00417	-	0.38	0.37	0.39	97	458157	160	21	128	11	165
CRW_00418	-	0.21	0.20	0.23	51	441107	179	25	147	7	209
CRW_00419	-	0.22	0.21	0.23	55	463931	187	18	162	7	210
CRW_00421	-	0.34	0.32	0.36	86	462964	166	22	131	13	180
CRW_00422	-	0.26	0.25	0.28	65	455302	185	23	145	17	198
CRW_00424	-	0.38	0.38	0.37	138	789026	258	22	210	26	225
CRW_00426	-	0.40	0.38	0.41	102	457198	158	27	119	12	163
CRW_00427	-	0.21	0.21	0.22	54	454333	207	33	161	13	207
CRW_00428	-	0.39	0.38	0.40	98	465850	158	28	119	11	162
CRW_00430	-	0.22	0.21	0.23	56	456245	198	23	166	9	210
CRW_00433	-	0.29	0.26	0.33	69	467817	147	21	121	5	194
CRW_00434	-	0.39	0.36	0.42	94	457220	142	17	115	10	169
CRW_00435	-	0.32	0.30	0.33	80	451486	161	19	140	2	185
CRW_00437	-	0.21	0.21	0.22	54	456242	201	25	169	7	206
CRW_00438	-	0.35	0.34	0.37	90	454335	166	19	137	10	178
CRW_00441	-	0.25	0.23	0.27	61	454355	169	27	138	4	201
CRW_00442	-	0.37	0.36	0.39	94	453386	156	25	123	8	167
CRW_00443	-	0.39	0.36	0.42	93	456267	151	22	108	21	167
CRW_00444	-	0.25	0.24	0.27	63	459128	178	32	138	8	200
CRW_00445	-	0.26	0.25	0.28	65	458167	180	24	147	9	200
CRW_00446	-	0.52	0.49	0.56	131	468760	121	11	94	16	134
CRW_00447	-	0.30	0.28	0.31	74	452437	184	17	148	19	186
CRW_00448	-	0.35	0.34	0.37	88	457211	166	26	121	19	173
CRW_00449	-	0.28	0.27	0.29	71	444849	178	27	149	2	189
CRW_00450	-	0.32	0.30	0.34	78	458171	169	22	132	15	184
CRW_00451	-	0.21	0.20	0.21	52	457204	203	26	164	13	212
CRW_00452	-	0.26	0.25	0.28	66	453389	185	27	146	12	196
CRW_00453	-	0.27	0.25	0.29	65	452448	171	30	133	8	196
CRW_00454	-	0.16	0.16	0.16	69	1730286	502	53	322	127	366
CRW_00456	-	0.45	0.42	0.48	112	470704	135	20	99	16	153
CRW_00457	-	0.34	0.32	0.37	85	467798	158	17	128	13	179
CRW_00458	-	0.37	0.35	0.38	93	464886	163	30	121	12	171
CRW_00459	-	0.29	0.27	0.31	72	462008	178	27	134	17	191
CRW_00460	-	0.29	0.30	0.29	162	1972537	458	68	324	66	382
CRW_00462	-	0.14	0.13	0.14	34	458165	214	27	177	10	227
CRW_00463	-	0.28	0.28	0.29	71	445794	181	25	150	6	183
CRW_00464	-	0.39	0.36	0.42	95	462015	141	15	116	10	169
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.61	0.59	0.62	272	1116326	195	24	143	28	186
CRW_00468	-	0.50	0.51	0.50	432	4290117	467	89	347	31	423
CRW_00471	-	0.41	0.41	0.41	357	4211386	540	66	444	30	514
CRW_00474	-	0.46	0.47	0.45	390	3976749	503	71	400	32	446
CRW_00476	-	0.37	0.37	0.37	329	4278395	582	74	477	31	550
CRW_00478	-	0.42	0.43	0.42	367	4150655	526	84	415	27	496
CRW_00487	-	0.38	0.38	0.39	331	4223018	547	87	435	25	541
CRW_00488	-	0.33	0.33	0.34	292	4325352	585	75	492	18	594
CRW_00490	-	0.46	0.46	0.46	393	4144913	490	67	387	36	469
CRW_00495	-	0.38	0.37	0.38	318	4205621	538	59	452	27	540
CRW_00496	-	0.37	0.37	0.37	323	4193993	569	61	479	29	543
CRW_00499	-	0.43	0.42	0.43	375	4372526	526	74	428	24	508
CRW_00500	-	0.39	0.39	0.39	340	4205576	558	84	450	24	528
CRW_00501	-	0.43	0.43	0.43	370	4284264	528	59	435	34	498
CRW_00502	-	0.54	0.53	0.54	465	4295982	431	48	351	32	407
CRW_00503	-	0.40	0.40	0.40	345	4252125	544	72	444	28	522
CRW_00507	-	0.41	0.40	0.41	349	4173750	528	68	438	22	516
CRW_00509	-	0.44	0.44	0.43	378	4182408	523	86	406	31	489
CRW_00511	-	0.38	0.38	0.39	327	4107565	544	63	456	25	529
CRW_00512	-	0.56	0.56	0.56	455	3814893	384	73	282	29	364
CRW_00516	-	0.59	0.59	0.59	521	4272545	396	69	291	36	355
CRW_00518	-	0.27	0.27	0.28	242	4357751	646	73	562	11	642
CRW_00520	-	0.43	0.43	0.43	364	4208505	518	88	394	36	486
CRW_00521	-	0.36	0.36	0.36	300	4136295	552	86	445	21	544
CRW_00522	-	0.25	0.26	0.24	202	3642812	663	123	513	27	580
CRW_00530	-	0.29	0.31	0.27	82	534794	236	54	165	17	186
CRW_00535	-	0.29	0.31	0.27	102	898090	299	76	202	21	226
CRW_00538	-	0.19	0.21	0.18	63	811827	305	77	208	20	237
CRW_00542	-	0.19	0.21	0.17	68	994343	375	98	246	31	249
CRW_00547	-	0.38	0.39	0.38	333	4278396	570	74	472	24	530
CRW_00579	-	0.42	0.41	0.43	380	4290100	522	62	443	17	557
CRW_00583	-	0.42	0.41	0.43	380	4290100	522	62	443	17	557
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.18	0.18	0.18	78	1094024	373	34	324	15	367
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.31	0.31	0.31	138	1119315	322	37	266	19	314
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.37	0.38	0.37	168	1098447	302	42	246	14	278
CRW_00594	-	0.23	0.25	0.21	98	1028436	387	54	307	26	297
CRW_00596	-	0.23	0.24	0.22	92	1024184	347	40	280	27	294
CRW_00597	-	0.24	0.25	0.23	101	1200028	392	49	297	46	310
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.34	0.36	0.33	177	1665684	417	76	288	53	314
CRW_00599	-	0.34	0.34	0.33	188	3754603	739	54	325	360	358
CRW_00604	-	0.52	0.57	0.48	46	411682	217	15	35	167	35
CRW_00606	-	0.66	0.64	0.69	59	559067	263	2	25	236	33
CRW_00607	-	0.54	0.55	0.53	42	536050	277	8	30	239	35
CRW_00615	-	0.50	0.56	0.44	46	553773	284	24	35	225	36
CRW_00616	-	0.80	0.76	0.84	84	1699146	494	2	14	478	26
CRW_00617	-	0.27	0.31	0.24	20	426343	263	19	44	200	44
CRW_00678	-	0.64	0.64	0.64	77	666315	276	10	33	233	44
CRW_00680	-	0.66	0.68	0.64	83	516507	213	8	38	167	39
CRW_00683	-	0.40	0.41	0.38	55	460177	239	20	68	151	80
CRW_00684	-	0.36	0.39	0.33	53	612010	292	37	71	184	82
CRW_00702	-	0.66	0.72	0.61	54	357347	206	10	24	172	21
CRW_00704	-	0.81	0.80	0.82	75	386669	196	4	12	180	19
CRW_00705	-	0.21	0.28	0.16	24	1461048	506	39	84	383	62
CRW_00706	-	0.37	0.41	0.34	24	695540	344	7	39	298	35
CRW_00708	-	0.42	0.58	0.30	38	3457009	764	60	28	676	28
CRW_00709	-	0.08	0.08	0.08	7	1728779	569	17	67	485	78
CRW_00710	-	0.66	0.65	0.67	74	1040293	374	8	28	338	40
CRW_00711	-	0.28	0.30	0.26	37	2318636	612	35	73	504	87
CRW_00712	-	0.47	0.54	0.42	58	952751	366	28	53	285	50
CRW_00713	-	0.67	0.65	0.69	66	731349	302	5	25	272	35
CRW_00723	-	0.53	0.62	0.46	46	1583209	504	28	27	449	28
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.28	0.29	0.27	142	1640237	420	85	302	33	341
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.21	0.22	0.20	105	1636621	473	79	340	54	376
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.29	0.29	0.29	143	1638460	405	76	276	53	343
CRW_00761	-	0.18	0.20	0.16	95	2863836	716	107	383	226	379
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.22	0.21	0.22	95	1215590	376	51	284	41	351
CRW_00765	-	0.44	0.44	0.45	113	452424	156	21	118	17	144
CRW_00766	-	0.22	0.22	0.23	52	440167	190	20	152	18	188
CRW_00768	-	0.50	0.48	0.51	125	471661	142	15	105	22	134
CRW_00769	-	0.39	0.37	0.42	93	451501	148	21	110	17	159
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.25	0.24	0.25	98	945608	317	41	253	23	306
CRW_00773	-	0.34	0.34	0.33	88	451460	186	30	147	9	171
CRW_00774	-	0.27	0.27	0.28	70	488320	198	15	161	22	193
CRW_00777	-	0.24	0.25	0.23	77	719060	291	60	203	28	227
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.23	0.22	0.23	85	1201662	341	40	238	63	299
CRW_00779	-	0.24	0.24	0.24	103	1031342	335	40	281	14	319
CRW_00780	-	0.20	0.19	0.21	49	475564	199	20	167	12	206
CRW_00781	-	0.22	0.24	0.20	109	1978513	548	78	355	115	341
CRW_00783	-	0.31	0.31	0.32	80	453377	182	16	155	11	179
CRW_00784	-	0.36	0.34	0.38	90	456253	169	22	125	22	172
CRW_00785	-	0.35	0.33	0.36	84	452443	161	27	122	12	169
CRW_00786	-	0.33	0.34	0.33	153	1946883	473	52	263	158	297
CRW_00787	-	0.23	0.24	0.22	72	646627	264	41	213	10	234
CRW_00788	-	0.28	0.30	0.26	107	1758338	471	77	228	166	254
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.36	161	1137337	307	44	244	19	286
CRW_00790	-	0.20	0.21	0.19	93	1803562	512	60	335	117	354
CRW_00792	-	0.13	0.13	0.12	51	1581116	499	60	304	135	332
CRW_00793	-	0.33	0.34	0.33	129	1048680	326	54	213	59	248
CRW_00794	-	0.24	0.24	0.24	58	434537	202	18	165	19	188
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.22	0.23	0.21	89	1152504	360	53	275	32	305
CRW_00796	-	0.20	0.20	0.21	47	384780	189	27	149	13	188
CRW_00797	-	0.22	0.23	0.21	79	692885	304	40	249	15	263
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.48	0.47	0.48	223	1401508	313	43	201	69	247
CRW_00801	-	0.43	0.43	0.43	106	438270	153	32	108	13	143
CRW_00802	-	0.30	0.30	0.31	75	460080	183	33	132	18	178
CRW_00803	-	0.22	0.24	0.20	110	1952719	519	92	355	72	339
CRW_00804	-	0.32	0.32	0.31	130	1420033	399	46	246	107	273
CRW_00806	-	0.23	0.26	0.20	115	1913382	503	93	356	54	334
CRW_00807	-	0.39	0.40	0.39	158	1391544	337	46	198	93	240
CRW_00808	-	0.31	0.33	0.29	118	1301289	392	68	216	108	238
CRW_00813	-	0.13	0.15	0.11	20	530775	316	43	127	146	113
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.48	0.48	0.48	225	1117795	263	20	220	23	245
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.62	0.61	0.62	282	1135826	195	25	145	25	182
CRW_01134	-	0.24	0.25	0.24	105	964918	338	37	295	6	322
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.30	0.30	0.30	149	1606023	407	50	306	51	354
CRW_01168	-	0.38	0.38	0.38	156	900739	276	35	223	18	255
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.26	0.27	0.25	136	1593470	434	80	319	35	370
CRW_01186	-	0.29	0.30	0.29	114	836184	292	36	237	19	272
CRW_01188	-	0.16	0.17	0.16	65	837463	344	53	284	7	328
CRW_01189	-	0.18	0.19	0.18	73	862243	341	43	282	16	319
CRW_01214	-	0.29	0.29	0.29	117	931897	291	28	253	10	288
CRW_01222	-	0.25	0.25	0.25	99	912875	309	56	246	7	298
CRW_01224	-	0.36	0.35	0.37	140	912901	245	27	208	10	257
CRW_01239	-	0.21	0.21	0.21	80	840073	320	44	259	17	302
CRW_01250	-	0.24	0.24	0.24	90	781502	295	38	245	12	288
CRW_01260	-	0.14	0.14	0.14	55	912875	359	52	294	13	338
CRW_01266	-	0.25	0.26	0.25	99	818161	313	44	256	13	282
CRW_01271	-	0.33	0.34	0.33	129	827149	276	38	225	13	252
CRW_01275	-	0.35	0.35	0.34	153	1082212	314	52	239	23	279
CRW_01283	-	0.32	0.31	0.32	126	963578	281	35	227	19	283
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.33	0.34	0.33	176	1693179	406	78	287	41	339
CRW_01314	-	0.24	0.23	0.24	95	937373	303	38	259	6	312
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.37	0.37	0.38	160	977476	278	42	223	13	274
CRW_01344	-	0.32	0.32	0.32	116	791548	261	44	203	14	250
CRW_01456	-	0.34	0.34	0.33	290	4240454	602	75	509	18	561
PDB_00187	-	0.39	0.41	0.38	291	3746181	565	91	390	84	425
PDB_00401	-	0.47	0.44	0.51	423	3996546	442	46	363	33	530
PDB_00409	-	0.25	0.29	0.21	71	688215	334	71	194	69	174
PDB_00609	-	0.47	0.47	0.47	375	4156495	502	66	350	86	415
PDB_00644	-	0.36	0.37	0.35	300	4328299	606	114	440	52	520
PDB_00675	-	0.46	0.43	0.50	422	4167979	459	45	382	32	552
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.48	0.46	0.51	228	1073395	247	19	203	25	267
PDB_00704	-	0.49	0.46	0.52	443	4249214	445	55	358	32	530
PDB_00805	-	0.65	0.64	0.67	192	467742	117	17	77	23	110
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.52	0.51	0.53	274	1500261	287	30	213	44	261
PDB_00947	-	0.52	0.53	0.51	396	4310738	529	59	323	147	353
PDB_00993	-	0.45	0.45	0.45	359	3923411	496	60	371	65	443
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.37	0.36	0.38	196	1470957	345	47	270	28	351
PDB_01089	-	0.35	0.36	0.34	276	4053315	614	112	425	77	483
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.55	295	1605991	270	35	207	28	267
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.48	0.47	0.49	254	1433456	289	27	234	28	286
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.45	0.43	0.47	228	1204646	269	31	223	15	299
PDB_01140	-	0.49	0.47	0.50	438	4176622	489	50	385	54	492
PDB_01261	-	0.50	0.45	0.55	152	467750	130	4	122	4	184
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.49	0.47	0.50	232	1117800	256	26	202	28	259

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

2. Individual counts for IPknot [ download as .csv ]

Performance of RNAfold - scored lower in this pairwise comparison

1. Total counts & total scores for RNAfold

2. Individual counts for RNAfold [ download as .csv ]
