Overview

Metric	MXScarna(20)		PknotsRG
MCC	0.696	>	0.450
Average MCC ± 95% Confidence Intervals	0.695 ± 0.014	>	0.448 ± 0.036
Sensitivity	0.633	>	0.444
Positive Predictive Value	0.764	>	0.456
Total TP	13526	>	9486
Total TN	52693782	>	52690681
Total FP	5919	<	12203
Total FP CONTRA	561	<	1478
Total FP INCONS	3614	<	9838
Total FP COMP	1744	>	887
Total FN	7828	<	11868
P-value	3.56938820447e-08

^top

Performance plots

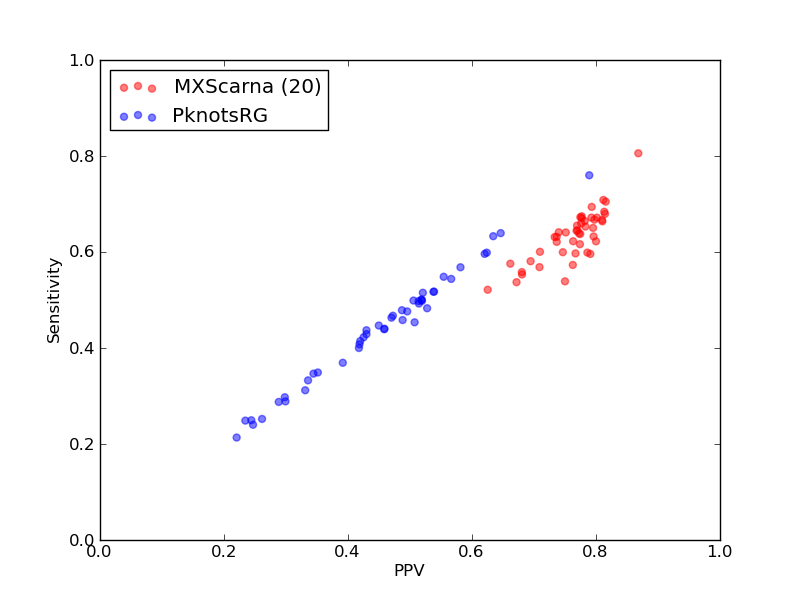

Comparison of performance of MXScarna(20) and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(20) and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(20) and PknotsRG).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(20) and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(20) and PknotsRG).

^top

Performance of MXScarna(20) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(20)

Total Base Pair Counts
Total TP	13526
Total TN	52693782
Total FP	5919
Total FP CONTRA	561
Total FP INCONS	3614
Total FP COMP	1744
Total FN	7828

Total Scores
MCC	0.696
Average MCC ± 95% Confidence Intervals	0.695 ± 0.014
Sensitivity	0.633
Positive Predictive Value	0.764
Nr of predictions	46

^top

2. Individual counts for MXScarna(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.84	0.81	0.87	369	1085176	107	10	46	51	89
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.77	283	1141947	122	12	74	36	191
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.72	0.67	0.78	317	1170807	127	11	80	36	153
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.68	0.63	0.74	288	1107425	137	16	87	34	168
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.72	0.66	0.78	312	1172344	127	16	74	37	161
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	316	1181563	109	13	61	35	160
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.69	0.64	0.74	293	1108909	137	18	85	34	164
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.75	0.68	0.81	318	1178489	108	6	67	35	147
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.76	0.71	0.81	328	1135874	114	12	64	38	135
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.69	0.64	0.75	305	1201619	132	14	87	31	171
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	303	1152540	113	14	64	35	163
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.76	0.70	0.82	332	1180009	110	11	64	35	139
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.65	0.60	0.71	281	1190800	160	10	105	45	187
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.57	0.52	0.63	232	1082285	168	19	120	29	213
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.62	0.56	0.68	264	1178492	152	16	108	28	209
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.73	0.67	0.80	319	1207837	117	10	69	38	156
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.73	0.67	0.80	319	1198526	122	12	69	41	159
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.73	0.67	0.81	302	1105955	106	13	58	35	151
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.71	0.65	0.77	317	1218729	129	13	82	34	167
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.73	0.67	0.79	321	1198521	119	12	72	35	157
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.70	0.64	0.77	299	1192353	124	11	77	36	169
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.72	0.67	0.77	306	1111891	121	14	75	32	149
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.70	0.65	0.77	298	1122364	122	17	72	33	164
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.68	0.62	0.74	277	1085225	135	13	86	36	169
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.71	0.63	0.80	289	1114908	114	13	61	40	168
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.68	0.63	0.73	286	1110405	132	17	87	28	167
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.71	0.62	0.80	280	1129906	107	12	58	37	170
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.70	0.64	0.77	299	1180027	133	10	80	43	165
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.72	0.66	0.78	301	1117875	125	10	74	41	152
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.71	0.65	0.78	303	1144954	117	13	71	33	161
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.69	0.62	0.77	281	1131397	117	9	73	35	175
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.70	0.64	0.77	292	1117883	123	15	70	38	166
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.62	0.58	0.66	274	1189239	172	18	122	32	202
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.63	0.58	0.69	266	1116382	147	16	101	30	192
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.69	0.62	0.76	277	1094097	130	6	80	44	168
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.72	0.67	0.78	303	1119366	134	11	76	47	149
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.74	0.68	0.81	303	1098531	115	7	62	46	143
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.60	0.54	0.67	217	945677	148	10	96	42	187
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.67	0.60	0.75	268	1137427	134	8	83	43	179
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.63	0.57	0.71	224	1152605	176	10	82	84	170
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.61	0.55	0.68	260	1117878	154	17	105	32	210
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.74	0.69	0.79	322	1135872	121	12	72	37	142
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.69	0.60	0.79	295	1073472	114	10	68	36	200
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.64	0.54	0.75	291	1433583	134	3	94	37	249
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.66	0.57	0.76	302	1204732	134	11	83	40	225
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.69	0.60	0.79	294	1117886	120	10	70	40	197

^top

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	9486
Total TN	52690681
Total FP	12203
Total FP CONTRA	1478
Total FP INCONS	9838
Total FP COMP	887
Total FN	11868

Total Scores
MCC	0.450
Average MCC ± 95% Confidence Intervals	0.448 ± 0.036
Sensitivity	0.444
Positive Predictive Value	0.456
Nr of predictions	46

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.77	0.76	0.79	348	1085160	130	18	75	37	110
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.63	0.63	0.63	300	1141843	196	31	142	23	174
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.45	0.45	0.45	210	1170748	276	27	230	19	260
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.53	0.52	0.54	236	1107378	216	34	168	14	220
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.51	233	1172293	234	28	192	14	240
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.43	0.44	0.43	208	1181469	284	32	244	8	268
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.33	0.33	0.34	152	1108852	312	37	264	11	305
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.55	0.55	255	1178420	227	21	184	22	210
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.64	0.64	0.65	296	1135820	182	22	140	20	167
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	238	1201566	240	29	192	19	238
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.41	0.41	0.42	190	1152467	282	34	230	18	276
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	236	1179961	240	37	182	21	235
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.53	0.52	0.54	242	1190746	234	25	183	26	226
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.29	128	1082212	325	37	279	9	317
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.42	196	1178413	284	31	240	13	277
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.47	220	1207767	270	26	222	22	255
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.57	260	1198467	221	30	169	22	218
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.35	0.35	0.34	157	1105872	312	45	254	13	296
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.57	0.57	0.58	275	1218668	230	24	174	32	209
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.43	0.43	0.43	205	1198449	287	30	242	15	273
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.45	0.44	0.46	206	1192291	257	41	202	14	262
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.38	0.37	0.39	168	1111857	279	39	222	18	287
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	220	1122307	239	36	188	15	242
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	222	1085169	227	31	179	17	224
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.42	0.42	0.43	193	1114817	278	26	235	17	264
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.25	0.25	0.24	113	1110332	354	55	295	4	340
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	180	1129825	270	35	216	19	270
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.30	134	1179968	334	40	274	20	330
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.50	0.50	0.51	226	1117813	234	28	193	13	227
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.30	138	1144878	340	40	285	15	326
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.26	0.25	0.26	115	1131320	336	35	290	11	341
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.47	0.47	0.47	214	1117807	257	31	208	18	244
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.45	0.44	0.46	209	1189197	272	34	213	25	267
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.61	0.60	0.62	273	1116325	194	25	142	27	185
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.22	0.21	0.22	95	1094029	351	37	299	15	350
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.32	0.31	0.33	141	1119330	303	41	244	18	311
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.61	0.60	0.62	267	1098475	190	19	142	29	179
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.24	0.24	0.25	97	945607	320	41	255	24	307
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.35	0.35	0.35	156	1137342	304	48	240	16	291
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.24	0.25	0.23	98	1152503	357	51	269	37	296
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.48	0.48	0.49	225	1117798	260	25	212	23	245
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.52	0.52	0.52	239	1135819	238	24	196	18	225
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.50	0.48	0.53	239	1073392	239	21	193	25	256
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	269	1433453	278	27	222	29	271
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.48	0.45	0.51	239	1204657	247	27	205	15	288
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.49	225	1117799	263	23	213	27	266

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
