Overview

Metric	MXScarna(seed)		Carnac(20)
MCC	0.665	>	0.597
Average MCC ± 95% Confidence Intervals	0.668 ± 0.027	>	0.593 ± 0.021
Sensitivity	0.595	>	0.390
Positive Predictive Value	0.743	<	0.914
Total TP	16336	>	10699
Total TN	72152147	<	72162430
Total FP	8016	>	1637
Total FP CONTRA	849	>	140
Total FP INCONS	4799	>	862
Total FP COMP	2368	>	635
Total FN	11117	<	16754
P-value	3.56938820447e-08

^top

Performance plots

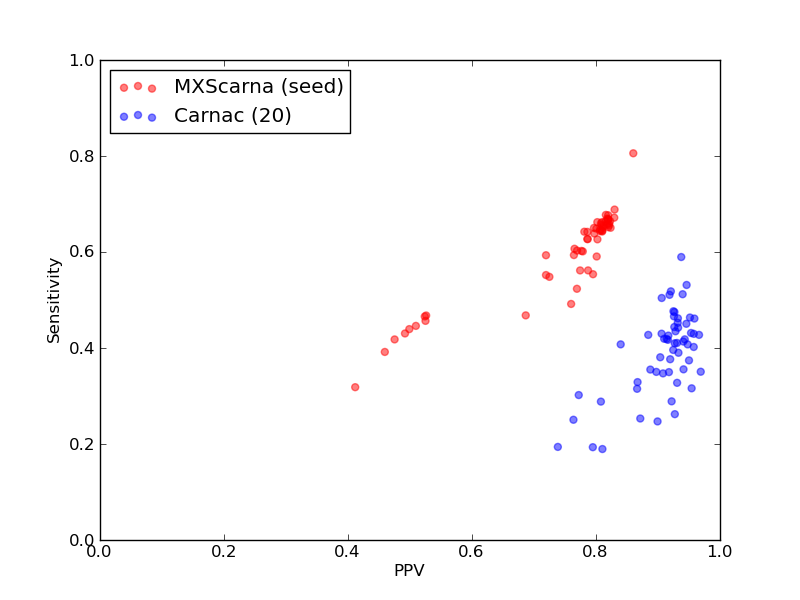

Comparison of performance of MXScarna(seed) and Carnac(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(20)).

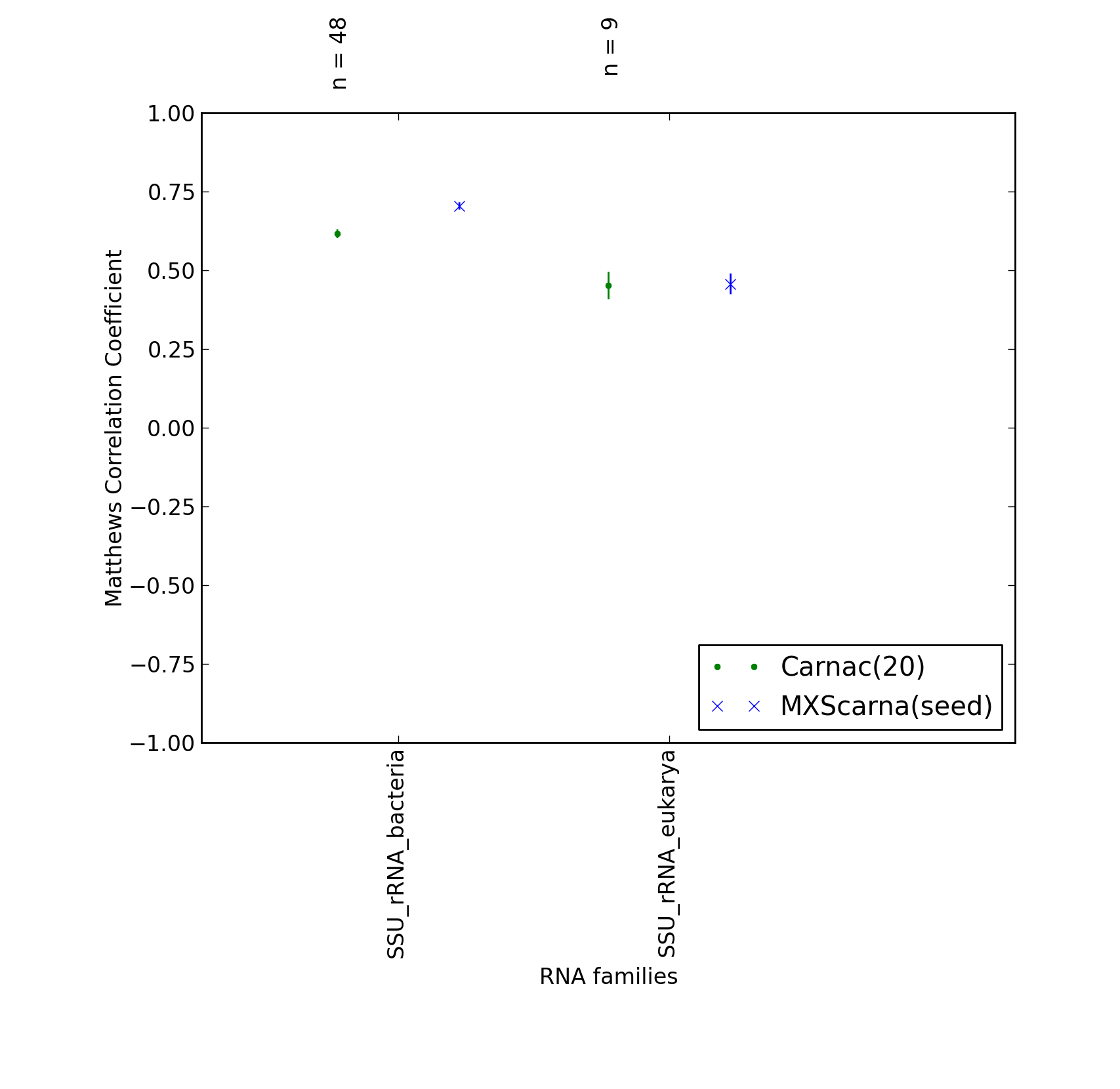

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Carnac(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(20)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	16336
Total TN	72152147
Total FP	8016
Total FP CONTRA	849
Total FP INCONS	4799
Total FP COMP	2368
Total FN	11117

Total Scores
MCC	0.665
Average MCC ± 95% Confidence Intervals	0.668 ± 0.027
Sensitivity	0.595
Positive Predictive Value	0.743
Nr of predictions	58

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.83	0.81	0.86	369	1085172	112	11	49	52	89
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.78	285	1141950	117	9	72	36	189
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.74	0.68	0.82	318	1170827	101	10	60	31	152
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	302	1107443	101	13	58	30	154
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	305	1172369	105	12	60	33	168
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	312	1181569	104	11	61	32	164
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	305	1108933	99	12	55	32	152
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.81	301	1178507	110	5	67	38	164
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	304	1135902	106	11	61	34	159
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.82	312	1201645	103	12	56	35	164
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	300	1152549	106	11	61	34	166
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.74	0.68	0.82	319	1180025	107	12	60	35	152
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.82	305	1190824	106	6	61	39	163
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	264	1082289	130	14	89	27	181
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.68	0.61	0.77	287	1178505	117	12	76	29	186
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.76	0.69	0.83	327	1207841	102	11	56	35	148
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.75	0.67	0.83	321	1198539	99	12	54	33	157
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	299	1105958	104	12	59	33	154
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	311	1218757	105	11	62	32	173
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.78	307	1198533	120	11	75	34	171
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	311	1192362	98	11	56	31	157
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	304	1111915	100	11	56	33	151
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.80	295	1122381	105	12	63	30	167
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	290	1085237	110	10	64	36	156
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	306	1114897	103	10	58	35	151
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.80	300	1110421	108	12	62	34	153
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.78	271	1129907	113	9	69	35	179
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	299	1180047	107	10	60	37	165
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.79	284	1117899	114	10	67	37	169
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.82	305	1144968	102	10	58	34	159
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.81	297	1131394	104	10	59	35	159
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.79	294	1117886	113	13	67	33	164
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.77	287	1189280	118	12	74	32	189
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.42	0.39	0.46	181	1445456	267	46	167	54	281
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.48	0.45	0.51	215	1579331	275	41	166	68	267
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.50	0.47	0.53	232	1611469	276	42	167	67	264
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.41	170	2126540	318	50	193	75	364
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.49	0.47	0.52	231	1615062	273	41	169	63	265
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.46	0.43	0.49	213	1665792	286	43	177	66	282
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	304	1116392	101	11	58	32	154
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.79	279	1094105	117	6	70	41	166
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.82	294	1119399	104	6	57	41	158
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	294	1098545	110	6	58	46	152
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.45	0.42	0.48	201	1636722	295	39	183	73	280
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	223	945690	133	6	81	46	181
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.71	0.63	0.80	280	1137437	111	7	62	42	167
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	216	1152623	164	8	74	82	178
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	279	1117895	114	13	73	28	191
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	301	1135902	107	11	64	32	163
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.47	0.44	0.50	221	1606085	276	37	185	54	282
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.49	0.46	0.53	231	1593565	264	35	174	55	275
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.66	0.56	0.77	278	1073486	114	9	72	33	217
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.63	0.52	0.77	280	1500414	135	2	82	51	255
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.61	0.49	0.76	269	1471116	131	6	79	46	278
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.57	0.47	0.69	263	1606145	154	8	112	34	299
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.66	0.55	0.80	299	1433595	117	1	76	40	241
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.66	0.56	0.79	296	1204752	112	8	72	32	231
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.69	0.59	0.80	290	1117898	113	9	63	41	201

^top

Performance of Carnac(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	10699
Total TN	72162430
Total FP	1637
Total FP CONTRA	140
Total FP INCONS	862
Total FP COMP	635
Total FN	16754

Total Scores
MCC	0.597
Average MCC ± 95% Confidence Intervals	0.593 ± 0.021
Sensitivity	0.390
Positive Predictive Value	0.914
Nr of predictions	58

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.74	0.59	0.94	270	1085313	35	5	13	17	188
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.56	0.35	0.90	166	1142131	28	4	15	9	308
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.62	0.43	0.91	202	1170992	29	3	18	8	268
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.62	0.42	0.91	191	1107607	23	4	14	5	265
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.64	0.43	0.95	204	1172532	17	3	7	7	269
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.63	0.42	0.94	199	1181742	19	2	10	7	277
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.69	0.51	0.94	234	1109056	28	2	13	13	223
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.62	0.43	0.92	198	1178664	29	0	18	11	267
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.71	0.53	0.95	246	1136018	21	2	12	7	217
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.64	0.43	0.93	207	1201802	26	4	12	10	269
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.66	0.46	0.95	216	1152694	16	3	8	5	250
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.69	0.52	0.92	244	1180151	26	4	17	5	227
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.64	0.44	0.93	207	1190974	24	0	15	9	261
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.56	0.36	0.89	158	1082478	26	2	18	6	287
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.52	0.32	0.87	149	1178708	29	3	20	6	324
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.64	0.43	0.96	204	1208022	12	2	7	3	271
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.66	0.47	0.93	227	1198681	28	3	15	10	251
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.65	0.45	0.93	205	1106108	20	3	12	5	248
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.56	0.35	0.91	168	1218956	27	4	13	10	316
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.68	0.50	0.91	241	1198660	33	4	21	8	237
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.64	0.43	0.97	200	1192533	11	3	4	4	268
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.66	0.47	0.93	212	1112057	22	4	13	5	243
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.62	0.41	0.94	191	1122548	17	3	9	5	271
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.57	0.35	0.92	156	1085431	16	4	10	2	290
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.60	0.37	0.95	171	1115091	13	2	7	4	286
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.64	0.44	0.93	201	1110578	20	3	13	4	252
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.52	0.29	0.92	130	1130115	15	4	7	4	320
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.68	0.51	0.92	237	1180158	31	3	18	10	227
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.66	0.46	0.96	209	1118042	12	1	8	3	244
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.45	0.95	209	1145120	17	2	10	5	255
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.53	0.33	0.87	150	1131587	27	3	20	4	306
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.62	0.41	0.93	188	1118058	18	2	12	4	270
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.58	0.41	0.84	194	1189422	41	5	32	4	282
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.55	0.32	0.95	146	1445697	38	0	7	31	316
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.47	0.25	0.87	122	1579613	37	1	17	19	360
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.48	0.29	0.81	143	1611733	59	1	33	25	353
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.49	0.26	0.93	140	2126802	50	1	10	39	394
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.39	0.19	0.81	94	1615387	42	0	22	20	402
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.38	0.19	0.74	96	1666095	60	1	33	26	399
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.62	0.42	0.91	192	1116554	28	4	15	9	266
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.58	0.35	0.97	156	1094299	10	0	5	5	289
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.55	0.33	0.93	148	1119597	15	1	10	4	304
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.66	0.46	0.93	206	1098682	26	1	14	11	240
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.39	0.19	0.79	93	1637028	51	3	21	27	388
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.48	0.30	0.77	122	945842	42	3	33	6	282
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.61	0.43	0.88	191	1137570	34	1	24	9	256
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.59	0.38	0.90	150	1152755	40	0	16	24	244
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.62	0.42	0.92	196	1118046	27	3	15	9	274
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.60	0.39	0.93	181	1136084	19	3	10	6	283
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.44	0.25	0.76	126	1606363	56	1	38	17	377
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.47	0.25	0.90	125	1593866	44	0	14	30	381
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.60	0.40	0.92	196	1073633	28	3	13	12	299
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.62	0.41	0.95	218	1500548	29	3	9	17	317
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.59	0.38	0.92	206	1471246	35	2	16	17	341
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.62	0.40	0.96	226	1606292	20	3	7	10	336
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.58	0.36	0.94	192	1433767	24	1	11	12	348
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.62	0.41	0.93	216	1204895	30	4	13	13	311
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.66	0.48	0.92	234	1118007	37	4	15	18	257

^top
