Overview

Metric	RNAalifold(20)		RSpredict(seed)
MCC	0.747	>	0.529
Average MCC ± 95% Confidence Intervals	0.747 ± 0.043	>	0.526 ± 0.068
Sensitivity	0.696	>	0.448
Positive Predictive Value	0.801	>	0.626
Total TP	17222	>	11082
Total TN	65503628	<	65507413
Total FP	5299	<	7941
Total FP CONTRA	771	<	1087
Total FP INCONS	3502	<	5541
Total FP COMP	1026	<	1313
Total FN	7525	<	13665
P-value	3.56938820447e-08

^top

Performance plots

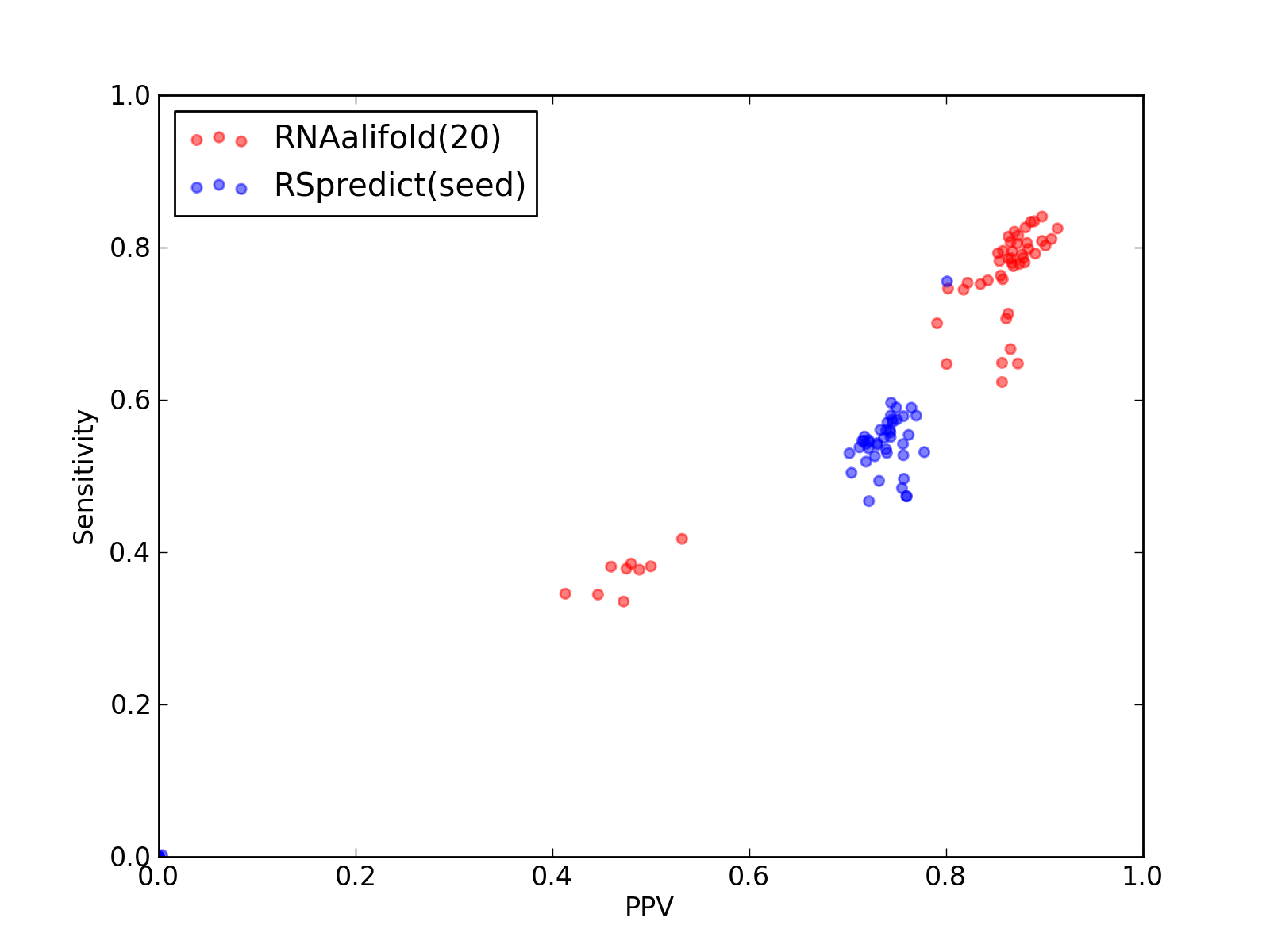

Comparison of performance of RNAalifold(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	17222
Total TN	65503628
Total FP	5299
Total FP CONTRA	771
Total FP INCONS	3502
Total FP COMP	1026
Total FN	7525

Total Scores
MCC	0.747
Average MCC ± 95% Confidence Intervals	0.747 ± 0.043
Sensitivity	0.696
Positive Predictive Value	0.801
Nr of predictions	52

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.87	0.84	0.90	385	1085172	61	7	37	17	73
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.83	0.80	0.86	374	1170779	75	11	51	13	96
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.87	372	1107390	68	12	42	14	84
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.81	0.76	0.86	361	1172324	71	11	50	10	112
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.90	382	1181529	55	14	28	13	94
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.86	0.83	0.89	381	1108875	61	12	37	12	76
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.85	0.81	0.90	376	1178461	63	6	37	20	89
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.87	380	1135841	71	13	44	14	83
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.87	371	1201597	71	12	45	14	105
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	372	1152500	62	12	37	13	94
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.79	0.75	0.82	355	1179984	91	17	60	14	116
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.88	368	1190777	71	7	44	20	100
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.77	0.75	0.80	332	1082242	94	12	70	12	113
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.80	0.76	0.84	358	1178455	78	13	54	11	115
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.82	0.79	0.86	373	1207803	68	15	44	9	102
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.88	378	1198495	67	12	41	14	100
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.86	0.83	0.89	378	1105903	56	14	33	9	75
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.79	0.75	0.83	364	1218705	87	17	55	15	120
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	373	1198502	61	12	39	10	105
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.87	363	1192322	68	14	41	13	105
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.85	0.83	0.88	376	1111859	66	12	39	15	79
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.82	0.79	0.87	363	1122332	69	11	45	13	99
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.87	360	1085185	68	13	43	12	86
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.87	368	1114849	68	12	42	14	89
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.82	0.79	0.85	359	1110374	76	14	48	14	94
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	360	1117845	71	12	43	16	93
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.85	363	1144916	75	12	50	13	101
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.81	0.76	0.86	361	1189232	70	13	47	10	115
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.42	0.38	0.46	176	1445467	237	39	168	30	286
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.39	0.34	0.45	166	1579381	248	30	176	42	316
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.43	0.38	0.49	187	1611527	222	27	169	26	309
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.40	0.34	0.47	179	2126574	228	31	169	28	355
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.43	0.39	0.48	191	1615105	227	43	164	20	305
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.38	0.35	0.41	171	1665811	266	36	207	23	324
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.86	373	1116333	74	11	48	15	85
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.91	361	1094062	61	7	30	24	84
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.89	358	1119354	70	6	38	26	94
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.87	0.83	0.91	368	1098500	61	9	26	26	78
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.42	0.38	0.48	182	1636762	232	39	162	31	299
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.87	348	1137388	80	6	44	30	99
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.74	0.70	0.79	276	1152572	131	10	63	58	118
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.78	0.74	0.82	350	1117832	97	13	65	19	120
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	374	1135854	61	12	38	11	90
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.47	0.42	0.53	210	1606133	216	27	158	31	293
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.44	0.38	0.50	193	1593619	210	32	161	17	313
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.71	0.86	353	1073436	80	10	46	24	142
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.75	0.65	0.86	347	1500373	97	7	51	39	188
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.73	0.62	0.86	341	1471072	93	2	55	36	206
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.75	0.65	0.87	364	1606111	77	8	45	24	198
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.76	0.67	0.87	360	1433555	85	3	53	29	180
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	341	1204702	101	13	72	16	186
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.71	0.86	347	1117857	83	8	48	27	144

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	11082
Total TN	65507413
Total FP	7941
Total FP CONTRA	1087
Total FP INCONS	5541
Total FP COMP	1313
Total FN	13665

Total Scores
MCC	0.529
Average MCC ± 95% Confidence Intervals	0.526 ± 0.068
Sensitivity	0.448
Positive Predictive Value	0.626
Nr of predictions	52

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.76	0.80	346	1085169	116	15	71	30	112
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.74	268	1170853	120	15	79	26	202
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.66	0.59	0.75	269	1107457	114	15	75	24	187
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1172394	120	18	77	25	216
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	258	1181594	124	19	82	23	218
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	261	1108955	113	16	73	24	196
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.66	0.57	0.75	267	1178524	119	14	75	30	198
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	273	1135921	112	13	71	28	190
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	260	1201662	126	16	87	23	216
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.74	270	1152558	117	19	74	24	196
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.74	252	1180075	110	15	74	21	219
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	258	1190849	118	11	78	29	210
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.62	0.55	0.71	243	1082316	119	17	80	22	202
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.67	0.58	0.77	274	1178524	103	15	67	21	199
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1207883	117	16	79	22	218
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.71	257	1198565	127	16	88	23	221
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	248	1105984	121	17	79	25	205
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	278	1218768	123	17	78	28	206
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.67	0.60	0.74	285	1198543	124	18	80	26	193
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	251	1192392	119	17	80	22	217
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	255	1111941	113	15	75	23	200
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.73	243	1122417	115	15	76	24	219
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.73	250	1085260	113	15	76	22	196
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.72	249	1114926	120	15	81	24	208
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.61	0.52	0.72	235	1110468	113	17	75	21	218
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	240	1117918	122	15	87	20	213
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.56	0.74	260	1144991	117	12	78	27	204
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.60	0.50	0.70	240	1189312	122	16	85	21	236
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1445558	306	53	239	14	462
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1579464	301	50	239	12	482
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1611598	319	50	262	7	496
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	2126581	414	77	295	42	534
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1615206	309	45	252	12	496
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1665933	312	53	239	20	495
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	252	1116423	114	13	77	24	206
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.74	236	1094141	110	9	74	27	209
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.64	0.54	0.76	245	1119432	103	8	71	24	207
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.76	258	1098562	118	11	72	35	188
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	1	1636859	310	50	235	25	480
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	249	1137451	114	13	73	28	198
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.58	0.47	0.72	184	1152666	117	7	64	46	210
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.60	0.49	0.73	232	1117943	100	11	74	15	238
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	256	1135921	123	14	87	22	208
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1606225	319	65	238	16	503
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1593701	318	50	254	14	506
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.76	261	1073500	115	11	73	31	234
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.60	0.48	0.76	259	1500435	126	9	75	42	276
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	259	1471129	122	8	74	40	288
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	266	1606178	119	12	72	35	296
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.61	0.50	0.76	268	1433617	119	7	79	33	272
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.64	0.53	0.78	280	1204768	120	9	71	40	247
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.65	0.55	0.76	272	1117903	116	13	72	31	219

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
