Overview

Metric	RNAalifold(seed)		PknotsRG
MCC	0.821	>	0.435
Average MCC ± 95% Confidence Intervals	0.820 ± 0.018	>	0.432 ± 0.035
Sensitivity	0.767	>	0.430
Positive Predictive Value	0.877	>	0.441
Total TP	18402	>	10306
Total TN	59628708	>	59626314
Total FP	3346	<	14139
Total FP CONTRA	667	<	1732
Total FP INCONS	1902	<	11327
Total FP COMP	777	<	1080
Total FN	5579	<	13675
P-value	3.56938820447e-08

^top

Performance plots

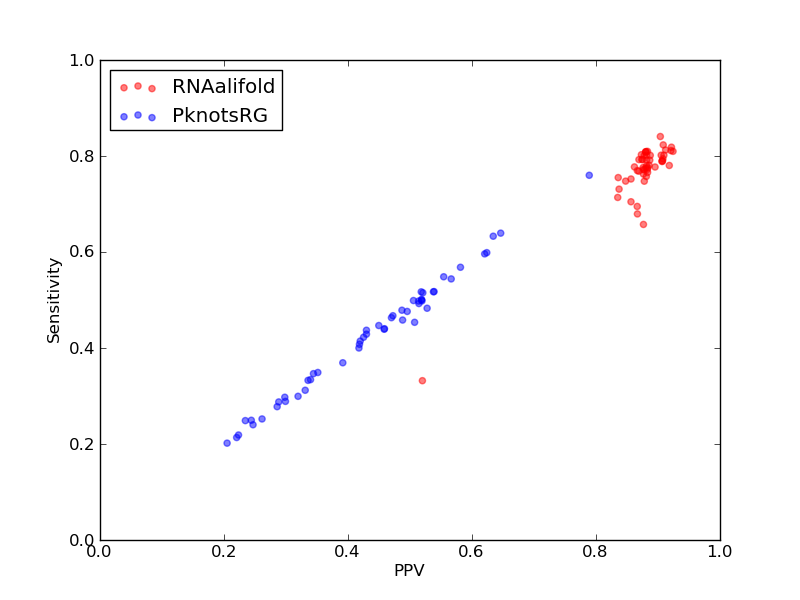

Comparison of performance of RNAalifold(seed) and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and PknotsRG).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and PknotsRG).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	18402
Total TN	59628708
Total FP	3346
Total FP CONTRA	667
Total FP INCONS	1902
Total FP COMP	777
Total FN	5579

Total Scores
MCC	0.821
Average MCC ± 95% Confidence Intervals	0.820 ± 0.018
Sensitivity	0.767
Positive Predictive Value	0.877
Nr of predictions	52

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.87	0.84	0.90	385	1085175	58	7	34	17	73
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	363	1141905	62	14	34	14	111
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.88	372	1170793	59	16	34	9	98
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	369	1107397	60	16	34	10	87
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.88	367	1172327	61	16	36	9	106
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	367	1181535	61	16	35	10	109
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.85	0.81	0.88	370	1108886	58	15	34	9	87
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.89	368	1178465	61	12	35	14	97
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	367	1135858	62	16	37	9	96
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	369	1201606	61	16	34	11	107
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	368	1152515	47	13	25	9	98
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	372	1180006	46	13	25	8	99
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	365	1190782	64	12	37	15	103
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.84	336	1082254	76	16	50	10	109
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	364	1178460	66	16	40	10	109
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	365	1207815	63	16	39	8	110
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.88	369	1198508	59	15	34	10	109
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	366	1105912	60	16	34	10	87
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	369	1218720	61	16	36	9	115
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	369	1198505	61	16	36	9	109
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	369	1192333	48	13	25	10	99
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	368	1111868	59	15	35	9	87
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.90	359	1122350	51	13	29	9	103
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.87	358	1085191	60	16	36	8	88
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	366	1114854	59	16	35	8	91
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	359	1110382	64	17	37	10	94
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	349	1129861	58	13	33	12	101
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1180005	54	13	26	15	92
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.89	363	1117851	59	13	33	13	90
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1144932	48	13	24	11	92
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.85	323	1015644	67	14	44	9	109
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.89	356	1131358	59	13	33	13	100
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.86	356	1117847	66	17	40	9	102
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.86	358	1189235	67	16	44	7	118
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.77	0.71	0.84	329	1123856	76	14	51	11	132
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.86	0.82	0.91	377	1116350	49	12	26	11	81
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1094068	53	6	25	22	84
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	366	1119360	52	6	24	22	86
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	365	1098507	56	8	23	25	81
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.85	0.78	0.92	348	1215641	59	6	25	28	98
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.81	0.75	0.88	302	945656	72	5	37	30	102
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.91	312	1201683	85	4	26	55	72
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	355	1137395	59	8	28	23	92
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	288	1152577	109	10	46	53	106
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.42	0.33	0.52	156	1401675	160	25	119	16	314
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	356	1117856	63	14	34	15	114
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	372	1135856	59	15	35	9	92
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.83	0.79	0.88	344	977508	71	5	44	22	90
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.69	0.87	344	1073448	73	7	46	20	151
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.76	0.66	0.88	355	1433566	72	7	43	22	185
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.77	0.68	0.87	358	1204715	73	7	48	18	169
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.70	0.86	346	1117856	80	13	45	22	145

^top

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	10306
Total TN	59626314
Total FP	14139
Total FP CONTRA	1732
Total FP INCONS	11327
Total FP COMP	1080
Total FN	13675

Total Scores
MCC	0.435
Average MCC ± 95% Confidence Intervals	0.432 ± 0.035
Sensitivity	0.430
Positive Predictive Value	0.441
Nr of predictions	52

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.77	0.76	0.79	348	1085160	130	18	75	37	110
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.63	0.63	0.63	300	1141843	196	31	142	23	174
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.45	0.45	0.45	210	1170748	276	27	230	19	260
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.53	0.52	0.54	236	1107378	216	34	168	14	220
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.51	233	1172293	234	28	192	14	240
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.43	0.44	0.43	208	1181469	284	32	244	8	268
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.33	0.33	0.34	152	1108852	312	37	264	11	305
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.55	0.55	255	1178420	227	21	184	22	210
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.64	0.64	0.65	296	1135820	182	22	140	20	167
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	238	1201566	240	29	192	19	238
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.41	0.41	0.42	190	1152467	282	34	230	18	276
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	236	1179961	240	37	182	21	235
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.53	0.52	0.54	242	1190746	234	25	183	26	226
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.29	128	1082212	325	37	279	9	317
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.42	196	1178413	284	31	240	13	277
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.47	220	1207767	270	26	222	22	255
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.57	260	1198467	221	30	169	22	218
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.35	0.35	0.34	157	1105872	312	45	254	13	296
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.57	0.57	0.58	275	1218668	230	24	174	32	209
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.43	0.43	0.43	205	1198449	287	30	242	15	273
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.45	0.44	0.46	206	1192291	257	41	202	14	262
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.38	0.37	0.39	168	1111857	279	39	222	18	287
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.50	220	1122307	239	36	188	15	242
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	222	1085169	227	31	179	17	224
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.42	0.42	0.43	193	1114817	278	26	235	17	264
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.25	0.25	0.24	113	1110332	354	55	295	4	340
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	180	1129825	270	35	216	19	270
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.30	134	1179968	334	40	274	20	330
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.50	0.50	0.51	226	1117813	234	28	193	13	227
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.30	138	1144878	340	40	285	15	326
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.28	0.28	0.29	120	1015605	317	42	258	17	312
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.26	0.25	0.26	115	1131320	336	35	290	11	341
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.47	0.47	0.47	214	1117807	257	31	208	18	244
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.45	0.44	0.46	209	1189197	272	34	213	25	267
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.31	0.30	0.32	138	1123818	305	44	250	11	323
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.61	0.60	0.62	273	1116325	194	25	142	27	185
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.22	0.21	0.22	95	1094029	351	37	299	15	350
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.32	0.31	0.33	141	1119330	303	41	244	18	311
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.61	0.60	0.62	267	1098475	190	19	142	29	179
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.20	0.20	0.21	90	1215581	387	50	299	38	356
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.24	0.24	0.25	97	945607	320	41	255	24	307
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.22	0.22	0.22	84	1201649	346	41	251	54	300
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.35	0.35	0.35	156	1137342	304	48	240	16	291
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.24	0.25	0.23	98	1152503	357	51	269	37	296
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.52	0.52	0.52	243	1401506	288	31	195	62	227
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.48	0.48	0.49	225	1117798	260	25	212	23	245
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.52	0.52	0.52	239	1135819	238	24	196	18	225
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.34	0.33	0.34	145	977474	293	46	236	11	289
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.50	0.48	0.53	239	1073392	239	21	193	25	256
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.52	269	1433453	278	27	222	29	271
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.48	0.45	0.51	239	1204657	247	27	205	15	288
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.49	225	1117799	263	23	213	27	266

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
