Overview

Metric	RNAalifold(seed)		RSpredict(seed)
MCC	0.762	>	0.532
Average MCC ± 95% Confidence Intervals	0.760 ± 0.039	>	0.529 ± 0.062
Sensitivity	0.698	>	0.447
Positive Predictive Value	0.832	>	0.632
Total TP	18771	>	12037
Total TN	71038781	<	71042306
Total FP	4654	<	8416
Total FP CONTRA	883	<	1137
Total FP INCONS	2909	<	5864
Total FP COMP	862	<	1415
Total FN	8133	<	14867
P-value	3.56938820447e-08

^top

Performance plots

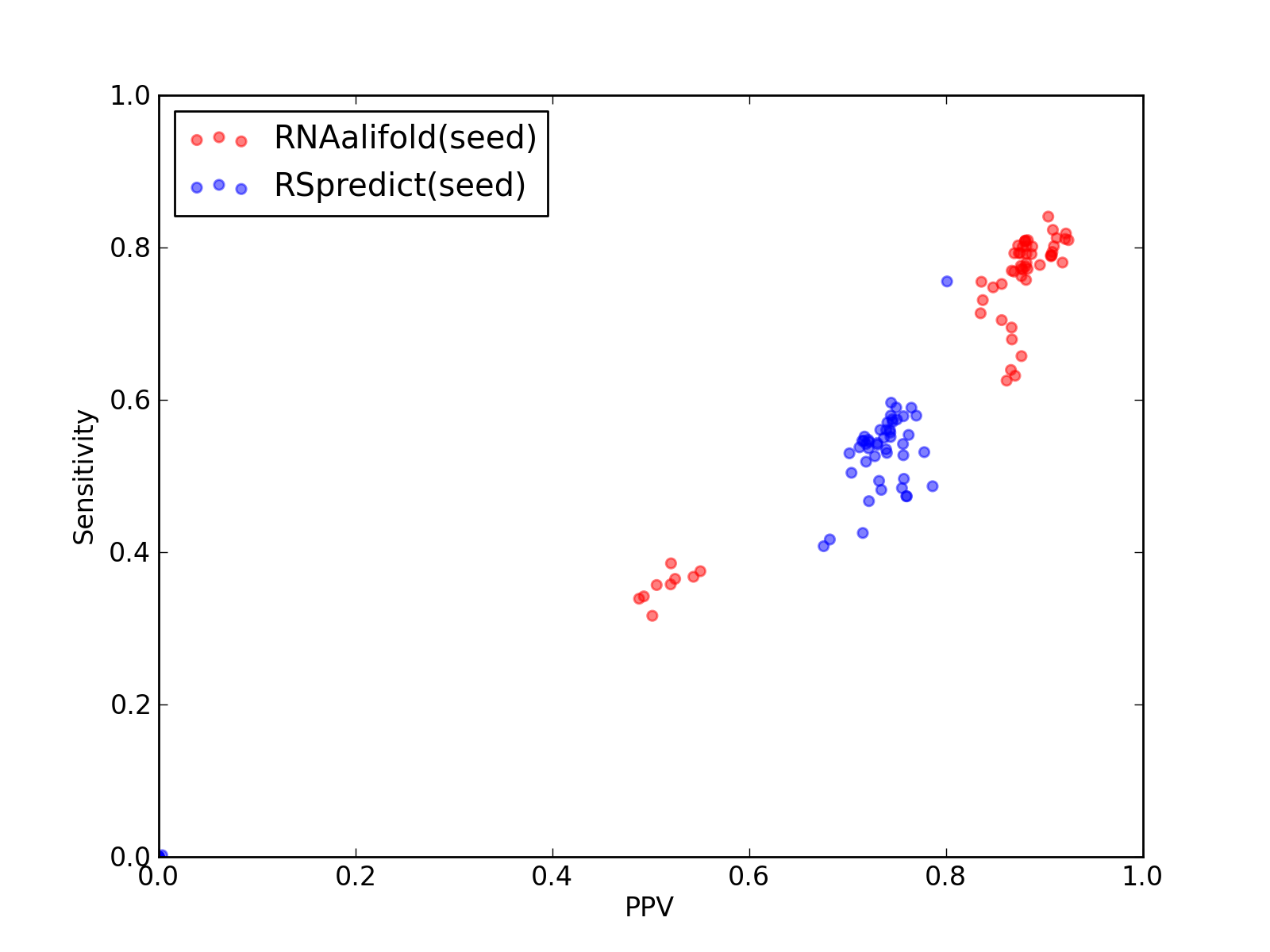

Comparison of performance of RNAalifold(seed) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	18771
Total TN	71038781
Total FP	4654
Total FP CONTRA	883
Total FP INCONS	2909
Total FP COMP	862
Total FN	8133

Total Scores
MCC	0.762
Average MCC ± 95% Confidence Intervals	0.760 ± 0.039
Sensitivity	0.698
Positive Predictive Value	0.832
Nr of predictions	57

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.87	0.84	0.90	385	1085175	58	7	34	17	73
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.88	372	1170793	59	16	34	9	98
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	369	1107397	60	16	34	10	87
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.88	367	1172327	61	16	36	9	106
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	367	1181535	61	16	35	10	109
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.85	0.81	0.88	370	1108886	58	15	34	9	87
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.89	368	1178465	61	12	35	14	97
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	367	1135858	62	16	37	9	96
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	369	1201606	61	16	34	11	107
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	368	1152515	47	13	25	9	98
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	372	1180006	46	13	25	8	99
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	365	1190782	64	12	37	15	103
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.84	336	1082254	76	16	50	10	109
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	364	1178460	66	16	40	10	109
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	365	1207815	63	16	39	8	110
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.88	369	1198508	59	15	34	10	109
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	366	1105912	60	16	34	10	87
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	369	1218720	61	16	36	9	115
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	369	1198505	61	16	36	9	109
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	369	1192333	48	13	25	10	99
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	368	1111868	59	15	35	9	87
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.90	359	1122350	51	13	29	9	103
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.87	358	1085191	60	16	36	8	88
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	366	1114854	59	16	35	8	91
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	359	1110382	64	17	37	10	94
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.89	363	1117851	59	13	33	13	90
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1144932	48	13	24	11	92
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.85	323	1015644	67	14	44	9	109
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.86	358	1189235	67	16	44	7	118
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.77	0.71	0.84	329	1123856	76	14	51	11	132
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.45	0.39	0.52	178	1445508	175	32	132	11	284
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.42	0.36	0.51	172	1579413	180	32	136	12	310
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.44	0.36	0.52	181	1611565	175	31	133	11	315
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.40	0.32	0.50	169	2126616	180	32	136	12	365
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.45	0.38	0.55	186	1615165	163	28	124	11	310
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.45	0.37	0.54	182	1665890	171	28	125	18	313
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.86	0.82	0.91	377	1116350	49	12	26	11	81
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1094068	53	6	25	22	84
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	366	1119360	52	6	24	22	86
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	365	1098507	56	8	23	25	81
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	163	1636811	183	35	136	12	318
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.85	0.78	0.92	348	1215641	59	6	25	28	98
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.91	312	1201683	85	4	26	55	72
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	355	1137395	59	8	28	23	92
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	288	1152577	109	10	46	53	106
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	356	1117856	63	14	34	15	114
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	372	1135856	59	15	35	9	92
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	172	1606179	193	36	141	16	331
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.43	0.36	0.52	181	1593657	177	34	133	10	325
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.83	0.79	0.88	344	977508	71	5	44	22	90
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.69	0.87	344	1073448	73	7	46	20	151
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.74	0.64	0.87	342	1500383	85	10	43	32	193
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.73	0.63	0.86	342	1471073	85	8	47	30	205
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.74	0.63	0.87	355	1606120	72	10	43	19	207
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.76	0.66	0.88	355	1433566	72	7	43	22	185
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.77	0.68	0.87	358	1204715	73	7	48	18	169
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.70	0.86	346	1117856	80	13	45	22	145

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	12037
Total TN	71042306
Total FP	8416
Total FP CONTRA	1137
Total FP INCONS	5864
Total FP COMP	1415
Total FN	14867

Total Scores
MCC	0.532
Average MCC ± 95% Confidence Intervals	0.529 ± 0.062
Sensitivity	0.447
Positive Predictive Value	0.632
Nr of predictions	57

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.76	0.80	346	1085169	116	15	71	30	112
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.74	268	1170853	120	15	79	26	202
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.66	0.59	0.75	269	1107457	114	15	75	24	187
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1172394	120	18	77	25	216
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	258	1181594	124	19	82	23	218
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	261	1108955	113	16	73	24	196
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.66	0.57	0.75	267	1178524	119	14	75	30	198
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	273	1135921	112	13	71	28	190
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	260	1201662	126	16	87	23	216
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.74	270	1152558	117	19	74	24	196
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.74	252	1180075	110	15	74	21	219
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	258	1190849	118	11	78	29	210
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.62	0.55	0.71	243	1082316	119	17	80	22	202
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.67	0.58	0.77	274	1178524	103	15	67	21	199
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1207883	117	16	79	22	218
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.71	257	1198565	127	16	88	23	221
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	248	1105984	121	17	79	25	205
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	278	1218768	123	17	78	28	206
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.67	0.60	0.74	285	1198543	124	18	80	26	193
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	251	1192392	119	17	80	22	217
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	255	1111941	113	15	75	23	200
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.73	243	1122417	115	15	76	24	219
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.73	250	1085260	113	15	76	22	196
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.72	249	1114926	120	15	81	24	208
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.61	0.52	0.72	235	1110468	113	17	75	21	218
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	240	1117918	122	15	87	20	213
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.56	0.74	260	1144991	117	12	78	27	204
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.53	0.42	0.68	180	1015761	96	14	70	12	252
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.60	0.50	0.70	240	1189312	122	16	85	21	236
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.55	0.43	0.72	196	1123976	99	12	66	21	265
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1445558	306	53	239	14	462
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1579464	301	50	239	12	482
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1611598	319	50	262	7	496
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	2126581	414	77	295	42	534
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1615206	309	45	252	12	496
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1665933	312	53	239	20	495
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	252	1116423	114	13	77	24	206
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.74	236	1094141	110	9	74	27	209
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.64	0.54	0.76	245	1119432	103	8	71	24	207
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.76	258	1098562	118	11	72	35	188
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	1	1636859	310	50	235	25	480
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.62	0.49	0.79	217	1215744	86	5	54	27	229
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.59	0.48	0.73	185	1201773	99	7	60	32	199
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	249	1137451	114	13	73	28	198
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.58	0.47	0.72	184	1152666	117	7	64	46	210
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.60	0.49	0.73	232	1117943	100	11	74	15	238
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	256	1135921	123	14	87	22	208
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1606225	319	65	238	16	503
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1593701	318	50	254	14	506
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.52	0.41	0.68	177	977639	95	12	73	10	257
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.76	261	1073500	115	11	73	31	234
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.60	0.48	0.76	259	1500435	126	9	75	42	276
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	259	1471129	122	8	74	40	288
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	266	1606178	119	12	72	35	296
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.61	0.50	0.76	268	1433617	119	7	79	33	272
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.64	0.53	0.78	280	1204768	120	9	71	40	247
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.65	0.55	0.76	272	1117903	116	13	72	31	219

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
