Overview

Metric	RSpredict(seed)		CentroidFold
MCC	0.542	>	0.523
Average MCC ± 95% Confidence Intervals	0.539 ± 0.060	>	0.521 ± 0.029
Sensitivity	0.456	>	0.453
Positive Predictive Value	0.645	>	0.604
Total TP	12037	>	11944
Total TN	68915725	>	68914627
Total FP	8002	<	9086
Total FP CONTRA	1060	<	1084
Total FP INCONS	5569	<	6736
Total FP COMP	1373	>	1266
Total FN	14333	<	14426
P-value	3.56938820447e-08

^top

Performance plots

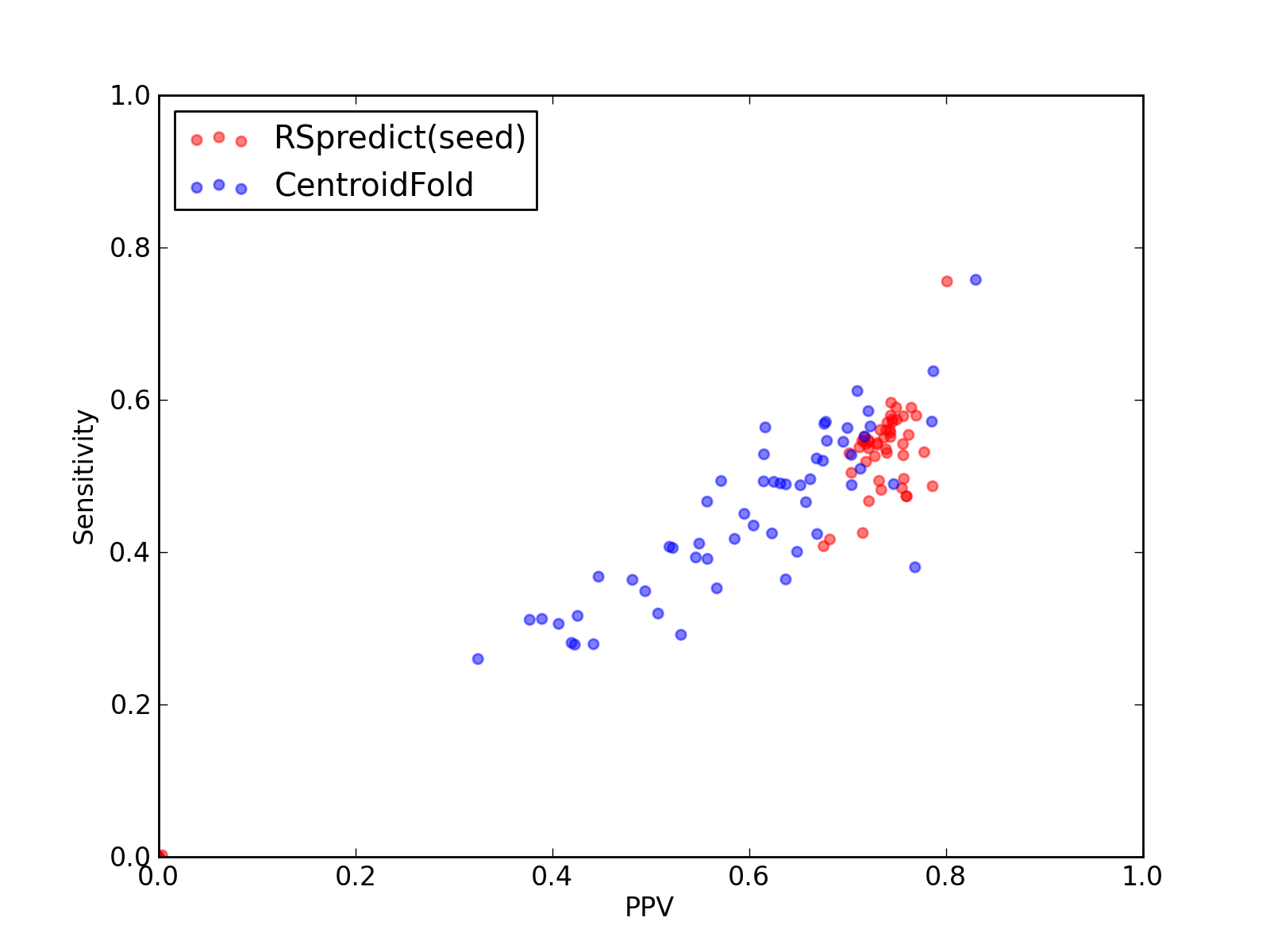

Comparison of performance of RSpredict(seed) and CentroidFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(seed) and CentroidFold).

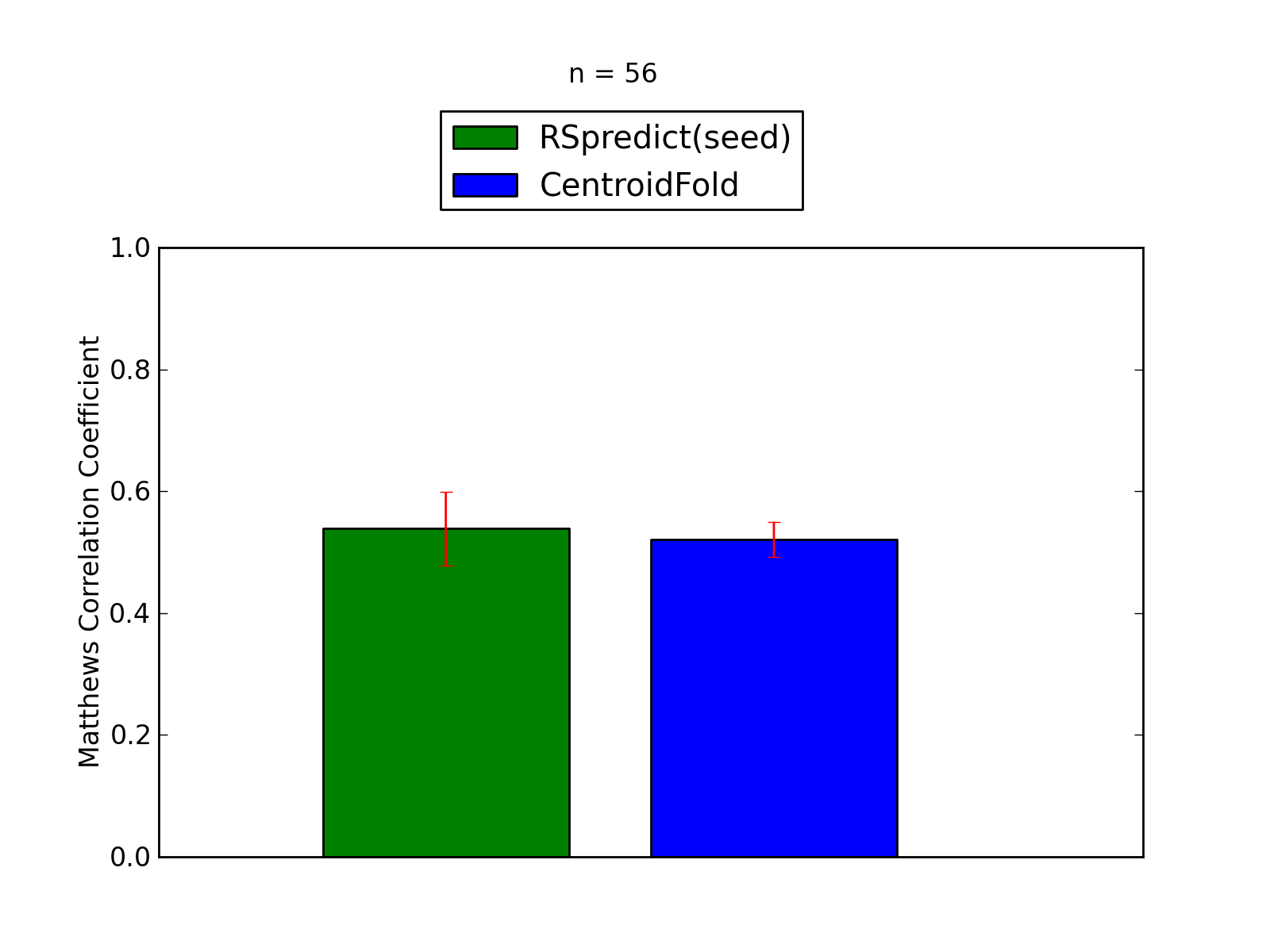

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(seed) and CentroidFold).

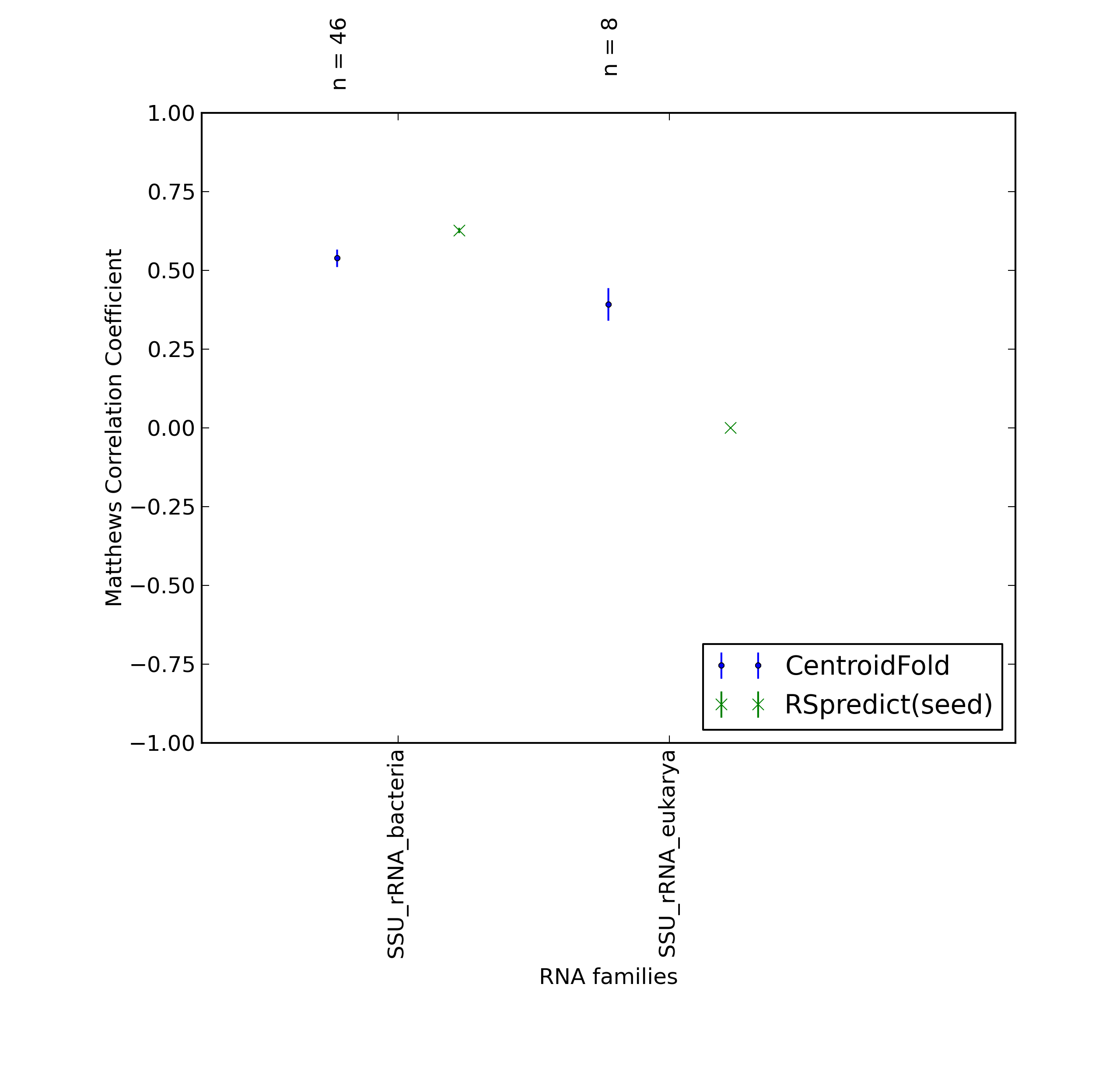

Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(seed) and CentroidFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(seed) and CentroidFold).

^top

Performance of RSpredict(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	12037
Total TN	68915725
Total FP	8002
Total FP CONTRA	1060
Total FP INCONS	5569
Total FP COMP	1373
Total FN	14333

Total Scores
MCC	0.542
Average MCC ± 95% Confidence Intervals	0.539 ± 0.060
Sensitivity	0.456
Positive Predictive Value	0.645
Nr of predictions	56

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.76	0.80	346	1085169	116	15	71	30	112
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.74	268	1170853	120	15	79	26	202
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.66	0.59	0.75	269	1107457	114	15	75	24	187
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1172394	120	18	77	25	216
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	258	1181594	124	19	82	23	218
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	261	1108955	113	16	73	24	196
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.66	0.57	0.75	267	1178524	119	14	75	30	198
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	273	1135921	112	13	71	28	190
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	260	1201662	126	16	87	23	216
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.74	270	1152558	117	19	74	24	196
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.74	252	1180075	110	15	74	21	219
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	258	1190849	118	11	78	29	210
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.62	0.55	0.71	243	1082316	119	17	80	22	202
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.67	0.58	0.77	274	1178524	103	15	67	21	199
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.73	257	1207883	117	16	79	22	218
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.71	257	1198565	127	16	88	23	221
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	248	1105984	121	17	79	25	205
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.65	0.57	0.75	278	1218768	123	17	78	28	206
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.67	0.60	0.74	285	1198543	124	18	80	26	193
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.72	251	1192392	119	17	80	22	217
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	255	1111941	113	15	75	23	200
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.73	243	1122417	115	15	76	24	219
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.73	250	1085260	113	15	76	22	196
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.63	0.54	0.72	249	1114926	120	15	81	24	208
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.61	0.52	0.72	235	1110468	113	17	75	21	218
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	240	1117918	122	15	87	20	213
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.56	0.74	260	1144991	117	12	78	27	204
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.53	0.42	0.68	180	1015761	96	14	70	12	252
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.60	0.50	0.70	240	1189312	122	16	85	21	236
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.55	0.43	0.72	196	1123976	99	12	66	21	265
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1445558	306	53	239	14	462
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1579464	301	50	239	12	482
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1611598	319	50	262	7	496
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1615206	309	45	252	12	496
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1665933	312	53	239	20	495
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.64	0.55	0.74	252	1116423	114	13	77	24	206
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.74	236	1094141	110	9	74	27	209
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.64	0.54	0.76	245	1119432	103	8	71	24	207
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.76	258	1098562	118	11	72	35	188
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	1	1636859	310	50	235	25	480
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.62	0.49	0.79	217	1215744	86	5	54	27	229
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.59	0.48	0.73	185	1201773	99	7	60	32	199
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.74	249	1137451	114	13	73	28	198
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.58	0.47	0.72	184	1152666	117	7	64	46	210
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.60	0.49	0.73	232	1117943	100	11	74	15	238
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	256	1135921	123	14	87	22	208
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1606225	319	65	238	16	503
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1593701	318	50	254	14	506
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.52	0.41	0.68	177	977639	95	12	73	10	257
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.63	0.53	0.76	261	1073500	115	11	73	31	234
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.60	0.48	0.76	259	1500435	126	9	75	42	276
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	259	1471129	122	8	74	40	288
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.60	0.47	0.76	266	1606178	119	12	72	35	296
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.61	0.50	0.76	268	1433617	119	7	79	33	272
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.64	0.53	0.78	280	1204768	120	9	71	40	247
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.65	0.55	0.76	272	1117903	116	13	72	31	219

^top

Performance of CentroidFold - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	11944
Total TN	68914627
Total FP	9086
Total FP CONTRA	1084
Total FP INCONS	6736
Total FP COMP	1266
Total FN	14426

Total Scores
MCC	0.523
Average MCC ± 95% Confidence Intervals	0.521 ± 0.029
Sensitivity	0.453
Positive Predictive Value	0.604
Nr of predictions	56

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.79	0.76	0.83	347	1085183	108	8	63	37	111
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.60	0.49	0.75	230	1170907	91	8	70	13	240
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.64	223	1107466	140	16	111	13	233
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.60	0.51	0.71	241	1172408	111	9	88	14	232
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.64	0.57	0.72	269	1181581	110	23	80	7	207
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.55	0.49	0.63	225	1108945	147	19	116	12	232
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.63	228	1178519	155	15	118	22	237
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.59	0.49	0.70	226	1135957	106	11	84	11	237
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.63	0.56	0.70	268	1201642	136	16	99	21	208
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.55	0.47	0.66	217	1152591	126	17	96	13	249
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.51	0.42	0.62	200	1180095	129	14	107	8	271
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	247	1190845	120	6	98	16	221
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.35	0.31	0.39	139	1082299	226	23	195	8	306
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.52	0.45	0.59	213	1178522	162	17	128	17	260
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.67	247	1207869	131	18	101	12	228
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.67	250	1198552	140	19	105	16	228
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.65	221	1105989	128	13	105	10	232
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.66	0.61	0.71	296	1218724	154	20	101	33	188
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.57	0.50	0.66	237	1198568	130	20	101	9	241
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.45	0.35	0.57	165	1192449	145	20	106	19	303
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.67	0.57	0.79	260	1111955	83	11	60	12	195
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.48	0.41	0.55	190	1122405	171	26	130	15	272
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.43	0.60	194	1085280	142	14	113	15	252
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.70	249	1114913	130	13	96	21	208
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.48	0.36	0.64	165	1110536	105	15	79	11	288
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.53	0.42	0.67	192	1117973	105	9	86	10	261
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.68	265	1144950	146	18	108	20	199
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.40	0.32	0.51	138	1015753	153	22	112	19	294
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.61	0.55	0.68	260	1189270	143	18	105	20	216
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.35	0.31	0.41	141	1123903	217	34	172	11	320
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.29	0.26	0.32	120	1445480	309	50	200	59	342
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.34	0.31	0.38	150	1579355	289	44	204	41	332
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.47	0.39	0.56	194	1611562	196	29	125	42	302
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.42	0.35	0.49	173	1615153	226	27	150	49	323
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.42	0.36	0.48	180	1665851	239	34	160	45	315
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.79	292	1116394	100	14	65	21	166
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.34	0.28	0.42	125	1094162	188	16	157	15	320
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.37	0.32	0.43	143	1119420	207	36	157	14	309
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	261	1098541	124	19	82	23	185
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.34	0.28	0.42	134	1636828	232	34	149	49	347
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.39	0.29	0.53	130	1215775	153	18	97	38	316
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.54	0.38	0.77	146	1201835	66	6	38	22	238
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.51	0.40	0.65	179	1137510	120	5	92	23	268
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.35	0.28	0.44	110	1152672	173	15	124	34	284
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.59	0.56	0.62	265	1117830	190	14	151	25	205
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	256	1135921	119	15	86	18	208
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.41	0.37	0.45	185	1606114	268	39	190	39	318
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.46	0.41	0.52	206	1593608	228	40	151	37	300
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.46	0.41	0.52	176	977564	173	23	138	12	258
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.55	0.49	0.61	244	1073448	180	13	140	27	251
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.53	0.49	0.57	264	1500316	234	15	183	36	271
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.46	0.39	0.55	215	1471076	203	25	154	24	332
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.57	0.53	0.61	297	1606045	214	20	166	28	265
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.68	307	1433517	177	8	139	30	233
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.49	0.42	0.59	220	1204752	177	19	137	21	307
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.47	0.56	229	1117849	211	14	168	29	262
