Overview

Metric	Carnac(20)		CentroidAlifold(seed)
MCC	0.695	>	0.695
Average MCC ± 95% Confidence Intervals	0.648 ± 0.091	<	0.659 ± 0.059
Sensitivity	0.529	>	0.528
Positive Predictive Value	0.918	<	0.921
Total TP	539	>	537
Total TN	107358	<	107362
Total FP	120	=	120
Total FP CONTRA	11	<	21
Total FP INCONS	37	>	25
Total FP COMP	72	<	74
Total FN	479	<	481
P-value	0.88245777838

^top

Performance plots

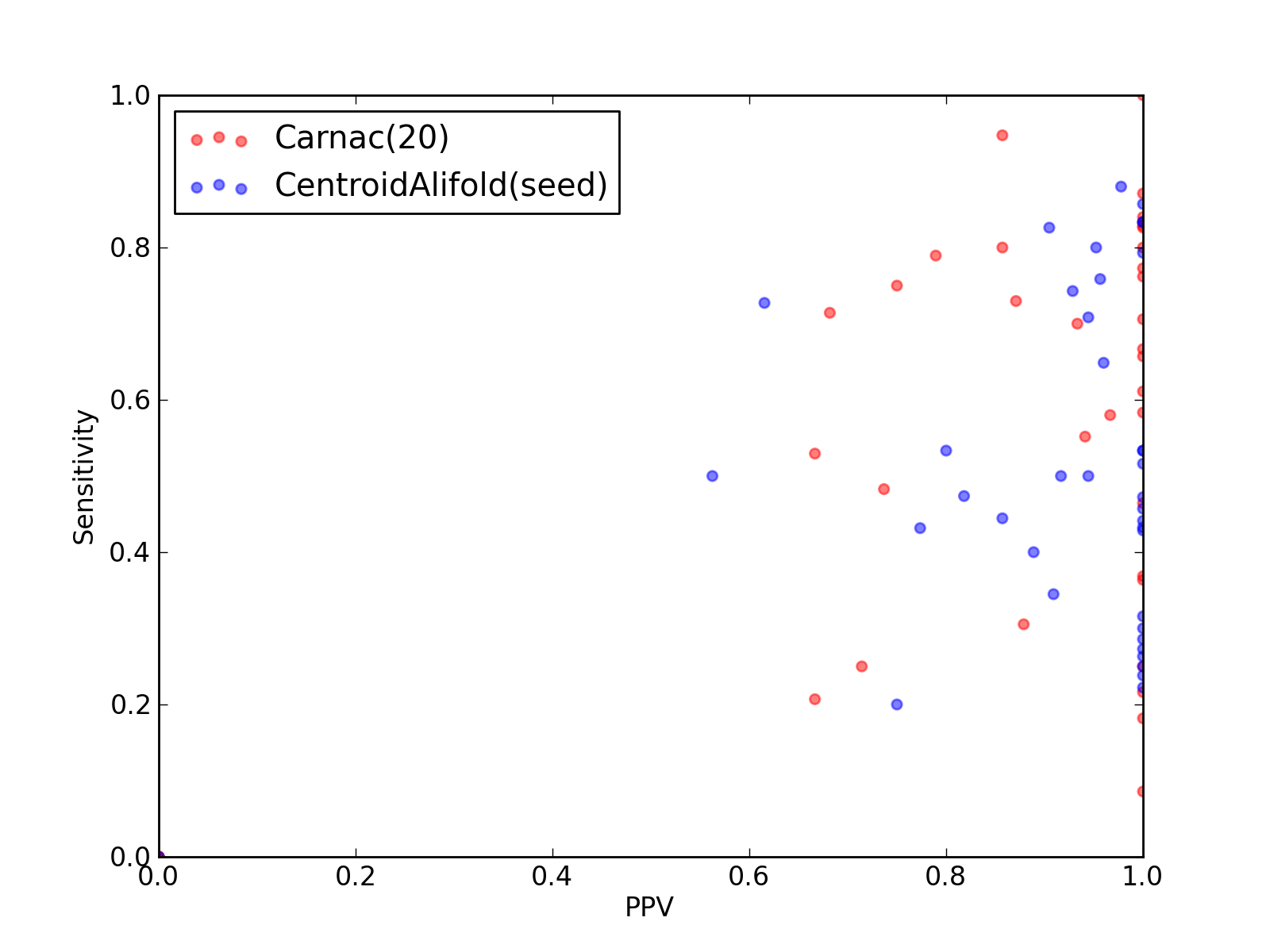

Comparison of performance of Carnac(20) and CentroidAlifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Carnac(20) and CentroidAlifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Carnac(20) and CentroidAlifold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Carnac(20) and CentroidAlifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Carnac(20) and CentroidAlifold(seed)).

^top

Performance of Carnac(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	539
Total TN	107358
Total FP	120
Total FP CONTRA	11
Total FP INCONS	37
Total FP COMP	72
Total FN	479

Total Scores
MCC	0.695
Average MCC ± 95% Confidence Intervals	0.648 ± 0.091
Sensitivity	0.529
Positive Predictive Value	0.918
Nr of predictions	39

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.00	0.00	0.00	0	357	0	0	0	0	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.43	0.18	1.00	2	1833	1	0	0	1	9
2XQD_Y	tRNA links to Rfam database...	0.87	0.76	1.00	16	1113	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.29	0.09	1.00	3	2042	0	0	0	0	32
3A2K_C	tRNA links to Rfam database...	0.88	0.77	1.00	17	1091	0	0	0	0	5
3AMU_B	tRNA links to Rfam database...	0.79	0.79	0.79	15	1138	7	0	4	3	4
3GX2_A	SAM links to Rfam database...	0.68	0.46	1.00	13	1436	0	0	0	0	15
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.52	0.31	0.88	29	25503	4	3	1	0	66
3IZF_C	5S_rRNA links to Rfam database...	0.91	0.83	1.00	29	2611	2	0	0	2	6
3J20_0	tRNA links to Rfam database...	0.69	0.71	0.68	15	1197	8	1	6	1	6
3J20_1	tRNA links to Rfam database...	0.89	0.80	1.00	16	1096	1	0	0	1	4
3J2L_3	5S_rRNA links to Rfam database...	0.59	0.53	0.67	18	2993	11	0	9	2	16
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	3	3	0	0	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3E_7	5S_rRNA links to Rfam database...	0.84	0.71	1.00	24	2717	1	0	0	1	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.61	0.37	1.00	7	4754	2	0	0	2	12
3J3F_7	5S_rRNA links to Rfam database...	0.78	0.61	1.00	22	2912	0	0	0	0	14
3J3V_B	5S_rRNA links to Rfam database...	0.82	0.67	1.00	18	2638	3	0	0	3	9
3JYV_7	tRNA links to Rfam database...	0.81	0.70	0.93	14	1096	3	0	1	2	6
3JYX_3	5S_rRNA links to Rfam database...	0.83	0.80	0.86	12	2364	13	0	2	11	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.76	0.58	1.00	7	4749	2	0	0	2	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.46	0.22	1.00	8	2270	3	0	0	3	29
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3PDR_A	ykoK links to Rfam database...	0.75	0.58	0.97	29	4810	3	1	0	2	21
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.72	0.55	0.94	16	1516	1	0	1	0	13
3ZEX_D	5S_rRNA links to Rfam database...	0.81	0.66	1.00	23	2773	3	0	0	3	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.37	0.21	0.67	6	5365	4	1	2	1	23
3ZND_W	tRNA links to Rfam database...	0.75	0.75	0.75	6	1183	13	0	2	11	2
4A1C_3	5S_rRNA links to Rfam database...	0.79	0.73	0.87	27	2732	5	0	4	1	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.42	0.25	0.71	5	4509	3	0	2	1	15
4AOB_A	SAM links to Rfam database...	0.59	0.48	0.74	14	1418	6	2	3	1	15
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.50	0.25	1.00	6	1196	0	0	0	0	18

^top

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	537
Total TN	107362
Total FP	120
Total FP CONTRA	21
Total FP INCONS	25
Total FP COMP	74
Total FN	481

Total Scores
MCC	0.695
Average MCC ± 95% Confidence Intervals	0.659 ± 0.059
Sensitivity	0.528
Positive Predictive Value	0.921
Nr of predictions	39

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2WRQ_Y	tRNA links to Rfam database...	0.47	0.22	1.00	2	1150	4	0	0	4	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.67	0.73	0.62	8	1822	22	0	5	17	3
2XQD_Y	tRNA links to Rfam database...	0.48	0.24	1.00	5	1124	1	0	0	1	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.83	0.74	0.93	26	2017	4	0	2	2	9
3A2K_C	tRNA links to Rfam database...	0.52	0.27	1.00	6	1102	0	0	0	0	16
3AMU_B	tRNA links to Rfam database...	0.51	0.26	1.00	5	1152	1	0	0	1	14
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.46	1.00	16	2624	0	0	0	0	19
3J20_0	tRNA links to Rfam database...	0.53	0.29	1.00	6	1213	0	0	0	0	15
3J20_1	tRNA links to Rfam database...	0.54	0.30	1.00	6	1106	0	0	0	0	14
3J2L_3	5S_rRNA links to Rfam database...	0.66	0.44	1.00	15	3005	2	0	0	2	19
3J3D_C	tRNA links to Rfam database...	0.56	0.32	1.00	6	962	0	0	0	0	13
3J3E_8	5_8S_rRNA links to Rfam database...	0.39	0.20	0.75	3	2738	1	1	0	0	12
3J3E_7	5S_rRNA links to Rfam database...	0.68	0.50	0.94	17	2723	2	0	1	1	17
3J3F_8	5_8S_rRNA links to Rfam database...	0.62	0.47	0.82	9	4750	4	2	0	2	10
3J3F_7	5S_rRNA links to Rfam database...	0.68	0.47	1.00	17	2917	1	0	0	1	19
3J3V_B	5S_rRNA links to Rfam database...	0.61	0.44	0.86	12	2642	7	0	2	5	15
3JYV_7	tRNA links to Rfam database...	0.50	0.25	1.00	5	1106	1	0	0	1	15
3JYX_3	5S_rRNA links to Rfam database...	0.65	0.53	0.80	8	2368	8	0	2	6	7
3JYX_4	5_8S_rRNA links to Rfam database...	0.91	0.83	1.00	10	4746	3	0	0	3	2
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3O58_2	5S_rRNA links to Rfam database...	0.72	0.52	1.00	16	2738	0	0	0	0	15
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3ZEX_D	5S_rRNA links to Rfam database...	0.65	0.43	1.00	15	2781	3	0	0	3	20
3ZEX_C	5_8S_rRNA links to Rfam database...	0.56	0.34	0.91	10	5363	3	1	0	2	19
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	1189	6	0	2	4	8
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.43	1.00	16	2747	0	0	0	0	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.71	0.94	17	1184	2	0	1	1	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
