Overview

Metric	CentroidAlifold(seed)		RNAalifold(seed)
MCC	0.786	>	0.734
Average MCC ± 95% Confidence Intervals	0.708 ± 0.080	>	0.666 ± 0.085
Sensitivity	0.702	>	0.612
Positive Predictive Value	0.881	<	0.882
Total TP	952	>	831
Total TN	529683	<	529822
Total FP	261	>	194
Total FP CONTRA	52	>	38
Total FP INCONS	77	>	73
Total FP COMP	132	>	83
Total FN	405	<	526
P-value	3.56938820447e-08

^top

Performance plots

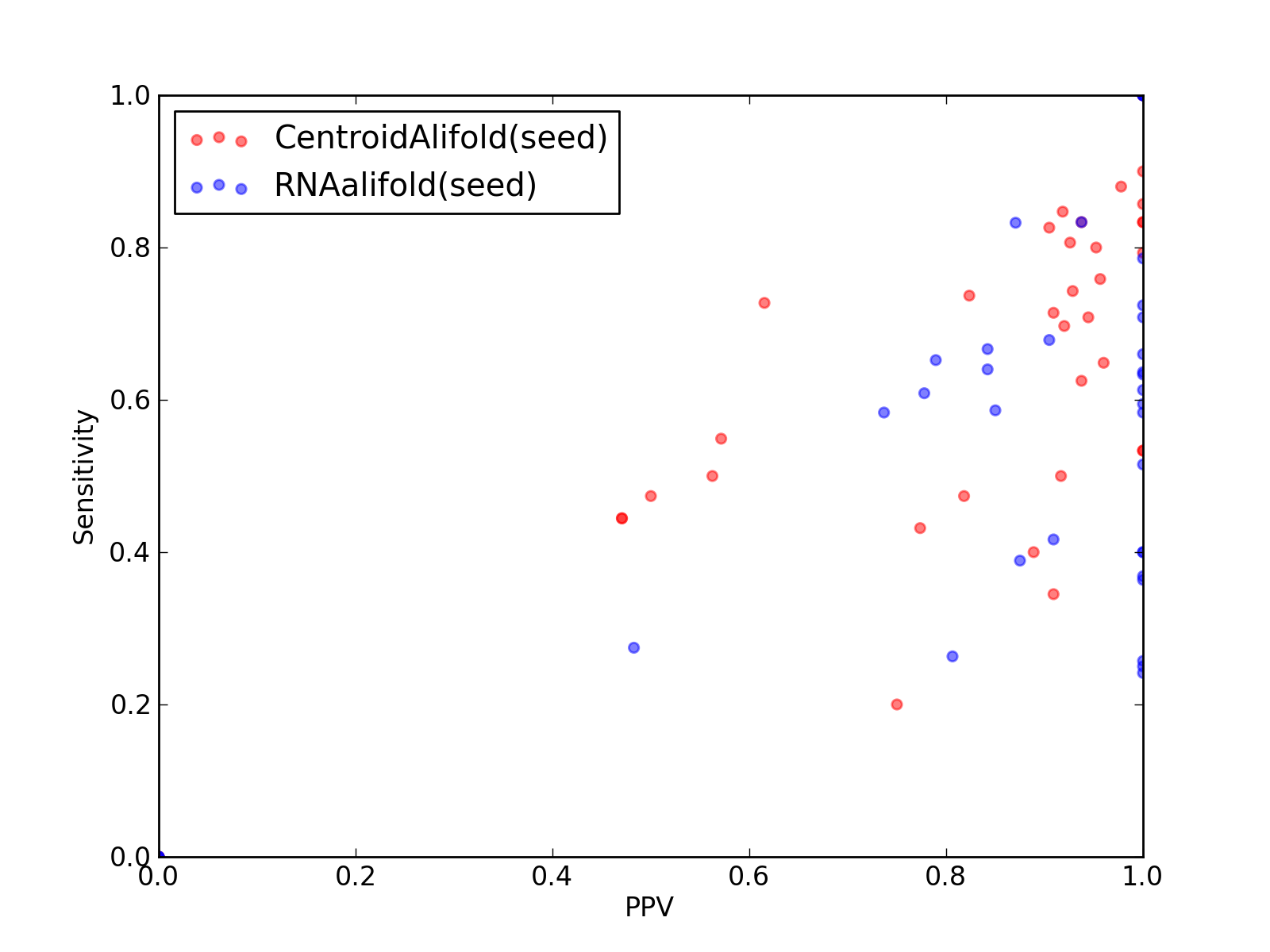

Comparison of performance of CentroidAlifold(seed) and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

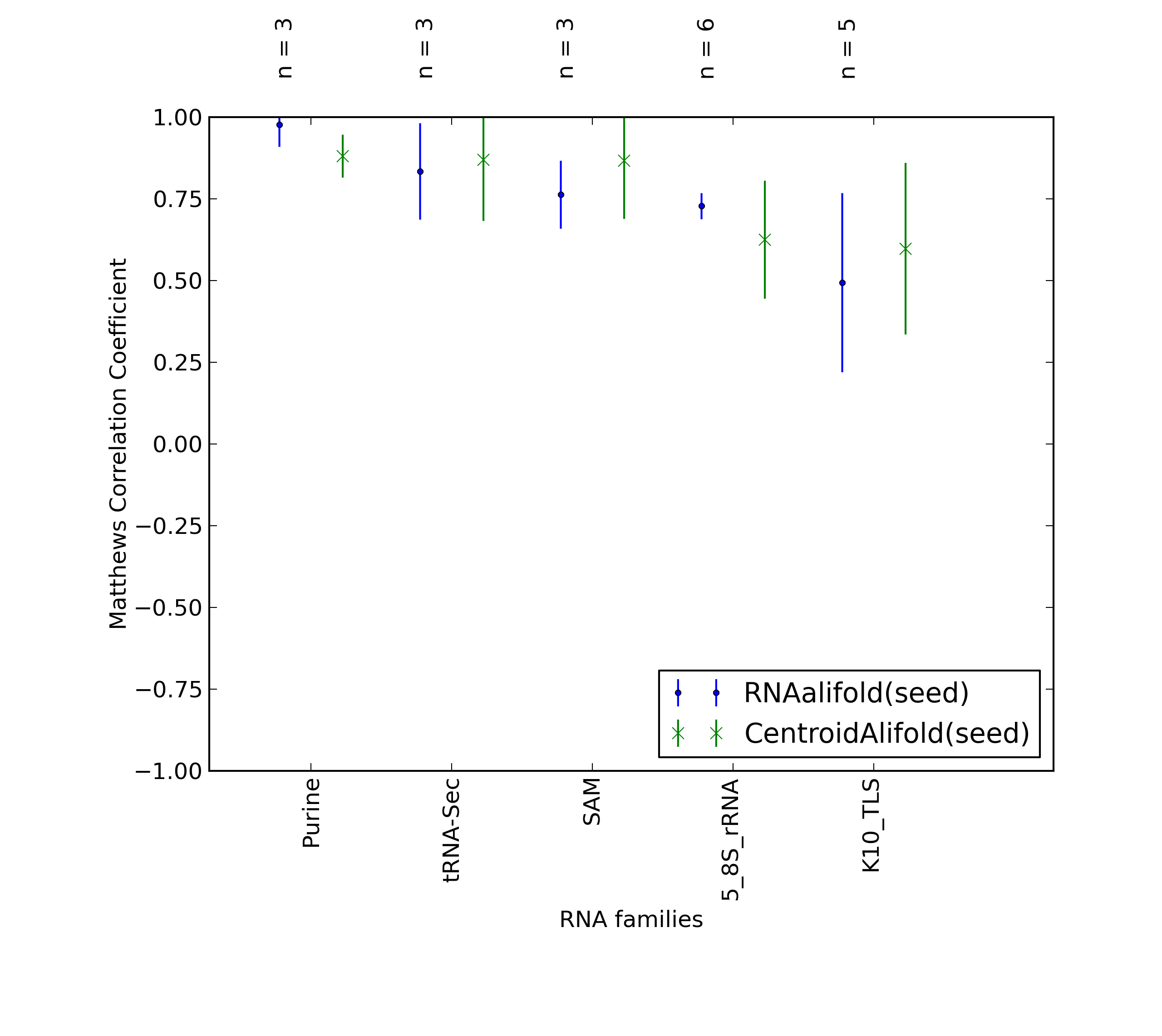

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	952
Total TN	529683
Total FP	261
Total FP CONTRA	52
Total FP INCONS	77
Total FP COMP	132
Total FN	405

Total Scores
MCC	0.786
Average MCC ± 95% Confidence Intervals	0.708 ± 0.080
Sensitivity	0.702
Positive Predictive Value	0.881
Nr of predictions	37

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	450	10	0	9	1	10
2KUR_A	K10_TLS links to Rfam database...	0.77	0.74	0.82	14	450	4	0	3	1	5
2KUU_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	431	3	0	1	2	3
2KUV_A	K10_TLS links to Rfam database...	0.46	0.47	0.50	9	421	9	0	9	0	10
2KUW_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	453	10	0	9	1	10
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.67	0.73	0.62	8	1822	22	0	5	17	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.83	0.74	0.93	26	2017	4	0	2	2	9
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.56	0.55	0.57	28	22391	30	19	2	9	23
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.88	0.85	0.92	349	421988	102	9	22	71	63
3J3E_8	5_8S_rRNA links to Rfam database...	0.39	0.20	0.75	3	2738	1	1	0	0	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.62	0.47	0.82	9	4750	4	2	0	2	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.91	0.83	1.00	10	4746	3	0	0	3	2
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3W1K_J	tRNA-Sec links to Rfam database...	0.86	0.81	0.93	25	1651	2	1	1	0	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.70	0.92	23	1964	4	0	2	2	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.56	0.34	0.91	10	5363	3	1	0	2	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.71	0.94	17	1184	2	0	1	1	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.80	0.71	0.91	20	1826	2	1	1	0	8
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	831
Total TN	529822
Total FP	194
Total FP CONTRA	38
Total FP INCONS	73
Total FP COMP	83
Total FN	526

Total Scores
MCC	0.734
Average MCC ± 95% Confidence Intervals	0.666 ± 0.085
Sensitivity	0.612
Positive Predictive Value	0.882
Nr of predictions	37

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	454	2	0	1	1	3
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.68	0.61	0.78	14	745	4	0	4	0	9
2L1F_B	Gammaretro_CES links to Rfam database...	0.65	0.58	0.74	14	772	5	0	5	0	10
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.80	0.64	1.00	7	1828	2	0	0	2	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A3A_A	tRNA-Sec links to Rfam database...	0.79	0.63	1.00	19	1481	0	0	0	0	11
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.71	0.65	0.79	15	884	4	2	2	0	8
3IYQ_A	tmRNA links to Rfam database...	0.36	0.27	0.48	14	22411	19	13	2	4	37
3IZ4_A	tmRNA links to Rfam database...	0.46	0.26	0.81	25	25505	8	6	0	2	70
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.85	0.83	0.87	343	421974	104	11	40	53	69
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.61	0.37	1.00	7	4754	2	0	0	2	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.76	0.58	1.00	7	4749	2	0	0	2	5
3LA5_A	Purine links to Rfam database...	0.73	0.64	0.84	16	935	3	1	2	0	9
3NPB_A	SAM links to Rfam database...	0.77	0.59	1.00	22	2256	3	0	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3PDR_A	ykoK links to Rfam database...	0.81	0.66	1.00	33	4807	1	0	0	1	17
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.61	1.00	19	1659	0	0	0	0	12
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.52	1.00	17	1972	2	0	0	2	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.24	1.00	7	5367	2	0	0	2	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	5	4511	2	0	0	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.84	0.71	1.00	17	1185	0	0	0	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.78	0.68	0.90	19	1827	2	1	1	0	9
4JF2_A	preQ1-II links to Rfam database...	0.61	0.42	0.91	10	1071	1	1	0	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
