Overview

Metric	CentroidHomfold‑LAST		Fold
MCC	0.708	>	0.642
Average MCC ± 95% Confidence Intervals	0.752 ± 0.089	>	0.707 ± 0.096
Sensitivity	0.629	<	0.667
Positive Predictive Value	0.803	>	0.626
Total TP	651	<	690
Total TN	102789	>	102498
Total FP	239	<	539
Total FP CONTRA	43	<	119
Total FP INCONS	117	<	293
Total FP COMP	79	<	127
Total FN	384	>	345
P-value	3.56938820447e-08

^top

Performance plots

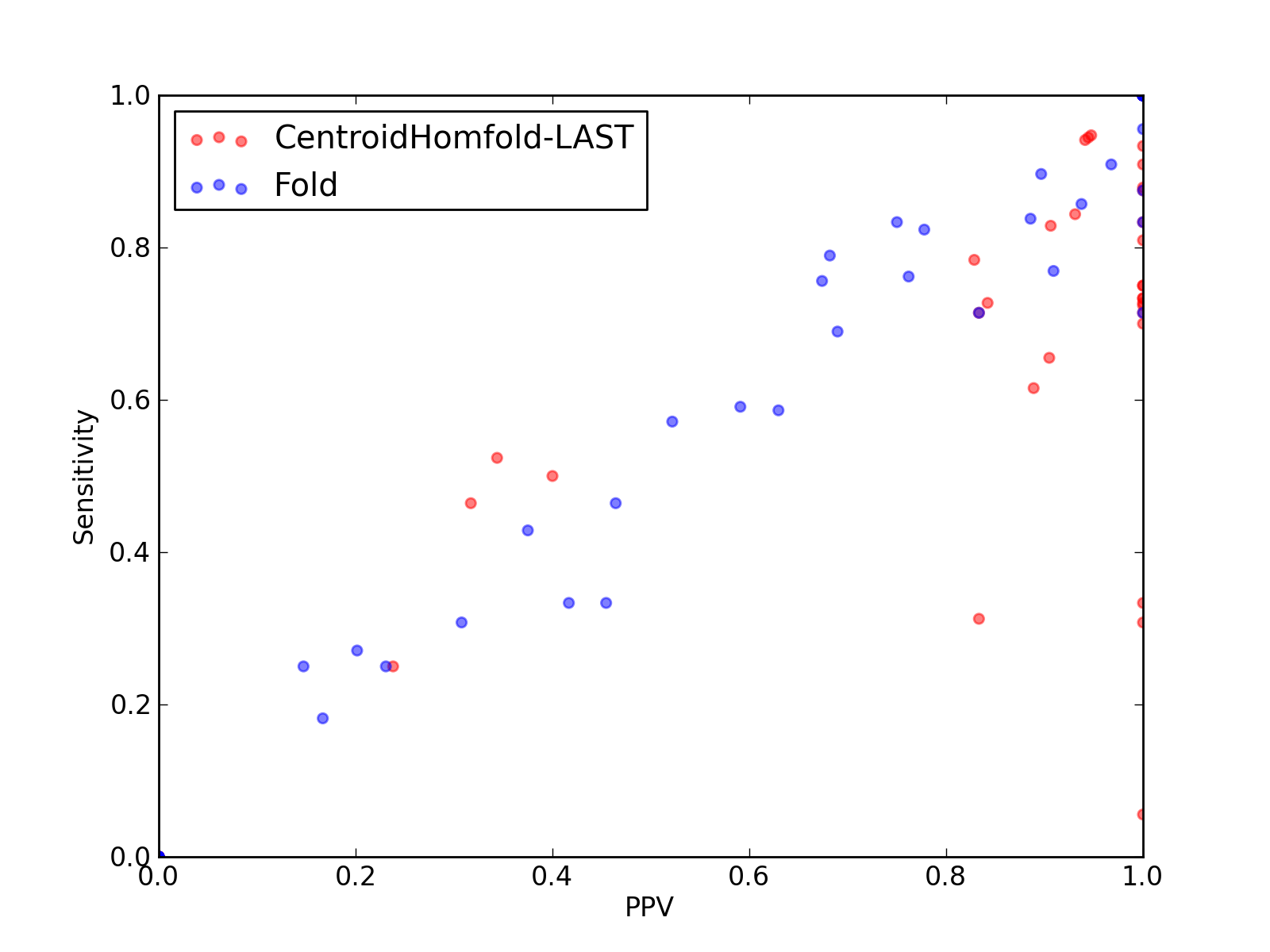

Comparison of performance of CentroidHomfold-LAST and Fold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Fold).

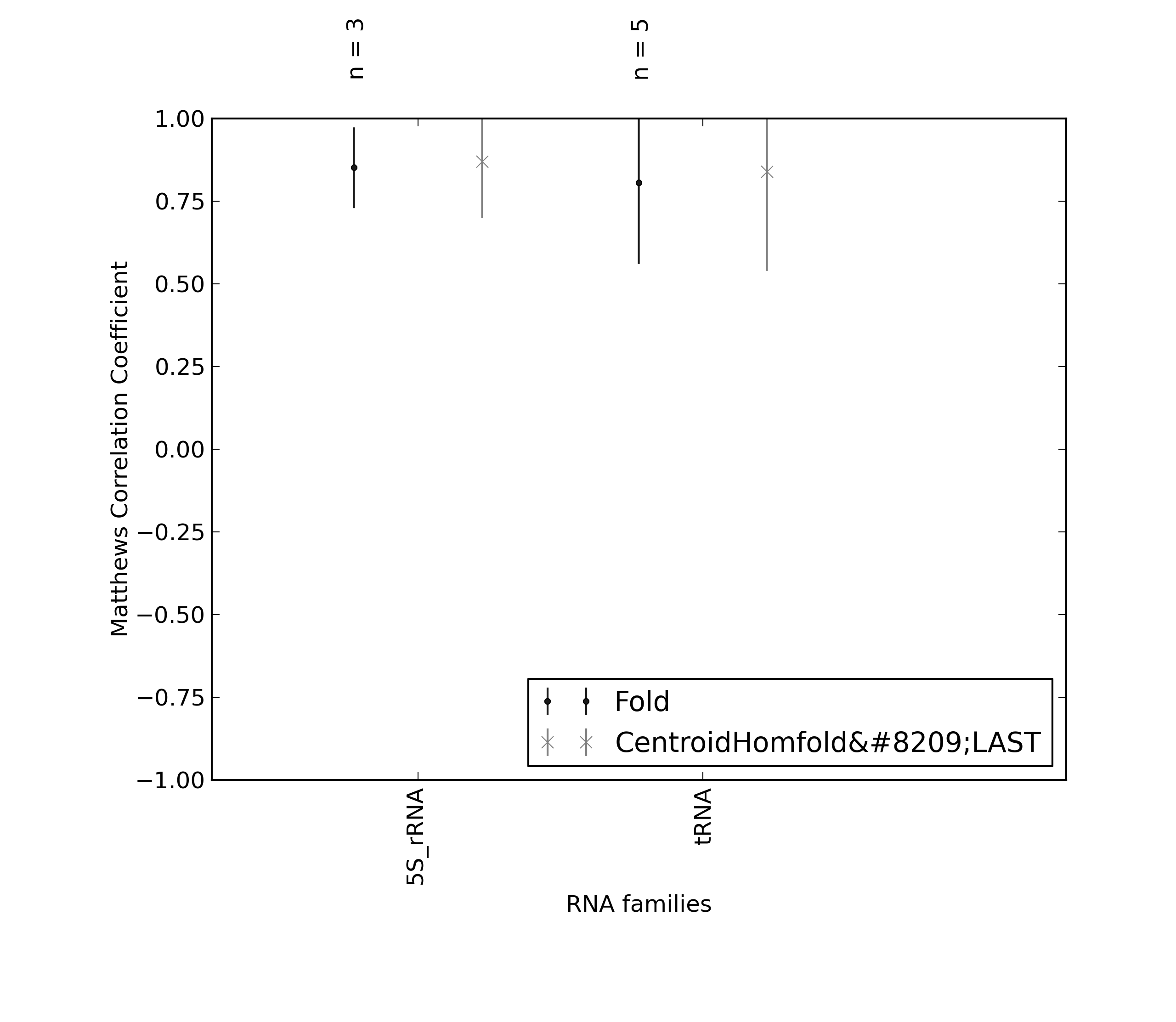

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Fold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Fold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Fold).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	651
Total TN	102789
Total FP	239
Total FP CONTRA	43
Total FP INCONS	117
Total FP COMP	79
Total FN	384

Total Scores
MCC	0.708
Average MCC ± 95% Confidence Intervals	0.752 ± 0.089
Sensitivity	0.629
Positive Predictive Value	0.803
Nr of predictions	56

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	517	11	0	11	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	0.84	0.73	1.00	8	154	0	0	0	0	3
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.00	0.00	0.00	0	2436	4	0	4	0	29
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.23	0.06	1.00	1	905	0	0	0	0	17
2YIE_Z	-	1.00	1.00	1.00	8	594	0	0	0	0	0
2YIE_X	-	1.00	1.00	1.00	7	537	0	0	0	0	0
3AMU_B	tRNA links to Rfam database...	0.95	0.95	0.95	18	1138	4	0	1	3	1
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_h	-	0.88	0.84	0.93	27	2111	4	0	2	2	5
3J0L_7	-	0.83	0.70	1.00	7	512	1	0	0	1	3
3J0L_g	-	0.00	0.00	0.00	0	176	0	0	0	0	2
3J0L_a	-	-0.01	0.00	0.00	0	408	3	1	2	0	11
3J0L_2	-	0.55	0.31	1.00	8	2242	0	0	0	0	18
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.41	0.52	0.34	11	1187	22	7	14	1	10
3J2C_O	-	0.00	0.00	0.00	0	3987	0	0	0	0	41
3J2C_M	-	0.51	0.31	0.83	30	39889	12	0	6	6	66
3J2L_3	5S_rRNA links to Rfam database...	0.94	0.94	0.94	32	2986	8	0	2	6	2
3NMU_E	-	0.57	0.33	1.00	1	215	3	0	0	3	2
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.77	0.66	0.90	19	1512	2	1	1	0	10
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.91	0.83	1.00	10	144	0	0	0	0	2
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.78	0.73	0.84	16	1257	4	0	3	1	6
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.88	1.00	29	1960	1	0	0	1	4
3ZEX_E	-	0.00	0.00	0.00	0	8273	33	9	22	2	34
3ZEX_G	-	0.97	0.93	1.00	42	6465	10	0	0	10	3
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.83	0.91	29	2764	8	0	3	5	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.25	0.24	5	4495	29	8	8	13	15
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	7	0	6	1	8
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	1	0	0	1	8
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	0	0	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.43	0.50	0.40	12	1172	18	6	12	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.37	0.46	0.32	13	1807	28	11	17	0	15
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of Fold - scored lower in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	690
Total TN	102498
Total FP	539
Total FP CONTRA	119
Total FP INCONS	293
Total FP COMP	127
Total FN	345

Total Scores
MCC	0.642
Average MCC ± 95% Confidence Intervals	0.707 ± 0.096
Sensitivity	0.667
Positive Predictive Value	0.626
Nr of predictions	56

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.90	0.90	0.90	26	2411	10	0	3	7	3
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.39	0.43	0.38	3	536	8	1	4	3	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_a	-	0.15	0.18	0.17	2	399	11	4	6	1	9
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.76	0.76	0.76	16	1138	5	0	5	0	5
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J2C_O	-	0.71	0.76	0.67	31	3941	21	5	10	6	10
3J2C_M	-	0.23	0.27	0.20	26	39796	116	31	72	13	70
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	4	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.91	0.97	30	1958	2	0	1	1	3
3ZEX_E	-	-0.01	0.00	0.00	0	8249	57	20	35	2	34
3ZEX_G	-	0.98	0.96	1.00	43	6464	17	0	0	17	2
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	8	0	2	6	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.37	0.33	0.45	5	461	7	0	6	1	10
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.22	0.25	0.23	6	1176	20	7	13	0	18
4FRN_A	AdoCbl-variant links to Rfam database...	0.46	0.46	0.46	13	1820	15	7	8	0	15
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
