Overview

Metric	ContextFold		Pknots
MCC	0.755	>	0.577
Average MCC ± 95% Confidence Intervals	0.758 ± 0.098	>	0.654 ± 0.107
Sensitivity	0.726	>	0.606
Positive Predictive Value	0.792	>	0.560
Total TP	553	>	462
Total TN	53896	>	53769
Total FP	237	<	448
Total FP CONTRA	40	<	100
Total FP INCONS	105	<	263
Total FP COMP	92	>	85
Total FN	209	<	300
P-value	3.56938820447e-08

^top

Performance plots

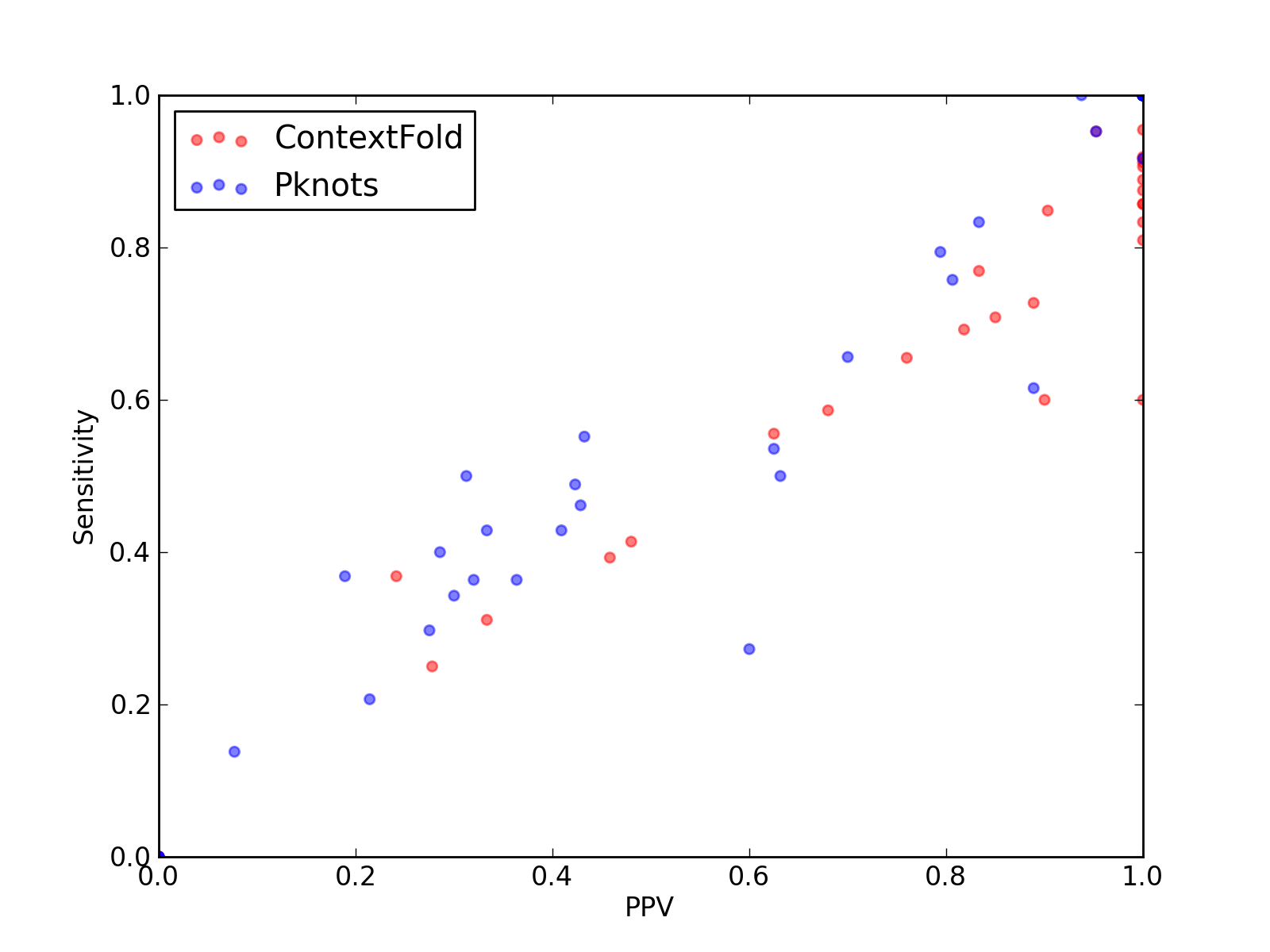

Comparison of performance of ContextFold and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ContextFold and Pknots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ContextFold and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for ContextFold and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ContextFold and Pknots).

^top

Performance of ContextFold - scored higher in this pairwise comparison

1. Total counts & total scores for ContextFold

Total Base Pair Counts
Total TP	553
Total TN	53896
Total FP	237
Total FP CONTRA	40
Total FP INCONS	105
Total FP COMP	92
Total FN	209

Total Scores
MCC	0.755
Average MCC ± 95% Confidence Intervals	0.758 ± 0.098
Sensitivity	0.726
Positive Predictive Value	0.792
Nr of predictions	44

^top

2. Individual counts for ContextFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.58	0.56	0.63	10	512	6	0	6	0	8
2LDL_A	-	1.00	1.00	1.00	9	131	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	0.92	0.86	1.00	6	124	3	0	0	3	1
2LK3_A	-	0.94	0.89	1.00	8	92	0	0	0	0	1
2LKR_A	-	0.70	0.66	0.76	19	2415	12	0	6	6	10
2LQZ_A	-	1.00	1.00	1.00	8	124	1	0	0	1	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
3J0L_h	-	0.95	0.91	1.00	29	2111	2	0	0	2	3
3J0L_a	-	0.80	0.73	0.89	8	402	2	0	1	1	3
3J0L_1	-	0.75	0.69	0.82	9	473	5	0	2	3	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	3	0	2	1	2
3J0L_2	-	0.80	0.77	0.83	20	2226	11	0	4	7	6
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J2L_3	5S_rRNA links to Rfam database...	0.95	0.91	1.00	31	2989	4	0	0	4	3
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	0	0	0	0	0
3TS0_U	-	1.00	1.00	1.00	6	112	0	0	0	0	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.98	0.95	1.00	21	1255	0	0	0	0	1
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.85	0.90	28	1958	4	0	3	1	5
3ZEX_F	-	0.00	0.00	0.00	0	910	16	0	4	12	4
3ZEX_G	-	0.32	0.31	0.33	14	6465	35	10	18	7	31
3ZEX_D	5S_rRNA links to Rfam database...	0.92	0.86	1.00	30	2766	4	0	0	4	5
3ZEX_H	-	0.29	0.37	0.24	7	3596	27	7	15	5	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.44	0.41	0.48	12	5349	23	4	9	10	17
4A1C_3	5S_rRNA links to Rfam database...	0.96	0.92	1.00	34	2729	1	0	0	1	3
4A1C_2	5_8S_rRNA links to Rfam database...	0.26	0.25	0.28	5	4498	26	3	10	13	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.62	0.59	0.68	17	1412	9	2	6	1	12
4ATO_G	-	-0.02	0.00	0.00	0	218	2	1	1	0	7
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.77	0.71	0.85	17	1182	3	2	1	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.42	0.39	0.46	11	1824	13	6	7	0	17
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	462
Total TN	53769
Total FP	448
Total FP CONTRA	100
Total FP INCONS	263
Total FP COMP	85
Total FN	300

Total Scores
MCC	0.577
Average MCC ± 95% Confidence Intervals	0.654 ± 0.107
Sensitivity	0.606
Positive Predictive Value	0.560
Nr of predictions	44

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.83	0.83	0.83	15	510	3	2	1	0	3
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.48	0.55	0.43	16	2403	23	9	12	2	13
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.38	0.27	0.60	3	202	3	0	2	1	8
3J0L_h	-	0.67	0.66	0.70	21	2110	11	4	5	2	11
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_7	-	0.38	0.50	0.31	5	503	12	3	8	1	5
3J0L_g	-	-0.02	0.00	0.00	0	171	5	3	2	0	2
3J0L_2	-	0.44	0.46	0.43	12	2222	23	1	15	7	14
3J16_L	tRNA links to Rfam database...	0.41	0.43	0.41	9	1137	13	1	12	0	12
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.79	0.79	27	2986	12	1	6	5	7
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.33	0.36	0.32	8	1251	17	4	13	0	14
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	7	0	0	7	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.78	0.76	0.81	25	1958	7	1	5	1	8
3ZEX_F	-	0.00	0.00	0.00	0	910	12	0	4	8	4
3ZEX_G	-	0.45	0.49	0.42	22	6455	39	9	21	9	23
3ZEX_D	5S_rRNA links to Rfam database...	0.31	0.34	0.30	12	2756	28	5	23	0	23
3ZEX_H	-	0.26	0.37	0.19	7	3588	33	14	16	3	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.14	0.08	4	5322	54	13	35	6	25
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2723	30	4	25	1	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.29	8	4488	36	9	11	16	12
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.19	0.21	0.21	6	1409	23	3	19	1	23
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	2	0	0	2	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FNJ_A	-	-0.04	0.00	0.00	0	240	10	0	10	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.50	0.63	12	1183	7	0	7	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.57	0.54	0.63	15	1824	9	3	6	0	13
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
