Overview

Metric	Fold		Murlet(20)
MCC	0.694	>	0.667
Average MCC ± 95% Confidence Intervals	0.686 ± 0.112	>	0.656 ± 0.096
Sensitivity	0.715	>	0.567
Positive Predictive Value	0.680	<	0.792
Total TP	505	>	400
Total TN	75398	<	75636
Total FP	347	>	148
Total FP CONTRA	65	>	21
Total FP INCONS	173	>	84
Total FP COMP	109	>	43
Total FN	201	<	306
P-value	5.06544643719e-08

^top

Performance plots

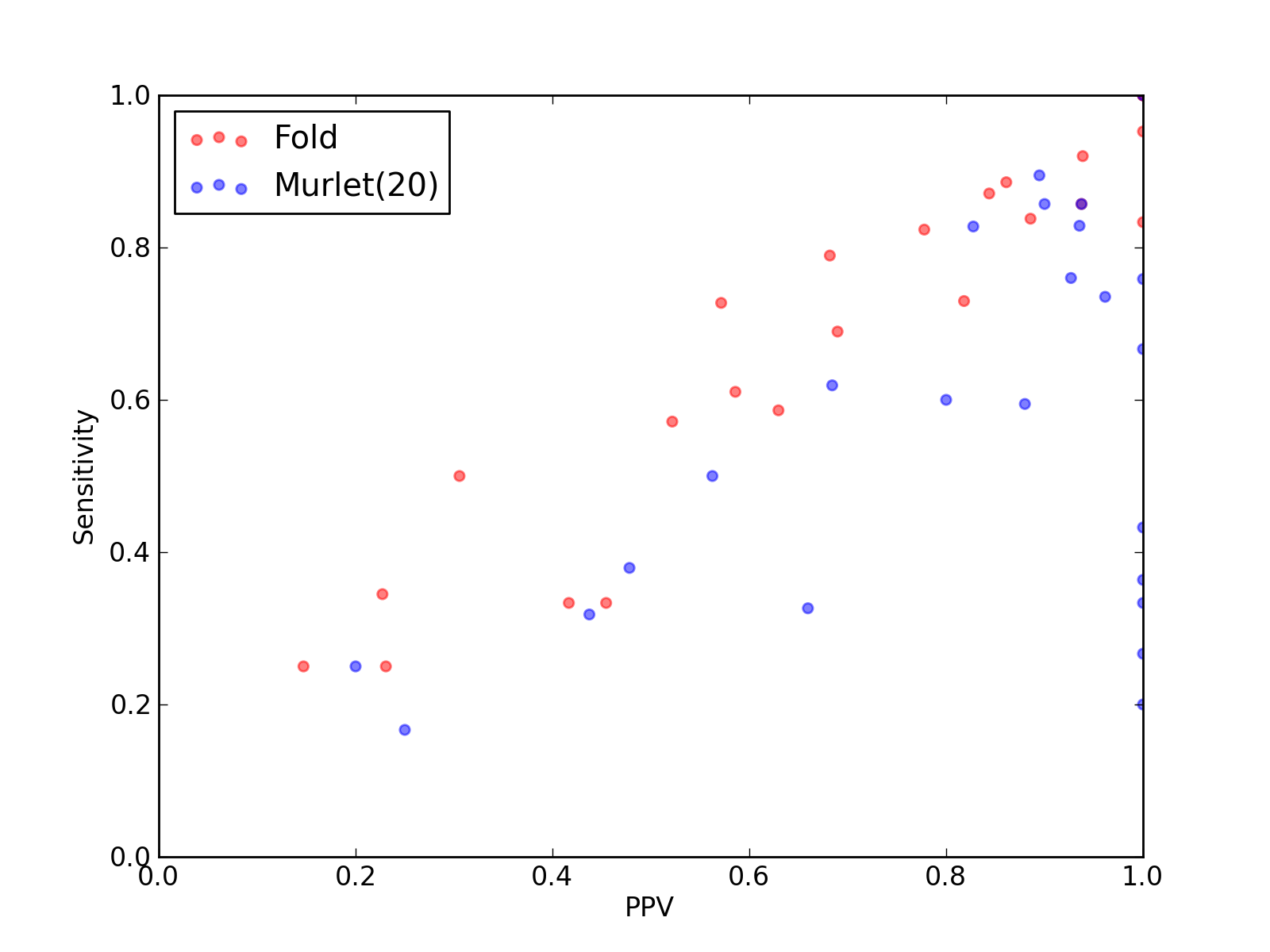

Comparison of performance of Fold and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and Murlet(20)).

^top

Performance of Fold - scored higher in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	505
Total TN	75398
Total FP	347
Total FP CONTRA	65
Total FP INCONS	173
Total FP COMP	109
Total FN	201

Total Scores
MCC	0.694
Average MCC ± 95% Confidence Intervals	0.686 ± 0.112
Sensitivity	0.715
Positive Predictive Value	0.680
Nr of predictions	24

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	35	2010	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IZ4_A	tmRNA links to Rfam database...	0.60	0.61	0.59	58	25437	47	16	25	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.87	0.89	0.86	31	2604	8	0	5	3	4
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	11	0	6	5	10
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.50	0.31	11	4728	41	9	16	16	11
3O58_2	5S_rRNA links to Rfam database...	0.86	0.87	0.84	27	2722	12	0	5	7	4
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	4	5	0	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.28	0.34	0.23	10	5330	46	9	25	12	19
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	8	0	2	6	5
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.37	0.33	0.45	5	461	7	0	6	1	10
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.22	0.25	0.23	6	1176	20	7	13	0	18

^top

Performance of Murlet(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	400
Total TN	75636
Total FP	148
Total FP CONTRA	21
Total FP INCONS	84
Total FP COMP	43
Total FN	306

Total Scores
MCC	0.667
Average MCC ± 95% Confidence Intervals	0.656 ± 0.096
Sensitivity	0.567
Positive Predictive Value	0.792
Nr of predictions	24

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XQD_Y	tRNA links to Rfam database...	0.88	0.86	0.90	18	1109	3	0	2	1	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3AMU_B	tRNA links to Rfam database...	0.89	0.89	0.89	17	1138	4	0	2	2	2
3IZ4_A	tmRNA links to Rfam database...	0.46	0.33	0.66	31	25489	22	3	13	6	64
3IZF_C	5S_rRNA links to Rfam database...	0.88	0.83	0.94	29	2609	5	0	2	3	6
3J20_0	tRNA links to Rfam database...	0.65	0.62	0.68	13	1200	6	1	5	0	8
3J20_1	tRNA links to Rfam database...	0.69	0.60	0.80	12	1097	4	0	3	1	8
3J2L_3	5S_rRNA links to Rfam database...	0.84	0.74	0.96	25	2994	4	0	1	3	9
3NPB_A	SAM links to Rfam database...	0.65	0.43	1.00	16	2262	2	0	0	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.32	0.44	7	4748	13	4	5	4	15
3O58_2	5S_rRNA links to Rfam database...	1.00	1.00	1.00	31	2723	2	0	0	2	0
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	3	1	2	0	12
3RKF_A	Purine links to Rfam database...	0.81	0.67	1.00	16	850	0	0	0	0	8
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	4	1	0	5
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.38	0.48	11	5351	16	2	10	4	18
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	5	0	2	3	5
4A1C_3	5S_rRNA links to Rfam database...	0.72	0.59	0.88	22	2738	4	0	3	1	15
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.20	5	4491	24	5	15	4	15
4AOB_A	SAM links to Rfam database...	0.87	0.76	1.00	22	1415	3	0	0	3	7
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.19	0.17	0.25	4	1186	12	1	11	0	20

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
