Overview

Metric	IPknot		RNAfold
MCC	0.675	>	0.578
Average MCC ± 95% Confidence Intervals	0.748 ± 0.082	>	0.685 ± 0.090
Sensitivity	0.645	>	0.604
Positive Predictive Value	0.707	>	0.555
Total TP	1168	>	1094
Total TN	954095	>	953774
Total FP	688	<	1128
Total FP CONTRA	125	<	231
Total FP INCONS	358	<	647
Total FP COMP	205	<	250
Total FN	643	<	717
P-value	3.56938820447e-08

^top

Performance plots

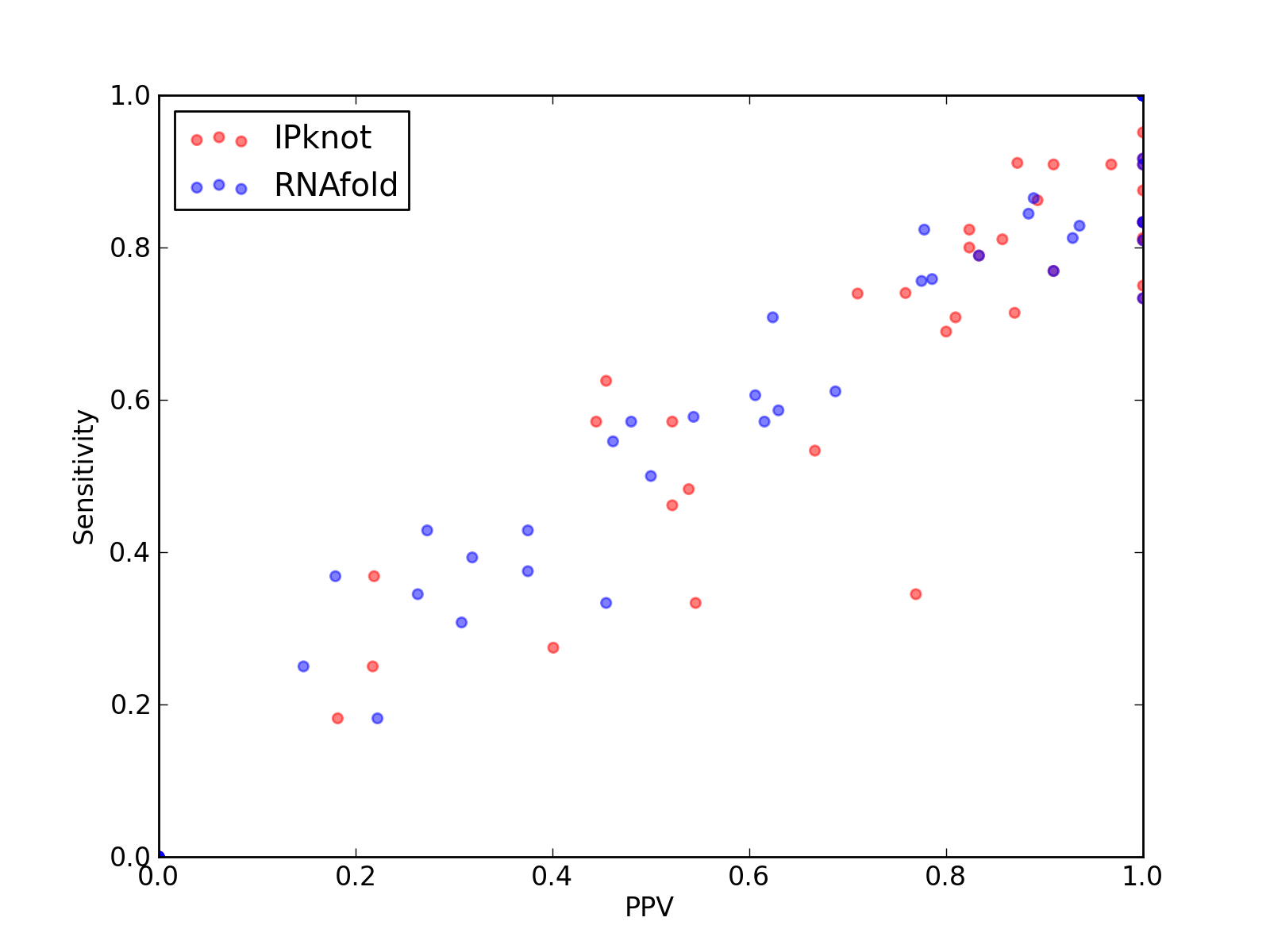

Comparison of performance of IPknot and RNAfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and RNAfold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and RNAfold).

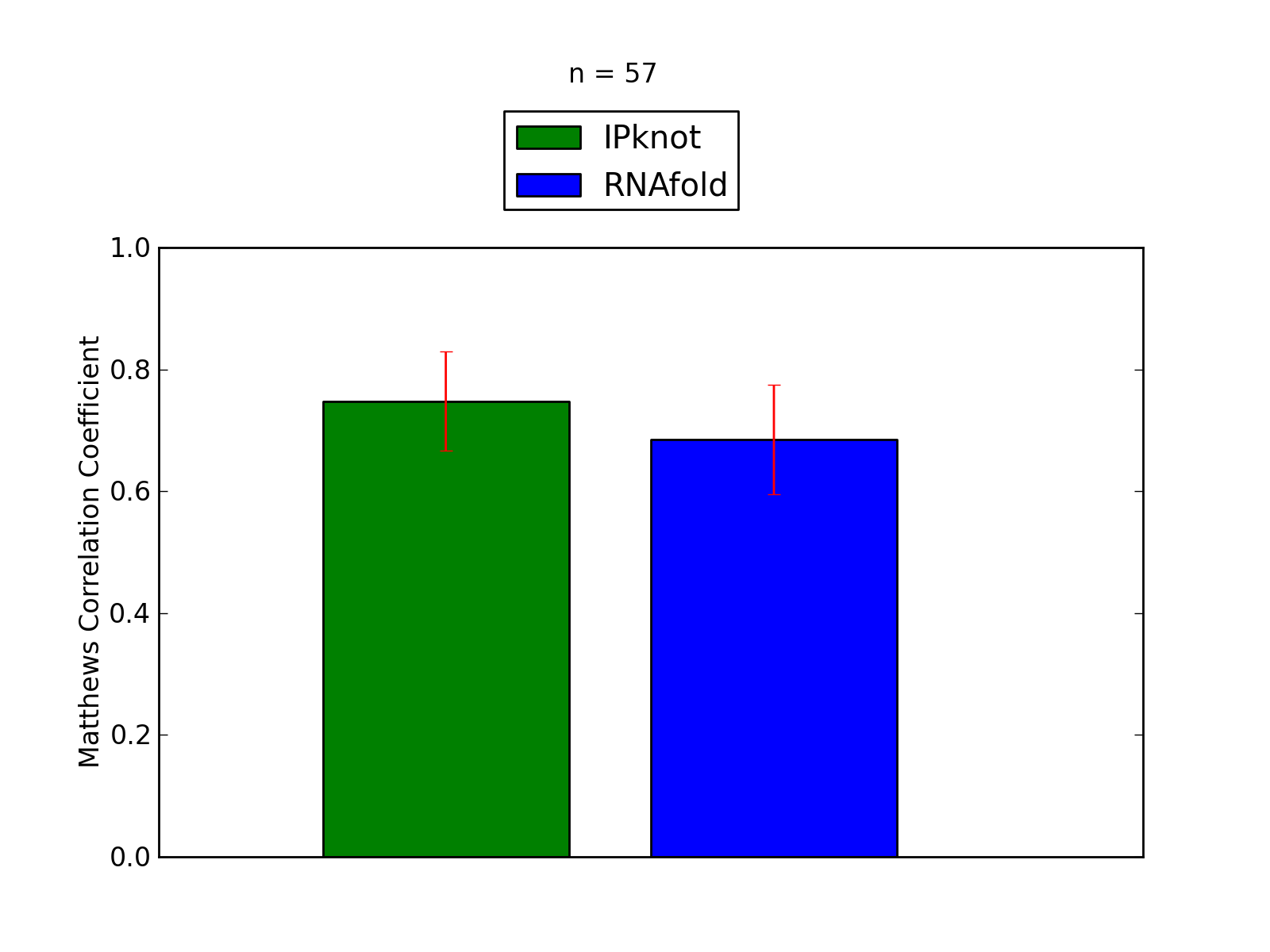

Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and RNAfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and RNAfold).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	1168
Total TN	954095
Total FP	688
Total FP CONTRA	125
Total FP INCONS	358
Total FP COMP	205
Total FN	643

Total Scores
MCC	0.675
Average MCC ± 95% Confidence Intervals	0.748 ± 0.082
Sensitivity	0.645
Positive Predictive Value	0.707
Nr of predictions	57

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	1	4	0	12
2LDL_A	-	1.00	1.00	1.00	9	131	0	0	0	0	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.88	0.86	0.89	25	2412	9	0	3	6	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
2YIE_X	-	1.00	1.00	1.00	7	537	3	0	0	3	0
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J0L_a	-	0.16	0.18	0.18	2	400	10	3	6	1	9
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.90	0.81	1.00	26	2114	2	0	0	2	6
3J0L_7	-	-0.02	0.00	0.00	0	512	7	1	6	0	10
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.75	0.74	0.76	305	421966	159	17	80	62	107
3J2C_M	-	0.72	0.74	0.71	71	39825	58	13	16	29	25
3J2C_O	-	0.98	0.95	1.00	39	3948	4	0	0	4	2
3J2L_3	5S_rRNA links to Rfam database...	0.82	0.82	0.82	28	2986	10	0	6	4	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.74	0.69	0.80	20	1508	5	0	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.91	0.91	0.91	20	1254	3	2	0	1	2
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.91	0.97	30	1958	2	0	1	1	3
3ZEX_F	-	0.00	0.00	0.00	0	910	9	0	4	5	4
3ZEX_G	-	0.89	0.91	0.87	41	6460	18	5	1	12	4
3ZEX_E	-	0.00	0.00	0.00	0	8256	53	19	29	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.81	0.80	0.82	28	2762	10	0	6	4	7
3ZEX_B	-	0.33	0.27	0.40	95	421115	160	26	116	18	251
3ZEX_H	-	0.28	0.37	0.22	7	3593	25	15	10	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.51	0.34	0.77	10	5361	7	1	2	4	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.23	0.25	0.22	5	4493	26	8	10	8	15
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	2728	7	0	5	2	7
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ATO_G	-	0.49	0.57	0.44	4	211	6	0	5	1	3
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.59	0.53	0.67	8	484	4	0	4	0	7
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.75	0.71	0.81	17	1181	4	3	1	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.79	0.71	0.87	20	1825	3	1	2	0	8
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of RNAfold - scored lower in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	1094
Total TN	953774
Total FP	1128
Total FP CONTRA	231
Total FP INCONS	647
Total FP COMP	250
Total FN	717

Total Scores
MCC	0.578
Average MCC ± 95% Confidence Intervals	0.685 ± 0.090
Sensitivity	0.604
Positive Predictive Value	0.555
Nr of predictions	57

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	8	0	0	8	0
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.33	0.43	0.27	3	533	11	3	5	3	4
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	3	0	0	3	0
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.56	0.58	0.54	238	421930	251	36	164	51	174
3J2C_M	-	0.66	0.71	0.62	68	39816	71	15	26	30	28
3J2C_O	-	0.76	0.76	0.78	31	3947	15	2	7	6	10
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.60	0.61	0.61	20	1956	14	4	9	1	13
3ZEX_F	-	-0.01	0.00	0.00	0	908	11	2	4	5	4
3ZEX_G	-	0.86	0.84	0.88	38	6464	22	0	5	17	7
3ZEX_E	-	0.00	0.00	0.00	0	8255	54	17	32	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.88	0.83	0.94	29	2765	6	0	2	4	6
3ZEX_B	-	0.35	0.39	0.32	136	420925	333	77	214	42	210
3ZEX_H	-	0.25	0.37	0.18	7	3586	32	20	12	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.59	0.57	0.62	16	1822	10	2	8	0	12
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
