Overview

Metric	IPknot		RNAsubopt
MCC	0.742	>	0.630
Average MCC ± 95% Confidence Intervals	0.755 ± 0.083	>	0.682 ± 0.095
Sensitivity	0.729	>	0.663
Positive Predictive Value	0.759	>	0.606
Total TP	768	>	698
Total TN	111014	>	110875
Total FP	369	<	591
Total FP CONTRA	82	<	146
Total FP INCONS	162	<	307
Total FP COMP	125	<	138
Total FN	285	<	355
P-value	3.56938820447e-08

^top

Performance plots

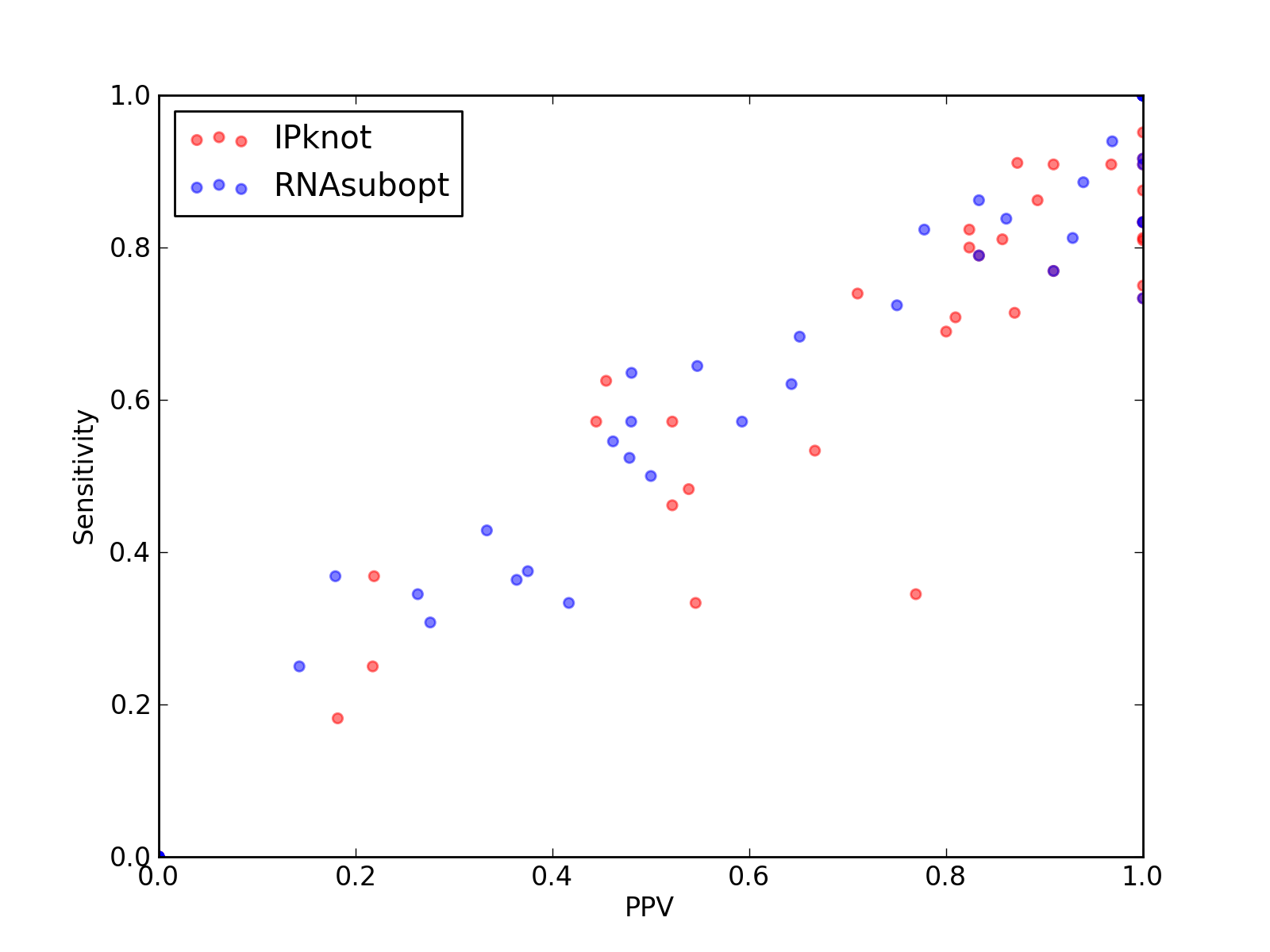

Comparison of performance of IPknot and RNAsubopt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and RNAsubopt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and RNAsubopt).
Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and RNAsubopt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and RNAsubopt).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	768
Total TN	111014
Total FP	369
Total FP CONTRA	82
Total FP INCONS	162
Total FP COMP	125
Total FN	285

Total Scores
MCC	0.742
Average MCC ± 95% Confidence Intervals	0.755 ± 0.083
Sensitivity	0.729
Positive Predictive Value	0.759
Nr of predictions	55

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	1	4	0	12
2LDL_A	-	1.00	1.00	1.00	9	131	0	0	0	0	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.88	0.86	0.89	25	2412	9	0	3	6	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
2YIE_X	-	1.00	1.00	1.00	7	537	3	0	0	3	0
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3J0L_h	-	0.90	0.81	1.00	26	2114	2	0	0	2	6
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.16	0.18	0.18	2	400	10	3	6	1	9
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_7	-	-0.02	0.00	0.00	0	512	7	1	6	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J2C_M	-	0.72	0.74	0.71	71	39825	58	13	16	29	25
3J2C_O	-	0.98	0.95	1.00	39	3948	4	0	0	4	2
3J2L_3	5S_rRNA links to Rfam database...	0.82	0.82	0.82	28	2986	10	0	6	4	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.74	0.69	0.80	20	1508	5	0	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.91	0.91	0.91	20	1254	3	2	0	1	2
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.91	0.97	30	1958	2	0	1	1	3
3ZEX_F	-	0.00	0.00	0.00	0	910	9	0	4	5	4
3ZEX_G	-	0.89	0.91	0.87	41	6460	18	5	1	12	4
3ZEX_E	-	0.00	0.00	0.00	0	8256	53	19	29	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.81	0.80	0.82	28	2762	10	0	6	4	7
3ZEX_H	-	0.28	0.37	0.22	7	3593	25	15	10	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.51	0.34	0.77	10	5361	7	1	2	4	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.23	0.25	0.22	5	4493	26	8	10	8	15
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	2728	7	0	5	2	7
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ATO_G	-	0.49	0.57	0.44	4	211	6	0	5	1	3
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.59	0.53	0.67	8	484	4	0	4	0	7
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.75	0.71	0.81	17	1181	4	3	1	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.79	0.71	0.87	20	1825	3	1	2	0	8
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of RNAsubopt - scored lower in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	698
Total TN	110875
Total FP	591
Total FP CONTRA	146
Total FP INCONS	307
Total FP COMP	138
Total FN	355

Total Scores
MCC	0.630
Average MCC ± 95% Confidence Intervals	0.682 ± 0.095
Sensitivity	0.663
Positive Predictive Value	0.606
Nr of predictions	55

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.85	0.86	0.83	25	2410	14	0	5	9	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	1.00	1.00	1.00	7	537	4	0	0	4	0
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J0L_2	-	0.28	0.31	0.28	8	2221	25	2	19	4	18
3J16_L	tRNA links to Rfam database...	0.49	0.52	0.48	11	1136	12	3	9	0	10
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	3	0	0	3	0
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	2	11	1	9
3J2C_M	-	0.55	0.64	0.48	61	39798	87	28	38	21	35
3J2C_O	-	0.66	0.68	0.65	28	3944	20	3	12	5	13
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	13	1	7	5	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.95	0.94	0.97	31	1957	2	0	1	1	2
3ZEX_F	-	-0.01	0.00	0.00	0	908	11	2	4	5	4
3ZEX_G	-	0.59	0.64	0.55	29	6454	34	12	12	10	16
3ZEX_E	-	0.00	0.00	0.00	0	8255	54	17	32	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2763	6	0	2	4	4
3ZEX_H	-	0.25	0.37	0.18	7	3586	32	20	12	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4481	43	13	17	13	15
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.62	0.62	0.64	18	1409	11	4	6	1	11
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.58	0.57	0.59	16	1821	11	3	8	0	12
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
