Overview

Metric	MXScarna(seed)		RNAsubopt
MCC	0.769	>	0.667
Average MCC ± 95% Confidence Intervals	0.763 ± 0.063	>	0.690 ± 0.078
Sensitivity	0.727	>	0.694
Positive Predictive Value	0.819	>	0.647
Total TP	944	>	901
Total TN	128618	>	128379
Total FP	413	<	691
Total FP CONTRA	76	<	158
Total FP INCONS	133	<	333
Total FP COMP	204	>	200
Total FN	354	<	397
P-value	3.56938820447e-08

^top

Performance plots

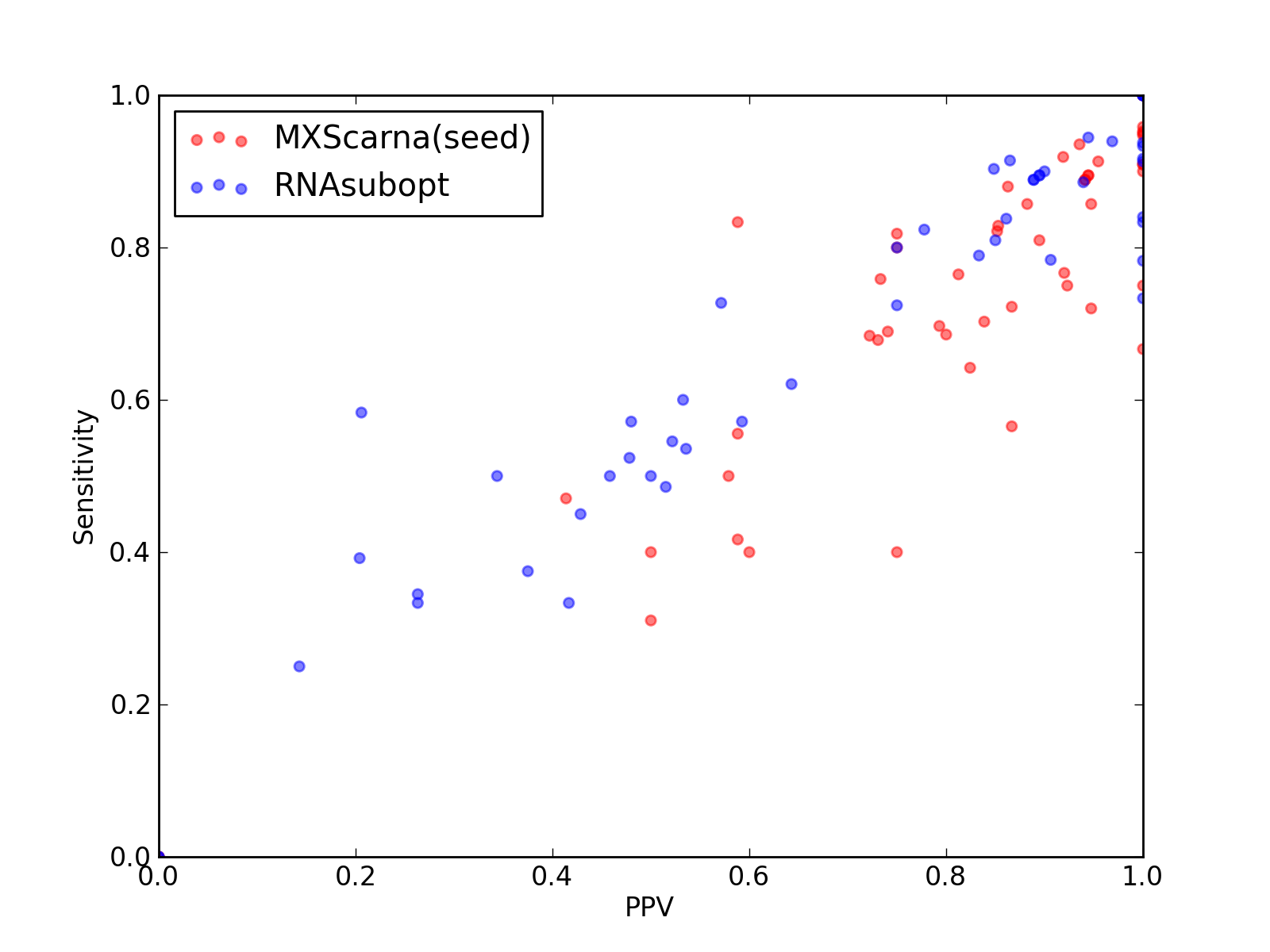

Comparison of performance of MXScarna(seed) and RNAsubopt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and RNAsubopt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	944
Total TN	128618
Total FP	413
Total FP CONTRA	76
Total FP INCONS	133
Total FP COMP	204
Total FN	354

Total Scores
MCC	0.769
Average MCC ± 95% Confidence Intervals	0.763 ± 0.063
Sensitivity	0.727
Positive Predictive Value	0.819
Nr of predictions	52

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	450	2	0	1	1	2
2KUR_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	449	1	0	1	0	2
2KUU_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	430	2	0	1	1	2
2KUV_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	421	1	0	1	0	2
2KUW_A	K10_TLS links to Rfam database...	0.78	0.72	0.87	13	455	3	0	2	1	5
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	369	2	0	2	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.91	0.95	21	741	1	0	1	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	768	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.55	0.56	0.59	10	340	8	0	7	1	8
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	518	12	0	10	2	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2WWQ_V	tRNA links to Rfam database...	0.70	0.68	0.72	13	1186	7	0	5	2	6
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.78	0.82	0.75	9	1823	20	0	3	17	2
2XQD_Y	tRNA links to Rfam database...	0.85	0.81	0.89	17	1110	3	0	2	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.74	0.69	0.80	24	2015	7	0	6	1	11
2ZZM_B	tRNA links to Rfam database...	0.81	0.67	1.00	10	1348	9	0	0	9	5
2ZZN_D	tRNA links to Rfam database...	0.95	0.91	1.00	20	964	0	0	0	0	2
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.77	0.92	23	1475	4	0	2	2	7
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.97	0.95	1.00	18	1139	2	0	0	2	1
3GX2_A	SAM links to Rfam database...	0.83	0.82	0.85	23	1422	7	2	2	3	5
3IVN_B	Purine links to Rfam database...	0.69	0.57	0.87	13	888	2	2	0	0	10
3IYQ_A	tmRNA links to Rfam database...	0.44	0.47	0.41	24	22382	49	21	13	15	27
3IZ4_A	tmRNA links to Rfam database...	0.73	0.64	0.82	61	25462	22	12	1	9	34
3IZF_C	5S_rRNA links to Rfam database...	0.84	0.83	0.85	29	2606	11	0	5	6	6
3J16_L	tRNA links to Rfam database...	0.98	0.95	1.00	20	1139	0	0	0	0	1
3J20_1	tRNA links to Rfam database...	0.97	0.95	1.00	19	1093	1	0	0	1	1
3J20_0	tRNA links to Rfam database...	0.90	0.86	0.95	18	1200	1	1	0	0	3
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.76	0.81	26	2988	11	1	5	5	8
3JYV_7	tRNA links to Rfam database...	0.95	0.90	1.00	18	1093	2	0	0	2	2
3JYX_4	5_8S_rRNA links to Rfam database...	0.70	0.83	0.59	10	4739	21	6	1	14	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3LA5_A	Purine links to Rfam database...	0.82	0.72	0.95	18	935	1	1	0	0	7
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	26	2247	10	2	3	5	11
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	11	0	2	9	2
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	20	5	3	12	11
3PDR_A	ykoK links to Rfam database...	0.87	0.88	0.86	44	4789	10	4	3	3	6
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	4	4	1	7
3UZL_B	tRNA links to Rfam database...	0.83	0.75	0.92	12	1280	8	0	1	7	4
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.70	0.79	23	1960	7	0	6	1	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.39	0.31	0.50	9	5356	21	3	6	12	20
3ZEX_D	5S_rRNA links to Rfam database...	0.87	0.86	0.88	30	2762	11	0	4	7	5
4A1C_3	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	2726	6	0	3	3	3
4A1C_2	5_8S_rRNA links to Rfam database...	0.45	0.40	0.50	8	4500	20	4	4	12	12
4AOB_A	SAM links to Rfam database...	0.71	0.69	0.74	20	1410	10	2	5	3	9
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	1	3	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.49	0.42	0.59	10	1185	8	2	5	1	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.70	0.68	0.73	19	1822	7	3	4	0	9

^top

Performance of RNAsubopt - scored lower in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	901
Total TN	128379
Total FP	691
Total FP CONTRA	158
Total FP INCONS	333
Total FP COMP	200
Total FN	397

Total Scores
MCC	0.667
Average MCC ± 95% Confidence Intervals	0.690 ± 0.078
Sensitivity	0.694
Positive Predictive Value	0.647
Nr of predictions	52

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	449	3	0	2	1	2
2KUR_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	448	2	0	2	0	2
2KUU_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	429	3	0	2	1	2
2KUV_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	420	2	0	2	0	2
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	0.97	0.94	1.00	15	356	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	21	742	0	0	0	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.96	0.92	1.00	22	769	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.49	0.49	0.52	17	2012	17	1	15	1	18
2ZZM_B	tRNA links to Rfam database...	0.29	0.33	0.26	5	1339	22	5	9	8	10
2ZZN_D	tRNA links to Rfam database...	0.52	0.55	0.52	12	961	11	3	8	0	10
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.43	0.45	0.43	9	1106	14	3	9	2	11
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.53	0.54	0.54	15	1421	14	4	9	1	13
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3IYQ_A	tmRNA links to Rfam database...	0.28	0.39	0.20	20	22342	96	41	37	18	31
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.53	57	25429	54	26	24	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J16_L	tRNA links to Rfam database...	0.49	0.52	0.48	11	1136	12	3	9	0	10
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	3	0	0	3	0
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	2	11	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	13	1	7	5	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1090	21	4	17	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.34	0.58	0.21	7	4722	38	20	7	11	5
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	26	0	4	22	3
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.84	0.78	0.91	29	2246	8	0	3	5	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.90	0.85	28	2721	13	0	5	8	3
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3W3S_B	tRNA-Sec links to Rfam database...	0.95	0.94	0.97	31	1957	2	0	1	1	2
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
3ZEX_D	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2763	6	0	2	4	4
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4481	43	13	17	13	15
4AOB_A	SAM links to Rfam database...	0.62	0.62	0.64	18	1409	11	4	6	1	11
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.58	0.57	0.59	16	1821	11	3	8	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
