Overview

Metric	MXScarna(seed)		Sfold
MCC	0.786	>	0.671
Average MCC ± 95% Confidence Intervals	0.764 ± 0.062	>	0.721 ± 0.070
Sensitivity	0.749	>	0.665
Positive Predictive Value	0.825	>	0.680
Total TP	1281	>	1137
Total TN	550587	>	550467
Total FP	560	<	768
Total FP CONTRA	90	<	142
Total FP INCONS	181	<	393
Total FP COMP	289	>	233
Total FN	429	<	573
P-value	3.56938820447e-08

^top

Performance plots

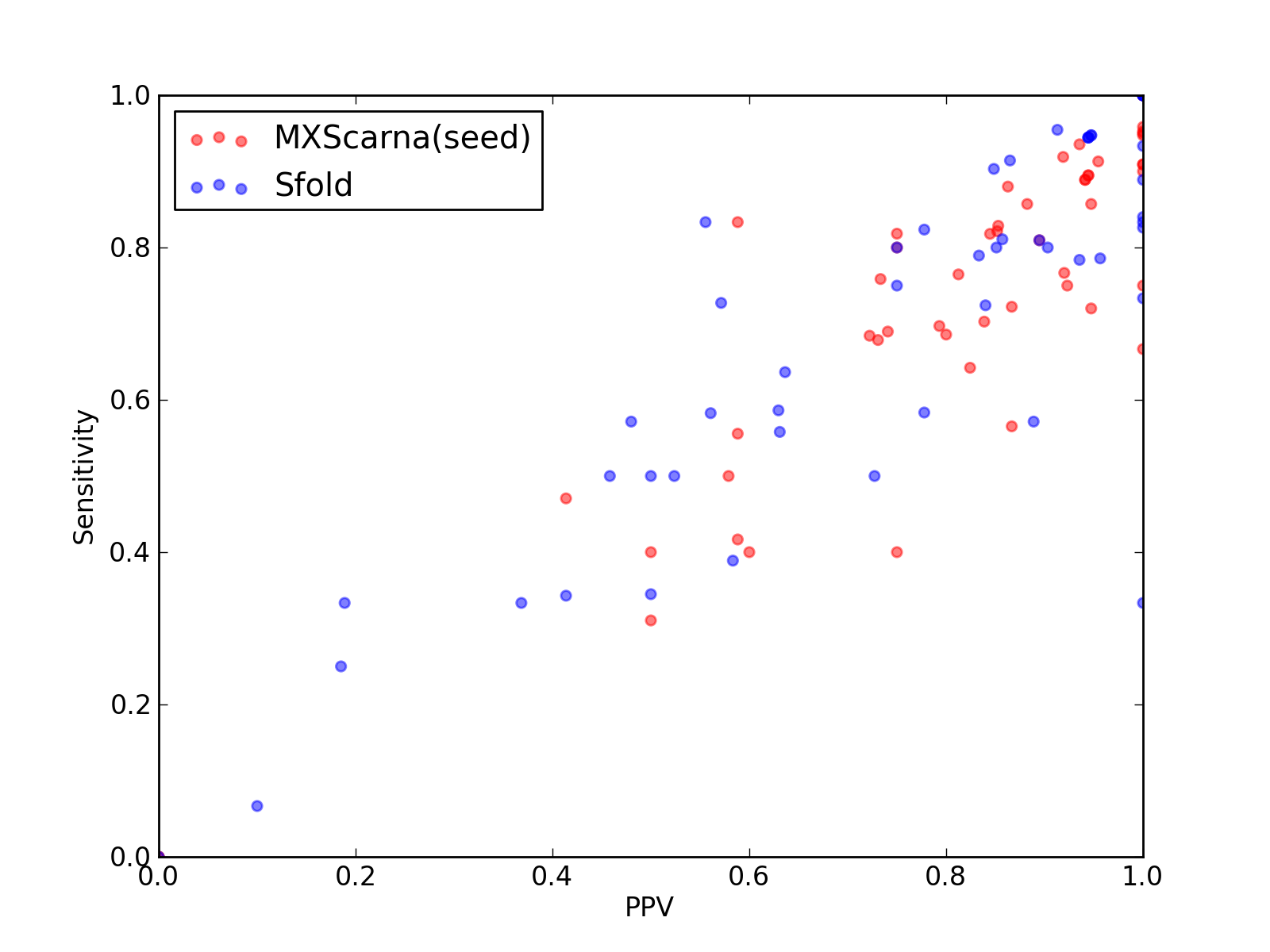

Comparison of performance of MXScarna(seed) and Sfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Sfold).

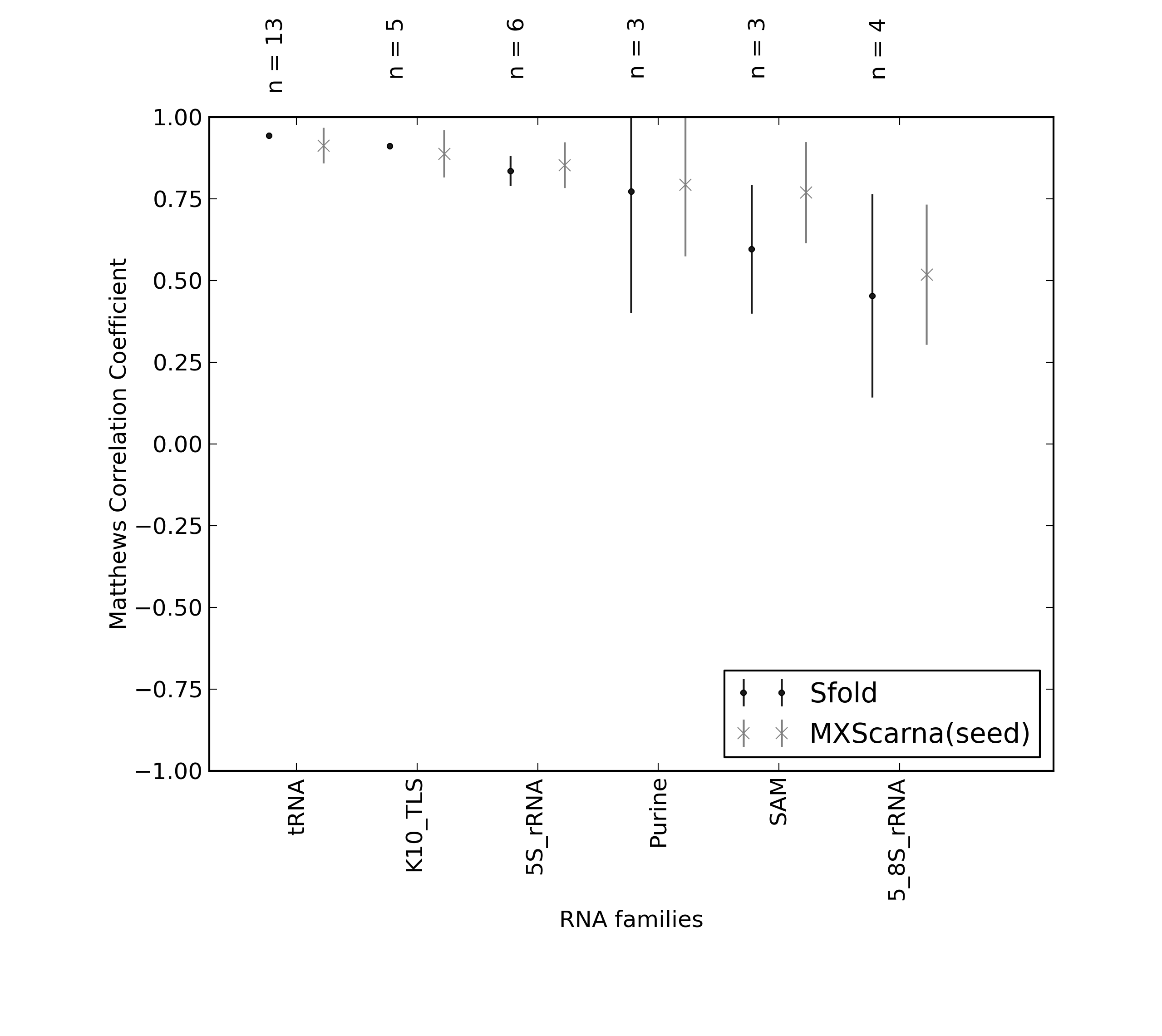

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Sfold).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Sfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Sfold).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	1281
Total TN	550587
Total FP	560
Total FP CONTRA	90
Total FP INCONS	181
Total FP COMP	289
Total FN	429

Total Scores
MCC	0.786
Average MCC ± 95% Confidence Intervals	0.764 ± 0.062
Sensitivity	0.749
Positive Predictive Value	0.825
Nr of predictions	53

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	450	2	0	1	1	2
2KUR_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	449	1	0	1	0	2
2KUU_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	430	2	0	1	1	2
2KUV_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	421	1	0	1	0	2
2KUW_A	K10_TLS links to Rfam database...	0.78	0.72	0.87	13	455	3	0	2	1	5
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	369	2	0	2	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.91	0.95	21	741	1	0	1	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	768	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.55	0.56	0.59	10	340	8	0	7	1	8
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	518	12	0	10	2	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2WWQ_V	tRNA links to Rfam database...	0.70	0.68	0.72	13	1186	7	0	5	2	6
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.78	0.82	0.75	9	1823	20	0	3	17	2
2XQD_Y	tRNA links to Rfam database...	0.85	0.81	0.89	17	1110	3	0	2	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.74	0.69	0.80	24	2015	7	0	6	1	11
2ZZM_B	tRNA links to Rfam database...	0.81	0.67	1.00	10	1348	9	0	0	9	5
2ZZN_D	tRNA links to Rfam database...	0.95	0.91	1.00	20	964	0	0	0	0	2
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.77	0.92	23	1475	4	0	2	2	7
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.97	0.95	1.00	18	1139	2	0	0	2	1
3GX2_A	SAM links to Rfam database...	0.83	0.82	0.85	23	1422	7	2	2	3	5
3IVN_B	Purine links to Rfam database...	0.69	0.57	0.87	13	888	2	2	0	0	10
3IYQ_A	tmRNA links to Rfam database...	0.44	0.47	0.41	24	22382	49	21	13	15	27
3IZ4_A	tmRNA links to Rfam database...	0.73	0.64	0.82	61	25462	22	12	1	9	34
3IZF_C	5S_rRNA links to Rfam database...	0.84	0.83	0.85	29	2606	11	0	5	6	6
3J16_L	tRNA links to Rfam database...	0.98	0.95	1.00	20	1139	0	0	0	0	1
3J20_0	tRNA links to Rfam database...	0.90	0.86	0.95	18	1200	1	1	0	0	3
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.83	0.82	0.84	337	421969	147	14	48	85	75
3J20_1	tRNA links to Rfam database...	0.97	0.95	1.00	19	1093	1	0	0	1	1
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.76	0.81	26	2988	11	1	5	5	8
3JYV_7	tRNA links to Rfam database...	0.95	0.90	1.00	18	1093	2	0	0	2	2
3JYX_4	5_8S_rRNA links to Rfam database...	0.70	0.83	0.59	10	4739	21	6	1	14	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3LA5_A	Purine links to Rfam database...	0.82	0.72	0.95	18	935	1	1	0	0	7
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	26	2247	10	2	3	5	11
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	20	5	3	12	11
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	11	0	2	9	2
3PDR_A	ykoK links to Rfam database...	0.87	0.88	0.86	44	4789	10	4	3	3	6
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	4	4	1	7
3UZL_B	tRNA links to Rfam database...	0.83	0.75	0.92	12	1280	8	0	1	7	4
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.70	0.79	23	1960	7	0	6	1	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.39	0.31	0.50	9	5356	21	3	6	12	20
3ZEX_D	5S_rRNA links to Rfam database...	0.87	0.86	0.88	30	2762	11	0	4	7	5
4A1C_3	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	2726	6	0	3	3	3
4A1C_2	5_8S_rRNA links to Rfam database...	0.45	0.40	0.50	8	4500	20	4	4	12	12
4AOB_A	SAM links to Rfam database...	0.71	0.69	0.74	20	1410	10	2	5	3	9
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	1	3	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.49	0.42	0.59	10	1185	8	2	5	1	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.70	0.68	0.73	19	1822	7	3	4	0	9

^top

Performance of Sfold - scored lower in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	1137
Total TN	550467
Total FP	768
Total FP CONTRA	142
Total FP INCONS	393
Total FP COMP	233
Total FN	573

Total Scores
MCC	0.671
Average MCC ± 95% Confidence Intervals	0.721 ± 0.070
Sensitivity	0.665
Positive Predictive Value	0.680
Nr of predictions	53

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	449	2	0	1	1	1
2KUR_A	K10_TLS links to Rfam database...	0.95	0.95	0.95	18	448	1	0	1	0	1
2KUU_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	429	2	0	1	1	1
2KUV_A	K10_TLS links to Rfam database...	0.94	0.95	0.95	18	420	1	0	1	0	1
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.46	0.39	0.58	7	516	5	0	5	0	11
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	14	0	0	14	1
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	2	0	0	2	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.85	0.81	0.89	17	1110	3	0	2	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.34	0.41	12	2016	18	1	16	1	23
2ZZM_B	tRNA links to Rfam database...	0.07	0.07	0.10	1	1348	17	3	6	8	14
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.49	0.50	0.50	10	1107	12	3	7	2	10
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.86	0.79	0.96	22	1426	2	1	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.25	0.33	0.19	17	22350	86	39	34	13	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.56	0.63	53	25452	34	14	17	3	42
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	8	0	5	3	3
3J16_L	tRNA links to Rfam database...	0.34	0.33	0.37	7	1140	12	0	12	0	14
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.57	0.58	0.56	240	421940	241	31	157	53	172
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	7	0	5	2	5
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1095	16	2	14	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.68	0.83	0.56	10	4738	23	7	1	15	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	7	0	2	5	8
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.50	0.52	11	4743	18	2	8	8	11
3O58_2	5S_rRNA links to Rfam database...	0.87	0.90	0.85	28	2721	11	0	5	6	3
3PDR_A	ykoK links to Rfam database...	0.82	0.80	0.85	40	4793	9	2	5	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.78	0.72	0.84	21	1508	4	2	2	0	8
3UZL_B	tRNA links to Rfam database...	0.60	0.50	0.73	8	1282	7	3	0	4	8
3W3S_B	tRNA-Sec links to Rfam database...	0.63	0.64	0.64	21	1956	13	4	8	1	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.34	0.50	10	5354	27	2	8	17	19
3ZEX_D	5S_rRNA links to Rfam database...	0.85	0.80	0.90	28	2765	8	0	3	5	7
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	2728	7	0	5	2	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.21	0.25	0.19	5	4489	34	8	14	12	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.67	0.58	0.78	14	1184	4	3	1	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.57	0.89	16	1830	2	2	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
