Overview

Metric	MXScarna(seed)		Vsfold5
MCC	0.777	>	0.567
Average MCC ± 95% Confidence Intervals	0.770 ± 0.063	>	0.619 ± 0.101
Sensitivity	0.737	>	0.569
Positive Predictive Value	0.824	>	0.574
Total TP	935	>	722
Total TN	123262	>	123139
Total FP	392	<	658
Total FP CONTRA	73	<	163
Total FP INCONS	127	<	373
Total FP COMP	192	>	122
Total FN	334	<	547
P-value	3.56938820447e-08

^top

Performance plots

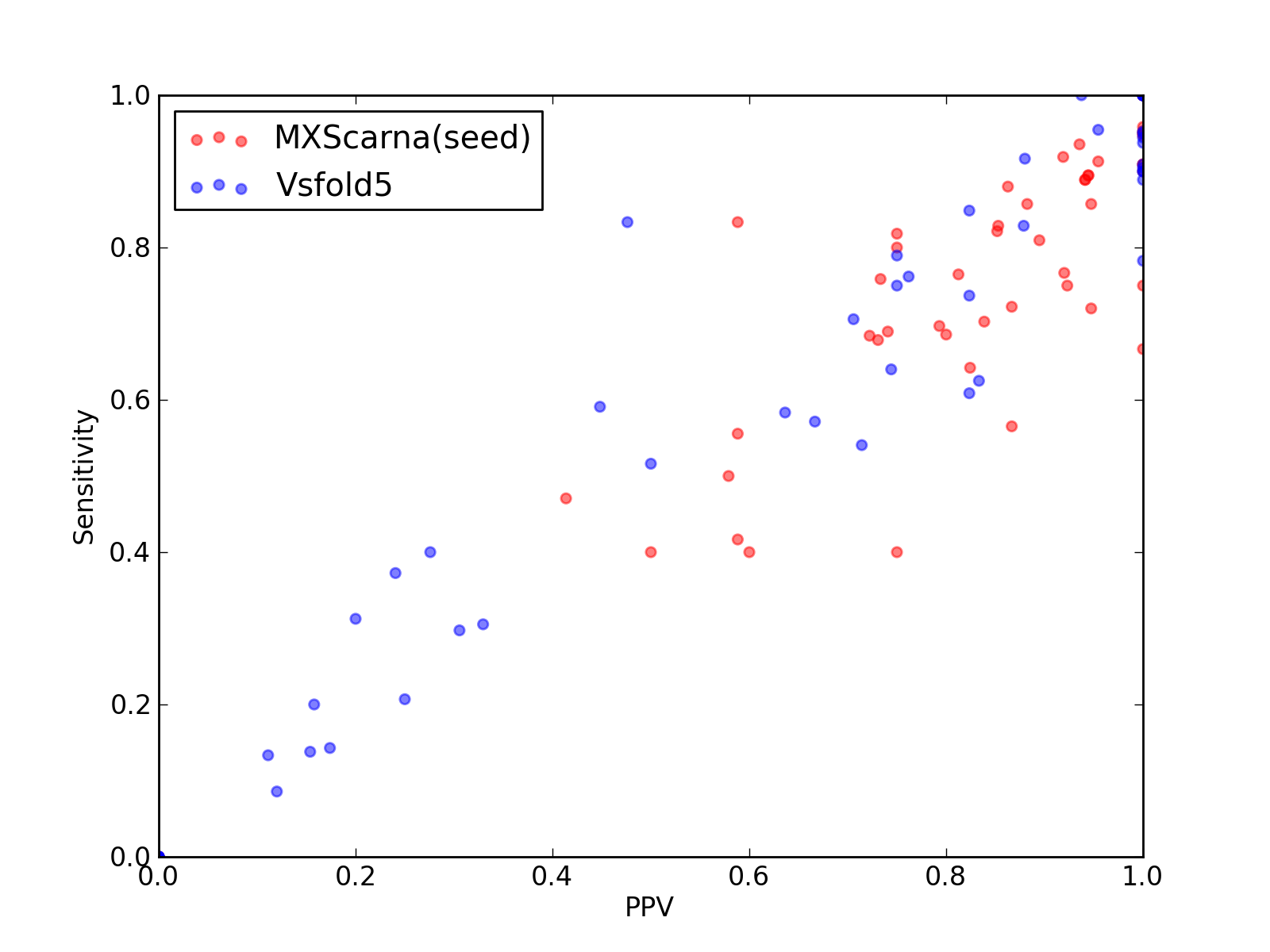

Comparison of performance of MXScarna(seed) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold5).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold5).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Vsfold5).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	935
Total TN	123262
Total FP	392
Total FP CONTRA	73
Total FP INCONS	127
Total FP COMP	192
Total FN	334

Total Scores
MCC	0.777
Average MCC ± 95% Confidence Intervals	0.770 ± 0.063
Sensitivity	0.737
Positive Predictive Value	0.824
Nr of predictions	51

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	450	2	0	1	1	2
2KUR_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	449	1	0	1	0	2
2KUU_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	430	2	0	1	1	2
2KUV_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	421	1	0	1	0	2
2KUW_A	K10_TLS links to Rfam database...	0.78	0.72	0.87	13	455	3	0	2	1	5
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	369	2	0	2	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.91	0.95	21	741	1	0	1	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	768	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.55	0.56	0.59	10	340	8	0	7	1	8
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	518	12	0	10	2	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2WWQ_V	tRNA links to Rfam database...	0.70	0.68	0.72	13	1186	7	0	5	2	6
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.78	0.82	0.75	9	1823	20	0	3	17	2
2XQD_Y	tRNA links to Rfam database...	0.85	0.81	0.89	17	1110	3	0	2	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.74	0.69	0.80	24	2015	7	0	6	1	11
2ZZM_B	tRNA links to Rfam database...	0.81	0.67	1.00	10	1348	9	0	0	9	5
2ZZN_D	tRNA links to Rfam database...	0.95	0.91	1.00	20	964	0	0	0	0	2
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.77	0.92	23	1475	4	0	2	2	7
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.97	0.95	1.00	18	1139	2	0	0	2	1
3GX2_A	SAM links to Rfam database...	0.83	0.82	0.85	23	1422	7	2	2	3	5
3IVN_B	Purine links to Rfam database...	0.69	0.57	0.87	13	888	2	2	0	0	10
3IYQ_A	tmRNA links to Rfam database...	0.44	0.47	0.41	24	22382	49	21	13	15	27
3IZ4_A	tmRNA links to Rfam database...	0.73	0.64	0.82	61	25462	22	12	1	9	34
3IZF_C	5S_rRNA links to Rfam database...	0.84	0.83	0.85	29	2606	11	0	5	6	6
3J16_L	tRNA links to Rfam database...	0.98	0.95	1.00	20	1139	0	0	0	0	1
3J20_1	tRNA links to Rfam database...	0.97	0.95	1.00	19	1093	1	0	0	1	1
3J20_0	tRNA links to Rfam database...	0.90	0.86	0.95	18	1200	1	1	0	0	3
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.76	0.81	26	2988	11	1	5	5	8
3JYV_7	tRNA links to Rfam database...	0.95	0.90	1.00	18	1093	2	0	0	2	2
3JYX_4	5_8S_rRNA links to Rfam database...	0.70	0.83	0.59	10	4739	21	6	1	14	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3LA5_A	Purine links to Rfam database...	0.82	0.72	0.95	18	935	1	1	0	0	7
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	26	2247	10	2	3	5	11
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	11	0	2	9	2
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	20	5	3	12	11
3PDR_A	ykoK links to Rfam database...	0.87	0.88	0.86	44	4789	10	4	3	3	6
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	4	4	1	7
3UZL_B	tRNA links to Rfam database...	0.83	0.75	0.92	12	1280	8	0	1	7	4
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.70	0.79	23	1960	7	0	6	1	10
3ZEX_D	5S_rRNA links to Rfam database...	0.87	0.86	0.88	30	2762	11	0	4	7	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.45	0.40	0.50	8	4500	20	4	4	12	12
4A1C_3	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	2726	6	0	3	3	3
4AOB_A	SAM links to Rfam database...	0.71	0.69	0.74	20	1410	10	2	5	3	9
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	1	3	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.49	0.42	0.59	10	1185	8	2	5	1	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.70	0.68	0.73	19	1822	7	3	4	0	9

^top

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	722
Total TN	123139
Total FP	658
Total FP CONTRA	163
Total FP INCONS	373
Total FP COMP	122
Total FN	547

Total Scores
MCC	0.567
Average MCC ± 95% Confidence Intervals	0.619 ± 0.101
Sensitivity	0.569
Positive Predictive Value	0.574
Nr of predictions	51

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.90	1.00	9	165	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	0.97	0.94	1.00	15	356	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.70	0.61	0.82	14	746	3	0	3	0	9
2L1F_B	Gammaretro_CES links to Rfam database...	0.71	0.63	0.83	15	773	3	0	3	0	9
2L94_A	HIV_FE links to Rfam database...	0.97	0.94	1.00	17	340	1	0	0	1	1
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	13	0	0	13	1
2WWQ_V	tRNA links to Rfam database...	0.78	0.74	0.82	14	1187	4	1	2	1	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	1803	32	17	15	0	11
2XQD_Y	tRNA links to Rfam database...	0.95	0.90	1.00	19	1110	1	0	0	1	2
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.02	0.00	0.00	0	2014	31	2	29	0	35
2ZZM_B	tRNA links to Rfam database...	0.17	0.20	0.16	3	1339	25	4	12	9	12
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3AKZ_H	tRNA links to Rfam database...	0.97	0.95	1.00	19	1108	1	0	0	1	1
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	8	0	5	3	4
3GX2_A	SAM links to Rfam database...	0.61	0.57	0.67	16	1425	9	0	8	1	12
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3IYQ_A	tmRNA links to Rfam database...	0.30	0.37	0.24	19	22361	71	36	24	11	32
3IZ4_A	tmRNA links to Rfam database...	0.31	0.31	0.33	29	25448	65	14	45	6	66
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	5	0	4	1	6
3J16_L	tRNA links to Rfam database...	0.98	0.95	1.00	20	1139	0	0	0	0	1
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	7	0	5	2	5
3J20_0	tRNA links to Rfam database...	0.76	0.76	0.76	16	1198	6	3	2	1	5
3J2L_3	5S_rRNA links to Rfam database...	0.70	0.71	0.71	24	2986	13	3	7	3	10
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.63	0.83	0.48	10	4735	32	9	2	21	2
3JYX_3	5S_rRNA links to Rfam database...	0.12	0.13	0.11	2	2360	20	6	10	4	13
3LA5_A	Purine links to Rfam database...	-0.02	0.00	0.00	0	938	16	0	16	0	25
3NPB_A	SAM links to Rfam database...	0.62	0.54	0.71	20	2250	10	1	7	2	17
3O58_2	5S_rRNA links to Rfam database...	0.50	0.52	0.50	16	2722	19	3	13	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.59	0.45	13	4735	28	11	5	12	9
3PDR_A	ykoK links to Rfam database...	0.69	0.64	0.74	32	4797	13	3	8	2	18
3RKF_A	Purine links to Rfam database...	0.90	0.92	0.88	22	841	3	3	0	0	2
3SD1_A	THF links to Rfam database...	0.13	0.14	0.15	4	1507	22	5	17	0	25
3UZL_B	tRNA links to Rfam database...	0.24	0.31	0.20	5	1268	20	9	11	0	11
3W3S_B	tRNA-Sec links to Rfam database...	0.83	0.85	0.82	28	1955	7	2	4	1	5
3ZEX_D	5S_rRNA links to Rfam database...	0.09	0.09	0.12	3	2771	24	5	17	2	32
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.28	8	4487	37	8	13	16	12
4A1C_3	5S_rRNA links to Rfam database...	0.29	0.30	0.31	11	2727	26	4	21	1	26
4AOB_A	SAM links to Rfam database...	0.21	0.21	0.25	6	1413	19	2	16	1	23
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.15	0.14	0.17	4	1825	19	3	16	0	24

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
