Overview

Metric	PETfold_pre2.0(20)		Carnac(seed)
MCC	0.633	>	0.000
Average MCC ± 95% Confidence Intervals	0.598 ± 0.218	>	0.000 ± 0.000
Sensitivity	0.606	>	0.000
Positive Predictive Value	0.668	>	0.000
Total TP	123	>	0
Total TN	23579	<	23763
Total FP	91	>	0
Total FP CONTRA	10	>	0
Total FP INCONS	51	>	0
Total FP COMP	30	>	0
Total FN	80	<	203
P-value	0.0

^top

Performance plots

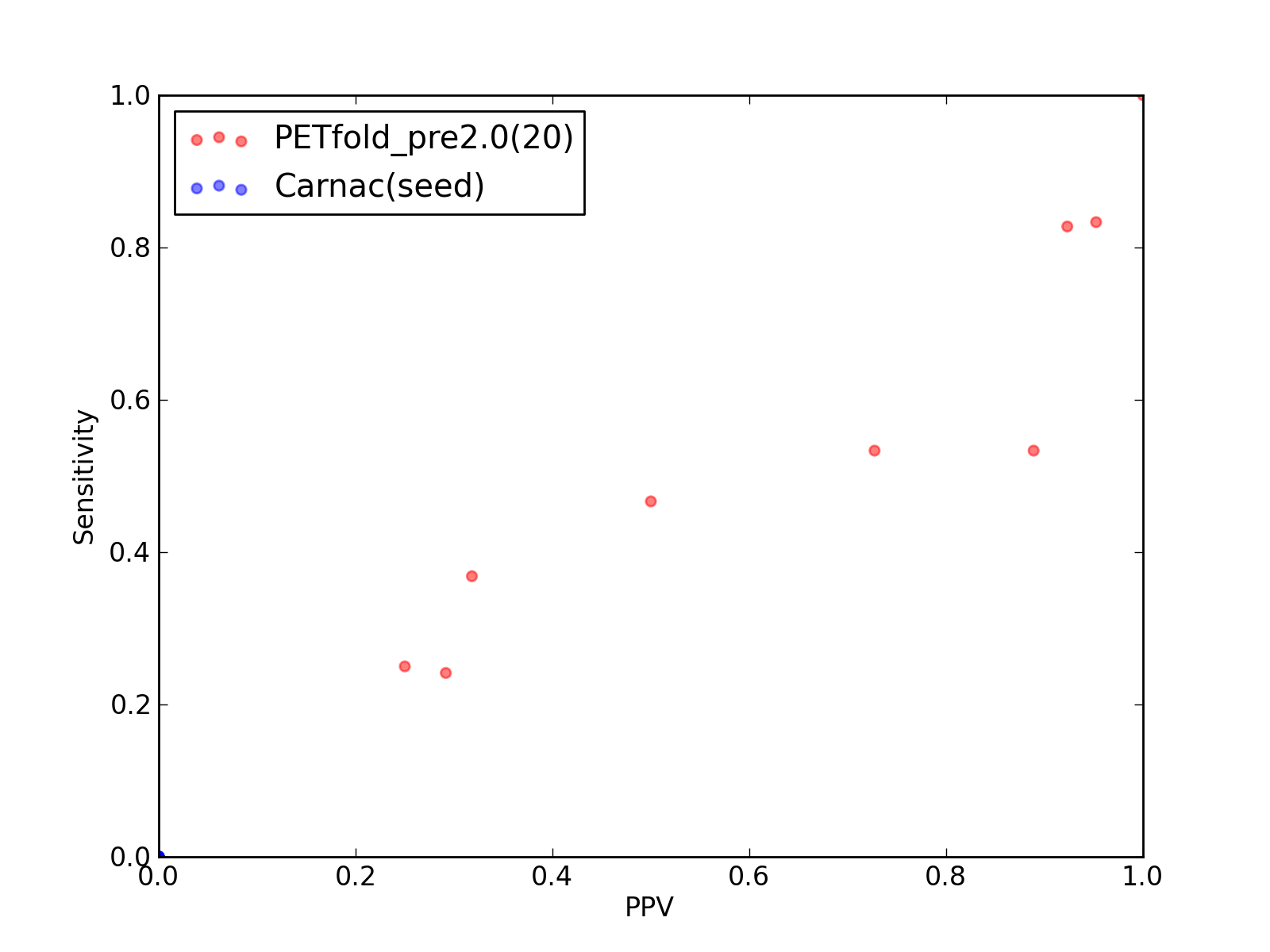

Comparison of performance of PETfold_pre2.0(20) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).
Comparison of performance of PETfold_pre2.0(20) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(20) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(20) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(20) and Carnac(seed)).

^top

Performance of PETfold_pre2.0(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(20)

Total Base Pair Counts
Total TP	123
Total TN	23579
Total FP	91
Total FP CONTRA	10
Total FP INCONS	51
Total FP COMP	30
Total FN	80

Total Scores
MCC	0.633
Average MCC ± 95% Confidence Intervals	0.598 ± 0.218
Sensitivity	0.606
Positive Predictive Value	0.668
Nr of predictions	9

^top

2. Individual counts for PETfold_pre2.0(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3J3E_8	5_8S_rRNA links to Rfam database...	0.48	0.47	0.50	7	2728	11	2	5	4	8
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.37	0.32	7	4739	24	5	10	9	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.26	0.24	0.29	7	5350	20	1	16	3	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.25	0.25	0.25	5	4496	25	2	13	10	15
4A1C_3	5S_rRNA links to Rfam database...	1.00	1.00	1.00	37	2726	1	0	0	1	0
4AOB_A	SAM links to Rfam database...	0.87	0.83	0.92	24	1411	4	0	2	2	5
4ENB_A	crcB links to Rfam database...	0.68	0.53	0.89	8	463	1	0	1	0	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	3	0	3	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.89	0.83	0.95	20	1181	2	0	1	1	4

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	0
Total TN	23763
Total FP	0
Total FP CONTRA	0
Total FP INCONS	0
Total FP COMP	0
Total FN	203

Total Scores
MCC	0.000
Average MCC ± 95% Confidence Intervals	0.000 ± 0.000
Sensitivity	0.000
Positive Predictive Value	0.000
Nr of predictions	9

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4761	0	0	0	0	19
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
