Overview

Metric	PETfold_pre2.0(seed)		CentroidHomfold‑LAST
MCC	0.876	>	0.691
Average MCC ± 95% Confidence Intervals	0.842 ± 0.066	>	0.675 ± 0.129
Sensitivity	0.839	>	0.693
Positive Predictive Value	0.916	>	0.696
Total TP	460	>	380
Total TN	44423	>	44379
Total FP	135	<	243
Total FP CONTRA	14	<	52
Total FP INCONS	28	<	114
Total FP COMP	93	>	77
Total FN	88	<	168
P-value	3.56938820447e-08

^top

Performance plots

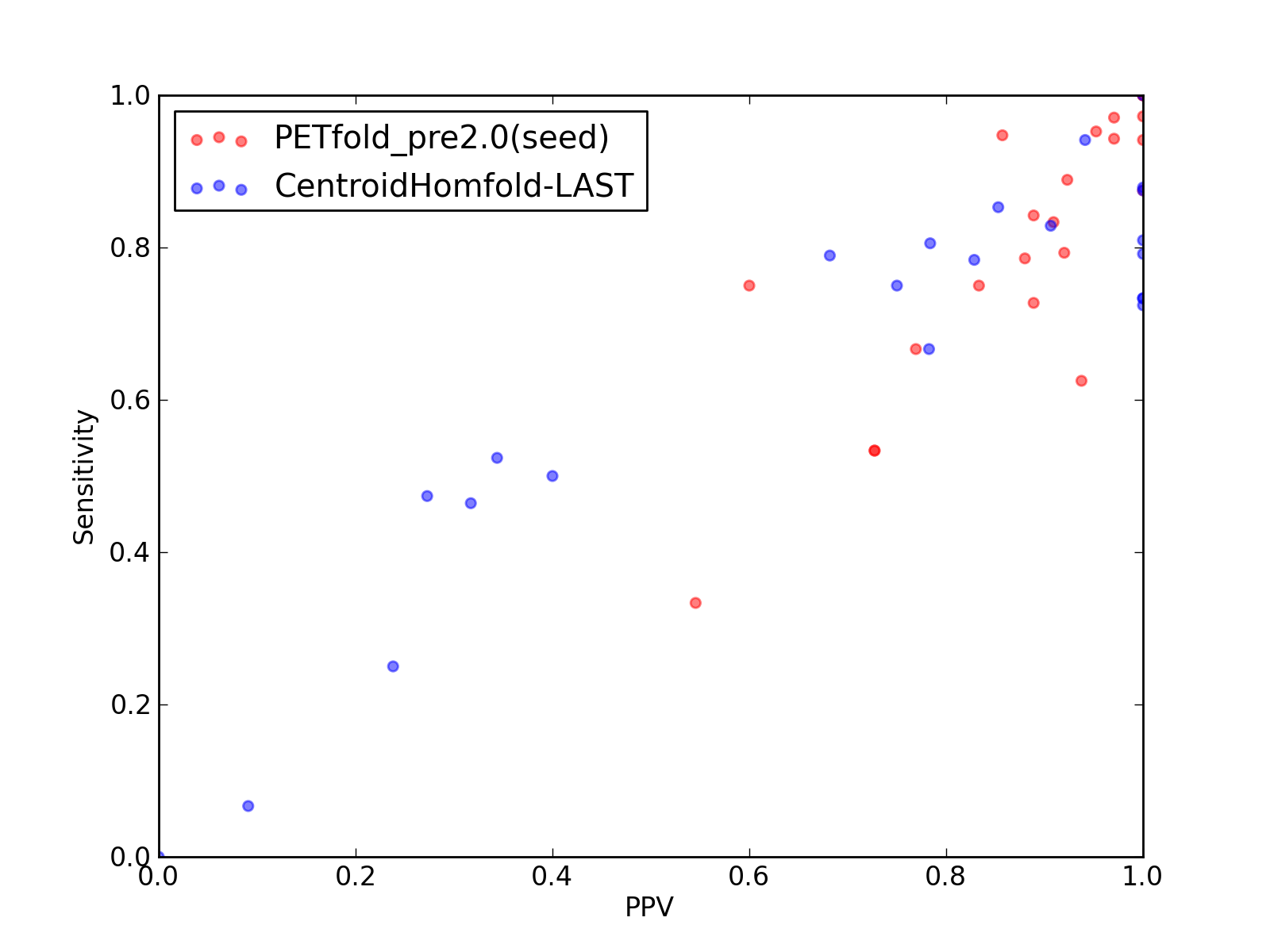

Comparison of performance of PETfold_pre2.0(seed) and CentroidHomfold-LAST. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).
Comparison of performance of PETfold_pre2.0(seed) and CentroidHomfold-LAST. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).

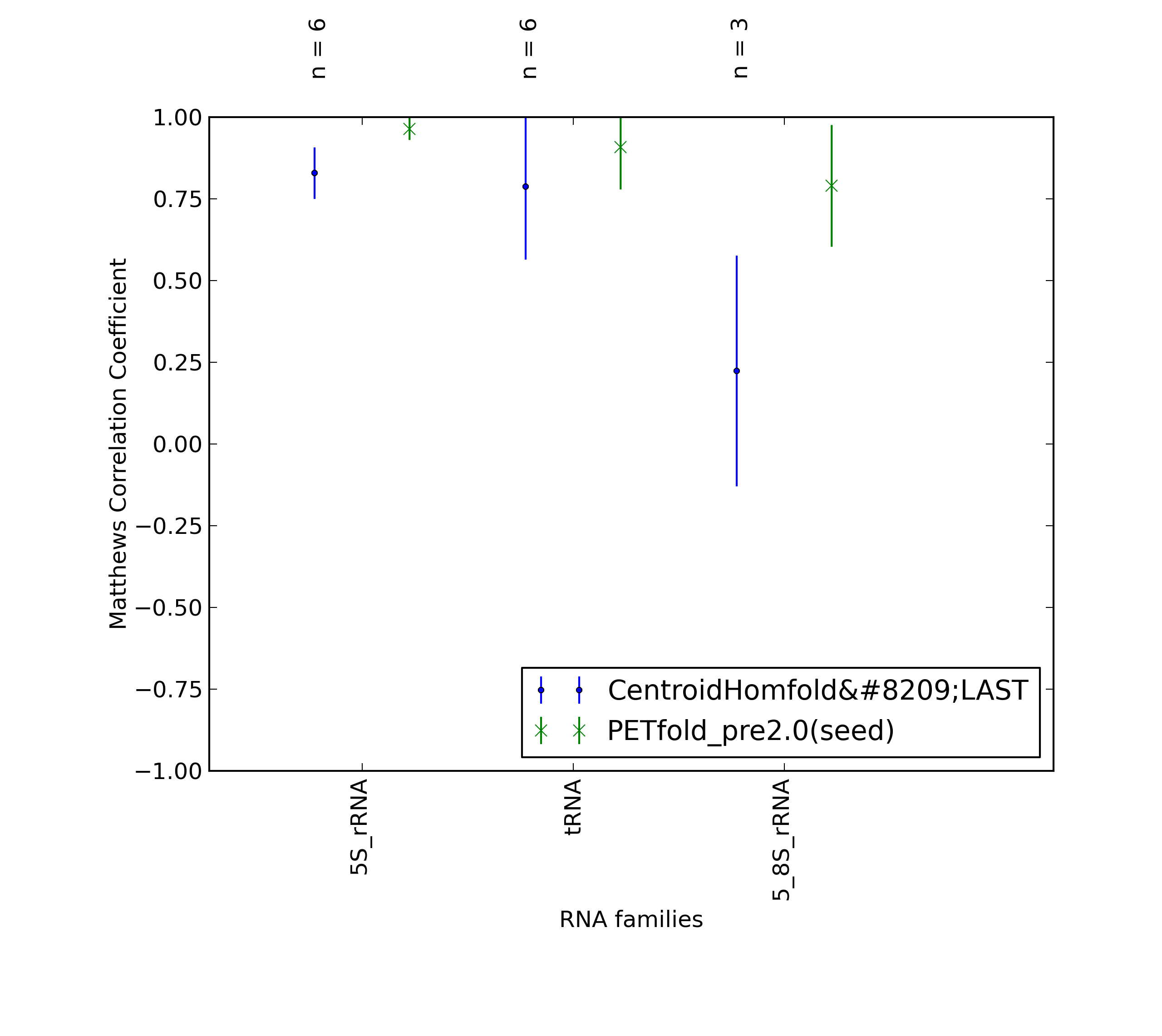

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).

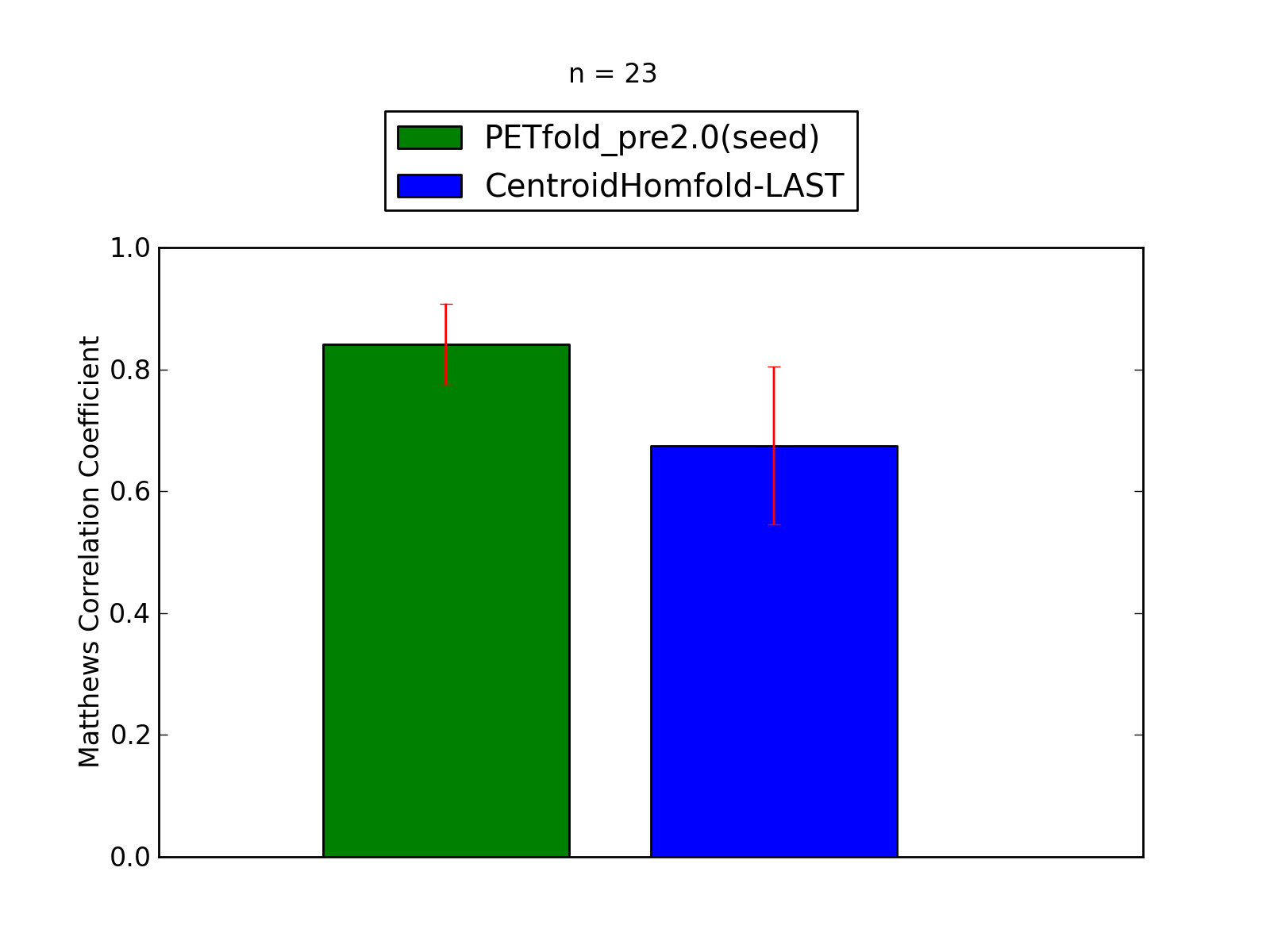

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and CentroidHomfold-LAST. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and CentroidHomfold-LAST. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and CentroidHomfold‑LAST).

^top

Performance of PETfold_pre2.0(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(seed)

Total Base Pair Counts
Total TP	460
Total TN	44423
Total FP	135
Total FP CONTRA	14
Total FP INCONS	28
Total FP COMP	93
Total FN	88

Total Scores
MCC	0.876
Average MCC ± 95% Confidence Intervals	0.842 ± 0.066
Sensitivity	0.839
Positive Predictive Value	0.916
Nr of predictions	23

^top

2. Individual counts for PETfold_pre2.0(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J16_L	tRNA links to Rfam database...	1.00	1.00	1.00	21	1138	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	2	0	0	2	0
3J2L_3	5S_rRNA links to Rfam database...	0.97	0.94	1.00	32	2988	5	0	0	5	2
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	4	3	0	1	1
3J3E_7	5S_rRNA links to Rfam database...	0.97	0.97	0.97	33	2707	6	0	1	5	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3F_7	5S_rRNA links to Rfam database...	0.99	0.97	1.00	35	2899	4	0	0	4	1
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3J3V_B	5S_rRNA links to Rfam database...	0.90	0.89	0.92	24	2630	14	0	2	12	3
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	8	0	0	8	2
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.73	0.89	24	1962	6	1	2	3	9
3ZEX_D	5S_rRNA links to Rfam database...	0.96	0.94	0.97	33	2762	6	0	1	5	2
3ZND_W	tRNA links to Rfam database...	0.67	0.75	0.60	6	1181	16	0	4	12	2
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4A1C_3	5S_rRNA links to Rfam database...	1.00	1.00	1.00	37	2726	2	0	0	2	0
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.87	0.83	0.91	20	1180	3	0	2	1	4
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of CentroidHomfold‑LAST - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	380
Total TN	44379
Total FP	243
Total FP CONTRA	52
Total FP INCONS	114
Total FP COMP	77
Total FN	168

Total Scores
MCC	0.691
Average MCC ± 95% Confidence Intervals	0.675 ± 0.129
Sensitivity	0.693
Positive Predictive Value	0.696
Nr of predictions	23

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	517	11	0	11	0	18
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3J20_0	tRNA links to Rfam database...	0.41	0.52	0.34	11	1187	22	7	14	1	10
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J2L_3	5S_rRNA links to Rfam database...	0.94	0.94	0.94	32	2986	8	0	2	6	2
3J3D_C	tRNA links to Rfam database...	0.73	0.79	0.68	15	946	7	3	4	0	4
3J3E_7	5S_rRNA links to Rfam database...	0.85	0.85	0.85	29	2707	9	0	5	4	5
3J3E_8	5_8S_rRNA links to Rfam database...	0.07	0.07	0.09	1	2731	16	4	6	6	14
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.81	0.78	29	2897	10	1	7	2	7
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.47	0.27	9	4728	36	11	13	12	10
3J3V_B	5S_rRNA links to Rfam database...	0.72	0.67	0.78	18	2633	11	1	4	6	9
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.88	1.00	29	1960	1	0	0	1	4
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.83	0.91	29	2764	8	0	3	5	6
3ZND_W	tRNA links to Rfam database...	0.75	0.75	0.75	6	1183	13	0	2	11	2
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.25	0.24	5	4495	29	8	8	13	15
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	7	0	6	1	8
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	1	0	0	1	8
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	0	0	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.43	0.50	0.40	12	1172	18	6	12	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.37	0.46	0.32	13	1807	28	11	17	0	15
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
