Overview
| Metric |
PETfold_pre2.0(seed) |
|
Mastr(20) |
|---|
| MCC |
0.887 |
>
|
0.577 |
| Average MCC ± 95% Confidence Intervals |
0.851
±
0.067
|
>
|
0.431
±
0.191
|
| Sensitivity |
0.858 |
>
|
0.471 |
| Positive Predictive Value |
0.919 |
>
|
0.715 |
| Total TP |
375 |
>
|
206 |
| Total TN |
41992 |
<
|
42112 |
| Total FP |
123 |
>
|
109 |
| Total FP CONTRA |
11 |
<
|
16 |
| Total FP INCONS |
22 |
<
|
66 |
| Total FP COMP |
90 |
>
|
27 |
| Total FN |
62 |
<
|
231 |
| P-value |
3.07760058607e-08 |
Performance plots
-

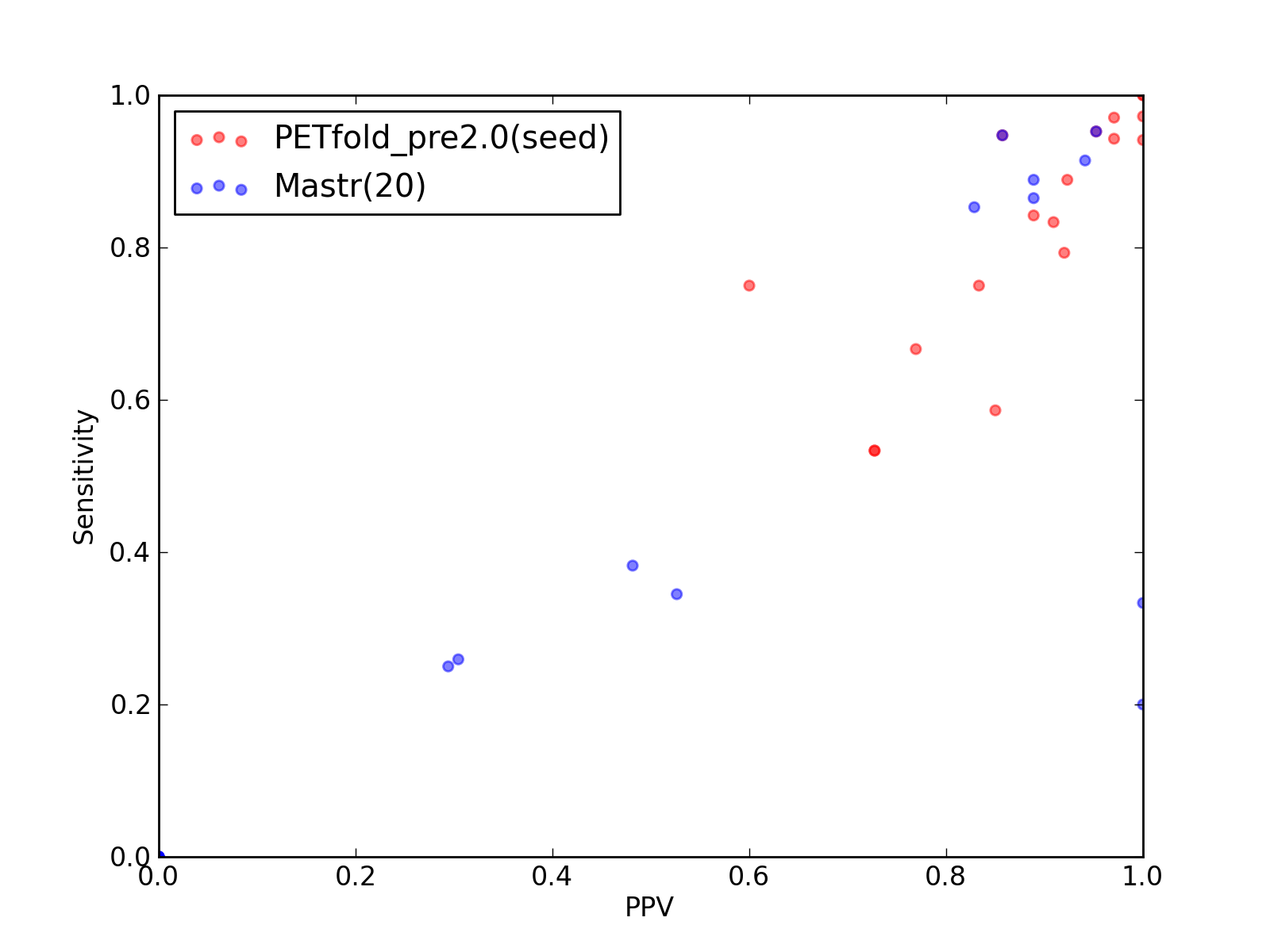

Comparison of performance of PETfold_pre2.0(seed) and Mastr(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
-
Comparison of performance of PETfold_pre2.0(seed) and Mastr(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
-
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
-
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
-
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Mastr(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
-
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Mastr(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and Mastr(20)).
Performance of PETfold_pre2.0(seed)
- scored higher in this pairwise comparison
1. Total counts & total scores for PETfold_pre2.0(seed)
| Total Base Pair Counts |
|---|
| Total TP |
375 |
| Total TN |
41992 |
| Total FP |
123 |
| Total FP CONTRA |
11 |
| Total FP INCONS |
22 |
| Total FP COMP |
90 |
| Total FN |
62 |
| Total Scores |
|---|
| MCC |
0.887 |
| Average MCC ± 95% Confidence Intervals |
0.851
±
0.067
|
| Sensitivity |
0.858 |
| Positive Predictive Value |
0.919 |
| Nr of predictions |
18 |
Performance of Mastr(20)
- scored lower in this pairwise comparison
1. Total counts & total scores for Mastr(20)
| Total Base Pair Counts |
|---|
| Total TP |
206 |
| Total TN |
42112 |
| Total FP |
109 |
| Total FP CONTRA |
16 |
| Total FP INCONS |
66 |
| Total FP COMP |
27 |
| Total FN |
231 |
| Total Scores |
|---|
| MCC |
0.577 |
| Average MCC ± 95% Confidence Intervals |
0.431
±
0.191
|
| Sensitivity |
0.471 |
| Positive Predictive Value |
0.715 |
| Nr of predictions |
18 |
Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based
on the paper by Gardener & Giegerich, 2004.
|
