Overview

Metric	PETfold_pre2.0(seed)		Mastr(seed)
MCC	0.867	>	0.042
Average MCC ± 95% Confidence Intervals	0.836 ± 0.062	>	0.008 ± 0.017
Sensitivity	0.826	>	0.005
Positive Predictive Value	0.913	>	0.375
Total TP	502	>	3
Total TN	51427	<	51969
Total FP	151	>	5
Total FP CONTRA	17	>	0
Total FP INCONS	31	>	5
Total FP COMP	103	>	0
Total FN	106	<	605
P-value	5.23657817852e-08

^top

Performance plots

Comparison of performance of PETfold_pre2.0(seed) and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).
Comparison of performance of PETfold_pre2.0(seed) and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).

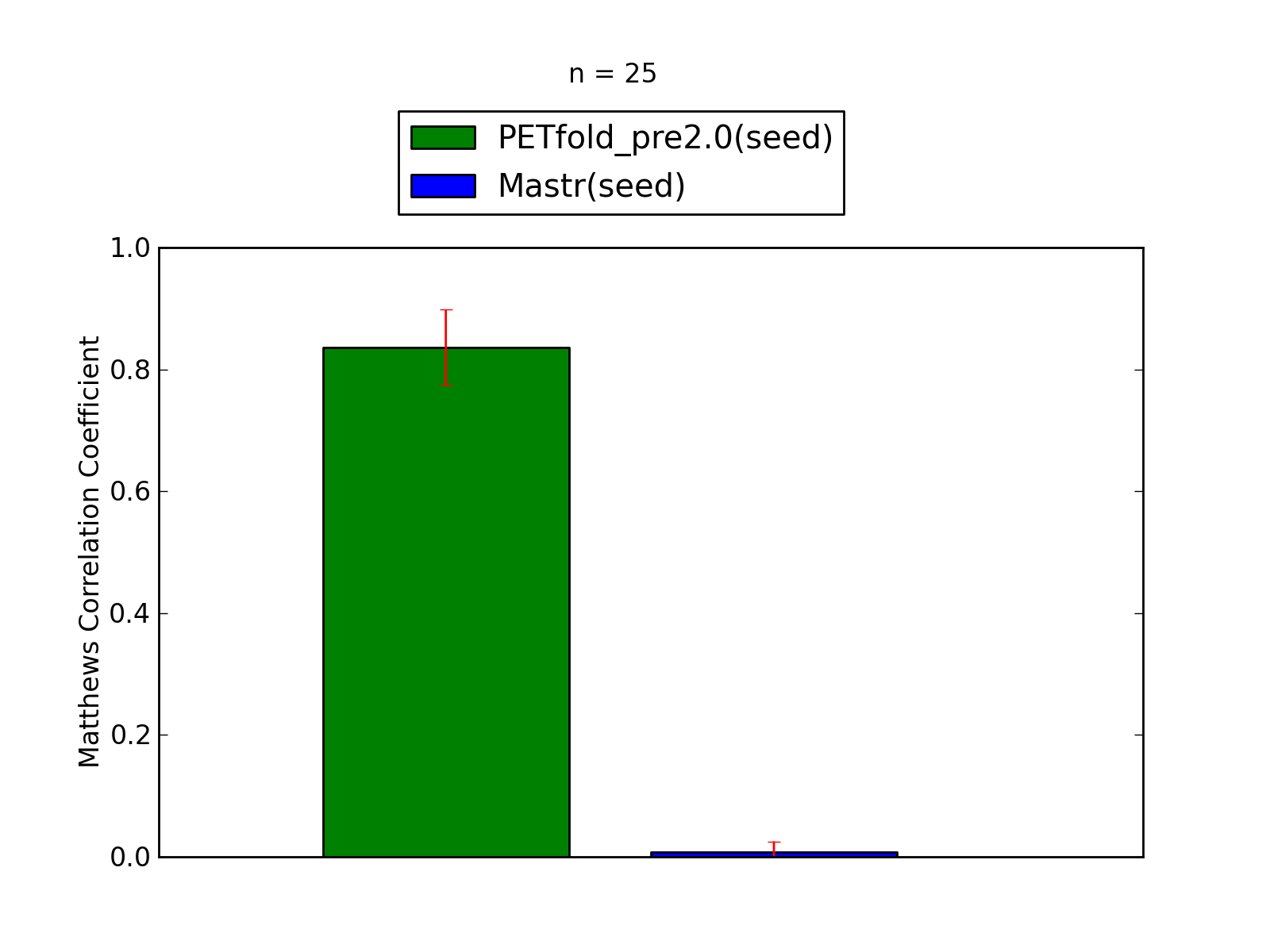

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Mastr(seed)).

^top

Performance of PETfold_pre2.0(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(seed)

Total Base Pair Counts
Total TP	502
Total TN	51427
Total FP	151
Total FP CONTRA	17
Total FP INCONS	31
Total FP COMP	103
Total FN	106

Total Scores
MCC	0.867
Average MCC ± 95% Confidence Intervals	0.836 ± 0.062
Sensitivity	0.826
Positive Predictive Value	0.913
Nr of predictions	25

^top

2. Individual counts for PETfold_pre2.0(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J16_L	tRNA links to Rfam database...	1.00	1.00	1.00	21	1138	1	0	0	1	0
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	2	0	0	2	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J2L_3	5S_rRNA links to Rfam database...	0.97	0.94	1.00	32	2988	5	0	0	5	2
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	4	3	0	1	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3E_7	5S_rRNA links to Rfam database...	0.97	0.97	0.97	33	2707	6	0	1	5	1
3J3F_7	5S_rRNA links to Rfam database...	0.99	0.97	1.00	35	2899	4	0	0	4	1
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3J3V_B	5S_rRNA links to Rfam database...	0.90	0.89	0.92	24	2630	14	0	2	12	3
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	8	0	0	8	2
3W1K_J	tRNA-Sec links to Rfam database...	0.85	0.81	0.89	25	1650	4	2	1	1	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.73	0.89	24	1962	6	1	2	3	9
3ZEX_D	5S_rRNA links to Rfam database...	0.96	0.94	0.97	33	2762	6	0	1	5	2
3ZEX_C	5_8S_rRNA links to Rfam database...	0.70	0.59	0.85	17	5354	12	1	2	9	12
3ZND_W	tRNA links to Rfam database...	0.67	0.75	0.60	6	1181	16	0	4	12	2
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4A1C_3	5S_rRNA links to Rfam database...	1.00	1.00	1.00	37	2726	2	0	0	2	0
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.87	0.83	0.91	20	1180	3	0	2	1	4
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	51969
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	605

Total Scores
MCC	0.042
Average MCC ± 95% Confidence Intervals	0.008 ± 0.017
Sensitivity	0.005
Positive Predictive Value	0.375
Nr of predictions	25

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1159	0	0	0	0	21
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	1112	0	0	0	0	20
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	3020	0	0	0	0	34
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	968	0	0	0	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2741	0	0	0	0	34
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2934	0	0	0	0	36
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4761	0	0	0	0	19
3J3V_B	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2656	0	0	0	0	27
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1293	0	0	0	0	16
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1678	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1989	0	0	0	0	33
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2796	0	0	0	0	35
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	1191	0	0	0	0	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1848	0	0	0	0	28
4JF2_A	preQ1-II links to Rfam database...	0.21	0.13	0.38	3	1074	5	0	5	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
