Overview

Metric	PETfold_pre2.0(seed)		RNAwolf
MCC	0.866	>	0.494
Average MCC ± 95% Confidence Intervals	0.837 ± 0.059	>	0.471 ± 0.107
Sensitivity	0.841	>	0.495
Positive Predictive Value	0.892	>	0.495
Total TP	858	>	505
Total TN	473383	>	473324
Total FP	280	<	658
Total FP CONTRA	35	<	109
Total FP INCONS	69	<	407
Total FP COMP	176	>	142
Total FN	162	<	515
P-value	5.10776592382e-08

^top

Performance plots

Comparison of performance of PETfold_pre2.0(seed) and RNAwolf. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and RNAwolf).

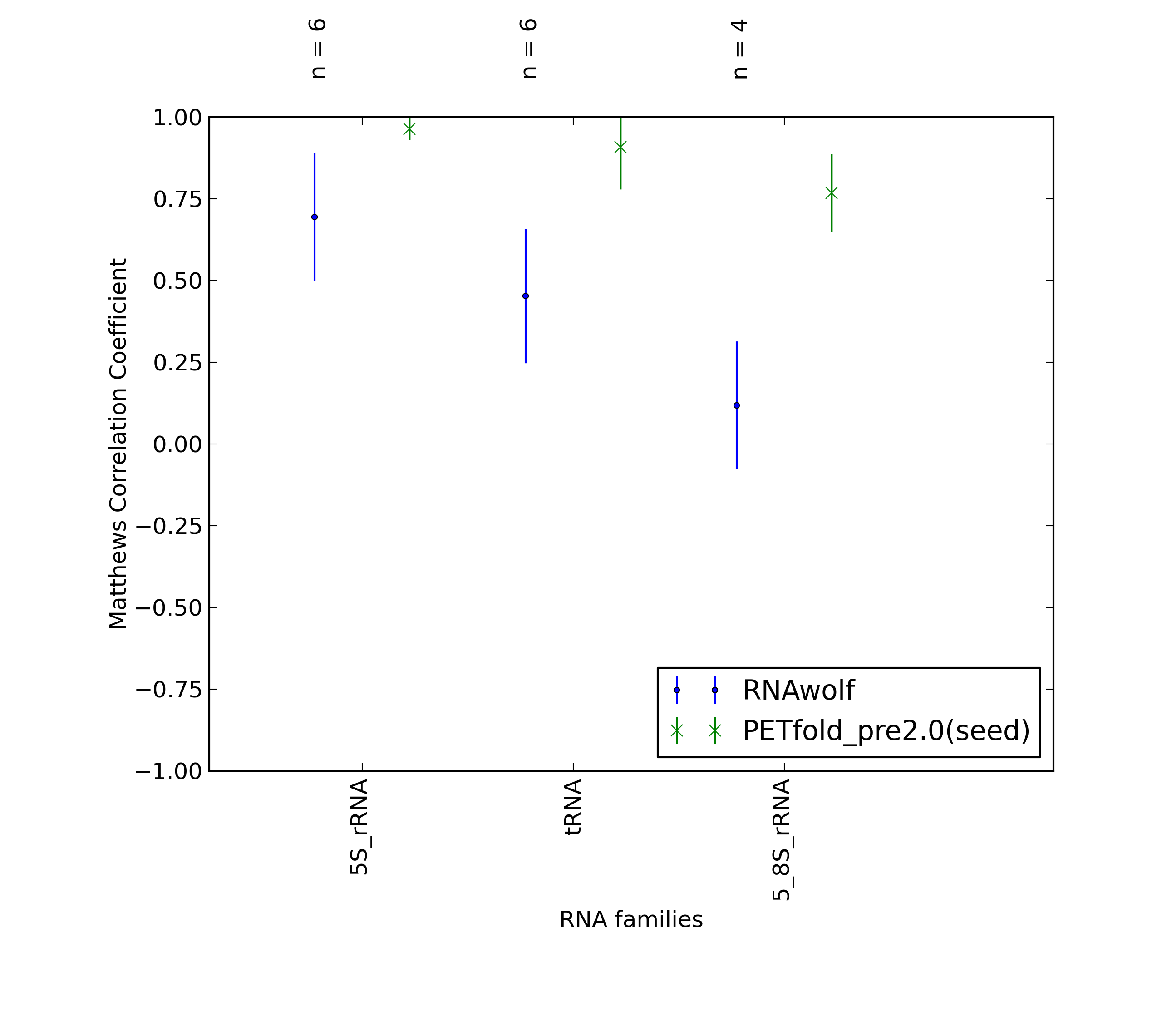

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and RNAwolf).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and RNAwolf. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and RNAwolf).

^top

Performance of PETfold_pre2.0(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(seed)

Total Base Pair Counts
Total TP	858
Total TN	473383
Total FP	280
Total FP CONTRA	35
Total FP INCONS	69
Total FP COMP	176
Total FN	162

Total Scores
MCC	0.866
Average MCC ± 95% Confidence Intervals	0.837 ± 0.059
Sensitivity	0.841
Positive Predictive Value	0.892
Nr of predictions	26

^top

2. Individual counts for PETfold_pre2.0(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J16_L	tRNA links to Rfam database...	1.00	1.00	1.00	21	1138	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	2	0	0	2	0
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.86	0.86	0.86	356	421956	129	18	38	73	56
3J2L_3	5S_rRNA links to Rfam database...	0.97	0.94	1.00	32	2988	5	0	0	5	2
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	4	3	0	1	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3E_7	5S_rRNA links to Rfam database...	0.97	0.97	0.97	33	2707	6	0	1	5	1
3J3F_7	5S_rRNA links to Rfam database...	0.99	0.97	1.00	35	2899	4	0	0	4	1
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3J3V_B	5S_rRNA links to Rfam database...	0.90	0.89	0.92	24	2630	14	0	2	12	3
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	8	0	0	8	2
3W1K_J	tRNA-Sec links to Rfam database...	0.85	0.81	0.89	25	1650	4	2	1	1	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.73	0.89	24	1962	6	1	2	3	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.70	0.59	0.85	17	5354	12	1	2	9	12
3ZEX_D	5S_rRNA links to Rfam database...	0.96	0.94	0.97	33	2762	6	0	1	5	2
3ZND_W	tRNA links to Rfam database...	0.67	0.75	0.60	6	1181	16	0	4	12	2
4A1C_3	5S_rRNA links to Rfam database...	1.00	1.00	1.00	37	2726	2	0	0	2	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.87	0.83	0.91	20	1180	3	0	2	1	4
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of RNAwolf - scored lower in this pairwise comparison

1. Total counts & total scores for RNAwolf

Total Base Pair Counts
Total TP	505
Total TN	473324
Total FP	658
Total FP CONTRA	109
Total FP INCONS	407
Total FP COMP	142
Total FN	515

Total Scores
MCC	0.494
Average MCC ± 95% Confidence Intervals	0.471 ± 0.107
Sensitivity	0.495
Positive Predictive Value	0.495
Nr of predictions	26

^top

2. Individual counts for RNAwolf [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.52	0.50	0.56	9	512	7	0	7	0	9
3J16_L	tRNA links to Rfam database...	0.58	0.57	0.60	12	1139	9	2	6	1	9
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	2	9	1	9
3J20_1	tRNA links to Rfam database...	0.53	0.55	0.52	11	1091	11	4	6	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.55	0.55	0.56	228	421959	243	27	154	62	184
3J2L_3	5S_rRNA links to Rfam database...	0.71	0.71	0.73	24	2987	13	1	8	4	10
3J3D_C	tRNA links to Rfam database...	0.92	0.95	0.90	18	948	3	2	0	1	1
3J3E_8	5_8S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	2719	37	6	17	14	15
3J3E_7	5S_rRNA links to Rfam database...	0.57	0.56	0.59	19	2709	15	1	12	2	15
3J3F_7	5S_rRNA links to Rfam database...	0.27	0.28	0.28	10	2898	27	4	22	1	26
3J3F_8	5_8S_rRNA links to Rfam database...	0.28	0.37	0.23	7	4730	39	9	15	15	12
3J3V_B	5S_rRNA links to Rfam database...	0.59	0.59	0.59	16	2629	16	1	10	5	11
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3W1K_J	tRNA-Sec links to Rfam database...	0.81	0.77	0.86	24	1650	5	0	4	1	7
3W3S_B	tRNA-Sec links to Rfam database...	0.70	0.70	0.72	23	1957	10	0	9	1	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.08	0.10	0.07	3	5328	43	18	25	0	26
3ZEX_D	5S_rRNA links to Rfam database...	0.26	0.26	0.27	9	2763	24	8	16	0	26
3ZND_W	tRNA links to Rfam database...	0.67	0.75	0.60	6	1181	15	0	4	11	2
4A1C_3	5S_rRNA links to Rfam database...	0.32	0.30	0.35	11	2732	21	1	19	1	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.12	0.15	0.10	3	4487	38	12	14	12	17
4AOB_A	SAM links to Rfam database...	0.26	0.24	0.30	7	1414	17	2	14	1	22
4ENB_A	crcB links to Rfam database...	0.45	0.40	0.55	6	461	5	1	4	0	9
4ENC_A	crcB links to Rfam database...	0.34	0.33	0.38	5	483	9	0	8	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.54	0.50	0.60	12	1182	8	3	5	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	-0.01	0.00	0.00	0	1828	20	1	19	0	28
4JF2_A	preQ1-II links to Rfam database...	0.72	0.67	0.80	16	1062	4	4	0	0	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
