Overview

Metric	PPfold(20)		PPfold(seed)
MCC	0.819	>	0.046
Average MCC ± 95% Confidence Intervals	0.792 ± 0.133	>	0.018 ± 0.027
Sensitivity	0.766	>	0.009
Positive Predictive Value	0.879	>	0.273
Total TP	269	>	3
Total TN	27657	<	27952
Total FP	58	>	47
Total FP CONTRA	4	>	0
Total FP INCONS	33	>	8
Total FP COMP	21	<	39
Total FN	82	<	348
P-value	2.71568867205e-08

^top

Performance plots

Comparison of performance of PPfold(20) and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).
Comparison of performance of PPfold(20) and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).

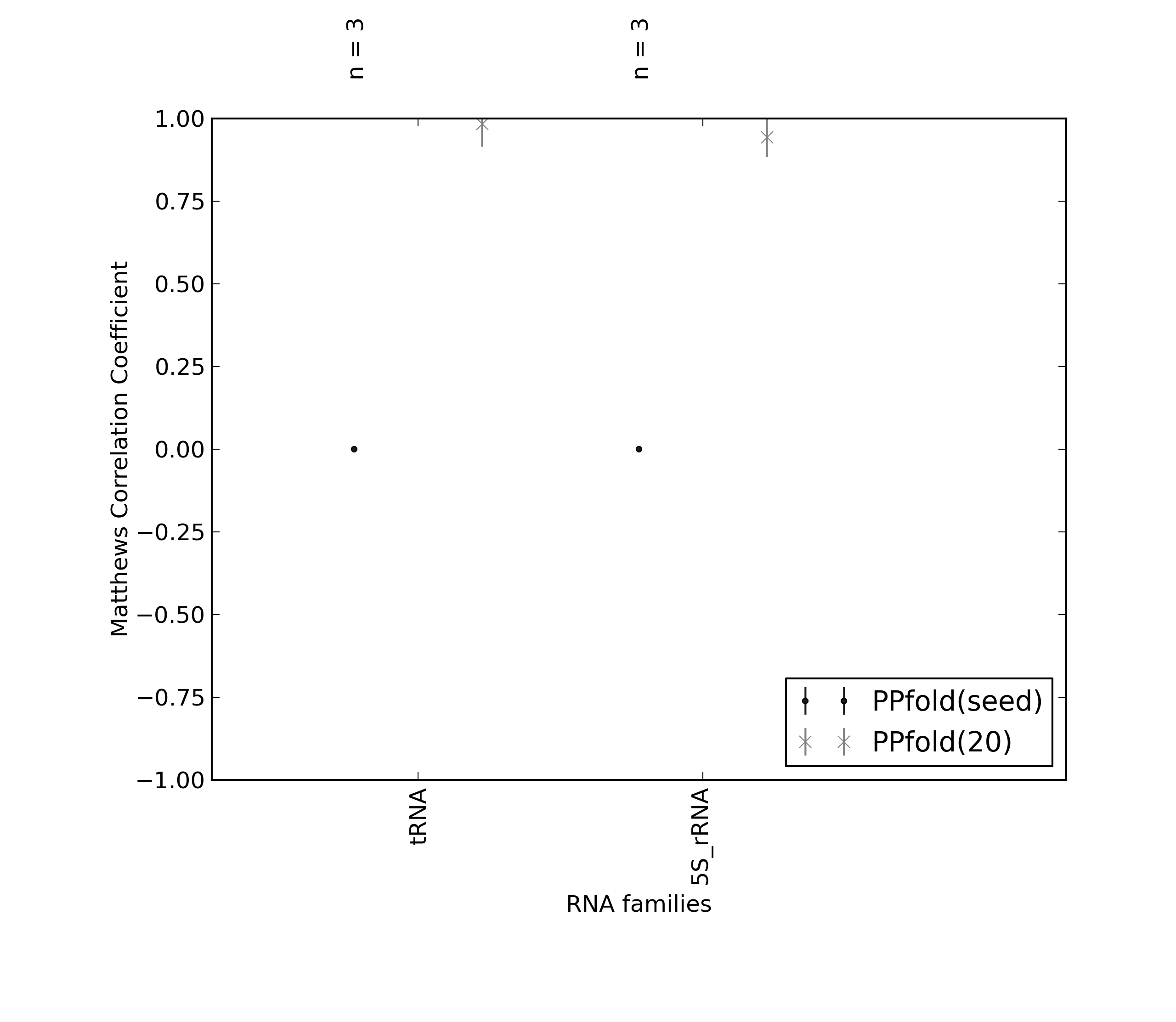

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PPfold(20) and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PPfold(20) and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PPfold(20) and PPfold(seed)).

^top

Performance of PPfold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PPfold(20)

Total Base Pair Counts
Total TP	269
Total TN	27657
Total FP	58
Total FP CONTRA	4
Total FP INCONS	33
Total FP COMP	21
Total FN	82

Total Scores
MCC	0.819
Average MCC ± 95% Confidence Intervals	0.792 ± 0.133
Sensitivity	0.766
Positive Predictive Value	0.879
Nr of predictions	14

^top

2. Individual counts for PPfold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	2	0	0	2	0
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	1	1	0	0	1
3J2L_3	5S_rRNA links to Rfam database...	0.97	0.94	1.00	32	2988	4	0	0	4	2
3RKF_A	Purine links to Rfam database...	0.86	0.79	0.95	19	846	1	0	1	0	5
3SD1_A	THF links to Rfam database...	0.81	0.76	0.88	22	1508	3	2	1	0	7
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	9	5355	14	0	10	4	20
3ZEX_D	5S_rRNA links to Rfam database...	0.93	0.91	0.94	32	2762	6	0	2	4	3
4A1C_3	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	2727	2	0	2	0	3
4A1C_2	5_8S_rRNA links to Rfam database...	0.27	0.25	0.29	5	4499	16	1	11	4	15
4AOB_A	SAM links to Rfam database...	0.87	0.83	0.92	24	1411	4	0	2	2	5
4ENB_A	crcB links to Rfam database...	0.63	0.47	0.88	7	464	1	0	1	0	8
4ENC_A	crcB links to Rfam database...	0.64	0.53	0.80	8	486	2	0	2	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.84	0.75	0.95	18	1183	1	0	1	0	6

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	3
Total TN	27952
Total FP	47
Total FP CONTRA	0
Total FP INCONS	8
Total FP COMP	39
Total FN	348

Total Scores
MCC	0.046
Average MCC ± 95% Confidence Intervals	0.018 ± 0.027
Sensitivity	0.009
Positive Predictive Value	0.273
Nr of predictions	14

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1157	0	0	0	0	19
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	1112	0	0	0	0	20
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	3020	0	0	0	0	34
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3ZEX_C	5_8S_rRNA links to Rfam database...	0.15	0.07	0.33	2	5368	24	0	4	20	27
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2796	0	0	0	0	35
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4A1C_2	5_8S_rRNA links to Rfam database...	0.10	0.05	0.20	1	4511	23	0	4	19	19
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
