Overview

Metric	ProbKnot		RNASLOpt
MCC	0.633	>	0.580
Average MCC ± 95% Confidence Intervals	0.685 ± 0.101	>	0.634 ± 0.104
Sensitivity	0.662	>	0.559
Positive Predictive Value	0.612	>	0.608
Total TP	618	>	522
Total TN	105800	<	105952
Total FP	525	>	429
Total FP CONTRA	137	>	114
Total FP INCONS	255	>	222
Total FP COMP	133	>	93
Total FN	315	<	411
P-value	3.56938820447e-08

^top

Performance plots

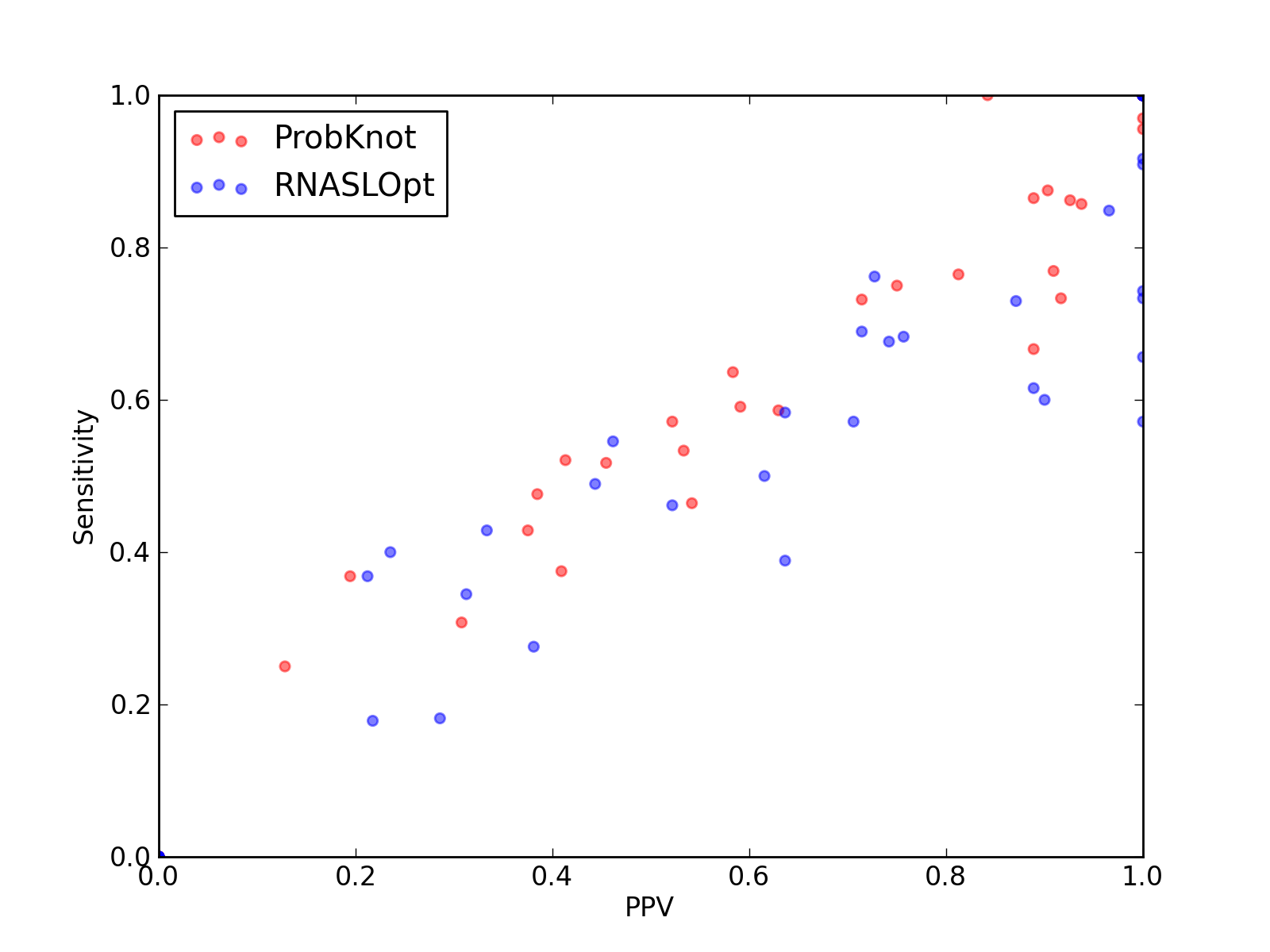

Comparison of performance of ProbKnot and RNASLOpt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and RNASLOpt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and RNASLOpt).
Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and RNASLOpt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and RNASLOpt).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	618
Total TN	105800
Total FP	525
Total FP CONTRA	137
Total FP INCONS	255
Total FP COMP	133
Total FN	315

Total Scores
MCC	0.633
Average MCC ± 95% Confidence Intervals	0.685 ± 0.101
Sensitivity	0.662
Positive Predictive Value	0.612
Nr of predictions	47

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.89	0.86	0.93	25	2413	9	0	2	7	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
3J0L_a	-	0.60	0.64	0.58	7	399	6	4	1	1	4
3J0L_g	-	-0.02	0.00	0.00	0	171	7	1	4	2	2
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_h	-	0.89	0.88	0.90	28	2109	3	0	3	0	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	5	0	1	4	3
3J0L_2	-	0.30	0.31	0.31	8	2224	27	1	17	9	18
3J16_L	tRNA links to Rfam database...	0.42	0.48	0.38	10	1133	16	3	13	0	11
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	8	0	5	3	5
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J2C_M	-	0.46	0.52	0.41	50	39804	92	29	42	21	46
3J2C_O	-	0.72	0.73	0.71	30	3945	18	5	7	6	11
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.76	0.81	26	2988	11	0	6	5	8
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	0.92	1.00	0.84	16	1274	11	3	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	32	1957	1	0	0	1	1
3ZEX_F	-	0.00	0.00	0.00	0	911	11	0	3	8	4
3ZEX_G	-	0.98	0.96	1.00	43	6464	16	0	0	16	2
3ZEX_E	-	-0.01	0.00	0.00	0	8245	61	25	34	2	34
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	7	0	2	5	5
3ZEX_H	-	0.26	0.37	0.19	7	3589	29	16	13	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.48	0.52	0.45	15	5341	22	4	14	4	14
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.25	0.13	5	4477	49	13	21	15	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	1	1	0	0	4
4ENC_A	crcB links to Rfam database...	0.52	0.53	0.53	8	481	8	0	7	1	7
4FNJ_A	-	0.76	0.67	0.89	8	241	1	0	1	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.38	0.38	0.41	9	1180	13	6	7	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.49	0.46	0.54	13	1824	11	6	5	0	15
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of RNASLOpt - scored lower in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	522
Total TN	105952
Total FP	429
Total FP CONTRA	114
Total FP INCONS	222
Total FP COMP	93
Total FN	411

Total Scores
MCC	0.580
Average MCC ± 95% Confidence Intervals	0.634 ± 0.104
Sensitivity	0.559
Positive Predictive Value	0.608
Nr of predictions	47

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.48	0.39	0.64	7	517	4	0	4	0	11
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.70	0.69	0.71	20	2412	13	1	7	5	9
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
3J0L_a	-	0.21	0.18	0.29	2	404	6	3	2	1	9
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_h	-	0.81	0.66	1.00	21	2119	0	0	0	0	11
3J0L_8	-	0.74	0.57	1.00	4	72	0	0	0	0	3
3J0L_1	-	0.73	0.62	0.89	8	475	4	0	1	3	5
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J16_L	tRNA links to Rfam database...	0.63	0.57	0.71	12	1142	5	0	5	0	9
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.74	0.76	0.73	16	1197	7	3	3	1	5
3J2C_M	-	0.46	0.49	0.44	47	39819	77	22	37	18	49
3J2C_O	-	0.72	0.68	0.76	28	3950	13	2	7	4	13
3J2L_3	5S_rRNA links to Rfam database...	0.71	0.68	0.74	23	2989	11	0	8	3	11
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.55	0.50	0.62	8	1280	9	1	4	4	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.90	0.85	0.97	28	1960	2	0	1	1	5
3ZEX_F	-	0.00	0.00	0.00	0	914	0	0	0	0	4
3ZEX_G	-	0.00	0.00	0.00	0	6507	0	0	0	0	45
3ZEX_E	-	0.00	0.00	0.00	0	8254	55	20	30	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.74	1.00	26	2770	4	0	0	4	9
3ZEX_H	-	0.27	0.37	0.21	7	3592	26	16	10	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.34	0.31	10	5342	36	8	14	14	19
4A1C_3	5S_rRNA links to Rfam database...	0.79	0.73	0.87	27	2732	5	0	4	1	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.30	0.40	0.24	8	4482	35	13	13	9	12
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.31	0.28	0.38	8	1416	13	3	10	0	21
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FNJ_A	-	-0.05	0.00	0.00	0	239	11	0	11	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.19	0.18	0.22	5	1825	18	6	12	0	23
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
