Overview

Metric	ProbKnot		UNAFold
MCC	0.638	>	0.636
Average MCC ± 95% Confidence Intervals	0.740 ± 0.065	<	0.746 ± 0.062
Sensitivity	0.668	>	0.661
Positive Predictive Value	0.612	<	0.613
Total TP	1751	>	1735
Total TN	1040534	<	1040566
Total FP	1475	>	1449
Total FP CONTRA	361	>	307
Total FP INCONS	751	<	789
Total FP COMP	363	>	353
Total FN	872	<	888
P-value	0.00586086047676

^top

Performance plots

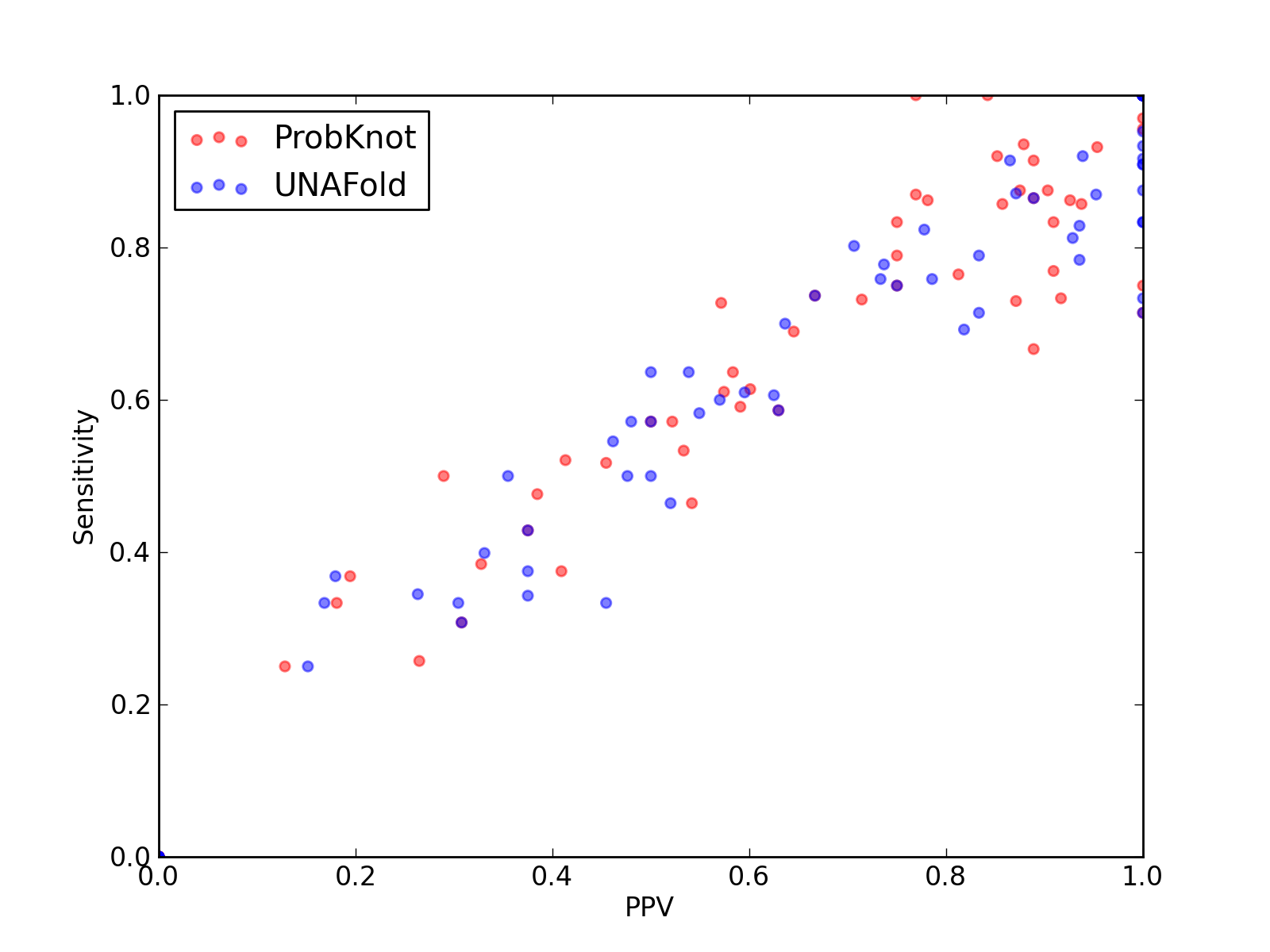

Comparison of performance of ProbKnot and UNAFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and UNAFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and UNAFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and UNAFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and UNAFold).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1751
Total TN	1040534
Total FP	1475
Total FP CONTRA	361
Total FP INCONS	751
Total FP COMP	363
Total FN	872

Total Scores
MCC	0.638
Average MCC ± 95% Confidence Intervals	0.740 ± 0.065
Sensitivity	0.668
Positive Predictive Value	0.612
Nr of predictions	93

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.82	0.87	0.77	20	1998	15	6	0	9	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.87	0.88	0.88	7	141	1	0	1	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	2	0	0	2	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.85	0.86	0.86	6	268	3	0	1	2	1
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.89	0.86	0.93	25	2413	9	0	2	7	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	1.00	1.00	1.00	21	1108	2	0	0	2	0
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.25	0.26	0.26	9	2011	26	1	24	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	7	1	3	3	3
3AKZ_H	tRNA links to Rfam database...	0.87	1.00	0.77	20	1101	9	6	0	3	0
3AM1_B	-	0.82	0.86	0.78	25	1434	7	3	4	0	4
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	9	0	5	4	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22346	97	41	36	20	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.61	0.57	58	25435	49	17	26	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.90	0.91	0.89	32	2604	7	0	4	3	3
3J0L_g	-	-0.02	0.00	0.00	0	171	7	1	4	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.60	0.64	0.58	7	399	6	4	1	1	4
3J0L_1	-	0.83	0.77	0.91	10	473	5	0	1	4	3
3J0L_h	-	0.89	0.88	0.90	28	2109	3	0	3	0	4
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_2	-	0.30	0.31	0.31	8	2224	27	1	17	9	18
3J16_L	tRNA links to Rfam database...	0.42	0.48	0.38	10	1133	16	3	13	0	11
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.61	0.61	0.60	253	421947	227	32	136	59	159
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	8	0	5	3	5
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J2C_O	-	0.72	0.73	0.71	30	3945	18	5	7	6	11
3J2C_M	-	0.46	0.52	0.41	50	39804	92	29	42	21	46
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.76	0.81	26	2988	11	0	6	5	8
3NDB_M	-	0.94	0.93	0.95	41	3671	8	0	2	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3NPB_A	SAM links to Rfam database...	0.79	0.73	0.87	27	2247	9	0	4	5	10
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	10	0	4	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.29	11	4726	42	10	17	15	11
3OVB_D	-	1.00	1.00	1.00	11	215	2	0	0	2	0
3OVS_D	-	1.00	1.00	1.00	12	204	1	0	0	1	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3PDR_A	ykoK links to Rfam database...	0.88	0.92	0.85	46	4786	10	5	3	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.87	0.83	0.91	20	844	2	2	0	0	4
3SD1_A	THF links to Rfam database...	0.66	0.69	0.65	20	1502	11	6	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	0.92	1.00	0.84	16	1274	11	3	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	32	1957	1	0	0	1	1
3ZEX_F	-	0.00	0.00	0.00	0	911	11	0	3	8	4
3ZEX_G	-	0.98	0.96	1.00	43	6464	16	0	0	16	2
3ZEX_E	-	-0.01	0.00	0.00	0	8245	61	25	34	2	34
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	7	0	2	5	5
3ZEX_B	-	0.35	0.38	0.33	133	420946	320	82	191	47	213
3ZEX_H	-	0.26	0.37	0.19	7	3589	29	16	13	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.48	0.52	0.45	15	5341	22	4	14	4	14
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.25	0.13	5	4477	49	13	21	15	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	1	1	0	0	4
4ENC_A	crcB links to Rfam database...	0.52	0.53	0.53	8	481	8	0	7	1	7
4FNJ_A	-	0.76	0.67	0.89	8	241	1	0	1	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.38	0.38	0.41	9	1180	13	6	7	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.49	0.46	0.54	13	1824	11	6	5	0	15
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	1735
Total TN	1040566
Total FP	1449
Total FP CONTRA	307
Total FP INCONS	789
Total FP COMP	353
Total FN	888

Total Scores
MCC	0.636
Average MCC ± 95% Confidence Intervals	0.746 ± 0.062
Sensitivity	0.661
Positive Predictive Value	0.613
Nr of predictions	93

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	0.95	0.91	1.00	10	152	0	0	0	0	1
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	6	0	0	6	0
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.58	0.64	0.54	7	1822	23	0	6	17	4
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.75	0.78	0.74	14	887	8	0	5	3	4
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	96	46	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.58	0.60	0.57	57	25436	53	12	31	10	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3J0L_1	-	0.75	0.69	0.82	9	473	4	0	2	2	4
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_7	-	0.66	0.70	0.64	7	508	5	2	2	1	3
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.31	0.33	0.30	7	1136	16	3	13	0	14
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.57	0.58	0.55	240	421931	250	36	161	53	172
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	6	0	5	1	5
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J2C_O	-	0.60	0.61	0.60	25	3945	22	7	10	5	16
3J2C_M	-	0.75	0.80	0.71	77	39816	68	13	19	36	19
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3NDB_M	-	1.00	1.00	1.00	44	3670	4	0	0	4	0
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.61	0.61	0.63	20	1957	13	4	8	1	13
3ZEX_F	-	-0.01	0.00	0.00	0	908	11	2	4	5	4
3ZEX_G	-	0.97	0.93	1.00	42	6465	17	0	0	17	3
3ZEX_E	-	0.00	0.00	0.00	0	8255	54	17	32	5	34
3ZEX_D	5S_rRNA links to Rfam database...	0.88	0.83	0.94	29	2765	6	0	2	4	6
3ZEX_B	-	0.36	0.40	0.33	138	420935	317	72	207	38	208
3ZEX_H	-	0.25	0.37	0.18	7	3586	32	20	12	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.48	0.46	0.52	13	1823	12	2	10	0	15
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

2. Individual counts for ProbKnot [ download as .csv ]

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

2. Individual counts for UNAFold [ download as .csv ]
