Overview

Metric	RNASLOpt		PPfold(seed)
MCC	0.617	>	0.102
Average MCC ± 95% Confidence Intervals	0.624 ± 0.130	>	0.046 ± 0.067
Sensitivity	0.587	>	0.023
Positive Predictive Value	0.657	>	0.474
Total TP	232	>	9
Total TN	30871	<	31205
Total FP	159	>	49
Total FP CONTRA	38	>	0
Total FP INCONS	83	>	10
Total FP COMP	38	<	39
Total FN	163	<	386
P-value	3.21671975982e-08

^top

Performance plots

Comparison of performance of RNASLOpt and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).
Comparison of performance of RNASLOpt and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).

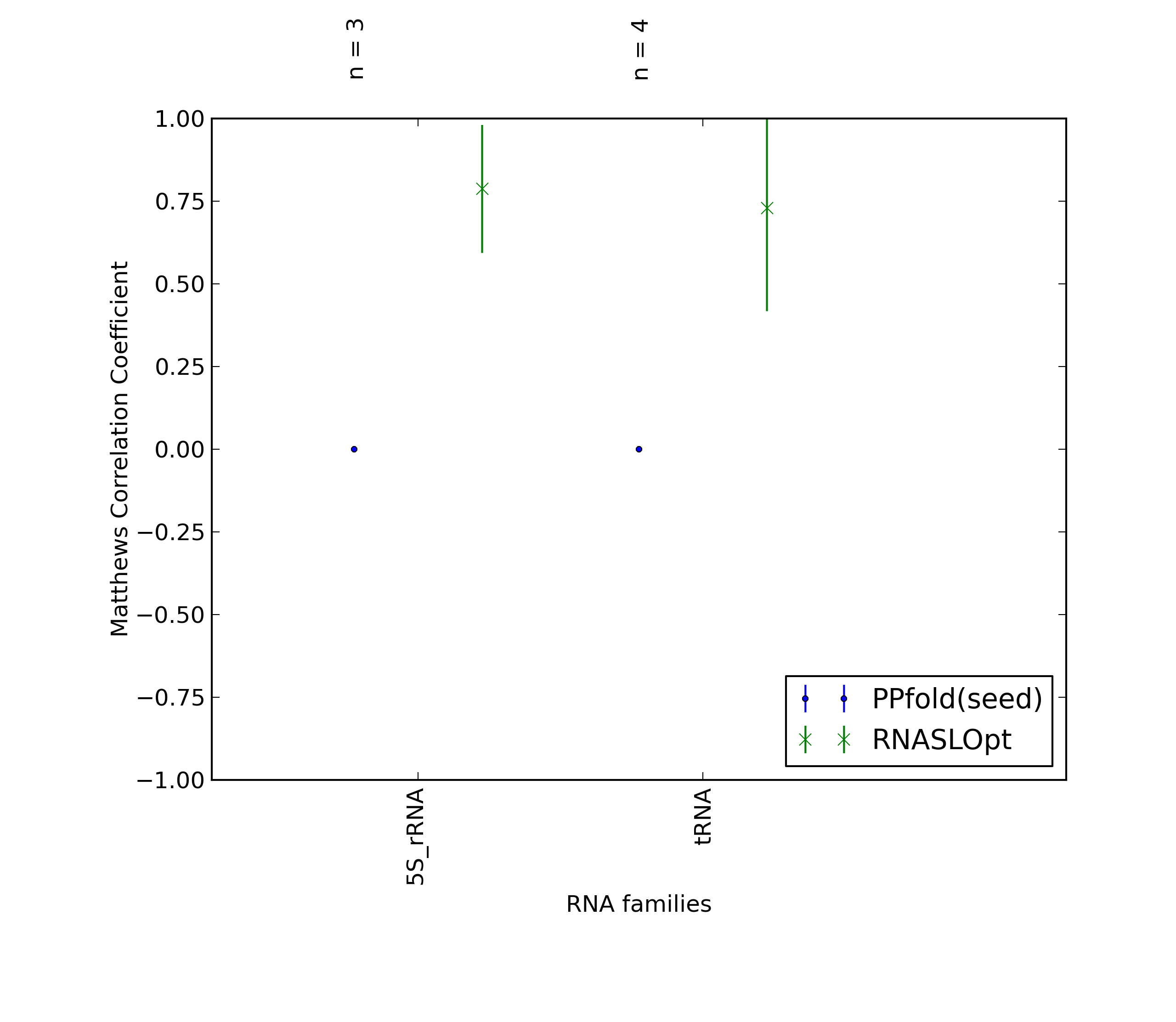

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and PPfold(seed)).

^top

Performance of RNASLOpt - scored higher in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	232
Total TN	30871
Total FP	159
Total FP CONTRA	38
Total FP INCONS	83
Total FP COMP	38
Total FN	163

Total Scores
MCC	0.617
Average MCC ± 95% Confidence Intervals	0.624 ± 0.130
Sensitivity	0.587
Positive Predictive Value	0.657
Nr of predictions	16

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.48	0.39	0.64	7	517	4	0	4	0	11
3J16_L	tRNA links to Rfam database...	0.63	0.57	0.71	12	1142	5	0	5	0	9
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.74	0.76	0.73	16	1197	7	3	3	1	5
3J2L_3	5S_rRNA links to Rfam database...	0.71	0.68	0.74	23	2989	11	0	8	3	11
3UZL_B	tRNA links to Rfam database...	0.55	0.50	0.62	8	1280	9	1	4	4	8
3W3S_B	tRNA-Sec links to Rfam database...	0.90	0.85	0.97	28	1960	2	0	1	1	5
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.34	0.31	10	5342	36	8	14	14	19
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.74	1.00	26	2770	4	0	0	4	9
4A1C_3	5S_rRNA links to Rfam database...	0.79	0.73	0.87	27	2732	5	0	4	1	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.30	0.40	0.24	8	4482	35	13	13	9	12
4AOB_A	SAM links to Rfam database...	0.31	0.28	0.38	8	1416	13	3	10	0	21
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.19	0.18	0.22	5	1825	18	6	12	0	23

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	9
Total TN	31205
Total FP	49
Total FP CONTRA	0
Total FP INCONS	10
Total FP COMP	39
Total FN	386

Total Scores
MCC	0.102
Average MCC ± 95% Confidence Intervals	0.046 ± 0.067
Sensitivity	0.023
Positive Predictive Value	0.474
Nr of predictions	16

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.33	0.75	6	520	2	0	2	0	12
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1159	0	0	0	0	21
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	1112	0	0	0	0	20
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	3020	0	0	0	0	34
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1293	0	0	0	0	16
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1989	0	0	0	0	33
3ZEX_C	5_8S_rRNA links to Rfam database...	0.15	0.07	0.33	2	5368	24	0	4	20	27
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2796	0	0	0	0	35
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4A1C_2	5_8S_rRNA links to Rfam database...	0.10	0.05	0.20	1	4511	23	0	4	19	19
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1848	0	0	0	0	28

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
