Overview

Metric	RNASLOpt		Pknots
MCC	0.623	>	0.577
Average MCC ± 95% Confidence Intervals	0.650 ± 0.107	<	0.654 ± 0.107
Sensitivity	0.587	<	0.606
Positive Predictive Value	0.672	>	0.560
Total TP	447	<	462
Total TN	53929	>	53769
Total FP	284	<	448
Total FP CONTRA	70	<	100
Total FP INCONS	148	<	263
Total FP COMP	66	<	85
Total FN	315	>	300
P-value	3.56938820447e-08

^top

Performance plots

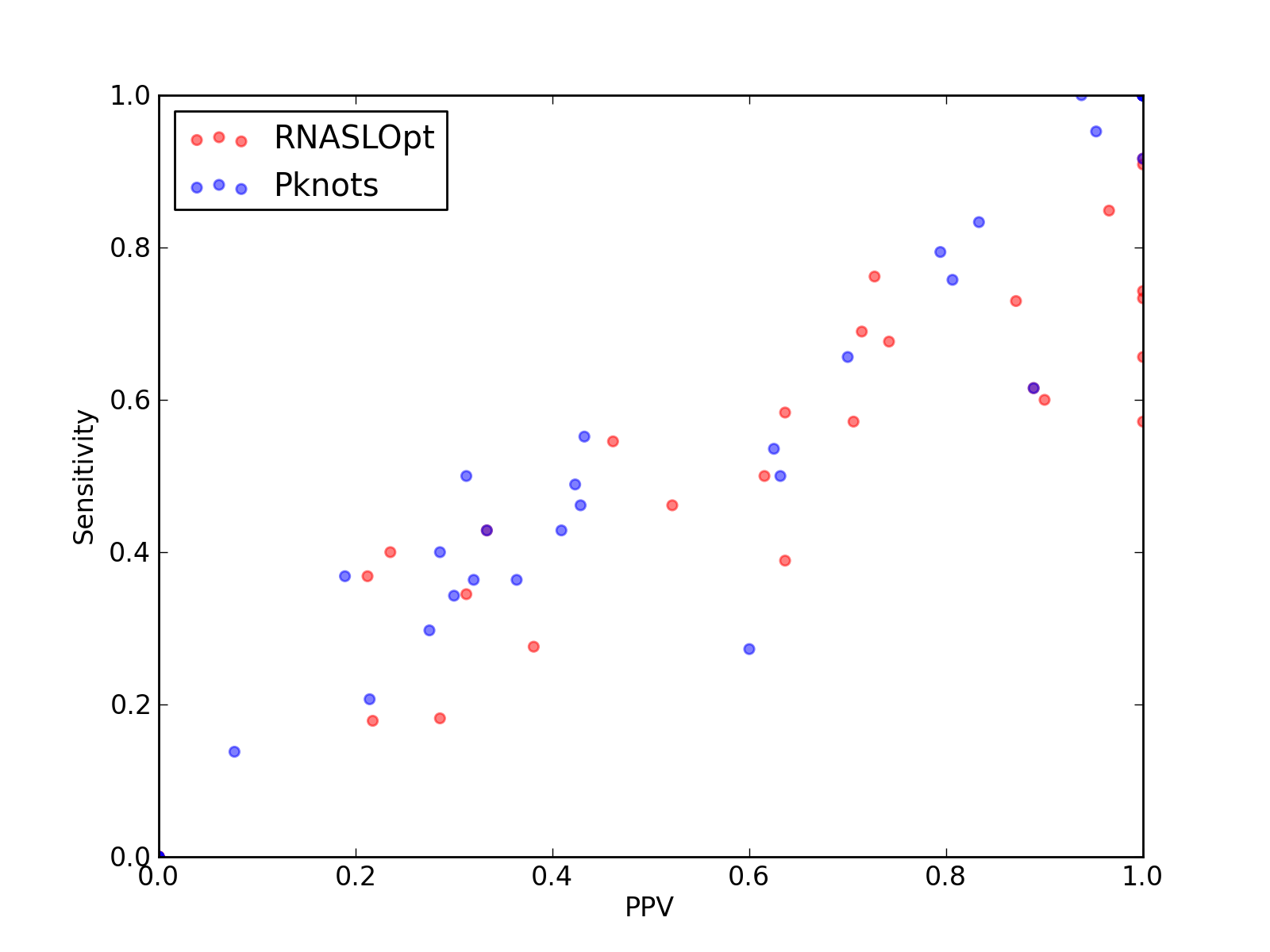

Comparison of performance of RNASLOpt and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and Pknots).
Comparison of performance of RNASLOpt and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and Pknots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and Pknots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and Pknots).

^top

Performance of RNASLOpt - scored higher in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	447
Total TN	53929
Total FP	284
Total FP CONTRA	70
Total FP INCONS	148
Total FP COMP	66
Total FN	315

Total Scores
MCC	0.623
Average MCC ± 95% Confidence Intervals	0.650 ± 0.107
Sensitivity	0.587
Positive Predictive Value	0.672
Nr of predictions	44

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.48	0.39	0.64	7	517	4	0	4	0	11
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.70	0.69	0.71	20	2412	13	1	7	5	9
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
3J0L_h	-	0.81	0.66	1.00	21	2119	0	0	0	0	11
3J0L_a	-	0.21	0.18	0.29	2	404	6	3	2	1	9
3J0L_1	-	0.73	0.62	0.89	8	475	4	0	1	3	5
3J0L_8	-	0.74	0.57	1.00	4	72	0	0	0	0	3
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J16_L	tRNA links to Rfam database...	0.63	0.57	0.71	12	1142	5	0	5	0	9
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.74	0.76	0.73	16	1197	7	3	3	1	5
3J2L_3	5S_rRNA links to Rfam database...	0.71	0.68	0.74	23	2989	11	0	8	3	11
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.55	0.50	0.62	8	1280	9	1	4	4	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.90	0.85	0.97	28	1960	2	0	1	1	5
3ZEX_F	-	0.00	0.00	0.00	0	914	0	0	0	0	4
3ZEX_G	-	0.00	0.00	0.00	0	6507	0	0	0	0	45
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.74	1.00	26	2770	4	0	0	4	9
3ZEX_H	-	0.27	0.37	0.21	7	3592	26	16	10	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.34	0.31	10	5342	36	8	14	14	19
4A1C_3	5S_rRNA links to Rfam database...	0.79	0.73	0.87	27	2732	5	0	4	1	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.30	0.40	0.24	8	4482	35	13	13	9	12
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.31	0.28	0.38	8	1416	13	3	10	0	21
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FNJ_A	-	-0.05	0.00	0.00	0	239	11	0	11	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.19	0.18	0.22	5	1825	18	6	12	0	23
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	462
Total TN	53769
Total FP	448
Total FP CONTRA	100
Total FP INCONS	263
Total FP COMP	85
Total FN	300

Total Scores
MCC	0.577
Average MCC ± 95% Confidence Intervals	0.654 ± 0.107
Sensitivity	0.606
Positive Predictive Value	0.560
Nr of predictions	44

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.83	0.83	0.83	15	510	3	2	1	0	3
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.48	0.55	0.43	16	2403	23	9	12	2	13
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.38	0.27	0.60	3	202	3	0	2	1	8
3J0L_h	-	0.67	0.66	0.70	21	2110	11	4	5	2	11
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_7	-	0.38	0.50	0.31	5	503	12	3	8	1	5
3J0L_g	-	-0.02	0.00	0.00	0	171	5	3	2	0	2
3J0L_2	-	0.44	0.46	0.43	12	2222	23	1	15	7	14
3J16_L	tRNA links to Rfam database...	0.41	0.43	0.41	9	1137	13	1	12	0	12
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J2L_3	5S_rRNA links to Rfam database...	0.79	0.79	0.79	27	2986	12	1	6	5	7
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.33	0.36	0.32	8	1251	17	4	13	0	14
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	7	0	0	7	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.78	0.76	0.81	25	1958	7	1	5	1	8
3ZEX_F	-	0.00	0.00	0.00	0	910	12	0	4	8	4
3ZEX_G	-	0.45	0.49	0.42	22	6455	39	9	21	9	23
3ZEX_D	5S_rRNA links to Rfam database...	0.31	0.34	0.30	12	2756	28	5	23	0	23
3ZEX_H	-	0.26	0.37	0.19	7	3588	33	14	16	3	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.14	0.08	4	5322	54	13	35	6	25
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2723	30	4	25	1	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.29	8	4488	36	9	11	16	12
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.19	0.21	0.21	6	1409	23	3	19	1	23
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	2	0	0	2	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FNJ_A	-	-0.04	0.00	0.00	0	240	10	0	10	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.50	0.63	12	1183	7	0	7	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.57	0.54	0.63	15	1824	9	3	6	0	13
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
