Overview

Metric	RNASampler(20)		Alterna
MCC	0.912	>	0.671
Average MCC ± 95% Confidence Intervals	0.909 ± 0.065	>	0.704 ± 0.171
Sensitivity	0.846	>	0.680
Positive Predictive Value	0.986	>	0.674
Total TP	219	>	176
Total TN	13506	>	13467
Total FP	27	<	125
Total FP CONTRA	0	<	18
Total FP INCONS	3	<	67
Total FP COMP	24	<	40
Total FN	40	<	83
P-value	1.55268413083e-08

^top

Performance plots

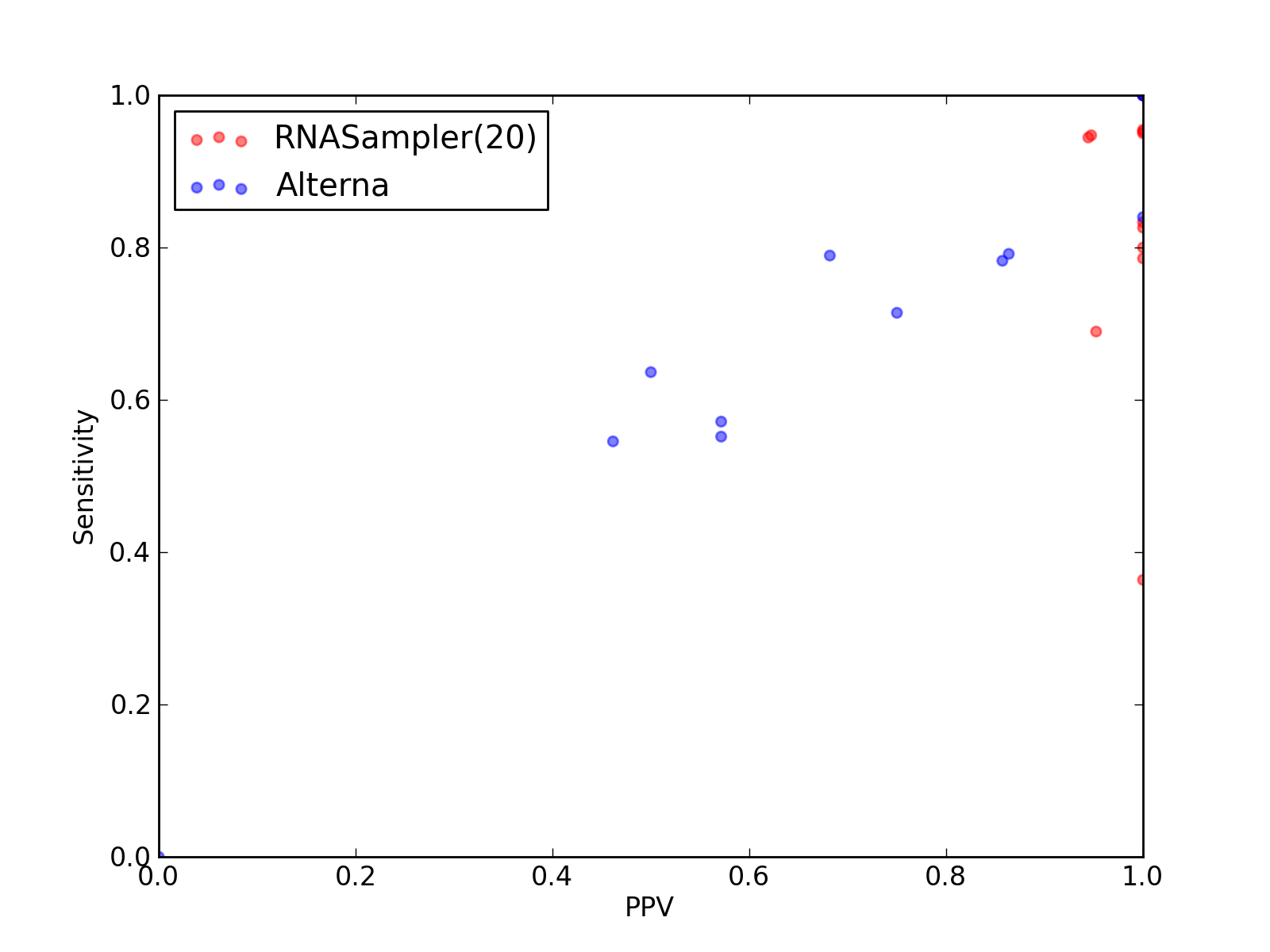

Comparison of performance of RNASampler(20) and Alterna. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and Alterna).
Comparison of performance of RNASampler(20) and Alterna. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and Alterna).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and Alterna).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and Alterna).

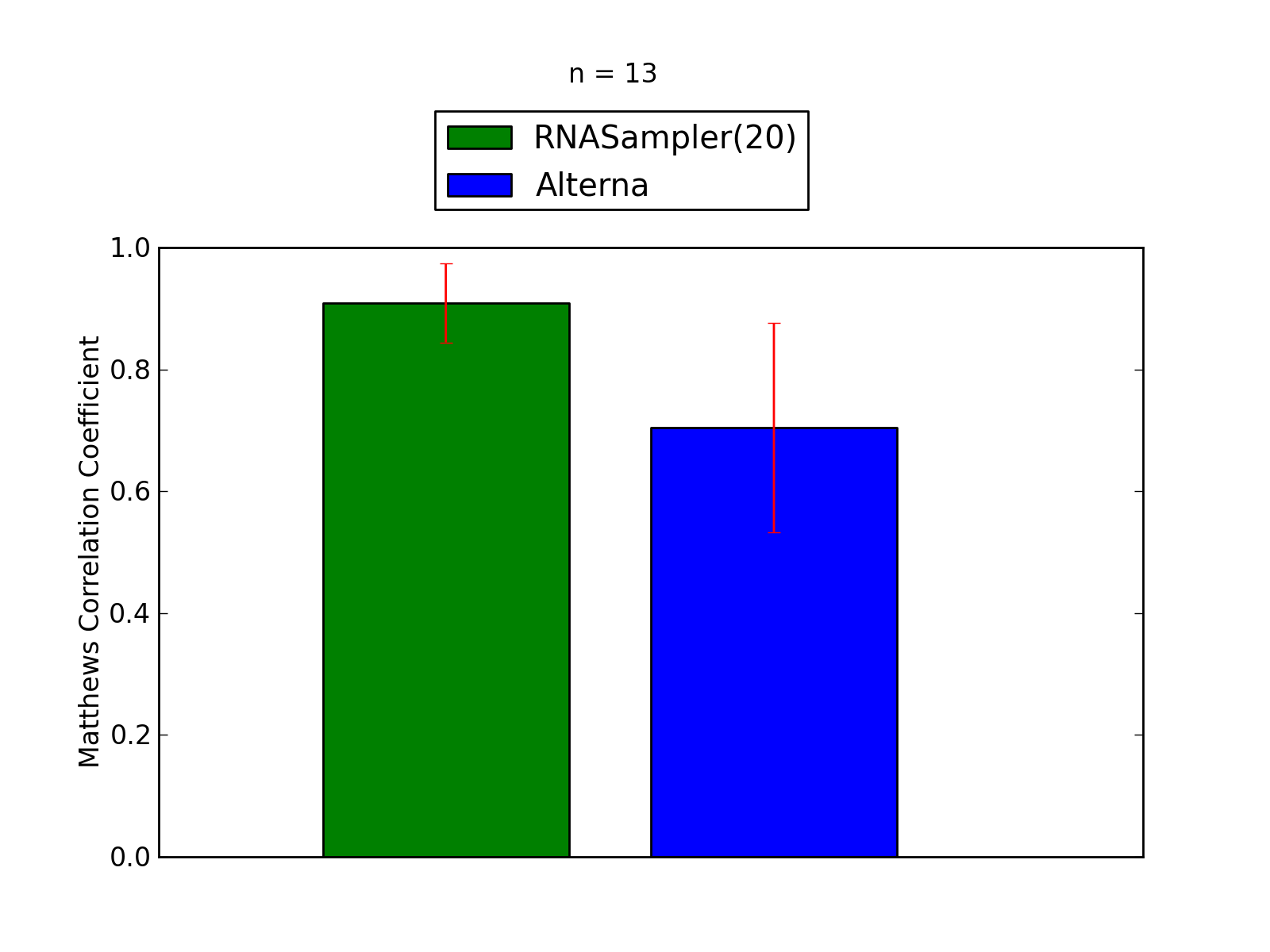

Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and Alterna. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and Alterna).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and Alterna. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and Alterna).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	219
Total TN	13506
Total FP	27
Total FP CONTRA	0
Total FP INCONS	3
Total FP COMP	24
Total FN	40

Total Scores
MCC	0.912
Average MCC ± 95% Confidence Intervals	0.909 ± 0.065
Sensitivity	0.846
Positive Predictive Value	0.986
Nr of predictions	13

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	0.95	0.95	0.95	18	1138	4	0	1	3	1
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.81	0.69	0.95	20	1512	1	0	1	0	9

^top

Performance of Alterna - scored lower in this pairwise comparison

1. Total counts & total scores for Alterna

Total Base Pair Counts
Total TP	176
Total TN	13467
Total FP	125
Total FP CONTRA	18
Total FP INCONS	67
Total FP COMP	40
Total FN	83

Total Scores
MCC	0.671
Average MCC ± 95% Confidence Intervals	0.704 ± 0.171
Sensitivity	0.680
Positive Predictive Value	0.674
Nr of predictions	13

^top

2. Individual counts for Alterna [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.56	0.64	0.50	7	1821	27	0	7	20	4
2XQD_Y	tRNA links to Rfam database...	0.73	0.71	0.75	15	1109	6	0	5	1	6
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3GX2_A	SAM links to Rfam database...	0.56	0.57	0.57	16	1421	13	4	8	1	12
3IVN_B	Purine links to Rfam database...	0.81	0.78	0.86	18	882	3	2	1	0	5
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3RKF_A	Purine links to Rfam database...	0.82	0.79	0.86	19	844	3	1	2	0	5
3SD1_A	THF links to Rfam database...	0.55	0.55	0.57	16	1505	12	4	8	0	13

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
