Overview

Metric	RNASampler(20)		HotKnots
MCC	0.751	>	0.668
Average MCC ± 95% Confidence Intervals	0.774 ± 0.073	>	0.703 ± 0.100
Sensitivity	0.663	<	0.692
Positive Predictive Value	0.856	>	0.651
Total TP	594	<	620
Total TN	92168	>	91910
Total FP	209	<	476
Total FP CONTRA	41	<	105
Total FP INCONS	59	<	227
Total FP COMP	109	<	144
Total FN	302	>	276
P-value	3.56938820447e-08

^top

Performance plots

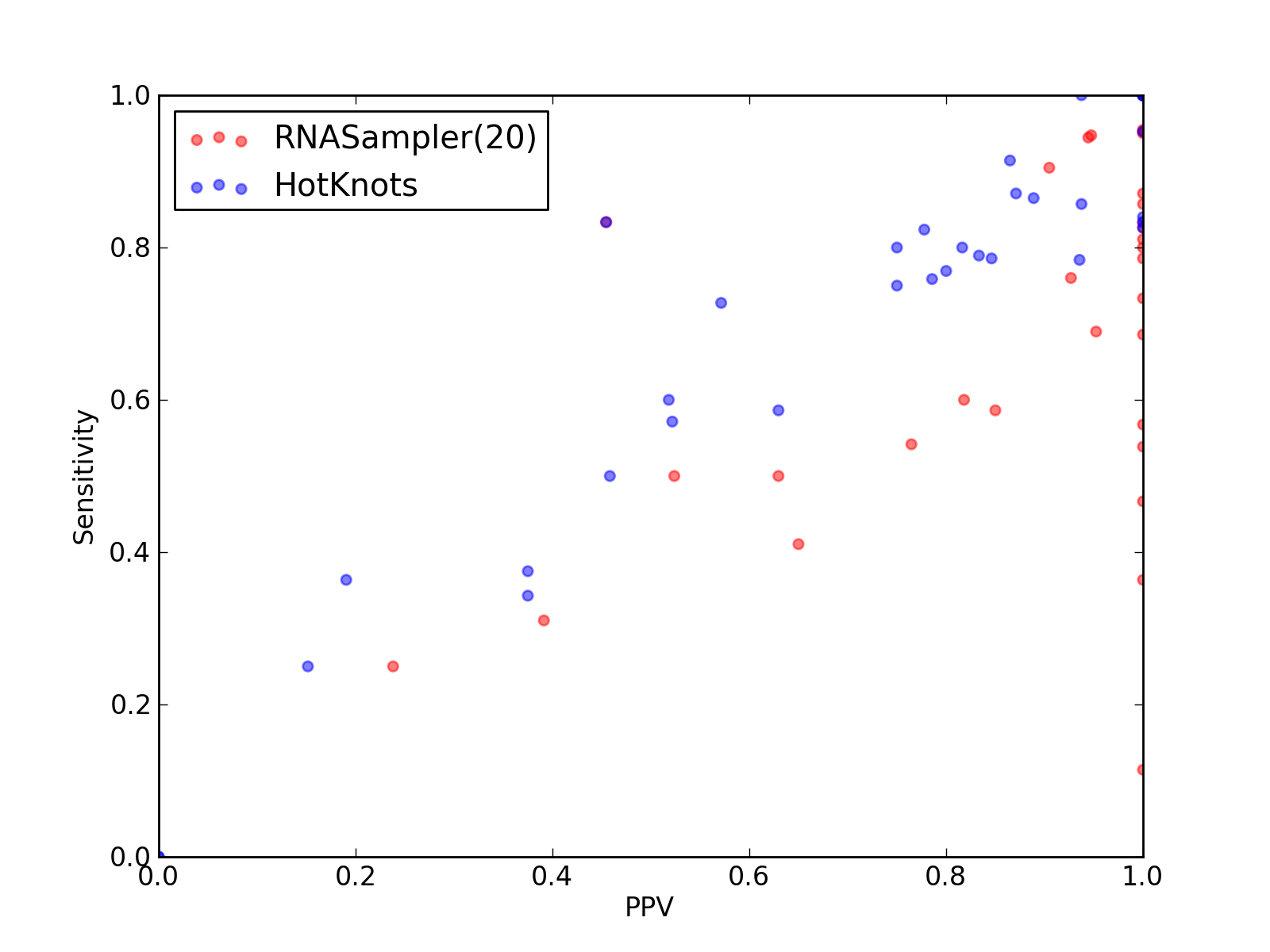

Comparison of performance of RNASampler(20) and HotKnots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).
Comparison of performance of RNASampler(20) and HotKnots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and HotKnots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and HotKnots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and HotKnots).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	594
Total TN	92168
Total FP	209
Total FP CONTRA	41
Total FP INCONS	59
Total FP COMP	109
Total FN	302

Total Scores
MCC	0.751
Average MCC ± 95% Confidence Intervals	0.774 ± 0.073
Sensitivity	0.663
Positive Predictive Value	0.856
Nr of predictions	34

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.11	1.00	4	2041	0	0	0	0	31
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	0.95	0.95	0.95	18	1138	4	0	1	3	1
3G4S_9	5S_rRNA links to Rfam database...	0.73	0.54	1.00	14	2722	4	0	0	4	12
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.52	0.41	0.65	39	25476	26	15	6	5	56
3IZF_C	5S_rRNA links to Rfam database...	0.92	0.86	1.00	30	2610	2	0	0	2	5
3J20_0	tRNA links to Rfam database...	0.90	0.90	0.90	19	1198	3	1	1	1	2
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.50	0.63	17	2993	12	3	7	2	17
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	26	10	2	14	2
3JYX_3	5S_rRNA links to Rfam database...	0.70	0.60	0.82	9	2367	14	0	2	12	6
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	0.75	0.57	1.00	21	2257	5	0	0	5	16
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	5	0	0	5	4
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.50	0.52	11	4743	19	5	5	9	11
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	5	1	2	2	12
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.81	0.69	0.95	20	1512	1	0	1	0	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.35	0.31	0.39	9	5351	21	3	11	7	20
3ZEX_D	5S_rRNA links to Rfam database...	0.83	0.69	1.00	24	2772	1	0	0	1	11
4A1C_3	5S_rRNA links to Rfam database...	0.90	0.81	1.00	30	2733	0	0	0	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.25	0.24	5	4495	30	3	13	14	15
4AOB_A	SAM links to Rfam database...	0.70	0.59	0.85	17	1417	4	0	3	1	12
4ENB_A	crcB links to Rfam database...	0.68	0.47	1.00	7	465	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	0	0	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.64	0.54	0.76	13	1185	4	0	4	0	11

^top

Performance of HotKnots - scored lower in this pairwise comparison

1. Total counts & total scores for HotKnots

Total Base Pair Counts
Total TP	620
Total TN	91910
Total FP	476
Total FP CONTRA	105
Total FP INCONS	227
Total FP COMP	144
Total FN	276

Total Scores
MCC	0.668
Average MCC ± 95% Confidence Intervals	0.703 ± 0.100
Sensitivity	0.692
Positive Predictive Value	0.651
Nr of predictions	34

^top

2. Individual counts for HotKnots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3G4S_9	5S_rRNA links to Rfam database...	0.78	0.77	0.80	20	2711	14	2	3	9	6
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	8	0	5	3	5
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3O58_3	5_8S_rRNA links to Rfam database...	0.26	0.36	0.19	8	4722	35	16	18	1	14
3PDR_A	ykoK links to Rfam database...	0.81	0.80	0.82	40	4791	11	3	6	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3ZEX_C	5_8S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	5328	46	11	35	0	29
3ZEX_D	5S_rRNA links to Rfam database...	0.90	0.86	0.94	30	2764	6	0	2	4	5
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	12	16	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
