Overview

Metric	RNASampler(20)		Murlet(seed)
MCC	0.701	>	0.557
Average MCC ± 95% Confidence Intervals	0.708 ± 0.107	>	0.559 ± 0.058
Sensitivity	0.610	>	0.355
Positive Predictive Value	0.813	<	0.880
Total TP	278	>	162
Total TN	39909	<	40067
Total FP	120	>	34
Total FP CONTRA	22	>	4
Total FP INCONS	42	>	18
Total FP COMP	56	>	12
Total FN	178	<	294
P-value	2.78993384543e-08

^top

Performance plots

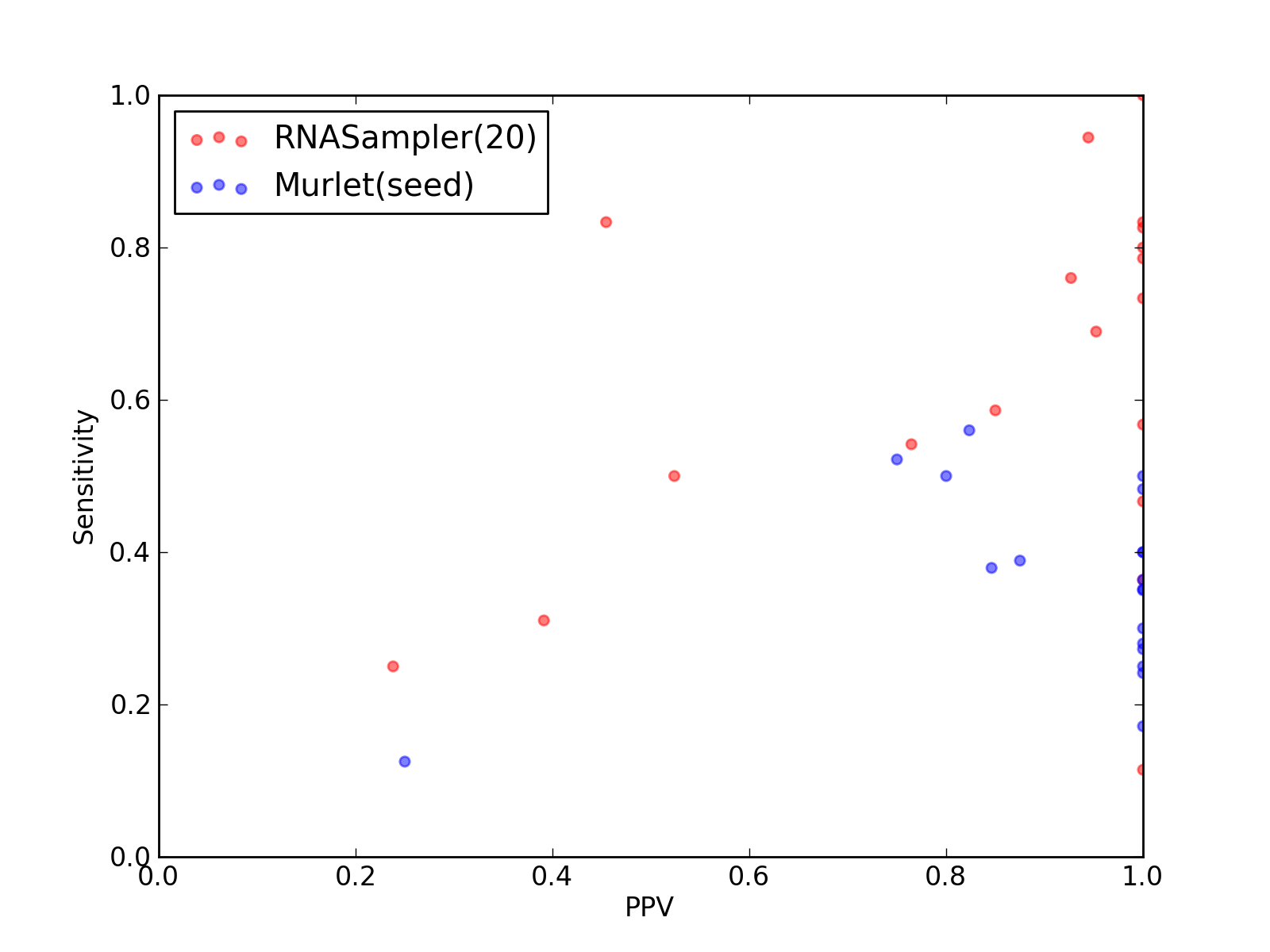

Comparison of performance of RNASampler(20) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).
Comparison of performance of RNASampler(20) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).

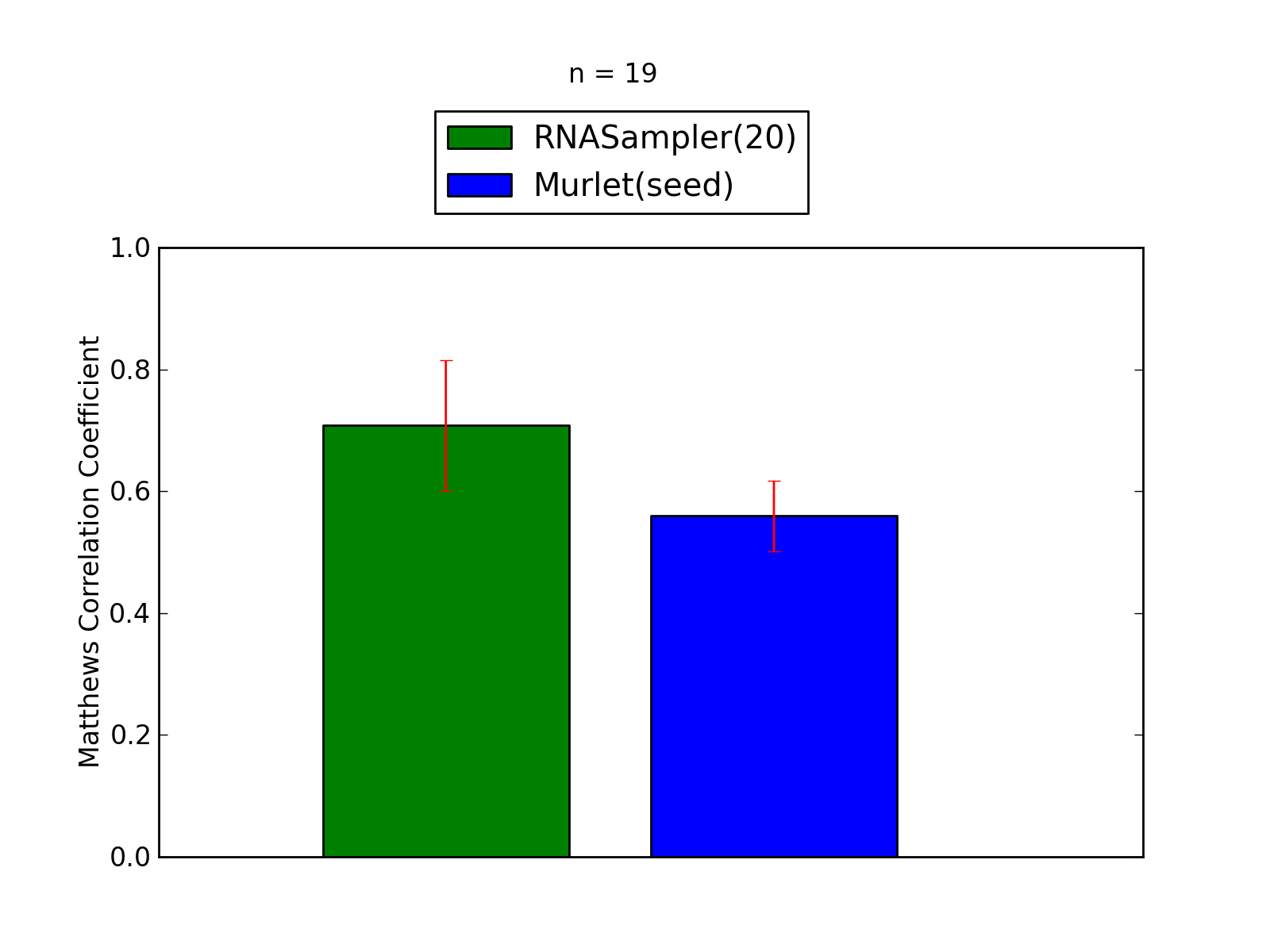

Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and Murlet(seed)).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	278
Total TN	39909
Total FP	120
Total FP CONTRA	22
Total FP INCONS	42
Total FP COMP	56
Total FN	178

Total Scores
MCC	0.701
Average MCC ± 95% Confidence Intervals	0.708 ± 0.107
Sensitivity	0.610
Positive Predictive Value	0.813
Nr of predictions	19

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.11	1.00	4	2041	0	0	0	0	31
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	26	10	2	14	2
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	0.75	0.57	1.00	21	2257	5	0	0	5	16
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.50	0.52	11	4743	19	5	5	9	11
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	5	1	2	2	12
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.81	0.69	0.95	20	1512	1	0	1	0	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.35	0.31	0.39	9	5351	21	3	11	7	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.25	0.24	5	4495	30	3	13	14	15
4AOB_A	SAM links to Rfam database...	0.70	0.59	0.85	17	1417	4	0	3	1	12
4ENB_A	crcB links to Rfam database...	0.68	0.47	1.00	7	465	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	0	0	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.64	0.54	0.76	13	1185	4	0	4	0	11

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	162
Total TN	40067
Total FP	34
Total FP CONTRA	4
Total FP INCONS	18
Total FP COMP	12
Total FN	294

Total Scores
MCC	0.557
Average MCC ± 95% Confidence Intervals	0.559 ± 0.058
Sensitivity	0.355
Positive Predictive Value	0.880
Nr of predictions	19

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.54	0.30	1.00	3	171	0	0	0	0	7
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	2039	0	0	0	0	29
3GX2_A	SAM links to Rfam database...	0.70	0.50	1.00	14	1435	1	0	0	1	14
3IVN_B	Purine links to Rfam database...	0.62	0.52	0.75	12	887	4	2	2	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	3	4753	4	0	0	4	9
3LA5_A	Purine links to Rfam database...	0.67	0.56	0.82	14	937	3	1	2	0	11
3NPB_A	SAM links to Rfam database...	0.59	0.35	1.00	13	2265	2	0	0	2	24
3O58_3	5_8S_rRNA links to Rfam database...	0.52	0.27	1.00	6	4758	1	0	0	1	16
3PDR_A	ykoK links to Rfam database...	0.53	0.28	1.00	14	4826	0	0	0	0	36
3RKF_A	Purine links to Rfam database...	0.62	0.50	0.80	12	851	3	1	2	0	12
3SD1_A	THF links to Rfam database...	0.56	0.38	0.85	11	1520	2	0	2	0	18
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.24	1.00	7	5367	0	0	0	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.59	0.35	1.00	7	4509	0	0	0	0	13
4AOB_A	SAM links to Rfam database...	0.69	0.48	1.00	14	1423	1	0	0	1	15
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.13	0.25	3	1190	9	0	9	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
