Overview

Metric	RNASampler(seed)		Murlet(20)
MCC	0.670	>	0.585
Average MCC ± 95% Confidence Intervals	0.695 ± 0.170	>	0.598 ± 0.171
Sensitivity	0.604	>	0.540
Positive Predictive Value	0.748	>	0.639
Total TP	113	>	101
Total TN	23092	>	23085
Total FP	63	<	81
Total FP CONTRA	17	<	18
Total FP INCONS	21	<	39
Total FP COMP	25	>	24
Total FN	74	<	86
P-value	0.0

^top

Performance plots

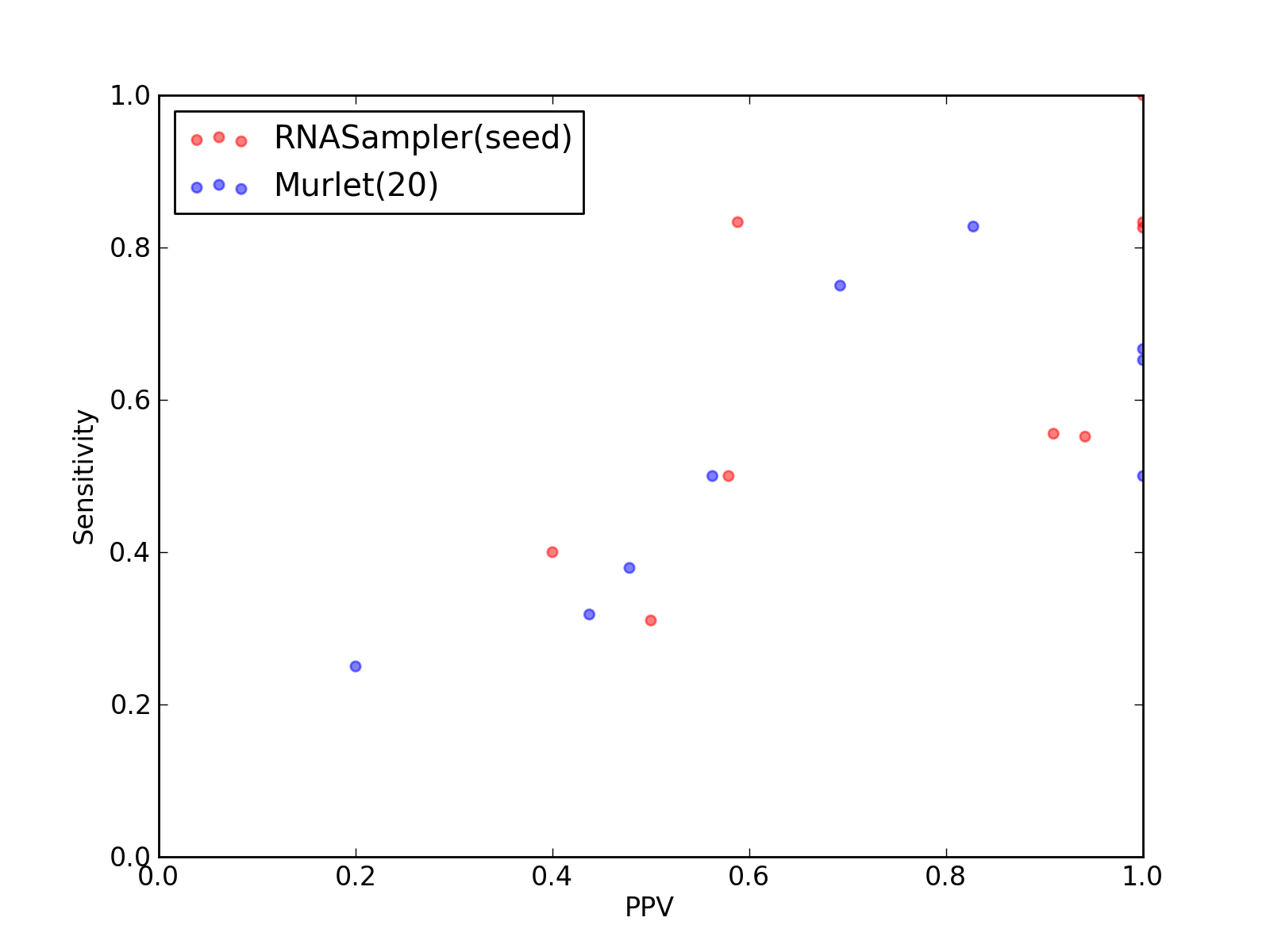

Comparison of performance of RNASampler(seed) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).
Comparison of performance of RNASampler(seed) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).

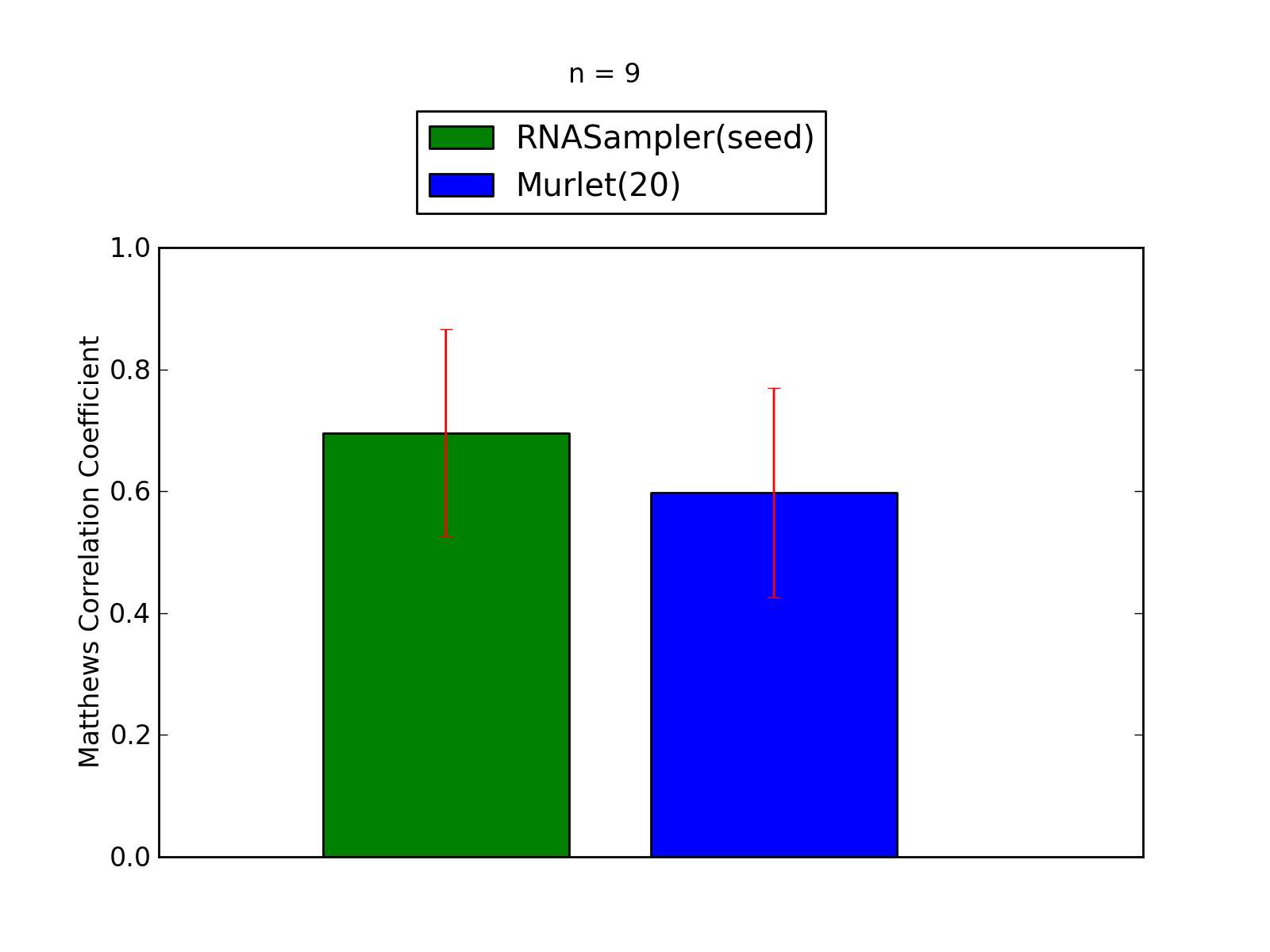

Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(seed) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(seed) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(seed) and Murlet(20)).

^top

Performance of RNASampler(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(seed)

Total Base Pair Counts
Total TP	113
Total TN	23092
Total FP	63
Total FP CONTRA	17
Total FP INCONS	21
Total FP COMP	25
Total FN	74

Total Scores
MCC	0.670
Average MCC ± 95% Confidence Intervals	0.695 ± 0.170
Sensitivity	0.604
Positive Predictive Value	0.748
Nr of predictions	9

^top

2. Individual counts for RNASampler(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.70	0.56	0.91	10	346	2	0	1	1	8
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3JYX_4	5_8S_rRNA links to Rfam database...	0.70	0.83	0.59	10	4739	13	6	1	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	13	5	3	5	11
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.72	0.55	0.94	16	1516	1	0	1	0	13
3ZEX_C	5_8S_rRNA links to Rfam database...	0.39	0.31	0.50	9	5356	14	2	7	5	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.40	0.40	0.40	8	4496	20	4	8	8	12

^top

Performance of Murlet(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	101
Total TN	23085
Total FP	81
Total FP CONTRA	18
Total FP INCONS	39
Total FP COMP	24
Total FN	86

Total Scores
MCC	0.585
Average MCC ± 95% Confidence Intervals	0.598 ± 0.171
Sensitivity	0.540
Positive Predictive Value	0.639
Nr of predictions	9

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.70	0.50	1.00	5	169	0	0	0	0	5
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
3IVN_B	Purine links to Rfam database...	0.80	0.65	1.00	15	888	0	0	0	0	8
3JYX_4	5_8S_rRNA links to Rfam database...	0.72	0.75	0.69	9	4743	15	3	1	11	3
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.32	0.44	7	4748	13	4	5	4	15
3RKF_A	Purine links to Rfam database...	0.81	0.67	1.00	16	850	0	0	0	0	8
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	4	1	0	5
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.38	0.48	11	5351	16	2	10	4	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.20	5	4491	24	5	15	4	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
