Overview

Metric	RNAalifold(20)		Mastr(20)
MCC	0.790	>	0.620
Average MCC ± 95% Confidence Intervals	0.783 ± 0.071	>	0.584 ± 0.128
Sensitivity	0.704	>	0.473
Positive Predictive Value	0.891	>	0.819
Total TP	631	>	424
Total TN	92154	<	92344
Total FP	174	=	174
Total FP CONTRA	24	>	16
Total FP INCONS	53	<	78
Total FP COMP	97	>	80
Total FN	265	<	472
P-value	3.56938820447e-08

^top

Performance plots

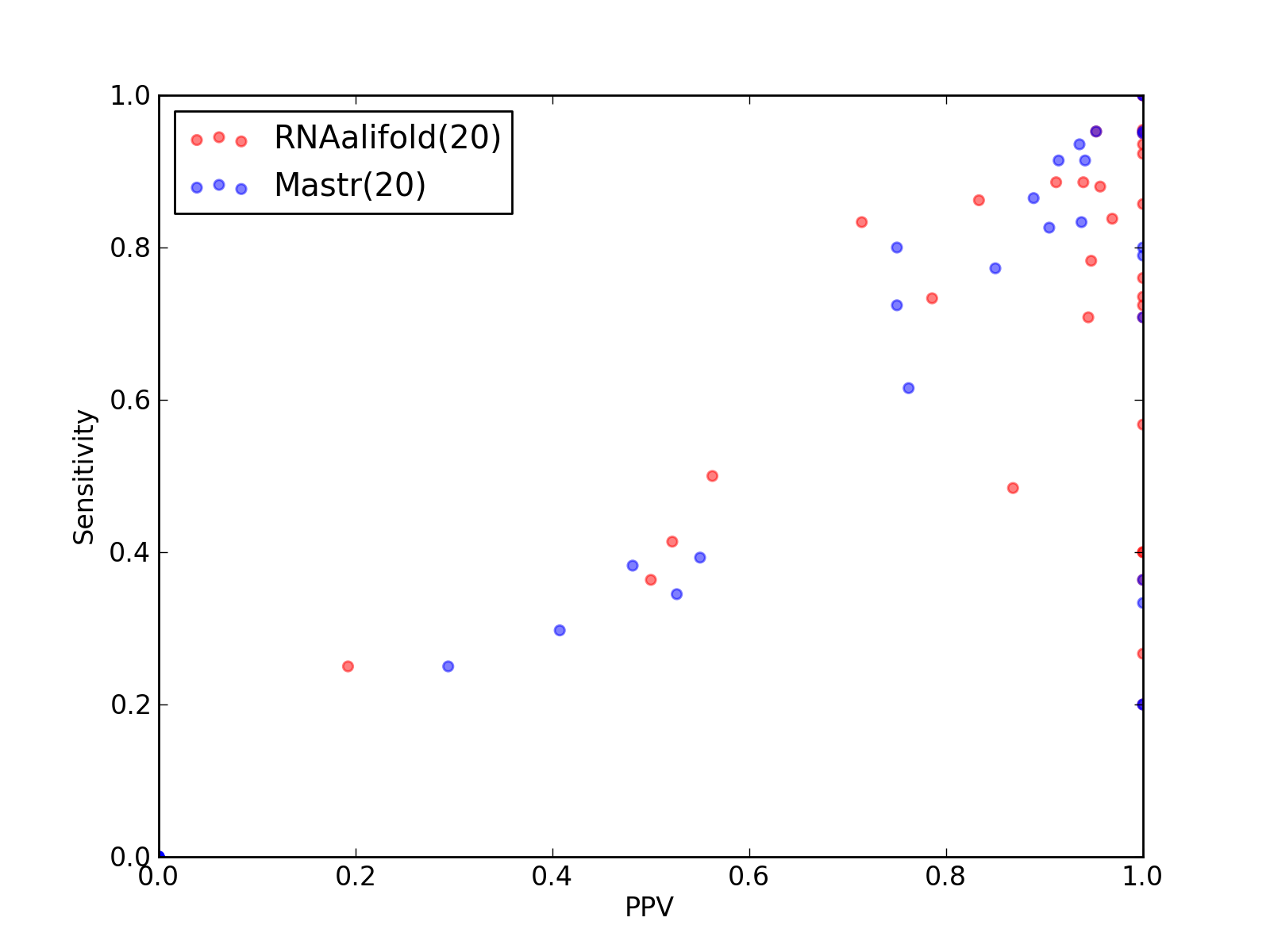

Comparison of performance of RNAalifold(20) and Mastr(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).
Comparison of performance of RNAalifold(20) and Mastr(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).

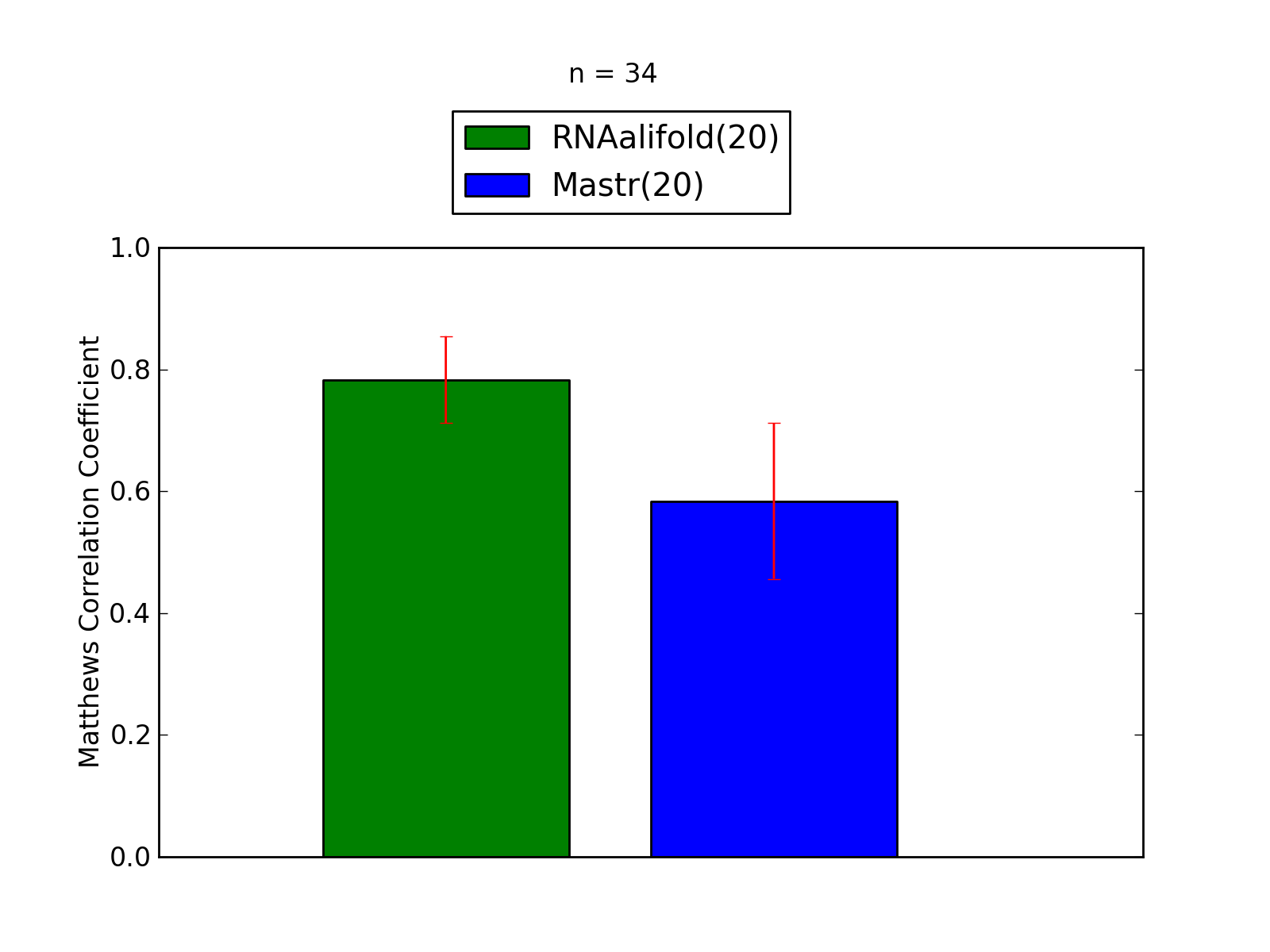

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Mastr(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Mastr(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Mastr(20)).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	631
Total TN	92154
Total FP	174
Total FP CONTRA	24
Total FP INCONS	53
Total FP COMP	97
Total FN	265

Total Scores
MCC	0.790
Average MCC ± 95% Confidence Intervals	0.783 ± 0.071
Sensitivity	0.704
Positive Predictive Value	0.891
Nr of predictions	34

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.62	0.40	1.00	4	170	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	2	0	0	2	0
3G4S_9	5S_rRNA links to Rfam database...	0.96	0.92	1.00	24	2712	7	0	0	7	2
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.78	0.95	18	884	1	1	0	0	5
3IZ4_A	tmRNA links to Rfam database...	0.65	0.48	0.87	46	25483	15	4	3	8	49
3IZF_C	5S_rRNA links to Rfam database...	0.90	0.89	0.91	31	2606	6	0	3	3	4
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	1	1	0	0	1
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J2L_3	5S_rRNA links to Rfam database...	0.86	0.74	1.00	25	2995	2	0	0	2	9
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_4	5_8S_rRNA links to Rfam database...	0.77	0.83	0.71	10	4742	15	3	1	11	2
3JYX_3	5S_rRNA links to Rfam database...	0.76	0.73	0.79	11	2364	20	0	3	17	4
3LA5_A	Purine links to Rfam database...	0.87	0.76	1.00	19	935	0	0	0	0	6
3NPB_A	SAM links to Rfam database...	0.75	0.57	1.00	21	2257	4	0	0	4	16
3O58_2	5S_rRNA links to Rfam database...	0.97	0.94	1.00	29	2725	7	0	0	7	2
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.36	0.50	8	4748	9	3	5	1	14
3PDR_A	ykoK links to Rfam database...	0.92	0.88	0.96	44	4794	3	1	1	1	6
3RKF_A	Purine links to Rfam database...	0.81	0.71	0.94	17	848	1	0	1	0	7
3SD1_A	THF links to Rfam database...	0.84	0.86	0.83	25	1503	5	4	1	0	4
3ZEX_C	5_8S_rRNA links to Rfam database...	0.46	0.41	0.52	12	5351	16	2	9	5	17
3ZEX_D	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2763	6	0	2	4	4
4A1C_3	5S_rRNA links to Rfam database...	0.90	0.84	0.97	31	2731	1	0	1	0	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	23	5	16	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.84	0.71	1.00	17	1185	0	0	0	0	7

^top

Performance of Mastr(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(20)

Total Base Pair Counts
Total TP	424
Total TN	92344
Total FP	174
Total FP CONTRA	16
Total FP INCONS	78
Total FP COMP	80
Total FN	472

Total Scores
MCC	0.620
Average MCC ± 95% Confidence Intervals	0.584 ± 0.128
Sensitivity	0.473
Positive Predictive Value	0.819
Nr of predictions	34

^top

2. Individual counts for Mastr(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.88	0.83	0.94	15	341	2	0	1	1	3
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3A2K_C	tRNA links to Rfam database...	0.81	0.77	0.85	17	1088	3	0	3	0	5
3AMU_B	tRNA links to Rfam database...	0.89	0.79	1.00	15	1142	2	0	0	2	4
3G4S_9	5S_rRNA links to Rfam database...	0.68	0.62	0.76	16	2715	10	2	3	5	10
3GX2_A	SAM links to Rfam database...	0.46	0.39	0.55	11	1429	10	2	7	1	17
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	25536	0	0	0	0	95
3IZF_C	5S_rRNA links to Rfam database...	0.91	0.91	0.91	32	2605	9	0	3	6	3
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J20_1	tRNA links to Rfam database...	0.26	0.25	0.29	5	1095	12	1	11	0	15
3J2L_3	5S_rRNA links to Rfam database...	0.42	0.38	0.48	13	2993	16	2	12	2	21
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4756	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	26	0	4	22	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	0.34	0.30	0.41	11	2251	18	1	15	2	26
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	12	0	2	10	2
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.71	1.00	17	849	0	0	0	0	7
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
3ZEX_D	5S_rRNA links to Rfam database...	0.93	0.91	0.94	32	2762	7	0	2	5	3
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.42	0.34	0.53	10	1418	10	1	8	1	19
4ENB_A	crcB links to Rfam database...	0.44	0.20	1.00	3	469	0	0	0	0	12
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
