Overview

Metric	RNAalifold(20)		Murlet(seed)
MCC	0.701	>	0.557
Average MCC ± 95% Confidence Intervals	0.676 ± 0.098	>	0.559 ± 0.058
Sensitivity	0.603	>	0.355
Positive Predictive Value	0.821	<	0.880
Total TP	275	>	162
Total TN	39916	<	40067
Total FP	91	>	34
Total FP CONTRA	19	>	4
Total FP INCONS	41	>	18
Total FP COMP	31	>	12
Total FN	181	<	294
P-value	2.41358941668e-08

^top

Performance plots

Comparison of performance of RNAalifold(20) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).
Comparison of performance of RNAalifold(20) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).

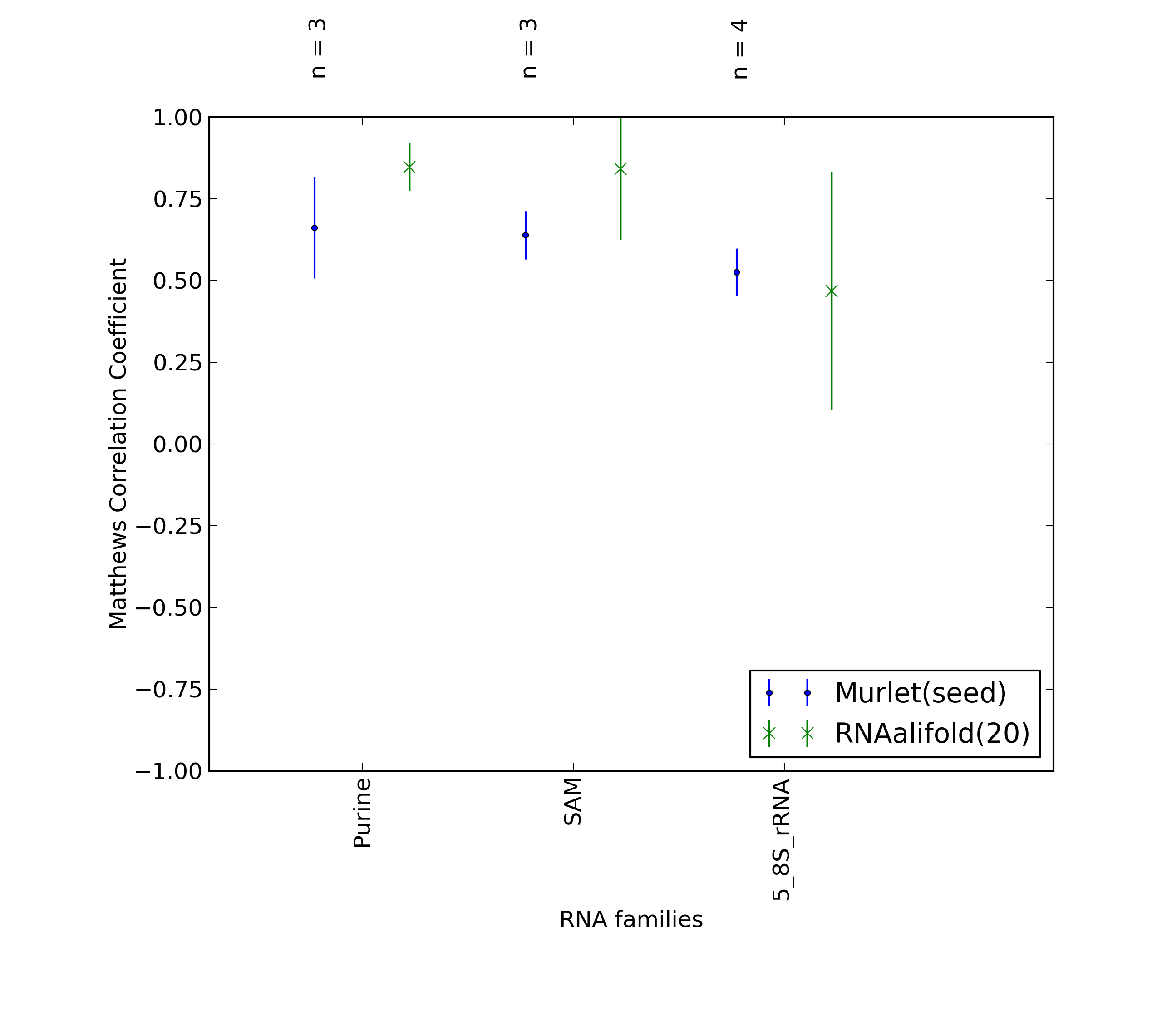

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(seed)).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	275
Total TN	39916
Total FP	91
Total FP CONTRA	19
Total FP INCONS	41
Total FP COMP	31
Total FN	181

Total Scores
MCC	0.701
Average MCC ± 95% Confidence Intervals	0.676 ± 0.098
Sensitivity	0.603
Positive Predictive Value	0.821
Nr of predictions	19

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.62	0.40	1.00	4	170	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.78	0.95	18	884	1	1	0	0	5
3JYX_4	5_8S_rRNA links to Rfam database...	0.77	0.83	0.71	10	4742	15	3	1	11	2
3LA5_A	Purine links to Rfam database...	0.87	0.76	1.00	19	935	0	0	0	0	6
3NPB_A	SAM links to Rfam database...	0.75	0.57	1.00	21	2257	4	0	0	4	16
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.36	0.50	8	4748	9	3	5	1	14
3PDR_A	ykoK links to Rfam database...	0.92	0.88	0.96	44	4794	3	1	1	1	6
3RKF_A	Purine links to Rfam database...	0.81	0.71	0.94	17	848	1	0	1	0	7
3SD1_A	THF links to Rfam database...	0.84	0.86	0.83	25	1503	5	4	1	0	4
3ZEX_C	5_8S_rRNA links to Rfam database...	0.46	0.41	0.52	12	5351	16	2	9	5	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	23	5	16	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.84	0.71	1.00	17	1185	0	0	0	0	7

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	162
Total TN	40067
Total FP	34
Total FP CONTRA	4
Total FP INCONS	18
Total FP COMP	12
Total FN	294

Total Scores
MCC	0.557
Average MCC ± 95% Confidence Intervals	0.559 ± 0.058
Sensitivity	0.355
Positive Predictive Value	0.880
Nr of predictions	19

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.54	0.30	1.00	3	171	0	0	0	0	7
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	2039	0	0	0	0	29
3GX2_A	SAM links to Rfam database...	0.70	0.50	1.00	14	1435	1	0	0	1	14
3IVN_B	Purine links to Rfam database...	0.62	0.52	0.75	12	887	4	2	2	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	3	4753	4	0	0	4	9
3LA5_A	Purine links to Rfam database...	0.67	0.56	0.82	14	937	3	1	2	0	11
3NPB_A	SAM links to Rfam database...	0.59	0.35	1.00	13	2265	2	0	0	2	24
3O58_3	5_8S_rRNA links to Rfam database...	0.52	0.27	1.00	6	4758	1	0	0	1	16
3PDR_A	ykoK links to Rfam database...	0.53	0.28	1.00	14	4826	0	0	0	0	36
3RKF_A	Purine links to Rfam database...	0.62	0.50	0.80	12	851	3	1	2	0	12
3SD1_A	THF links to Rfam database...	0.56	0.38	0.85	11	1520	2	0	2	0	18
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.24	1.00	7	5367	0	0	0	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.59	0.35	1.00	7	4509	0	0	0	0	13
4AOB_A	SAM links to Rfam database...	0.69	0.48	1.00	14	1423	1	0	0	1	15
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.13	0.25	3	1190	9	0	9	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
