Overview

Metric	RNAsubopt		MCFold
MCC	0.734	>	0.622
Average MCC ± 95% Confidence Intervals	0.749 ± 0.055	>	0.657 ± 0.062
Sensitivity	0.757	>	0.663
Positive Predictive Value	0.721	>	0.597
Total TP	1646	>	1441
Total TN	133924	>	133792
Total FP	931	<	1310
Total FP CONTRA	192	<	262
Total FP INCONS	445	<	712
Total FP COMP	294	<	336
Total FN	529	<	734
P-value	3.56938820447e-08

^top

Performance plots

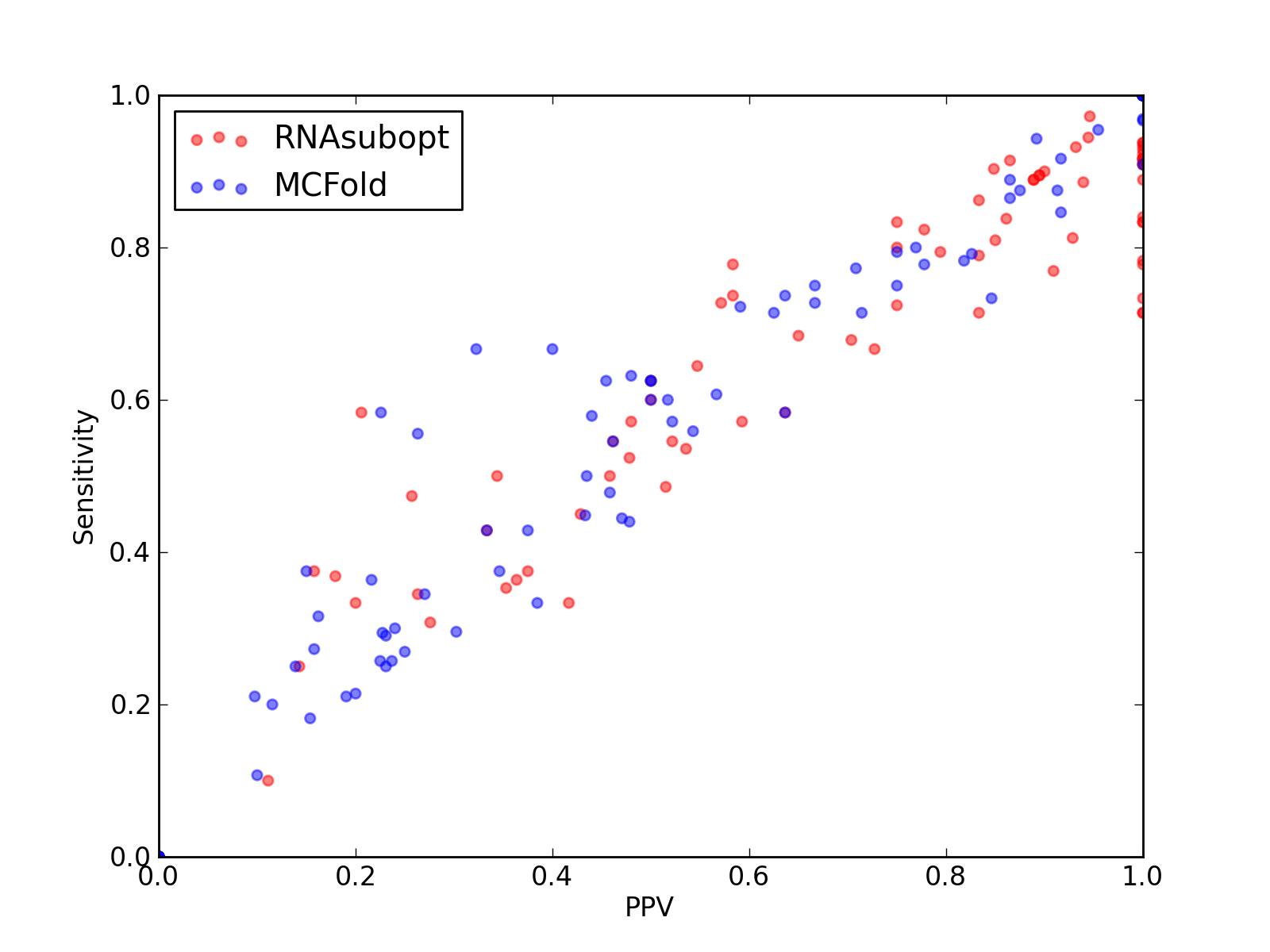

Comparison of performance of RNAsubopt and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and MCFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and MCFold).

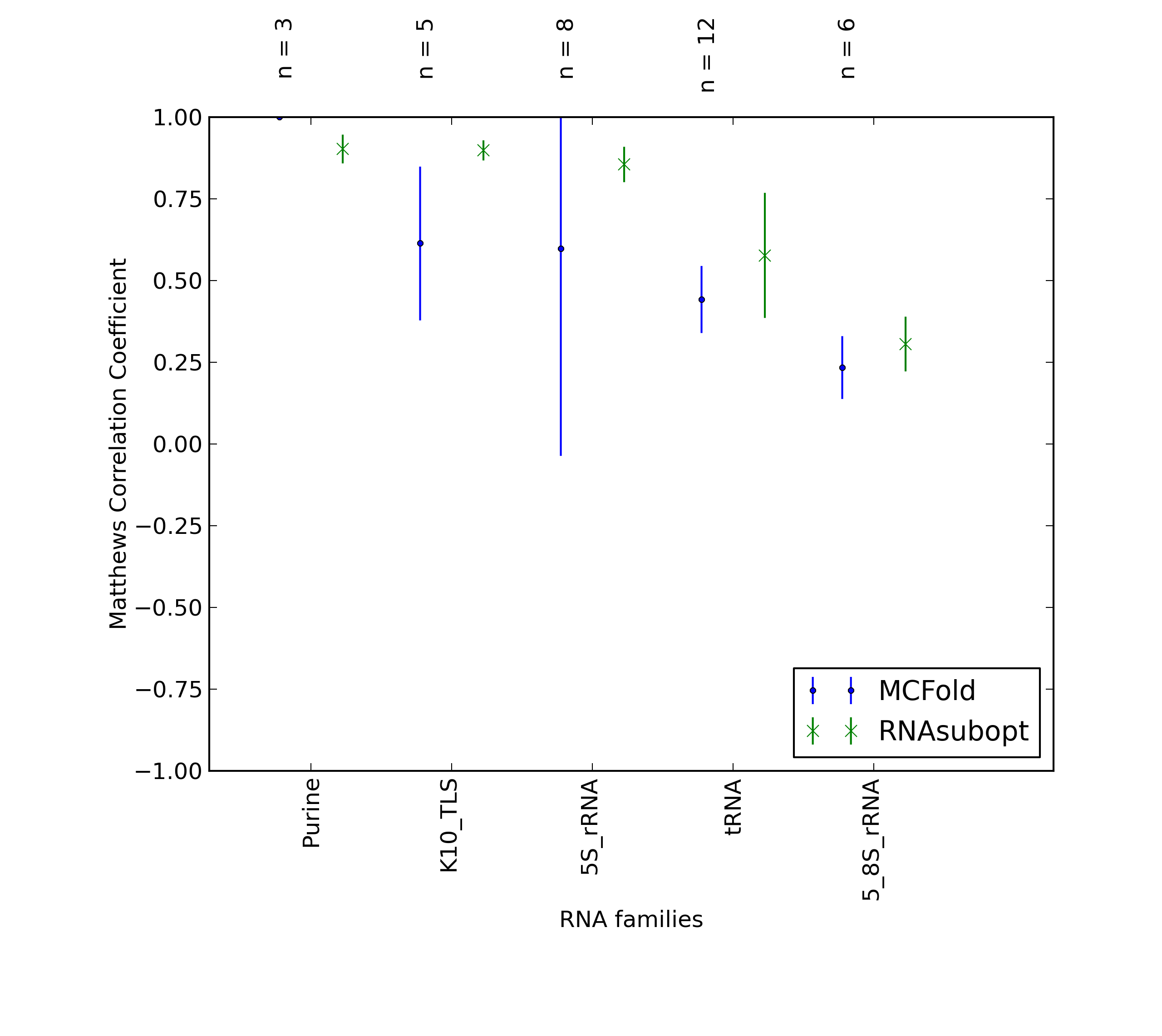

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and MCFold).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	1646
Total TN	133924
Total FP	931
Total FP CONTRA	192
Total FP INCONS	445
Total FP COMP	294
Total FN	529

Total Scores
MCC	0.734
Average MCC ± 95% Confidence Intervals	0.749 ± 0.055
Sensitivity	0.757
Positive Predictive Value	0.721
Nr of predictions	131

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.95	0.91	1.00	10	176	0	0	0	0	1
2K63_A	-	0.94	0.89	1.00	8	160	0	0	0	0	1
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	0.87	0.78	1.00	7	101	0	0	0	0	2
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	449	3	0	2	1	2
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KGP_A	-	1.00	1.00	1.00	9	112	0	0	0	0	0
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	448	2	0	2	0	2
2KUU_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	429	3	0	2	1	2
2KUV_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	420	2	0	2	0	2
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	0.97	0.94	1.00	15	356	0	0	0	0	1
2KXM_A	-	1.00	1.00	1.00	8	141	0	0	0	0	0
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	21	742	0	0	0	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.96	0.92	1.00	22	769	0	0	0	0	2
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	0.96	0.93	1.00	13	226	0	0	0	0	1
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.85	0.86	0.83	25	2410	14	0	5	9	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LU0_A	-	1.00	1.00	1.00	16	422	0	0	0	0	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2M58_A	-	0.60	0.58	0.64	7	533	4	1	3	0	5
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	1.00	1.00	1.00	7	68	0	0	0	0	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WW9_F	-	0.52	0.63	0.50	5	102	5	1	4	0	3
2WW9_D	-	0.09	0.10	0.11	1	732	13	2	6	5	9
2WW9_E	-	-0.03	0.00	0.00	0	168	5	0	4	1	5
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.49	0.49	0.52	17	2012	17	1	15	1	18
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	1.00	1.00	1.00	7	537	4	0	0	4	0
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZN_D	tRNA links to Rfam database...	0.52	0.55	0.52	12	961	11	3	8	0	10
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.43	0.45	0.43	9	1106	14	3	9	2	11
3AM1_B	-	1.00	1.00	1.00	29	1437	0	0	0	0	0
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3DW4_A	-	-0.03	0.00	0.00	0	136	6	1	3	2	6
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.53	0.54	0.54	15	1421	14	4	9	1	13
3HAY_E	-	1.00	1.00	1.00	14	910	4	0	0	4	0
3HJW_D	-	0.97	0.94	1.00	15	594	2	0	0	2	1
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.54	0.60	0.50	3	223	5	1	2	2	2
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3IWN_A	c-di-GMP-I links to Rfam database...	0.69	0.68	0.70	19	1445	9	1	7	1	9
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_2	-	0.28	0.31	0.28	8	2221	25	2	19	4	18
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J16_L	tRNA links to Rfam database...	0.49	0.52	0.48	11	1136	12	3	9	0	10
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	2	11	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	13	1	7	5	6
3J3D_C	tRNA links to Rfam database...	0.65	0.74	0.58	14	944	10	5	5	0	5
3J3E_8	5_8S_rRNA links to Rfam database...	0.25	0.33	0.20	5	2717	32	7	13	12	10
3J3E_7	5S_rRNA links to Rfam database...	0.79	0.79	0.79	27	2707	12	2	5	5	7
3J3F_7	5S_rRNA links to Rfam database...	0.96	0.97	0.95	35	2897	4	1	1	2	1
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.47	0.26	9	4726	42	13	13	16	10
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1090	21	4	17	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	26	0	4	22	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.34	0.58	0.21	7	4722	38	20	7	11	5
3KTW_C	-	1.00	1.00	1.00	25	1755	8	0	0	8	0
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.93	0.93	0.93	41	3670	9	0	3	6	3
3NKB_B	-	0.66	0.68	0.65	13	715	7	0	7	0	6
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3O58_2	5S_rRNA links to Rfam database...	0.87	0.90	0.85	28	2721	13	0	5	8	3
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
3ZEX_G	-	0.59	0.64	0.55	29	6454	34	12	12	10	16
3ZEX_F	-	-0.01	0.00	0.00	0	908	11	2	4	5	4
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
3ZEX_H	-	0.25	0.37	0.18	7	3586	32	20	12	0	12
3ZEX_D	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2763	6	0	2	4	4
3ZND_W	tRNA links to Rfam database...	0.24	0.38	0.16	3	1172	25	9	7	9	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4481	43	13	17	13	15
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10
4FNJ_A	-	0.91	0.83	1.00	10	240	0	0	0	0	2
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.58	0.57	0.59	16	1821	11	3	8	0	12
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.69	0.67	0.73	16	1060	6	4	2	0	8
4JRC_A	-	0.34	0.35	0.35	6	605	11	0	11	0	11

^top

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	1441
Total TN	133792
Total FP	1310
Total FP CONTRA	262
Total FP INCONS	712
Total FP COMP	336
Total FN	734

Total Scores
MCC	0.622
Average MCC ± 95% Confidence Intervals	0.657 ± 0.062
Sensitivity	0.663
Positive Predictive Value	0.597
Nr of predictions	131

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	175	0	0	0	0	0
2K63_A	-	1.00	1.00	1.00	9	159	4	0	0	4	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	1	0	0	1	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	1	0	0	1	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.54	0.63	0.50	5	226	5	2	3	0	3
2KGP_A	-	1.00	1.00	1.00	9	112	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	157	1	0	0	1	0
2KPV_A	-	1.00	1.00	1.00	13	200	0	0	0	0	0
2KU0_A	-	1.00	1.00	1.00	12	280	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	1.00	1.00	1.00	8	141	1	0	0	1	0
2KZL_A	-	1.00	1.00	1.00	13	507	5	0	0	5	0
2L1F_A	Gammaretro_CES links to Rfam database...	0.79	0.78	0.82	18	741	4	0	4	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.80	0.79	0.83	19	768	4	0	4	0	5
2L2K_A	-	1.00	1.00	1.00	17	332	1	0	0	1	0
2L3C_B	-	1.00	1.00	1.00	14	225	1	0	0	1	0
2L3E_A	-	1.00	1.00	1.00	12	228	2	0	0	2	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	-0.03	0.00	0.00	0	265	10	0	10	0	7
2LBS_A	-	1.00	1.00	1.00	14	193	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.44	0.47	8	511	10	0	9	1	10
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	0.95	0.91	1.00	10	152	0	0	0	0	1
2LHP_A	-	1.00	1.00	1.00	15	246	1	0	0	1	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	11	0	0	11	0
2LQZ_A	-	1.00	1.00	1.00	8	124	3	0	0	3	0
2LU0_A	-	1.00	1.00	1.00	16	422	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	2	0	0	2	0
2M58_A	-	0.22	0.25	0.23	3	531	13	1	9	3	9
2RP0_A	-	0.70	0.71	0.71	5	109	2	1	1	0	2
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	1.00	1.00	1.00	7	68	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	0.38	0.56	0.26	5	1133	21	8	6	7	4
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WW9_D	-	-0.02	0.00	0.00	0	723	21	6	12	3	10
2WW9_E	-	-0.03	0.00	0.00	0	165	8	1	6	1	5
2WWQ_V	tRNA links to Rfam database...	0.19	0.21	0.19	4	1183	20	3	14	3	15
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.20	0.27	0.16	3	1816	30	4	12	14	8
2XQD_Y	tRNA links to Rfam database...	0.39	0.43	0.38	9	1105	18	2	13	3	12
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.23	0.26	0.24	9	2007	30	1	28	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	2	0	0	2	0
2Y9C_V	-	0.65	0.72	0.59	13	884	12	1	8	3	5
2YIE_Z	-	0.53	0.63	0.45	5	591	8	2	4	2	3
2YIE_X	-	-0.01	0.00	0.00	0	535	15	1	8	6	7
2ZY6_A	-	0.77	0.78	0.78	7	267	6	1	1	4	2
2ZZN_D	tRNA links to Rfam database...	0.69	0.73	0.67	16	960	11	1	7	3	6
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	29	1471	0	0	0	0	1
3AKZ_H	tRNA links to Rfam database...	0.46	0.50	0.43	10	1104	16	5	8	3	10
3AM1_B	-	1.00	1.00	1.00	29	1437	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.50	0.58	0.44	11	1132	15	4	10	1	8
3DW4_A	-	1.00	1.00	1.00	6	134	3	0	0	3	0
3GCA_A	-	-0.05	0.00	0.00	0	150	8	4	4	0	7
3GX2_A	SAM links to Rfam database...	0.58	0.61	0.57	17	1419	15	1	12	2	11
3HAY_E	-	1.00	1.00	1.00	14	910	10	0	0	10	0
3HJW_D	-	1.00	1.00	1.00	16	593	5	0	0	5	0
3IAB_R	-	1.00	1.00	1.00	12	373	4	0	0	4	0
3ID5_D	-	0.54	0.60	0.50	3	223	7	1	2	4	2
3IVN_B	Purine links to Rfam database...	0.45	0.48	0.46	11	879	14	5	8	1	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.19	0.21	0.20	6	1442	24	5	19	0	22
3IZF_C	5S_rRNA links to Rfam database...	0.92	0.94	0.89	33	2603	10	0	4	6	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_2	-	0.25	0.27	0.25	7	2222	29	4	17	8	19
3J0L_g	-	-0.02	0.00	0.00	0	170	7	4	2	1	2
3J0L_7	-	-0.02	0.00	0.00	0	504	15	6	9	0	10
3J0L_h	-	0.98	0.97	1.00	31	2109	2	0	0	2	1
3J0L_1	-	0.88	0.85	0.92	11	472	5	0	1	4	2
3J0L_a	-	0.14	0.18	0.15	2	398	13	1	10	2	9
3J16_L	tRNA links to Rfam database...	0.54	0.57	0.52	12	1136	12	4	7	1	9
3J20_0	tRNA links to Rfam database...	0.66	0.71	0.63	15	1195	11	3	6	2	6
3J2L_3	5S_rRNA links to Rfam database...	0.77	0.79	0.75	27	2984	15	1	8	6	7
3J3D_C	tRNA links to Rfam database...	0.54	0.63	0.48	12	943	13	4	9	0	7
3J3E_8	5_8S_rRNA links to Rfam database...	0.15	0.20	0.12	3	2716	36	11	12	13	12
3J3E_7	5S_rRNA links to Rfam database...	0.55	0.56	0.54	19	2706	23	1	15	7	15
3J3F_7	5S_rRNA links to Rfam database...	0.88	0.89	0.86	32	2897	9	1	4	4	4
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.21	0.10	4	4720	51	17	20	14	15
3JYV_7	tRNA links to Rfam database...	0.25	0.30	0.24	6	1086	20	8	11	1	14
3JYX_3	5S_rRNA links to Rfam database...	0.46	0.67	0.32	10	2347	28	15	6	7	5
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.58	0.23	7	4725	37	19	5	13	5
3KTW_C	-	0.55	0.60	0.52	15	1751	20	4	10	6	10
3LA5_A	Purine links to Rfam database...	0.44	0.44	0.48	11	931	12	2	10	0	14
3NDB_M	-	0.29	0.30	0.30	13	3671	35	1	29	5	31
3NKB_B	-	0.68	0.74	0.64	14	713	8	2	6	0	5
3NMU_E	-	0.51	0.67	0.40	2	211	8	1	2	5	1
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.36	0.22	8	4727	39	14	15	10	14
3O58_2	5S_rRNA links to Rfam database...	0.25	0.29	0.23	9	2715	31	6	24	1	22
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3PDR_A	ykoK links to Rfam database...	0.78	0.80	0.77	40	4788	14	5	7	2	10
3R4F_A	-	0.95	0.95	0.95	21	884	4	0	1	3	1
3R9X_C	-	0.87	0.88	0.88	7	221	5	0	1	4	1
3RKF_A	Purine links to Rfam database...	0.89	0.88	0.91	21	843	3	0	2	1	3
3SD1_A	THF links to Rfam database...	0.43	0.45	0.43	13	1503	17	1	16	0	16
3SIU_F	-	0.53	0.63	0.50	5	135	5	2	3	0	3
3SN2_B	IRE_II links to Rfam database...	0.58	0.58	0.64	7	143	4	0	4	0	5
3TRZ_Z	-	-0.05	0.00	0.00	0	88	4	0	4	0	5
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	-0.05	0.00	0.00	0	102	7	0	6	1	5
3U4M_B	-	0.74	0.77	0.71	17	1252	10	1	6	3	5
3VJR_D	-	1.00	1.00	1.00	12	239	1	0	0	1	0
3ZEX_G	-	0.00	0.00	0.00	0	6493	14	6	8	0	45
3ZEX_F	-	0.00	0.00	0.00	0	909	22	0	5	17	4
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.27	10	5337	28	6	21	1	19
3ZEX_H	-	0.22	0.32	0.16	6	3588	36	15	16	5	13
3ZEX_D	5S_rRNA links to Rfam database...	0.23	0.26	0.23	9	2756	33	6	25	2	26
3ZND_W	tRNA links to Rfam database...	0.23	0.38	0.15	3	1171	26	9	8	9	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	45	12	19	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.86	0.86	32	2726	9	0	5	4	5
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4ATO_G	-	0.36	0.43	0.33	3	211	8	0	6	2	4
4ENB_A	crcB links to Rfam database...	0.78	0.73	0.85	11	459	4	0	2	2	4
4ENC_A	crcB links to Rfam database...	0.34	0.33	0.38	5	483	11	0	8	3	10
4FNJ_A	-	0.91	0.92	0.92	11	238	1	0	1	0	1
4FRG_B	AdoCbl-variant links to Rfam database...	0.35	0.38	0.35	9	1176	17	3	14	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.09	0.11	0.10	3	1818	28	2	25	1	25
4HXH_A	-	1.00	1.00	1.00	6	89	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.74	0.75	0.75	18	1058	7	1	5	1	6
4JRC_A	-	0.24	0.29	0.23	5	600	17	0	17	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

2. Individual counts for RNAsubopt [ download as .csv ]

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

2. Individual counts for MCFold [ download as .csv ]
