Overview

Metric	TurboFold(20)		MXScarna(20)
MCC	0.773	>	0.709
Average MCC ± 95% Confidence Intervals	0.771 ± 0.111	>	0.696 ± 0.132
Sensitivity	0.737	>	0.669
Positive Predictive Value	0.817	>	0.758
Total TP	272	>	247
Total TN	27987	<	27994
Total FP	90	<	126
Total FP CONTRA	15	<	25
Total FP INCONS	46	<	54
Total FP COMP	29	<	47
Total FN	97	<	122
P-value	2.8150742666e-08

^top

Performance plots

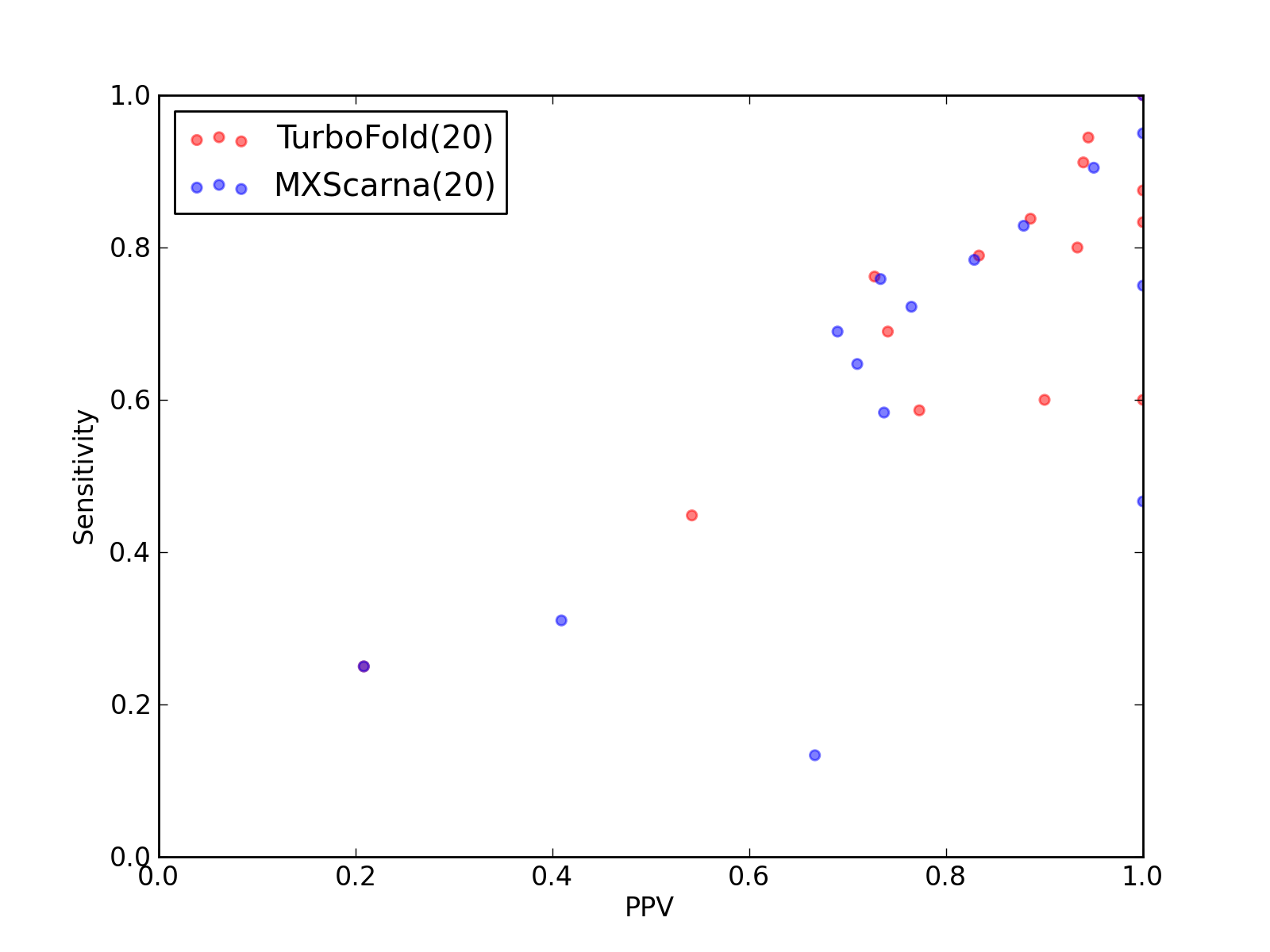

Comparison of performance of TurboFold(20) and MXScarna(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).
Comparison of performance of TurboFold(20) and MXScarna(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for TurboFold(20) and MXScarna(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for TurboFold(20) and MXScarna(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for TurboFold(20) and MXScarna(20)).

^top

Performance of TurboFold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for TurboFold(20)

Total Base Pair Counts
Total TP	272
Total TN	27987
Total FP	90
Total FP CONTRA	15
Total FP INCONS	46
Total FP COMP	29
Total FN	97

Total Scores
MCC	0.773
Average MCC ± 95% Confidence Intervals	0.771 ± 0.111
Sensitivity	0.737
Positive Predictive Value	0.817
Nr of predictions	15

^top

2. Individual counts for TurboFold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3J20_1	tRNA links to Rfam database...	1.00	1.00	1.00	20	1092	1	0	0	1	0
3J20_0	tRNA links to Rfam database...	0.74	0.76	0.73	16	1197	7	1	5	1	5
3J2L_3	5S_rRNA links to Rfam database...	0.92	0.91	0.94	31	2987	5	1	1	3	3
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.71	0.69	0.74	20	1506	7	2	5	0	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.45	0.54	13	5350	15	2	9	4	16
3ZEX_D	5S_rRNA links to Rfam database...	0.86	0.80	0.93	28	2766	6	0	2	4	7
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	6	0	4	2	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.21	5	4492	28	6	13	9	15
4AOB_A	SAM links to Rfam database...	0.67	0.59	0.77	17	1415	6	2	3	1	12
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.93	0.88	1.00	21	1181	0	0	0	0	3

^top

Performance of MXScarna(20) - scored lower in this pairwise comparison

1. Total counts & total scores for MXScarna(20)

Total Base Pair Counts
Total TP	247
Total TN	27994
Total FP	126
Total FP CONTRA	25
Total FP INCONS	54
Total FP COMP	47
Total FN	122

Total Scores
MCC	0.709
Average MCC ± 95% Confidence Intervals	0.696 ± 0.132
Sensitivity	0.669
Positive Predictive Value	0.758
Nr of predictions	15

^top

2. Individual counts for MXScarna(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.73	0.72	0.76	13	340	5	0	4	1	5
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	3	0	0	3	0
3J20_1	tRNA links to Rfam database...	0.97	0.95	1.00	19	1093	1	0	0	1	1
3J20_0	tRNA links to Rfam database...	0.93	0.90	0.95	19	1199	1	1	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.67	0.65	0.71	22	2989	11	3	6	2	12
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	6	2	1	7
3ZEX_C	5_8S_rRNA links to Rfam database...	0.35	0.31	0.41	9	5352	15	3	10	2	20
3ZEX_D	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2763	13	0	4	9	6
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	12	0	6	6	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.21	5	4492	36	8	11	17	15
4AOB_A	SAM links to Rfam database...	0.68	0.69	0.69	20	1408	13	2	7	4	9
4ENB_A	crcB links to Rfam database...	0.29	0.13	0.67	2	469	1	0	1	0	13
4ENC_A	crcB links to Rfam database...	0.68	0.47	1.00	7	489	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.65	0.58	0.74	14	1183	6	2	3	1	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
