Overview

Metric	UNAFold		RSpredict(seed)
MCC	0.649	>	0.449
Average MCC ± 95% Confidence Intervals	0.685 ± 0.074	>	0.254 ± 0.085
Sensitivity	0.670	>	0.304
Positive Predictive Value	0.631	<	0.667
Total TP	1271	>	577
Total TN	568223	<	569371
Total FP	1042	>	380
Total FP CONTRA	207	>	55
Total FP INCONS	535	>	233
Total FP COMP	300	>	92
Total FN	625	<	1319
P-value	3.56938820447e-08

^top

Performance plots

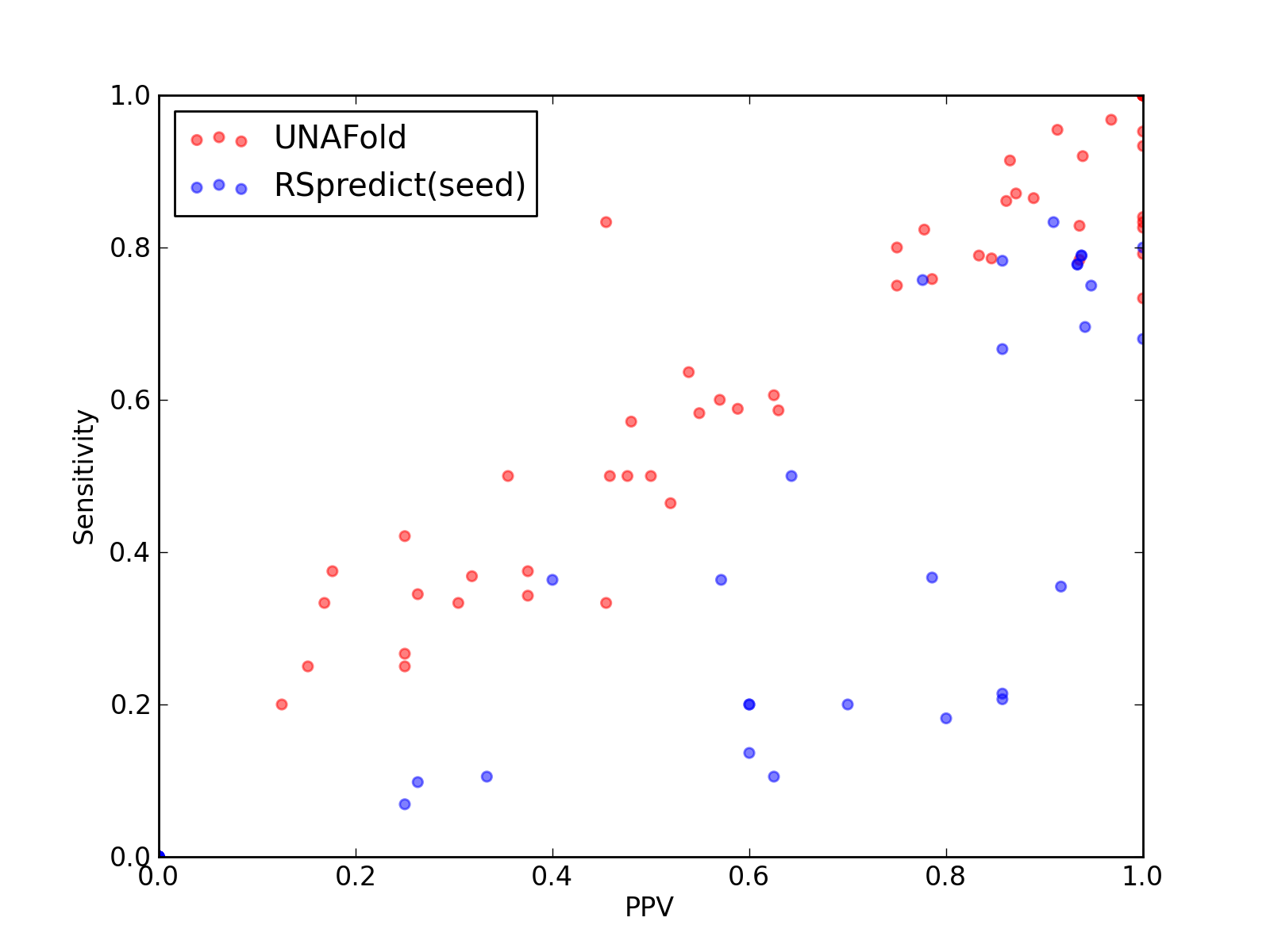

Comparison of performance of UNAFold and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and RSpredict(seed)).

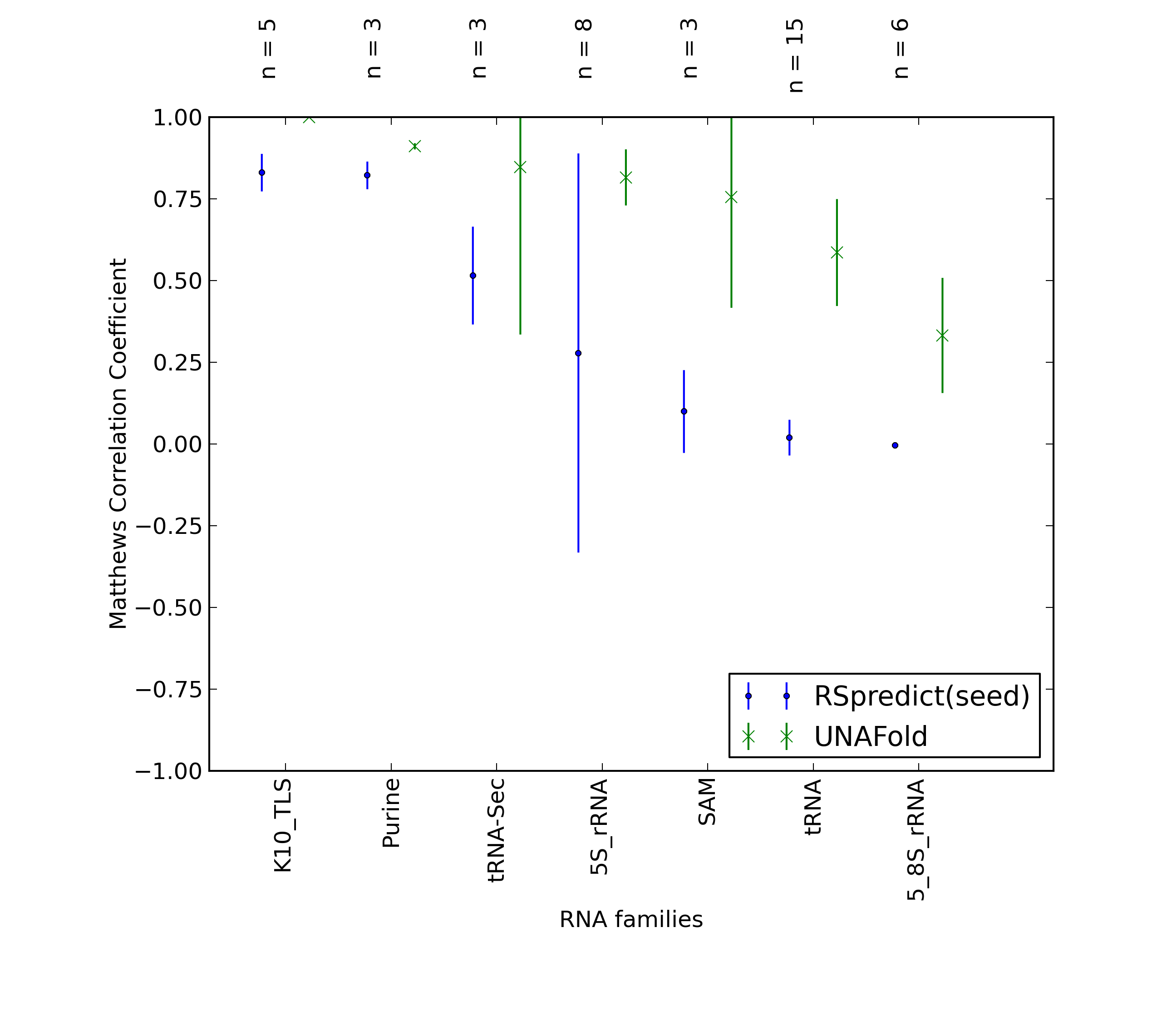

Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and RSpredict(seed)).

^top

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	1271
Total TN	568223
Total FP	1042
Total FP CONTRA	207
Total FP INCONS	535
Total FP COMP	300
Total FN	625

Total Scores
MCC	0.649
Average MCC ± 95% Confidence Intervals	0.685 ± 0.074
Sensitivity	0.670
Positive Predictive Value	0.631
Nr of predictions	61

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	3	0	0	3	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.58	0.64	0.54	7	1822	23	0	6	17	4
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2ZZM_B	tRNA links to Rfam database...	0.25	0.27	0.25	4	1342	20	3	9	8	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	96	46	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.58	0.60	0.57	57	25436	53	12	31	10	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J16_L	tRNA links to Rfam database...	0.31	0.33	0.30	7	1136	16	3	13	0	14
3J20_1	tRNA links to Rfam database...	0.75	0.75	0.75	15	1092	6	0	5	1	5
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.57	0.58	0.55	240	421931	250	36	161	53	172
3J2L_3	5S_rRNA links to Rfam database...	0.80	0.82	0.78	28	2984	12	1	7	4	6
3J3D_C	tRNA links to Rfam database...	0.33	0.37	0.32	7	946	15	3	12	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.15	0.20	0.13	3	2718	32	6	15	11	12
3J3E_7	5S_rRNA links to Rfam database...	0.58	0.59	0.59	20	2707	16	2	12	2	14
3J3F_7	5S_rRNA links to Rfam database...	0.86	0.86	0.86	31	2898	6	1	4	1	5
3J3F_8	5_8S_rRNA links to Rfam database...	0.32	0.42	0.25	8	4729	44	12	12	20	11
3JYV_7	tRNA links to Rfam database...	0.24	0.25	0.25	5	1091	16	7	8	1	15
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.61	0.61	0.63	20	1957	13	4	8	1	13
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
3ZEX_D	5S_rRNA links to Rfam database...	0.88	0.83	0.94	29	2765	6	0	2	4	6
3ZND_W	tRNA links to Rfam database...	0.25	0.38	0.18	3	1174	22	8	6	8	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.48	0.46	0.52	13	1823	12	2	10	0	15
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	577
Total TN	569371
Total FP	380
Total FP CONTRA	55
Total FP INCONS	233
Total FP COMP	92
Total FN	1319

Total Scores
MCC	0.449
Average MCC ± 95% Confidence Intervals	0.254 ± 0.085
Sensitivity	0.304
Positive Predictive Value	0.667
Nr of predictions	61

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2KE6_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	452	2	0	1	1	4
2KUR_A	K10_TLS links to Rfam database...	0.86	0.79	0.94	15	451	1	0	1	0	4
2KUU_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	432	2	0	1	1	4
2KUV_A	K10_TLS links to Rfam database...	0.85	0.79	0.94	15	423	1	0	1	0	4
2KUW_A	K10_TLS links to Rfam database...	0.75	0.67	0.86	12	456	3	0	2	1	6
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	370	1	0	1	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.81	0.78	0.86	18	742	3	0	3	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.87	0.83	0.91	20	769	2	0	2	0	4
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.64	9	343	6	0	5	1	9
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1150	3	1	1	1	9
2WWQ_V	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1199	6	0	5	1	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.40	4	1825	8	4	2	2	7
2XQD_Y	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1124	5	0	5	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.20	0.70	7	2035	3	0	3	0	28
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1358	4	0	0	4	15
2ZZN_D	tRNA links to Rfam database...	0.38	0.18	0.80	4	979	1	1	0	0	18
3A2K_C	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1106	2	0	2	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.53	0.37	0.79	11	1486	3	0	3	0	19
3AKZ_H	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1125	2	0	2	0	20
3AMU_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1155	2	0	2	0	19
3GX2_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1442	1	0	1	0	22
3IVN_B	Purine links to Rfam database...	0.81	0.70	0.94	16	886	1	1	0	0	7
3IYQ_A	tmRNA links to Rfam database...	0.16	0.10	0.26	5	22421	21	10	4	7	46
3IZ4_A	tmRNA links to Rfam database...	0.26	0.11	0.63	10	25520	7	2	4	1	85
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2635	5	0	5	0	35
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1158	1	0	1	0	21
3J20_1	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1108	5	0	4	1	20
3J20_0	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1215	4	0	4	0	21
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.77	0.76	0.78	312	421966	152	18	72	62	100
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	3015	5	0	5	0	34
3J3D_C	tRNA links to Rfam database...	-0.01	0.00	0.00	0	964	4	1	3	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3E_7	5S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	2733	8	1	7	0	34
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2930	4	1	3	0	36
3J3F_8	5_8S_rRNA links to Rfam database...	0.19	0.11	0.33	2	4755	5	3	1	1	17
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1108	4	0	3	1	20
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2373	5	1	4	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4754	5	0	2	3	12
3LA5_A	Purine links to Rfam database...	0.82	0.68	1.00	17	937	0	0	0	0	8
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2274	4	0	4	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.14	0.60	3	4759	2	0	2	0	19
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2751	3	0	3	0	31
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4832	8	0	8	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.75	0.95	18	847	1	1	0	0	6
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3UZL_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1287	6	3	3	0	16
3W1K_J	tRNA-Sec links to Rfam database...	0.57	0.35	0.92	11	1666	1	0	1	0	20
3W3S_B	tRNA-Sec links to Rfam database...	0.45	0.36	0.57	12	1968	10	1	8	1	21
3ZEX_C	5_8S_rRNA links to Rfam database...	0.13	0.07	0.25	2	5366	6	2	4	0	27
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2794	2	0	2	0	35
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	1189	4	0	2	2	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4512	5	2	2	1	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2759	4	2	2	0	37
4AOB_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1430	1	0	1	0	23
4ENB_A	crcB links to Rfam database...	0.34	0.20	0.60	3	467	2	0	2	0	12
4ENC_A	crcB links to Rfam database...	0.34	0.20	0.60	3	491	2	0	2	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	-0.01	0.00	0.00	0	1200	2	0	2	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1845	3	0	3	0	28
4JF2_A	preQ1-II links to Rfam database...	-0.01	0.00	0.00	0	1078	4	0	4	0	24

^top
