Metric	CentroidAlifold(20)		Afold
MCC	0.635	>	0.511
Average MCC ± 95% Confidence Intervals	0.614 ± 0.105	>	0.528 ± 0.126
Sensitivity	0.476	>	0.467
Positive Predictive Value	0.850	>	0.564
Total TP	351	>	344
Total TN	172013	>	171816
Total FP	90	<	335
Total FP CONTRA	13	<	41
Total FP INCONS	49	<	225
Total FP COMP	28	<	69
Total FN	386	<	393
P-value	3.33194562506e-08

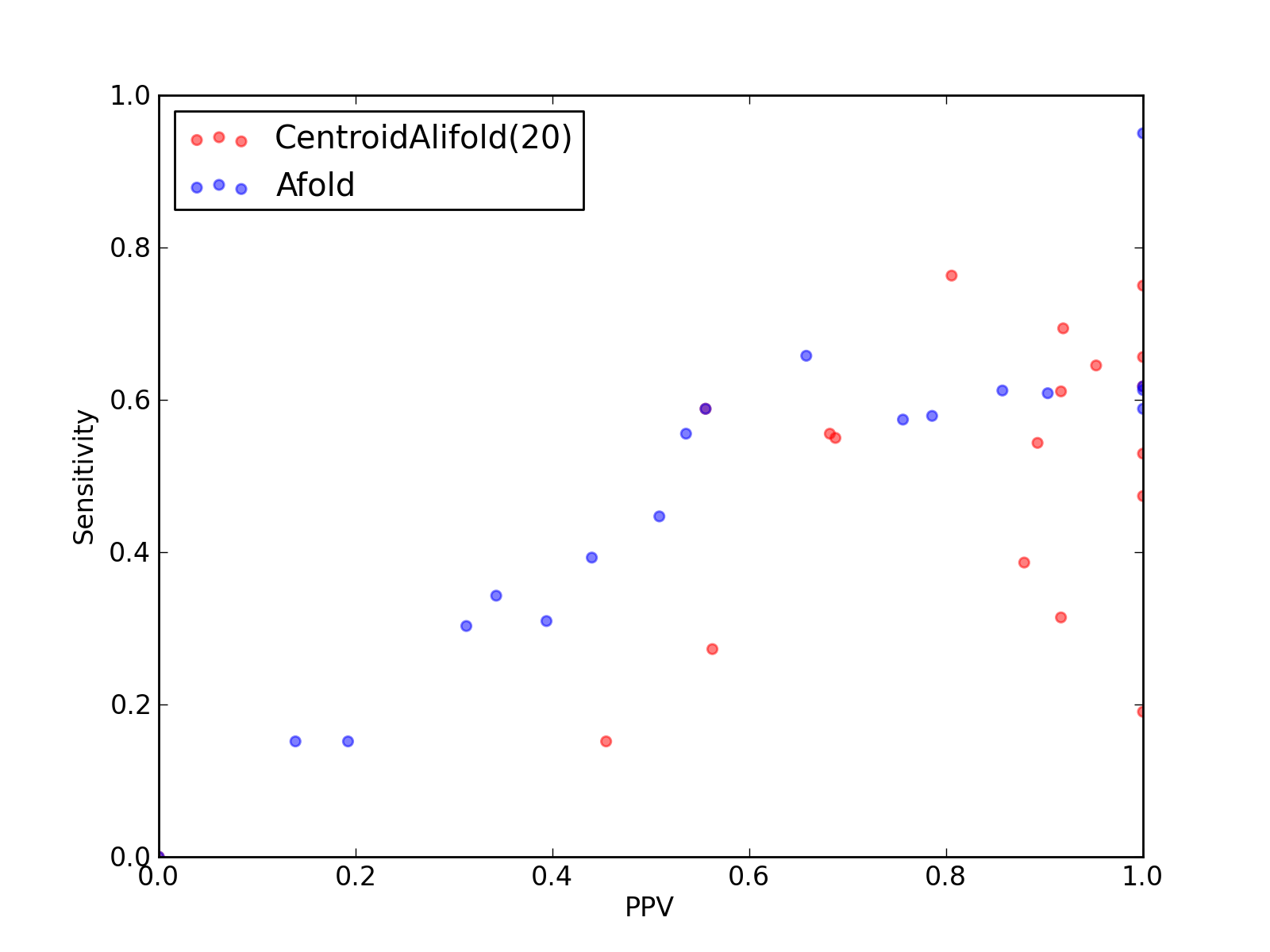

Comparison of performance of CentroidAlifold(20) and Afold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and Afold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and Afold).

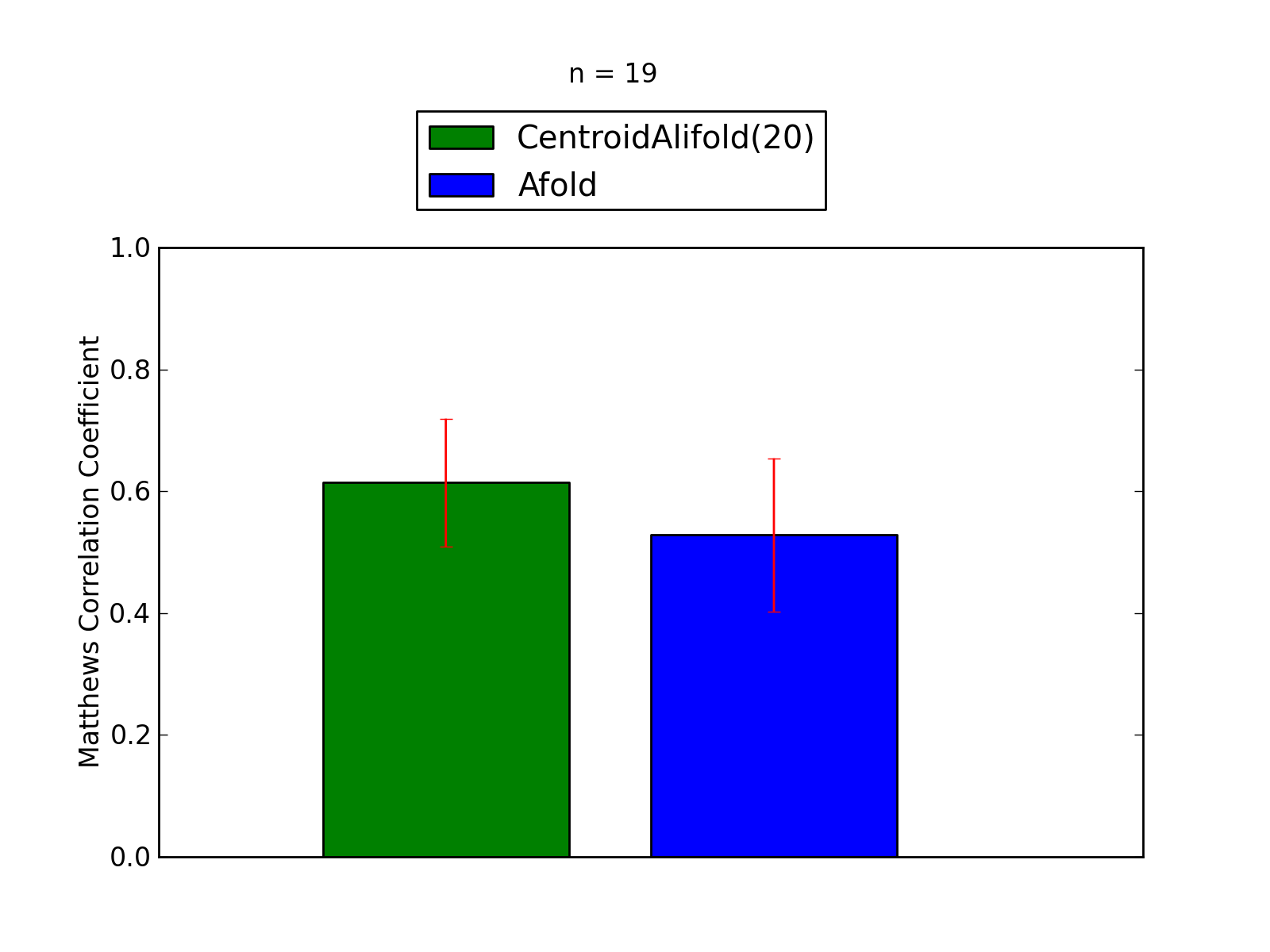

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and Afold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and Afold).

Total Scores
MCC	0.635
Average MCC ± 95% Confidence Intervals	0.614 ± 0.105
Sensitivity	0.476
Positive Predictive Value	0.850
Nr of predictions	19

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.61	0.55	0.69	11	974	5	0	5	0	9
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	8	5143	3	0	0	3	34
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	3	4	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	4	0	3	1	21
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7499	4	0	4	0	33
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.39	0.27	0.56	9	12230	9	0	7	2	24
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	20	0	7	13	12
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.70	0.54	0.89	25	6993	5	1	2	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.31	0.92	11	12391	1	0	1	0	24
3O58_2	5S_rRNA links to Rfam database...	0.78	0.76	0.81	29	7224	9	2	5	2	9
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
4A1C_2	5_8S_rRNA links to Rfam database...	0.26	0.15	0.45	5	11770	8	1	5	2	28
4ENB_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1266	0	0	0	0	10

Total Scores
MCC	0.511
Average MCC ± 95% Confidence Intervals	0.528 ± 0.126
Sensitivity	0.467
Positive Predictive Value	0.564
Nr of predictions	19

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.31	0.39	13	5118	20	1	19	0	29
3A2K_C	tRNA links to Rfam database...	0.41	0.39	0.44	11	2901	14	2	12	0	17
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.48	0.45	0.51	59	70760	58	11	46	1	73
3IZF_C	5S_rRNA links to Rfam database...	0.66	0.57	0.76	31	6862	10	1	9	0	23
3J3E_8	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	7477	31	2	19	10	28
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2827	23	1	22	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3JYX_3	5S_rRNA links to Rfam database...	0.54	0.56	0.54	15	6300	24	1	12	11	12
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.74	0.61	0.90	28	6990	5	0	3	2	18
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3O58_2	5S_rRNA links to Rfam database...	0.66	0.66	0.66	25	7222	14	4	9	1	13
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.61	0.86	30	6986	5	0	5	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	43	5	26	12	28
4ENB_A	crcB links to Rfam database...	0.67	0.58	0.79	11	1261	3	1	2	0	8

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
