Overview

Metric	CentroidAlifold(20)		Carnac(20)
MCC	0.673	>	0.579
Average MCC ± 95% Confidence Intervals	0.657 ± 0.063	>	0.535 ± 0.078
Sensitivity	0.516	>	0.374
Positive Predictive Value	0.879	<	0.899
Total TP	784	>	568
Total TN	286729	<	286989
Total FP	154	>	91
Total FP CONTRA	16	>	8
Total FP INCONS	92	>	56
Total FP COMP	46	>	27
Total FN	734	<	950
P-value	3.56938820447e-08

^top

Performance plots

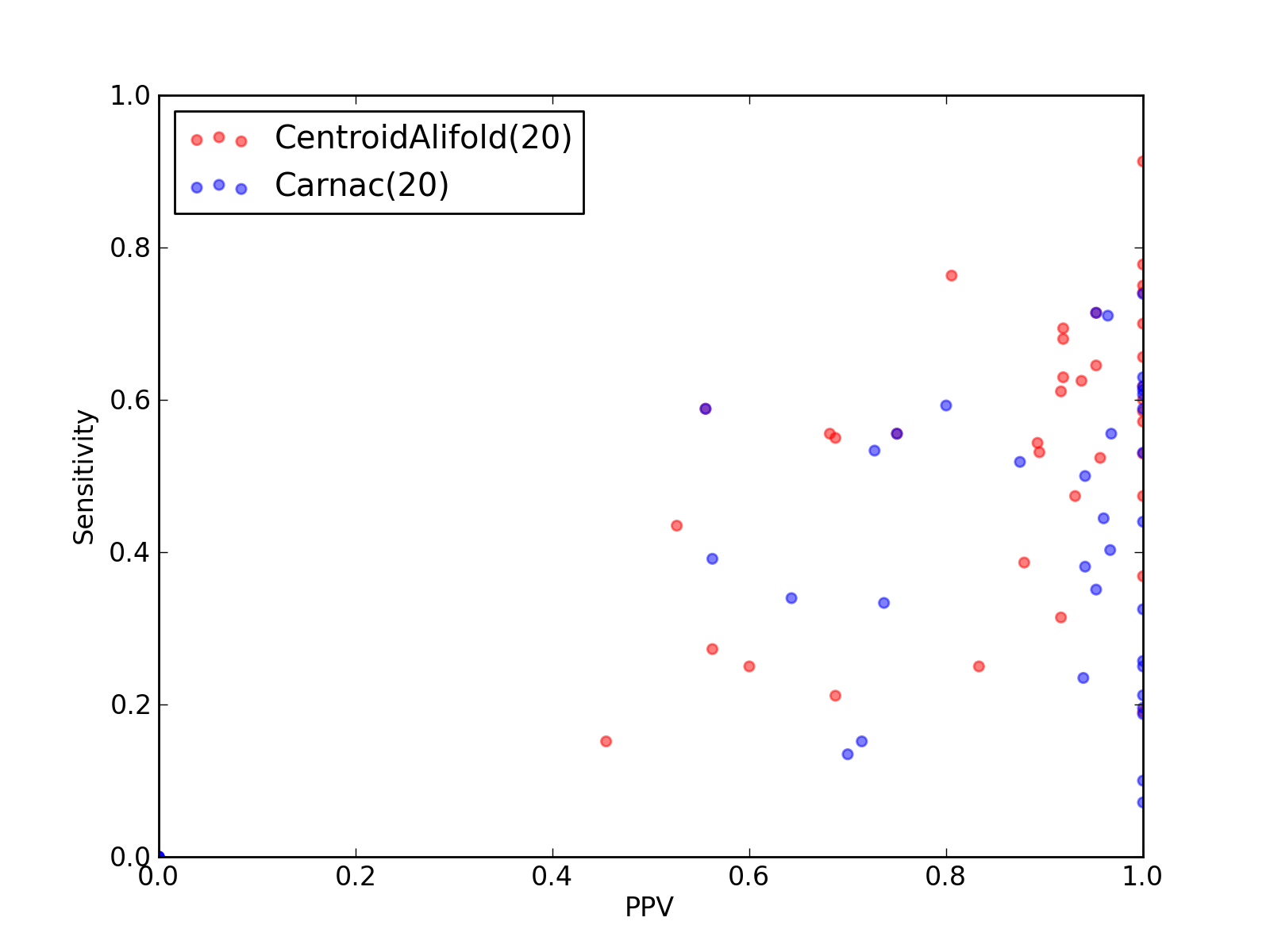

Comparison of performance of CentroidAlifold(20) and Carnac(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and Carnac(20)).

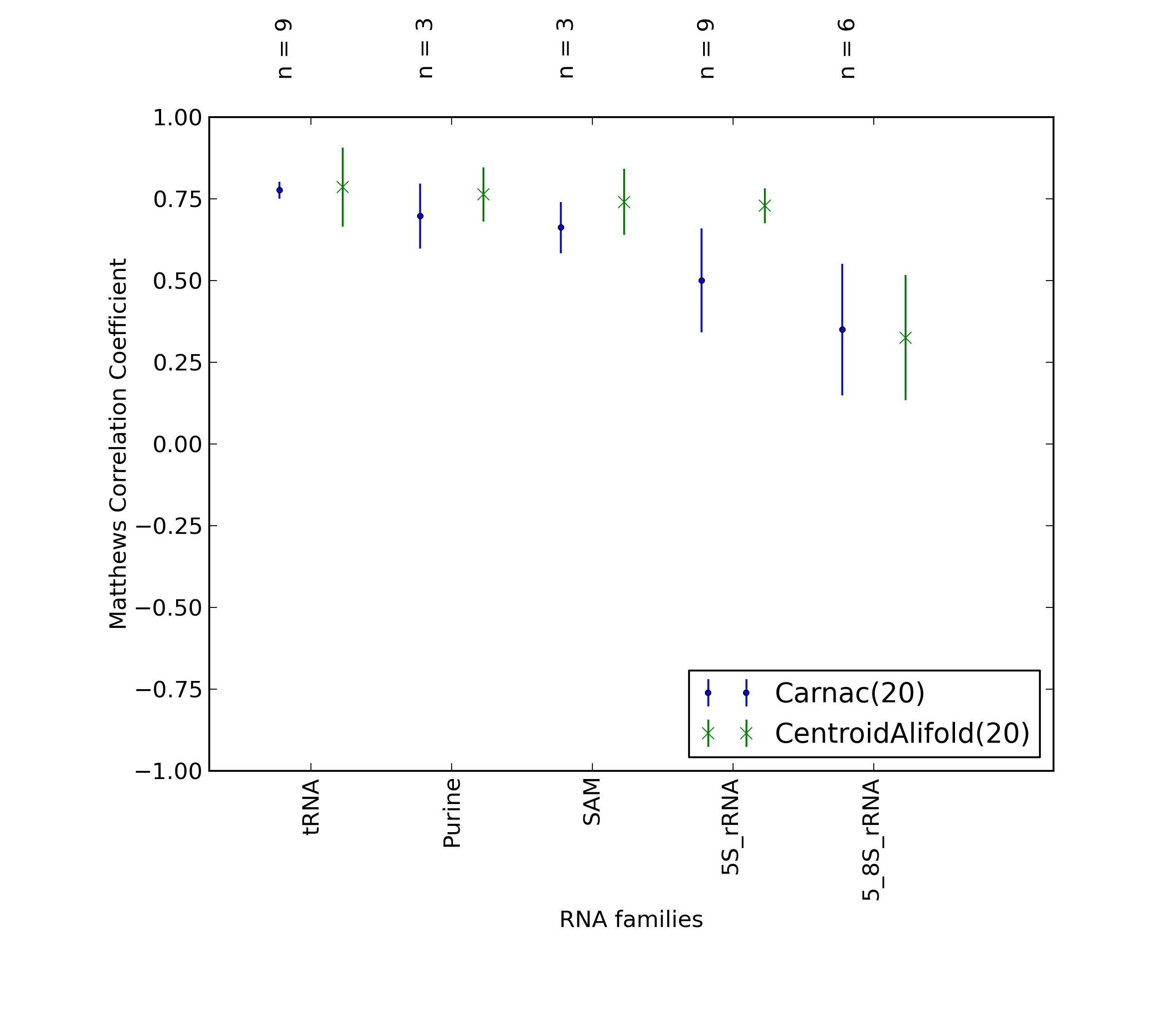

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and Carnac(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and Carnac(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and Carnac(20)).

^top

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

Total Base Pair Counts
Total TP	784
Total TN	286729
Total FP	154
Total FP CONTRA	16
Total FP INCONS	92
Total FP COMP	46
Total FN	734

Total Scores
MCC	0.673
Average MCC ± 95% Confidence Intervals	0.657 ± 0.063
Sensitivity	0.516
Positive Predictive Value	0.879
Nr of predictions	39

^top

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.61	0.55	0.69	11	974	5	0	5	0	9
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.46	0.25	0.83	5	4554	6	0	1	5	15
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	8	5143	3	0	0	3	34
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	1	0	0	1	7
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	3	4	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	4	0	3	1	21
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.76	0.58	1.00	31	7844	2	0	0	2	22
3J3D_C	tRNA links to Rfam database...	0.82	0.71	0.95	20	2754	1	0	1	0	8
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7499	4	0	4	0	33
3J3E_7	5S_rRNA links to Rfam database...	0.64	0.56	0.75	30	7100	10	0	10	0	24
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.25	0.60	9	12231	6	1	5	0	27
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.68	0.92	34	7223	4	0	3	1	16
3J3V_B	5S_rRNA links to Rfam database...	0.66	0.47	0.93	27	6992	2	0	2	0	30
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	20	0	7	13	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.39	0.27	0.56	9	12230	9	0	7	2	24
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.70	0.54	0.89	25	6993	5	1	2	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.31	0.92	11	12391	1	0	1	0	24
3O58_2	5S_rRNA links to Rfam database...	0.78	0.76	0.81	29	7224	9	2	5	2	9
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.21	0.69	11	14180	5	1	4	0	41
3ZND_W	tRNA links to Rfam database...	0.47	0.43	0.53	10	2984	12	0	9	3	13
4A1C_3	5S_rRNA links to Rfam database...	0.76	0.63	0.92	34	7103	4	0	3	1	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.26	0.15	0.45	5	11770	8	1	5	2	28
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1266	0	0	0	0	10
4ENC_A	crcB links to Rfam database...	0.60	0.37	1.00	7	1319	0	0	0	0	12
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15

^top

Performance of Carnac(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	568
Total TN	286989
Total FP	91
Total FP CONTRA	8
Total FP INCONS	56
Total FP COMP	27
Total FN	950

Total Scores
MCC	0.579
Average MCC ± 95% Confidence Intervals	0.535 ± 0.078
Sensitivity	0.374
Positive Predictive Value	0.899
Nr of predictions	39

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.32	0.10	1.00	2	4558	1	0	0	1	18
2XQD_Y	tRNA links to Rfam database...	0.79	0.63	1.00	17	2833	0	0	0	0	10
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.07	1.00	3	5148	0	0	0	0	39
3A2K_C	tRNA links to Rfam database...	0.78	0.61	1.00	17	2909	0	0	0	0	11
3AMU_B	tRNA links to Rfam database...	0.69	0.59	0.80	16	2983	6	0	4	2	11
3GX2_A	SAM links to Rfam database...	0.57	0.33	1.00	13	4358	0	0	0	0	27
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.47	0.23	0.94	31	70843	2	0	2	0	101
3IZF_C	5S_rRNA links to Rfam database...	0.73	0.56	0.97	30	6872	1	0	1	0	24
3J20_0	tRNA links to Rfam database...	0.62	0.53	0.73	16	2828	7	0	6	1	14
3J20_1	tRNA links to Rfam database...	0.86	0.74	1.00	17	2909	0	0	0	0	6
3J2L_3	5S_rRNA links to Rfam database...	0.46	0.34	0.64	18	7847	11	0	10	1	35
3J3D_C	tRNA links to Rfam database...	0.82	0.71	0.95	20	2754	1	0	1	0	8
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3E_7	5S_rRNA links to Rfam database...	0.65	0.44	0.96	24	7115	1	0	1	0	30
3J3F_8	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	9	12237	0	0	0	0	27
3J3F_7	5S_rRNA links to Rfam database...	0.66	0.44	1.00	22	7238	0	0	0	0	28
3J3V_B	5S_rRNA links to Rfam database...	0.58	0.35	0.95	20	7000	1	0	1	0	37
3JYV_7	tRNA links to Rfam database...	0.68	0.50	0.94	16	2833	1	0	1	0	16
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.56	0.75	15	6308	10	1	4	5	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.44	0.20	1.00	9	7012	2	0	0	2	37
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3PDR_A	ykoK links to Rfam database...	0.62	0.40	0.97	29	12850	3	0	1	2	43
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.60	0.38	0.94	16	3899	1	0	1	0	26
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.53	1.00	26	6995	0	0	0	0	23
3ZEX_C	5_8S_rRNA links to Rfam database...	0.31	0.13	0.70	7	14186	3	1	2	0	45
3ZND_W	tRNA links to Rfam database...	0.47	0.39	0.56	9	2987	10	0	7	3	14
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.52	0.88	28	7108	4	0	4	0	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.15	0.71	5	11774	3	0	2	1	28
4AOB_A	SAM links to Rfam database...	0.49	0.33	0.74	14	4352	6	1	4	1	28
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.43	0.19	1.00	6	3480	0	0	0	0	26

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
