Overview

Metric	CentroidAlifold(seed)		ProbKnot
MCC	0.631	>	0.544
Average MCC ± 95% Confidence Intervals	0.561 ± 0.064	<	0.578 ± 0.078
Sensitivity	0.448	<	0.486
Positive Predictive Value	0.890	>	0.611
Total TP	1043	<	1132
Total TN	1460150	>	1459469
Total FP	166	<	819
Total FP CONTRA	22	<	90
Total FP INCONS	107	<	631
Total FP COMP	37	<	98
Total FN	1287	>	1198
P-value	3.56938820447e-08

^top

Performance plots

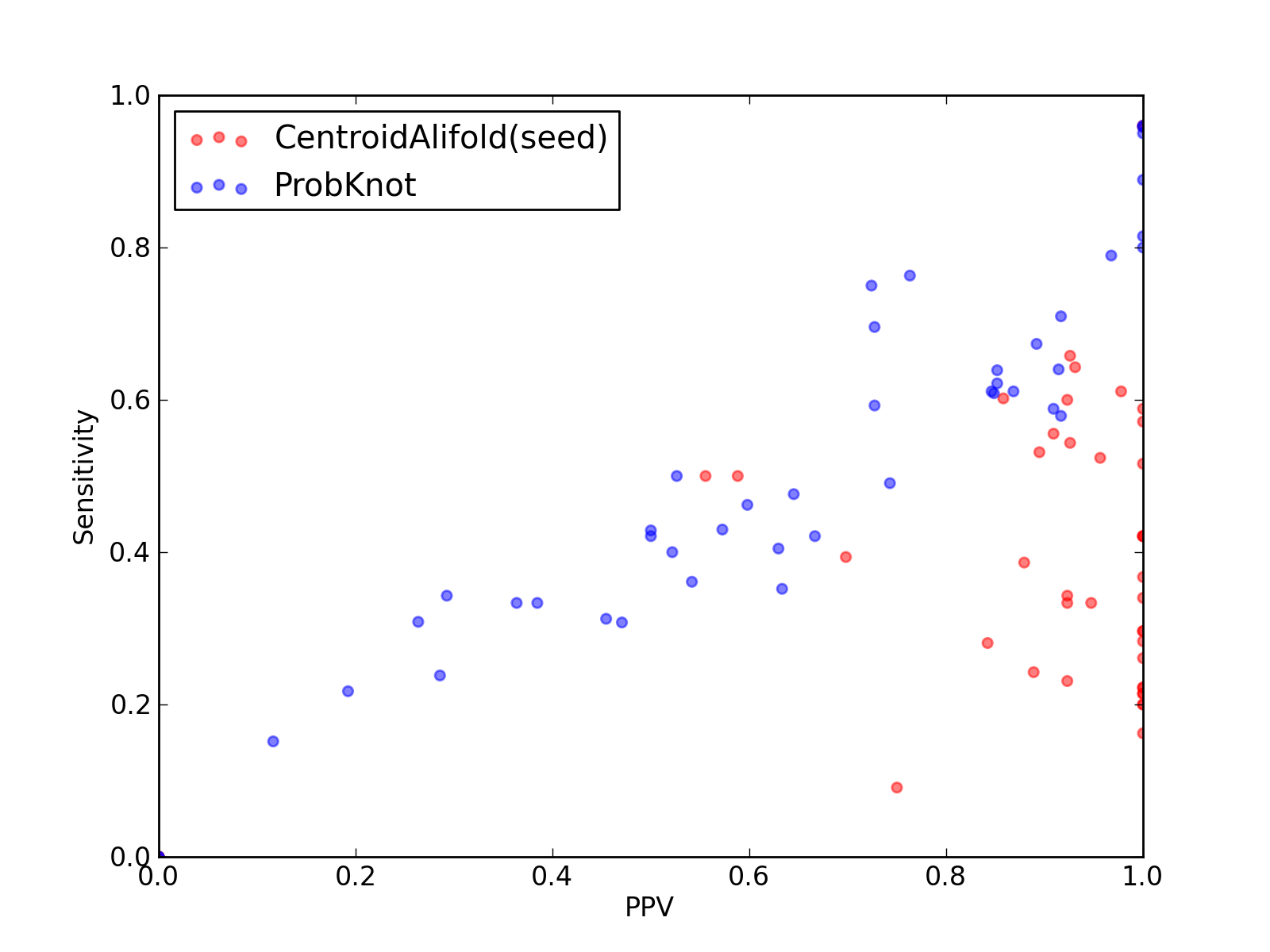

Comparison of performance of CentroidAlifold(seed) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	1043
Total TN	1460150
Total FP	166
Total FP CONTRA	22
Total FP INCONS	107
Total FP COMP	37
Total FN	1287

Total Scores
MCC	0.631
Average MCC ± 95% Confidence Intervals	0.561 ± 0.064
Sensitivity	0.448
Positive Predictive Value	0.890
Nr of predictions	44

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.53	0.50	0.56	10	4542	20	0	8	12	10
2XQD_Y	tRNA links to Rfam database...	0.47	0.22	1.00	6	2844	0	0	0	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.77	0.64	0.93	27	5122	3	0	2	1	15
3AKZ_H	tRNA links to Rfam database...	0.46	0.21	1.00	6	2695	0	0	0	0	22
3AMU_B	tRNA links to Rfam database...	0.47	0.22	1.00	6	2997	0	0	0	0	21
3IYQ_A	tmRNA links to Rfam database...	0.52	0.39	0.70	37	60673	21	10	6	5	57
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	2	5	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	6887	0	0	0	0	38
3J16_L	tRNA links to Rfam database...	0.45	0.20	1.00	6	2769	0	0	0	0	24
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.72	0.60	0.86	381	1116321	70	5	58	7	252
3J20_1	tRNA links to Rfam database...	0.51	0.26	1.00	6	2920	0	0	0	0	17
3J20_0	tRNA links to Rfam database...	0.45	0.20	1.00	6	2844	0	0	0	0	24
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.28	1.00	15	7860	2	0	0	2	38
3J3D_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2769	0	0	0	0	22
3J3E_7	5S_rRNA links to Rfam database...	0.56	0.33	0.95	18	7121	1	0	1	0	36
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3J3F_8	5_8S_rRNA links to Rfam database...	0.55	0.33	0.92	12	12233	1	0	1	0	24
3J3F_7	5S_rRNA links to Rfam database...	0.58	0.34	1.00	17	7243	1	0	0	1	33
3J3V_B	5S_rRNA links to Rfam database...	0.48	0.28	0.84	16	7002	3	0	3	0	41
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_2	5S_rRNA links to Rfam database...	0.65	0.42	1.00	16	7244	0	0	0	0	22
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3PDR_A	ykoK links to Rfam database...	0.77	0.61	0.98	44	12835	3	0	1	2	28
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3UZL_B	tRNA links to Rfam database...	0.40	0.16	1.00	6	3564	0	0	0	0	31
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.66	0.93	25	4159	2	1	1	0	13
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.46	0.23	0.92	12	14183	1	1	0	0	40
3ZEX_D	5S_rRNA links to Rfam database...	0.60	0.37	1.00	18	7003	0	0	0	0	31
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	2998	6	0	5	1	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4A1C_3	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	7124	0	0	0	0	38
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.56	0.91	20	5129	2	1	1	0	16
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1132
Total TN	1459469
Total FP	819
Total FP CONTRA	90
Total FP INCONS	631
Total FP COMP	98
Total FN	1198

Total Scores
MCC	0.544
Average MCC ± 95% Confidence Intervals	0.578 ± 0.078
Sensitivity	0.486
Positive Predictive Value	0.611
Nr of predictions	44

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.26	0.24	0.29	10	5116	25	1	24	0	32
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60616	85	22	59	4	65
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.50	0.43	0.57	272	1116290	208	11	192	5	361
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7476	37	3	24	10	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.36	12	12213	35	3	18	14	24
3J3F_7	5S_rRNA links to Rfam database...	0.76	0.64	0.91	32	7225	3	0	3	0	18
3J3V_B	5S_rRNA links to Rfam database...	0.53	0.42	0.67	24	6985	12	1	11	0	33
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3UZL_B	tRNA links to Rfam database...	0.73	0.62	0.85	23	3543	4	0	4	0	14
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	24	1	20	3	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.44	0.36	0.54	13	5127	11	2	9	0	23
4JF2_A	preQ1-II links to Rfam database...	0.80	0.71	0.92	22	2826	2	2	0	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
