Overview

Metric	CentroidAlifold(seed)		Vsfold5
MCC	0.592	>	0.468
Average MCC ± 95% Confidence Intervals	0.555 ± 0.056	>	0.519 ± 0.084
Sensitivity	0.396	<	0.405
Positive Predictive Value	0.888	>	0.547
Total TP	823	<	841
Total TN	379842	>	379232
Total FP	144	<	781
Total FP CONTRA	16	<	90
Total FP INCONS	88	<	606
Total FP COMP	40	<	85
Total FN	1254	>	1236
P-value	3.56938820447e-08

^top

Performance plots

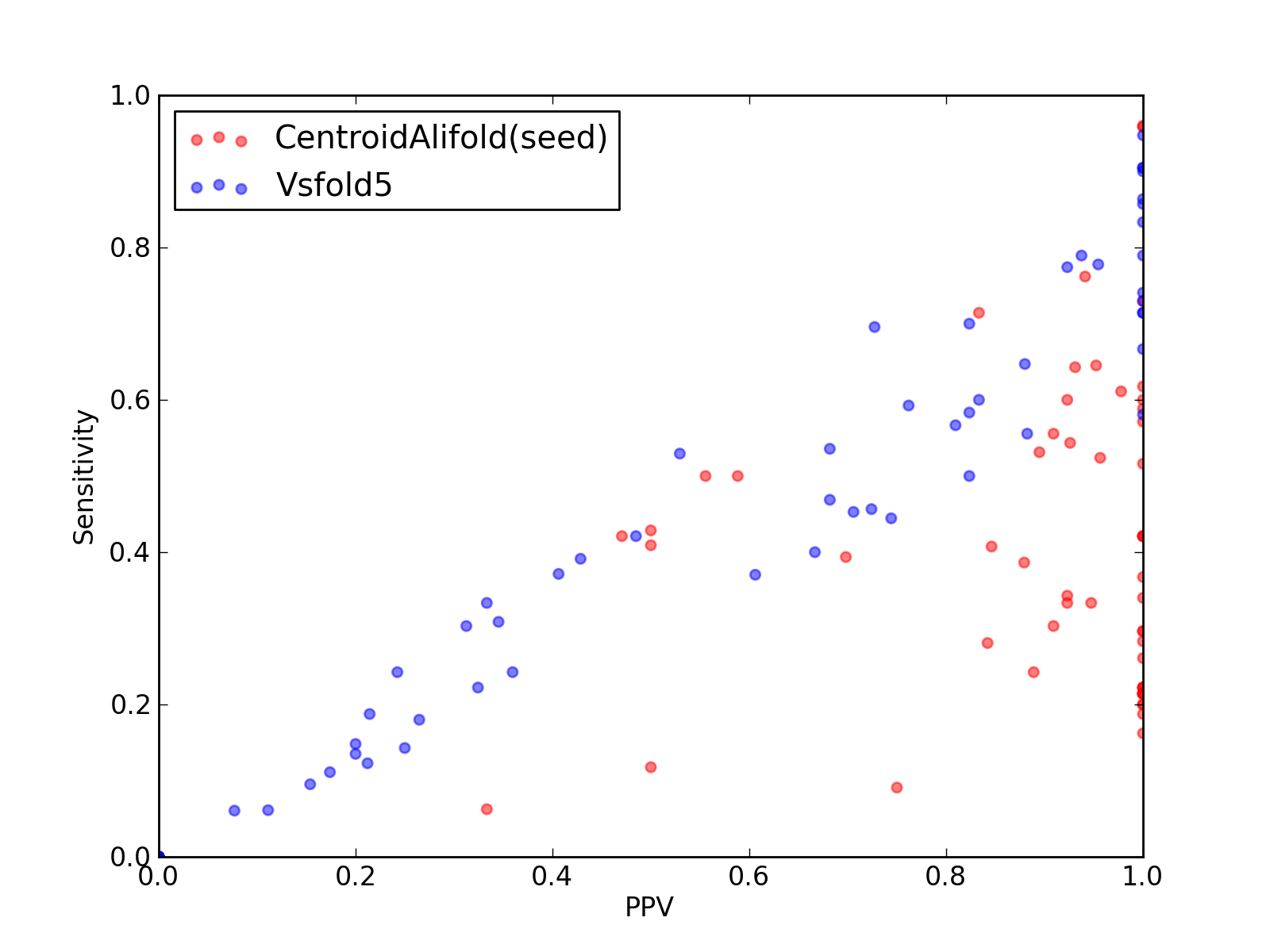

Comparison of performance of CentroidAlifold(seed) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Vsfold5).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Vsfold5).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Vsfold5).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	823
Total TN	379842
Total FP	144
Total FP CONTRA	16
Total FP INCONS	88
Total FP COMP	40
Total FN	1254

Total Scores
MCC	0.592
Average MCC ± 95% Confidence Intervals	0.555 ± 0.056
Sensitivity	0.396
Positive Predictive Value	0.888
Nr of predictions	58

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.44	0.42	0.47	8	1111	10	0	9	1	11
2KUR_A	K10_TLS links to Rfam database...	0.77	0.71	0.83	15	1110	3	0	3	0	6
2KUU_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	2	0	1	1	5
2KUV_A	K10_TLS links to Rfam database...	0.44	0.41	0.50	9	1110	9	0	9	0	13
2KUW_A	K10_TLS links to Rfam database...	0.45	0.43	0.50	9	1110	9	0	9	0	12
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2WRQ_Y	tRNA links to Rfam database...	0.24	0.12	0.50	2	2846	4	0	2	2	15
2WWQ_V	tRNA links to Rfam database...	0.46	0.21	1.00	6	2920	0	0	0	0	22
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.53	0.50	0.56	10	4542	20	0	8	12	10
2XQD_Y	tRNA links to Rfam database...	0.47	0.22	1.00	6	2844	0	0	0	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.77	0.64	0.93	27	5122	3	0	2	1	15
2ZZM_B	tRNA links to Rfam database...	0.14	0.06	0.33	2	3480	4	0	4	0	30
2ZZN_D	tRNA links to Rfam database...	0.47	0.22	1.00	6	2479	0	0	0	0	21
3A2K_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2920	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3AKZ_H	tRNA links to Rfam database...	0.46	0.21	1.00	6	2695	0	0	0	0	22
3AMU_B	tRNA links to Rfam database...	0.47	0.22	1.00	6	2997	0	0	0	0	21
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IYQ_A	tmRNA links to Rfam database...	0.52	0.39	0.70	37	60673	21	10	6	5	57
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	2	5	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	6887	0	0	0	0	38
3J16_L	tRNA links to Rfam database...	0.45	0.20	1.00	6	2769	0	0	0	0	24
3J20_1	tRNA links to Rfam database...	0.51	0.26	1.00	6	2920	0	0	0	0	17
3J20_0	tRNA links to Rfam database...	0.45	0.20	1.00	6	2844	0	0	0	0	24
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.28	1.00	15	7860	2	0	0	2	38
3J3D_C	tRNA links to Rfam database...	0.46	0.21	1.00	6	2769	0	0	0	0	22
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.09	0.75	3	7499	1	0	1	0	30
3J3E_7	5S_rRNA links to Rfam database...	0.56	0.33	0.95	18	7121	1	0	1	0	36
3J3F_8	5_8S_rRNA links to Rfam database...	0.55	0.33	0.92	12	12233	1	0	1	0	24
3J3F_7	5S_rRNA links to Rfam database...	0.58	0.34	1.00	17	7243	1	0	0	1	33
3J3V_B	5S_rRNA links to Rfam database...	0.48	0.28	0.84	16	7002	3	0	3	0	41
3JYV_7	tRNA links to Rfam database...	0.43	0.19	1.00	6	2844	0	0	0	0	26
3JYX_4	5_8S_rRNA links to Rfam database...	0.52	0.30	0.91	10	12235	3	0	1	2	23
3JYX_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	11	6315	5	0	2	3	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_2	5S_rRNA links to Rfam database...	0.65	0.42	1.00	16	7244	0	0	0	0	22
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3PDR_A	ykoK links to Rfam database...	0.77	0.61	0.98	44	12835	3	0	1	2	28
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
3UZL_B	tRNA links to Rfam database...	0.40	0.16	1.00	6	3564	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.60	0.92	24	4727	3	0	2	1	16
3ZEX_D	5S_rRNA links to Rfam database...	0.60	0.37	1.00	18	7003	0	0	0	0	31
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	2998	6	0	5	1	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4A1C_3	5S_rRNA links to Rfam database...	0.54	0.30	1.00	16	7124	0	0	0	0	38
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.53	0.89	17	3467	2	1	1	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.56	0.91	20	5129	2	1	1	0	16
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	841
Total TN	379232
Total FP	781
Total FP CONTRA	90
Total FP INCONS	606
Total FP COMP	85
Total FN	1236

Total Scores
MCC	0.468
Average MCC ± 95% Confidence Intervals	0.519 ± 0.084
Sensitivity	0.405
Positive Predictive Value	0.547
Nr of predictions	58

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2L1F_A	Gammaretro_CES links to Rfam database...	0.69	0.58	0.82	14	2063	3	0	3	0	10
2L1F_B	Gammaretro_CES links to Rfam database...	0.70	0.60	0.83	15	2127	3	0	3	0	10
2L94_A	HIV_FE links to Rfam database...	0.95	0.90	1.00	18	972	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	4528	32	12	20	0	20
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5120	31	2	29	0	42
2ZZM_B	tRNA links to Rfam database...	0.19	0.19	0.21	6	3458	22	1	21	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3AKZ_H	tRNA links to Rfam database...	0.84	0.71	1.00	20	2681	0	0	0	0	8
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3GX2_A	SAM links to Rfam database...	0.51	0.40	0.67	16	4347	9	0	8	1	24
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IYQ_A	tmRNA links to Rfam database...	0.33	0.31	0.35	29	60642	61	15	40	6	65
3IZ4_A	tmRNA links to Rfam database...	0.29	0.24	0.36	32	70787	62	8	49	5	100
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.56	0.88	30	6869	4	0	4	0	24
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.67	0.57	0.81	17	2829	5	1	3	1	13
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.45	0.71	24	7841	13	1	9	3	29
3J3D_C	tRNA links to Rfam database...	0.60	0.54	0.68	15	2753	7	0	7	0	13
3J3E_8	5_8S_rRNA links to Rfam database...	0.06	0.06	0.08	2	7477	31	5	19	7	31
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.37	0.61	20	7107	13	0	13	0	34
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	35	5	19	11	24
3J3F_7	5S_rRNA links to Rfam database...	0.21	0.18	0.26	9	7226	25	1	24	0	41
3J3V_B	5S_rRNA links to Rfam database...	0.16	0.12	0.21	7	6988	26	1	25	0	50
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	32	3	19	10	23
3JYX_3	5S_rRNA links to Rfam database...	0.17	0.15	0.20	4	6308	18	4	12	2	23
3LA5_A	Purine links to Rfam database...	-0.01	0.00	0.00	0	2469	16	0	16	0	34
3NPB_A	SAM links to Rfam database...	0.57	0.46	0.72	21	6992	9	1	7	1	25
3O58_2	5S_rRNA links to Rfam database...	0.45	0.42	0.48	16	7227	19	3	14	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.37	0.41	13	12371	28	7	12	9	22
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.75	0.65	0.88	22	2186	3	0	3	0	12
3SD1_A	THF links to Rfam database...	0.11	0.10	0.15	4	3890	22	0	22	0	38
3UZL_B	tRNA links to Rfam database...	0.16	0.14	0.20	5	3545	20	1	19	0	32
3W3S_B	tRNA-Sec links to Rfam database...	0.76	0.70	0.82	28	4719	7	1	5	1	12
3ZEX_D	5S_rRNA links to Rfam database...	0.08	0.06	0.11	3	6994	24	0	24	0	46
3ZND_W	tRNA links to Rfam database...	0.41	0.39	0.43	9	2982	14	2	10	2	14
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.24	8	11748	37	3	22	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4AOB_A	SAM links to Rfam database...	0.18	0.14	0.25	6	4347	19	1	17	1	36
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4FRN_A	AdoCbl-variant links to Rfam database...	0.13	0.11	0.17	4	5128	19	2	17	0	32
4JF2_A	preQ1-II links to Rfam database...	0.84	0.77	0.92	24	2824	2	1	1	0	7

^top
